How To Choose The Right Ball Valve for High-Pressure Applications

Ball valves are among the most commonly used components in fluid control systems due to their straightforward operation, compact design, and reliable sealing capabilities. However, when dealing with high-pressure applications, not every ball valve can handle the demands. Selecting the right type of ball valve for such scenarios requires careful consideration of pressure ratings, materials, sealing types, design specifications, and industry requirements.

Whether in oil and gas, chemical processing, hydraulic systems, or steam control, high-pressure environments pose unique challenges. The valve you choose must not only withstand the force of high pressure but also maintain durability, safety, and leak-proof performance over time. This article offers a comprehensive guide on how to choose the right ball valve for high-pressure applications, helping you make informed decisions based on technical needs and real-world conditions.

Understanding High-Pressure Environments

Before choosing a ball valve, it’s important to understand what qualifies as a high-pressure application. While definitions may vary across industries, a general rule of thumb is that any system operating above 1000 PSI (pounds per square inch) is considered high-pressure. Some systems, such as hydraulic presses or subsea pipelines, can reach several thousand PSI.

High-pressure conditions increase the risk of:

• Seal failure or blowout

• Valve body deformation

• Erosion and fatigue of internal components

• Explosive leaks or catastrophic failure

This means that the valve must be engineered not just for flow control but also for long-term structural integrity under stress. Choosing the right ball valve is not just a matter of functionality but also of safety, efficiency, and cost-effectiveness over time.

Key Features of Ball Valves in High-Pressure Systems

Ball valves operate by using a hollow, perforated, and pivoting ball to control the flow of liquids or gases. When the valve handle is turned 90 degrees, the ball rotates to either allow or block the flow.

For high-pressure environments, specific features are needed:

Robust Body Construction

The valve body must be strong enough to withstand internal pressure without cracking or distorting. This is typically achieved by using high-strength metals such as stainless steel, carbon steel, or brass, with thick wall construction and reinforced joints.

High-Quality Sealing

The sealing materials used in high-pressure ball valves must resist not only pressure but also temperature, chemical corrosion, and mechanical wear. Common seal materials include PTFE (Teflon), PEEK, graphite, or metal-to-metal seals in extreme environments.

Blowout-Proof Stem

A high-pressure ball valve should feature a blowout-proof stem design, which ensures the stem doesn’t eject from the body in the event of pressure surges or seal failures.

Locking Mechanism and Anti-Static Devices

Safety features such as locking handles prevent accidental opening or closing, while anti-static devices protect against static electricity build-up in gas applications.

Compliance and Testing

Reputable high-pressure ball valves are tested for hydrostatic pressure, seat leakage, and performance under thermal cycling, and comply with international standards like API 607, ISO 5208, or ASME B16.34.

Factors to Consider When Choosing the Right Ball Valve

Now that we understand what makes a ball valve suitable for high-pressure applications, let's examine the critical selection criteria in more detail.

1. Pressure Rating

This is the first and most crucial specification. The pressure rating (PSI or bar) should always exceed the maximum working pressure of your system to ensure safety and durability. Always check for both static and dynamic pressure limits. Valves designed for low or moderate pressure will fail quickly in high-pressure systems.

Ball valves are typically categorized as:

• Class 150 / 300 / 600 / 900 / 1500 / 2500 (per ANSI/ASME)

• Or by PN ratings (per DIN standards)

In some hydraulic or oilfield applications, you may find valves rated up to 10,000 PSI or higher. Always match the pressure rating to your operational needs with a safety margin included.

2. Valve Size and Port Design

Valve size determines flow capacity. High-pressure systems often require valves with reduced ports (also known as standard ports) to control flow velocity and reduce turbulence. However, in some cases, a full port valve may be needed for minimal flow resistance.

Smaller valves tend to tolerate higher pressures due to reduced surface area exposed to force. Conversely, as valve diameter increases, pressure-handling capability often decreases unless specially engineered.

3. Material Selection

Materials play a vital role in performance, corrosion resistance, and lifespan. Common body and trim materials include:

• Stainless Steel (316, 304): Excellent for corrosive and high-pressure conditions

• Carbon Steel: Strong and cost-effective for general applications

• Brass: Used in medium-pressure systems with limited corrosive exposure

• Alloys (Duplex, Hastelloy, Monel): Used in highly corrosive and extreme-pressure environments

Seal materials should also match the chemical and temperature characteristics of the fluid. For instance:

• PTFE: Good general-purpose option, chemical resistant, but limited at high temperatures

• PEEK: Higher strength and temperature resistance

• Graphite: Excellent for steam and high-temperature systems

• Metal seats: Best for extreme pressure, high temperature, and abrasive media

4. Number of Pieces: One, Two, or Three?

Ball valves are manufactured in different body configurations:

• One-piece: Compact and inexpensive; usually used for low to medium pressure

• Two-piece: Offers easy maintenance; seals can be replaced without full valve disassembly

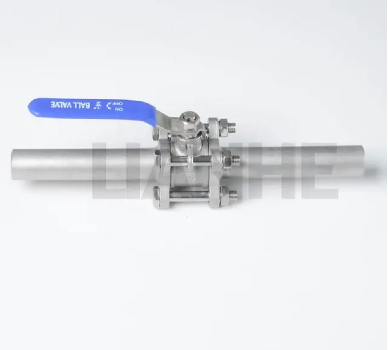

• Three-piece: Best for high-pressure systems; allows for easy internal access without removing the valve from the pipeline

For high-pressure applications, two- and three-piece valves are generally preferred due to their durability and serviceability.

5. Operation Type

While most ball valves are manually operated, high-pressure systems may benefit from automated actuation:

• Electric Actuators: Ideal for remote or automated systems

• Pneumatic Actuators: Useful in explosion-proof or fast-acting environments

• Hydraulic Actuators: Offer strong, reliable actuation in heavy-duty applications

Automation enhances control and safety in critical or hard-to-access locations.

6. End Connections

End connections must be suitable for the pressure level and compatible with your piping system. Common types include:

• Threaded Ends (NPT, BSPT): Convenient but limited in very high-pressure scenarios

• Socket Weld Ends: Offer higher strength and leak resistance

• Butt Weld Ends: Preferred for critical systems with seamless piping

• Flanged Ends: Easy to install and remove; suited for high-pressure and high-temperature uses

In high-pressure pipelines, welded or flanged connections are generally favored due to superior sealing and mechanical strength.

Special Considerations for High-Pressure Use

High-pressure ball valves may face additional stresses due to environmental conditions and fluid characteristics. Here are a few more aspects to evaluate:

• Temperature Extremes: Elevated temperatures increase pressure inside the valve and can damage seals. Always ensure materials are rated for the full range of operating temperatures.

• Cavitation and Water Hammer: Sudden pressure changes can cause valve damage. Valves with trunnion-mounted balls or pressure relief features can help prevent these problems.

• Media Contamination: Abrasive or particulate-laden fluids may erode valve surfaces. Choose valves with hard-coated balls or metal seats for protection.

• Fire Safety: In certain industries, valves must be fire-tested to meet fire-safe standards to prevent leakage in fire conditions.

Maintenance and Testing

Choosing a high-quality valve is only part of the equation. Regular maintenance and testing are essential to ensuring long-term safety and functionality in high-pressure systems. Ball valves should be:

• Visually inspected for corrosion, seal integrity, and stem function

• Pressure-tested periodically to detect hidden failures

• Lubricated according to manufacturer guidelines (especially for metal seats or actuators)

Three-piece and flanged valves allow for easier maintenance without shutting down the entire system.

Conclusion

Selecting the right ball valve for high-pressure applications involves more than just choosing a product off the shelf—it requires a clear understanding of your system’s pressure limits, temperature range, fluid type, and operating conditions. Paying close attention to material compatibility, sealing reliability, valve design, and safety standards is essential to ensure consistent performance and avoid failures in demanding environments. Taking the time to evaluate your specific application and consulting experienced valve experts can help reduce downtime, lower risks, and increase the longevity of your system.
