How to Press Stainless Press Fittings

Views: 195     Author: Site Editor     Publish Time: 2025-07-20      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

When it comes to ensuring a leak-proof, secure, and long-lasting piping system, few solutions match the reliability and efficiency of stainless steel press fittings. Whether you’re working on a commercial HVAC system, a potable water line, or an industrial process pipeline, Stainless Steel Fittings are a trusted choice worldwide. But how exactly do you press these fittings correctly? In this guide, we’ll take a deep dive into how to press stainless press fittings, including the tools required, step-by-step instructions, expert tips, and answers to frequently asked questions.


What Are Stainless Steel Press Fittings?

Stainless steel press fittings are mechanical pipe fittings designed for quick and secure installation without the need for welding, threading, or soldering. They are primarily made from corrosion-resistant stainless steel (usually 304 or 316 grades) and are engineered to form a tight seal around the pipe using a press tool and jaws.

These fittings are widely used in industries such as:

  • Plumbing (hot and cold water systems)

  • Fire protection systems

  • Food and beverage processing

  • Pharmaceutical pipelines

  • HVAC systems

The key benefit? A Stainless Steel Fitting using press technology can be installed in a fraction of the time compared to traditional methods, while offering a clean, consistent, and durable seal.


Tools and Materials Required to Press Stainless Steel Fittings

Before beginning the installation process, make sure you have the following tools and materials:

Item Description
Press Tool A hydraulic or battery-powered press machine with compatible jaws
Deburring Tool Removes sharp edges from cut pipes
Pipe Cutter Ensures clean, square cuts
Marker For marking the insertion depth
Caliper or Depth Gauge To verify the correct insertion length
Stainless Steel Pipe Must match the size and material of the fitting
Stainless Steel Fitting Press fitting with integrated sealing element (EPDM, FKM, etc.)

It is crucial that all tools are compatible with the press fitting system you are using to avoid improper sealing or equipment damage.

Stainless Steel Press Fitting

Step-by-Step Guide to Press Stainless Press Fittings

Correct installation is the key to long-lasting performance. Follow these steps to press your stainless steel fittings with precision:

1. Cut the Pipe to Length

Start by measuring and cutting your stainless steel pipe to the required length. Use a pipe cutter rather than a saw to ensure a clean, burr-free edge. The cleaner and straighter the cut, the better the fit and seal.

Pro Tip: Avoid using lubricants or oils during cutting, as they may contaminate the seal area.

2. Deburr the Pipe End

After cutting, always deburr the inner and outer edges of the pipe. This prevents damage to the sealing element inside the fitting and ensures smooth insertion.

Insert a deburring tool into the pipe and rotate it clockwise several times. Then, lightly sand the outer edge using a fine grit pad if needed.

3. Mark the Insertion Depth

This is one of the most overlooked—but essential—steps in pressing stainless steel fittings. Each fitting has a minimum insertion depth, usually specified by the manufacturer. Use a depth gauge or caliper to mark this on the pipe with a permanent marker.

This step ensures the pipe is fully seated in the fitting, which is critical for a secure press.

4. Insert the Fitting

Carefully insert the pipe into the stainless steel fitting until it reaches the insertion depth mark. Make sure the pipe is fully seated and not at an angle.

Avoid twisting or forcing the pipe, as this could dislodge the sealing element or cause an incomplete seal.

5. Align the Press Tool

Select the correct size press jaw for the fitting (typically the same nominal size as the pipe). Place the jaw over the fitting’s press contour, ensuring it aligns squarely with the press groove.

Activate the tool once you confirm the alignment. Depending on your press tool, the cycle will take just a few seconds to complete.

6. Inspect the Press Connection

Once pressed, check that the jaw has fully engaged the press contour and that there are no signs of misalignment, slippage, or damaged O-rings. If available, use a gauge to verify the pressing force and diameter.

You’ve now successfully installed a Stainless Steel Fitting using press technology!


Common Mistakes to Avoid

Even seasoned professionals occasionally make mistakes during installation. Here are some of the most common issues and how to avoid them:

Mistake Why It’s a Problem How to Avoid
Failing to deburr Damages O-ring, causes leaks Always deburr both ends thoroughly
Incomplete insertion Results in weak or leaky joints Mark insertion depth and verify visually
Misalignment of press jaw Can crack the fitting or seal improperly Ensure jaws are centered before pressing
Using incompatible tools Risk of faulty joints or damage Match tool, jaws, and fitting brand specifications

Benefits of Pressing Over Traditional Methods

Why are stainless steel press fittings becoming more popular than soldering, welding, or threading?

  • Speed: One press takes only seconds.

  • Safety: No flames, gas, or high heat involved.

  • Cleanliness: No smoke or flux residue.

  • Durability: Joints are strong and vibration-resistant.

  • Versatility: Suitable for tight spaces or retrofits.

Professionals find that using a Stainless Steel Fitting with press technology can cut labor time by up to 50%, which results in significant cost savings.

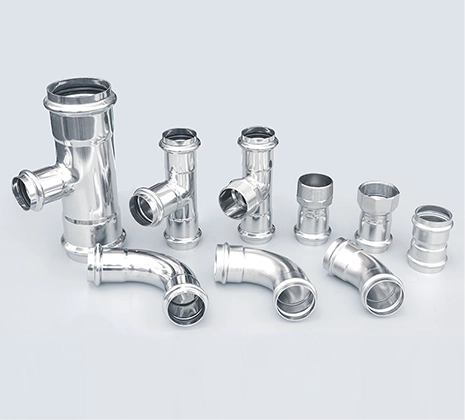

Stainless Steel Press Fitting

FAQs About Pressing Stainless Steel Fittings

Q1: Can press fittings be reused after pressing?

No. Once a stainless steel press fitting is crimped, it forms a permanent connection. Attempting to reuse a pressed fitting compromises the integrity of the seal and is not recommended.

Q2: How do I know if my fitting is properly pressed?

Most press tools include a visual or audio signal to indicate a successful press. Additionally, some fittings feature "leak detection" technology—if unpressed, they will visibly leak during pressure testing.

Q3: What’s the typical pressure rating?

Depending on the fitting type and application, pressure ratings typically range from 16 bar (232 psi) to 40 bar (580 psi). Always consult the technical datasheet of your chosen Stainless Steel Fitting for exact values.

Q4: What seals are used inside press fittings?

Most stainless press fittings include integrated O-rings made from EPDM, FKM (Viton), or HNBR, depending on the application (e.g., potable water, gas, steam).

Q5: Can I press in wet conditions?

Generally, yes—but it’s always best to press on dry pipe surfaces for maximum seal reliability. Wet conditions may affect pressing tool performance or result in slippage during pressing.


Maintenance and Inspection Guidelines

Though stainless steel press fittings are known for their longevity, it’s still important to conduct regular inspections—especially in critical systems such as fire protection or chemical transfer pipelines.

  • Perform visual checks for corrosion, leaks, or mechanical damage.

  • Use ultrasonic or pressure testing tools annually to verify joint integrity.

  • Replace any worn fittings with the exact Stainless Steel Fitting model to avoid incompatibility.

In facilities where downtime is critical, preventive maintenance of press tools and jaws is equally important to ensure consistent performance over thousands of cycles.


Conclusion

Installing a Stainless Steel Fitting using press technology is not only efficient but also highly reliable when done correctly. From cutting and deburring to pressing and inspection, each step plays a vital role in ensuring leak-proof, durable connections across various applications.

With proper tools, attention to detail, and adherence to manufacturer guidelines, pressing stainless steel press fittings becomes a streamlined and professional task that minimizes downtime and maximizes safety. Whether you're a plumbing contractor or an industrial maintenance engineer, mastering this process is an investment in quality and performance.
