Stainless Steel Pipe Schedule Guide: SCH 10, SCH 40 and SCH 80

Specifying the incorrect piping schedule results in either dangerous system vulnerabilities or wasted project capital. Industrial fluid transport leaves zero room for guesswork. Under-engineering invites catastrophic blowouts. Over-engineering drains your construction budget unnecessarily. You must get these calculations right the first time.

While Nominal Pipe Size (NPS) dictates the outside diameter, the schedule dictates the wall thickness, internal diameter, and ultimate pressure capabilities. Misunderstanding these variables often leads to structural failures. It can also cause severe flow restrictions inside your processing lines. You need a reliable method for evaluating these dimensions.

We built this guide to solve this exact problem. It provides procurement managers and piping engineers with an evidence-based framework for evaluating and selecting between SCH 10, SCH 40, and SCH 80 specifications. You will discover how ASME standards govern these dimensions. We also explore how operational stress, abrasive media, and budget constraints dictate your final material choice.

Key Takeaways

• Schedule defines wall thickness: As the schedule number increases (from 10 to 80), the wall becomes thicker, the inner diameter decreases, and the pressure rating rises.
• SCH 10 is for low-pressure: Ideal for cost-sensitive, low-pressure environments where weight reduction is prioritized.
• SCH 40 is the universal standard: The most common specification for general industrial, chemical, and water-processing applications.
• SCH 80 is for extreme stress: Necessary for high-pressure systems, highly corrosive media, or environments requiring a significant mechanical wear allowance.
• The "S" designation matters: In stainless steel, schedules are typically followed by an "S" (e.g., SCH 40S) to differentiate them from carbon steel dimensional standards under ASME B36.19.

Understanding Stainless Steel Pipe Schedule Standards

Engineers must first understand the foundational standards governing piping dimensions. The American Society of Mechanical Engineers (ASME) maintains strict frameworks for manufacturing. ASME B36.19 serves as the specific dimensional standard for any Stainless Steel Pipe. This differs entirely from ASME B36.10. ASME B36.10 dictates the dimensions for wrought steel and carbon steel pipes.

Stainless steel possesses unique corrosion resistance and tensile strength. These properties allow manufacturers to use thinner walls for the same pressure ratings compared to carbon steel. ASME created the B36.19 standard to reflect these superior material characteristics. It prevents engineers from over-specifying wall thickness unnecessarily.

You will frequently see an "S" suffix attached to the schedule number. Designations like 10S, 40S, and 80S denote these stainless steel specific schedules. The standard and "S" schedules align perfectly in smaller outer diameters. However, they diverge significantly in thicker, larger sizes. A carbon steel SCH 40 pipe larger than NPS 12 has a different wall thickness than a SCH 40S stainless pipe. You must specify the "S" to guarantee correct sizing.

One critical implementation reality often confuses junior engineers. Regardless of the chosen stainless steel pipe schedule, the Outside Diameter (OD) remains absolutely constant for a given NPS. A 2-inch pipe always measures 2.375 inches on the outside. Because the OD stays locked, stepping up the schedule strictly adds material to the inside. Moving from a light wall to an extra-heavy wall reduces the Inside Diameter (ID). This internal reduction directly decreases fluid volume. It also increases fluid velocity and internal friction. Engineers must calculate this flow rate impact before finalizing system designs.

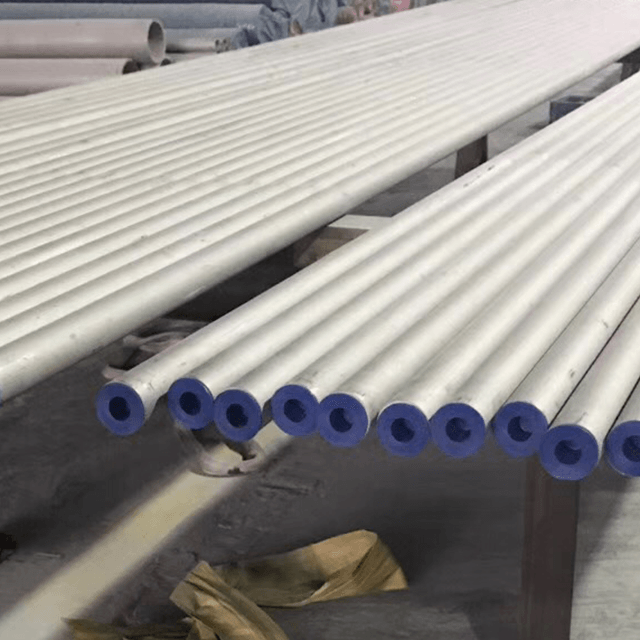

SCH 10 vs SCH 40 vs SCH 80: Core Technical Differences

Evaluating SCH 10 vs SCH 40 vs SCH 80 requires a clear understanding of their physical differences. Each classification serves a distinct operational purpose. Choosing correctly optimizes system lifespan.

Schedule 10 represents the light wall category. It features significantly thinner walls. This maximizes the internal volume for fluid transport. It also offers the lowest weight per linear foot. Lower weight translates to cheaper material costs and easier installation. However, SCH 10 has strict limitations. It provides a much lower pressure tolerance. You should never use it in highly abrasive environments. Exposed SCH 10 lines are highly susceptible to mechanical damage. A stray forklift bump can easily dent or crush a lightweight pipe.

Schedule 40 serves as the standard wall workhorse. It features a perfectly balanced wall thickness. This schedule represents the optimal intersection of pressure rating, structural rigidity, and material cost. Most engineers default to SCH 40 for general purpose facilities. It handles moderate-to-high fluid pressure easily. It withstands standard industrial flow velocities without excessive wear. It provides enough mechanical strength to survive busy factory floors.

Schedule 80 dominates the extra heavy wall category. It boasts the thickest wall profile among these three common sizes. This added material makes it significantly heavier. Engineers build SCH 80 lines specifically for extreme PSI. It handles aggressive high-temperature fluctuations smoothly. Processing facilities moving abrasive slurries rely on SCH 80. The extra thickness acts as a crucial "corrosion allowance." Media can slowly erode the inner wall over decades before the pipe ever reaches a critical failure point.

Review the dimensional data below. It provides a tangible comparison for NPS 2" and NPS 4" sizes across all three standard schedules.

Decision Framework: Matching Schedule to Application Requirements

You cannot select a pipe size based on intuition. Fluid dynamics and mechanical physics dictate your requirements. Engineers rely on structured decision frameworks to ensure safety.

Evaluating operating pressure and temperature forms the absolute foundation of your choice. We calculate the required wall thickness using Barlow’s Formula. This equation determines the internal pressure a pipe can safely contain. You multiply the design pressure by the pipe's outside diameter. You then divide that product by twice the allowable material stress. The result gives you the minimum required wall thickness. You must always round up to the nearest standard schedule.

Temperature introduces a massive risk factor here. High temperatures aggressively derate the pressure capacities of all metals. A SCH 40 pipe operating at 100°F holds significantly more pressure than the exact same pipe operating at 800°F. Heat weakens the molecular structure. You must check the ASME B31.3 temperature derating curves before approving any design. A system might require SCH 80 simply to handle the heat, even if the base pressure seems low.

Media corrosiveness demands careful evaluation. Chemical processing plants transport highly aggressive fluids. Sulfuric acids and abrasive mineral slurries attack the pipe interior continuously. They strip away microscopic layers of metal every single day. If your system transports these media, you need a wear allowance. SCH 80 provides a much longer lifecycle. It allows for significant internal material loss before the wall reaches its critical failure thickness. SCH 10 would erode through completely in a fraction of the time.

Structural and external load considerations matter just as much as internal pressure. Pipes do not exist in a vacuum. They span long distances between pipe racks and structural supports. Gravity constantly pulls down on the metal and the heavy fluid inside it. Pipes subjected to long unsupported spans require the rigidity of SCH 40 or SCH 80. SCH 10 lacks the beam strength for long spans. It may sag under its own weight. Furthermore, SCH 10 will easily crush under external mechanical impacts. High-traffic industrial zones demand thicker walls purely for external physical protection.

Procurement Realities: Cost, Weight, and Scalability

Engineering perfection must always align with procurement realities. Budgets dictate project feasibility. You must understand how schedule selection impacts your financial bottom line and construction timeline.

Material cost multipliers hit your budget immediately. Manufacturers price industrial metals strictly by weight. Upgrading a facility from SCH 40 to SCH 80 significantly increases the pounds per foot. This escalation drives material costs up directly. You are buying more raw alloy. If your pressure calculations prove SCH 40 is adequate, buying SCH 80 wastes critical project capital.

Shipping and handling logistics introduce secondary cost layers. Consider the cascading effects of heavier schedules:

• Freight invoices increase because logistics companies charge by tonnage.
• Installation crews require heavier-duty lifting equipment to hoist the pipes into place.
• Structural engineers must design stronger, more expensive supporting racks to hold the extra dead weight.
• On-site storage yards need reinforced ground to prevent heavy pallets from sinking into the mud.

Welding and installation times scale dramatically with wall thickness. Thicker walls demand significantly more labor. Welding a SCH 80 joint requires a wider bevel. Welders must execute multiple passes to fill the joint completely. They consume more expensive filler metal. The intense heat input requires longer cooling times between passes. Conversely, welders can often complete a SCH 10 joint in a single quick pass. Labor usually costs more than material. Upgrading schedules multiplies your labor hours.

Inventory availability dictates your project schedule. SCH 40S serves as the universal industry standard. Distributors stock it deep in every major warehouse globally. You can usually secure SCH 40S for next-day delivery. However, SCH 10S and SCH 80S often require longer lead times. This becomes especially true when specifying less common alloys like 316L or Duplex steel. Waiting six weeks for a specific heavy-wall pipe can derail an entire construction schedule.

Shortlisting Your Stainless Steel Pipe Supplier

Your engineering calculations mean nothing if your supplier delivers substandard material. Finding a reliable manufacturing partner guarantees system integrity. You must audit suppliers meticulously.

Compliance verification forms your first line of defense. Never purchase piping without reviewing the documentation. Ensure the supplier provides full Mill Test Reports (MTRs) for every batch. These reports verify the exact chemical composition of the heat lot. They also confirm that the physical dimensions strictly adhere to ASME B36.19 tolerances. The standard generally allows a manufacturing tolerance of +/- 12.5% on the nominal wall thickness. A trustworthy supplier will happily provide MTRs before shipping.

You must evaluate seamless versus welded manufacturing methods. High-pressure, critical applications often require seamless pipe. Seamless tubes lack a longitudinal weld seam, eliminating a potential failure point. They perform exceptionally well under extreme stress. However, seamless manufacturing costs much more. Many modern applications use Electric Resistance Welded (ERW) pipe. Welded SCH 40 is entirely sufficient for most industrial processes, provided the factory certifies it correctly. Demand proof of 100% X-ray testing on all welded seams.

Executing a clean procurement process requires precision. Compile a detailed Request for Quote (RFQ) to send to your shortlisted suppliers. Clear communication prevents expensive returns. Include these exact parameters in your RFQ:

1. Total linear footage: Include a 5% overage for cutting and field-fit waste.
2. Alloy grade: Specify exact grades, such as 304, 304L, 316, or 316L.
3. Nominal Pipe Size (NPS): State the standard size clearly.
4. Specific Schedule: Explicitly state the "S" designation (10S, 40S, or 80S).
5. End-finish requirements: Indicate if you need plain ends, beveled ends for welding, or threaded ends.

Conclusion

Choosing the correct pipe schedule is an exercise in balancing system safety with capital efficiency. The physics of your fluid transport will dictate the baseline requirements. Defaulting to SCH 80 automatically wastes valuable budget and bloats your installation time. Conversely, defaulting to SCH 10 purely to save money risks catastrophic failure under pressure.

Evaluate your internal pressure, media abrasiveness, and structural loads carefully. Match these variables against the established ASME B36.19 standards. Always run Barlow's Formula to verify your assumptions.

Take action on your project today. Prompt your internal structural engineers to confirm all high-temperature pressure calculations. Once verified, contact your dedicated sales and technical team. Review current inventory availability, request MTRs, and secure your project pricing before raw material costs fluctuate.

FAQ

Q: Does Schedule 40 mean the pipe is 40 millimeters thick?

A: No. The schedule number is a non-dimensional reference to a wall thickness formula based on pressure ratings. It is not an absolute measurement in millimeters or inches. A Schedule 40 pipe's actual thickness changes depending on its Nominal Pipe Size (NPS).

Q: Can I mix SCH 40 and SCH 80 in the same piping system?

A: Yes, but the system's maximum pressure rating will be bottlenecked by the weakest link, which is the SCH 40 section. Additionally, the transition points will have mismatched internal diameters. This step in the pipe interior can cause severe flow turbulence and localized erosion.

Q: What is the difference between SCH 40 and SCH 40S?

A: SCH 40 is the carbon steel dimension standard defined under ASME B36.10. SCH 40S is the stainless steel standard governed by ASME B36.19. For smaller pipe sizes, their dimensions are identical. However, they differ significantly in wall thickness at larger outer diameters.

Q: How much heavier is SCH 80 compared to SCH 40?

A: While the exact weight difference depends on the specific Nominal Pipe Size, SCH 80 stainless steel pipe is generally 30% to 50% heavier per foot than SCH 40. This weight increase correlates directly to the increased wall thickness required for extreme pressure applications.
