Size: 1/4"to 4"(DN8-DN100) Full Bore
End connection: BSPT BSP NPT Female Threaded, DIN259/2999,ISO 228
Technical Features:
Working Pressure: 1/4”~2”1000PSI , 2 1/2”~4” 800PSI
Hydrostatic Test Pressure:1/4”~2”1500PSI , 2 1/2”~4” 1200PSI
Process:Investment Casting Body - CNC lathe processing.
Blow-out proof stem
Operation: Manual(Lock Lever Handle Available)
Adjustable stem packing
Temperature range: -60 to 450°
| Quantity: | |
|---|---|

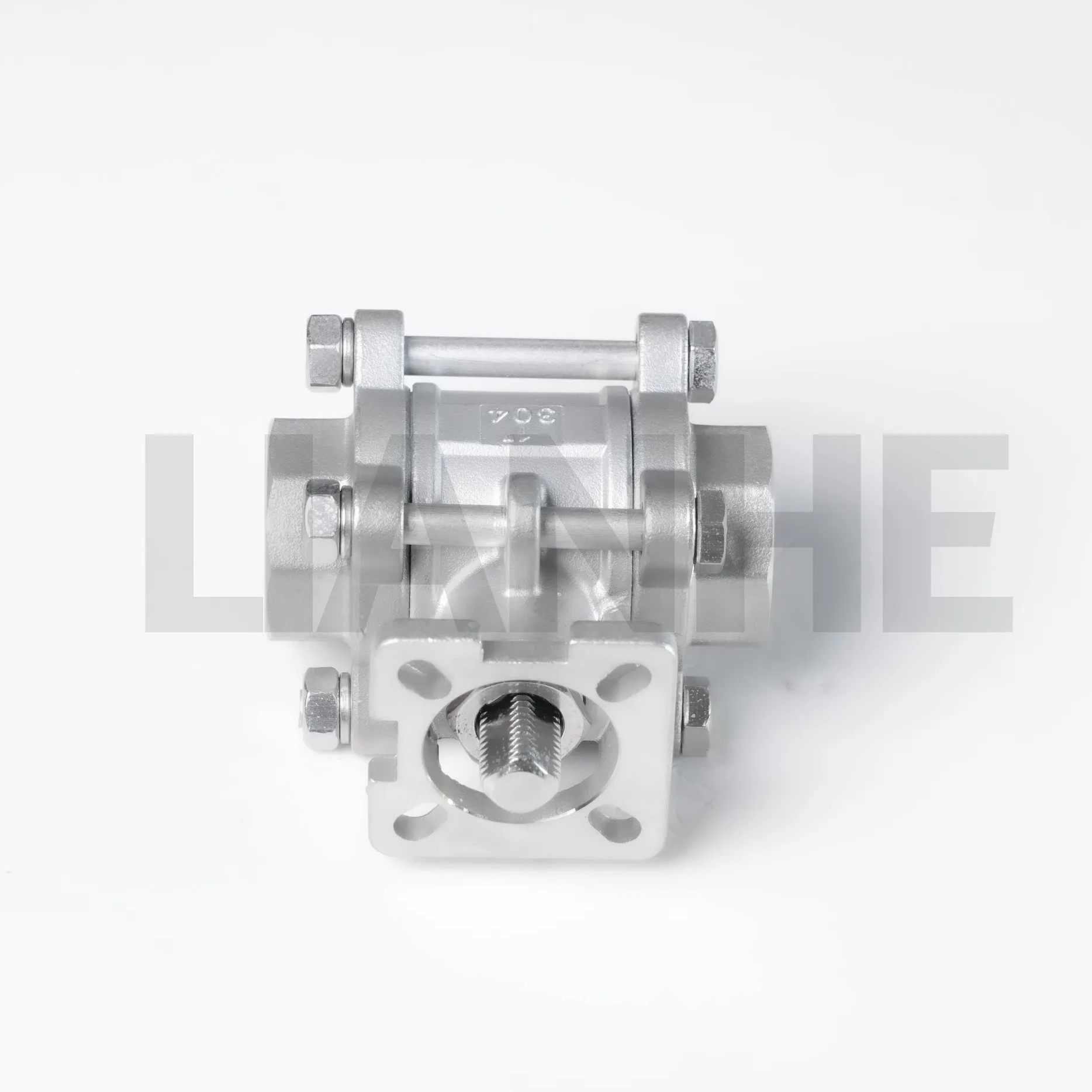

The Electric-Actuated 3-Piece Thread Ball Valve is a versatile flow control solution designed for automated industrial and commercial systems, combining the reliability of a three-piece ball valve with the precision of an electric actuator. Constructed from 304 stainless steel, this valve features NPT threads (ANSI B1.20.1) and an integral ISO 5211 mounting platform, enabling seamless integration with PLC/DCS systems for remote or programmed operation.
Integrated Automation:
24V DC or 230V AC electric actuator with 90° quarter-turn operation, offering fail-safe position (open/closed) and torque outputs up to 50 N·m for 2" valves.
ISO 5211 platform eliminates adapter plates, ensuring direct mounting of actuators from brands like Rotork, Limitorque, or Emerson, reducing installation time by 40%.
Precision Threaded Connections:
NPT male/female threads (ANSI B1.20.1) for quick assembly with steel, copper, or plastic pipes, compatible with schedule 40/80 pipes and tested to 1,500 PSI working pressure.
Threads coated with anti-seize compound during assembly to prevent galling in high-torque actuator applications.
Reliable Sealing Performance:
PTFE seat provides bubble-tight shutoff (API 598) up to 180°C, with a polished ball (Ra ≤0.8μm) ensuring low torque (≤12 N·m for 2" valves) and 1,000,000 cycle life.
Blowout-proof stem and double-block-and-bleed (DBB) design optional for safety-critical applications requiring isolation of both upstream and downstream pressure.
Operational Flexibility:
Temperature range: -20°C to 180°C (PTFE seat); -40°C to 260°C (RPTFE seat), suitable for hot water, compressed air, and non-corrosive liquid lines.
Built-in limit switches and position indicators provide real-time feedback to control systems, ensuring precise flow regulation.
Perfect for automated flow control in diverse industries:
Process Control: Remote on/off operation in chemical mixing tanks, with 304 stainless steel meeting FDA requirements for indirect food contact in beverage production.
HVAC Systems: Automated control of chilled water and hot oil loops in commercial buildings, integrating with BMS (Building Management Systems) for energy efficiency.
Industrial Automation: Pneumatic conveying systems and robotic arm fluid lines, with electric actuation enabling rapid response (≤5 seconds for 2" valves).
Water Treatment: Automated shutoff in filtration systems and reverse osmosis plants, with NPT threads facilitating quick replacement in compact installations.
Q: What is the response time for the electric actuator?
A: Typical response time is 8-15 seconds for 2" valves, depending on voltage and torque requirements; consult the actuator datasheet for exact specifications.
Q: Can the valve be manually operated during power outages?
A: Yes, most actuators feature a manual override lever for emergency operation, though regular manual use is not recommended for long-term reliability.
Q: Is the actuator waterproof?
A: Actuators are rated IP67 as standard, suitable for wet environments; IP68 variants are available for submersible applications (e.g., wastewater treatment basins).
Q: How to calibrate the actuator with the valve?
A: Use the built-in calibration tool to set open/closed positions, ensuring the ball aligns with the actuator's limit switches for accurate feedback.
