Stainless Steel Press Pipe Bridge

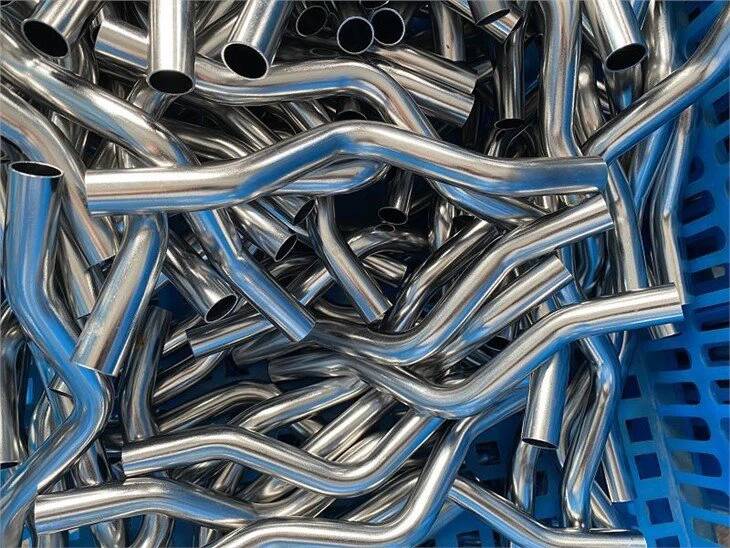

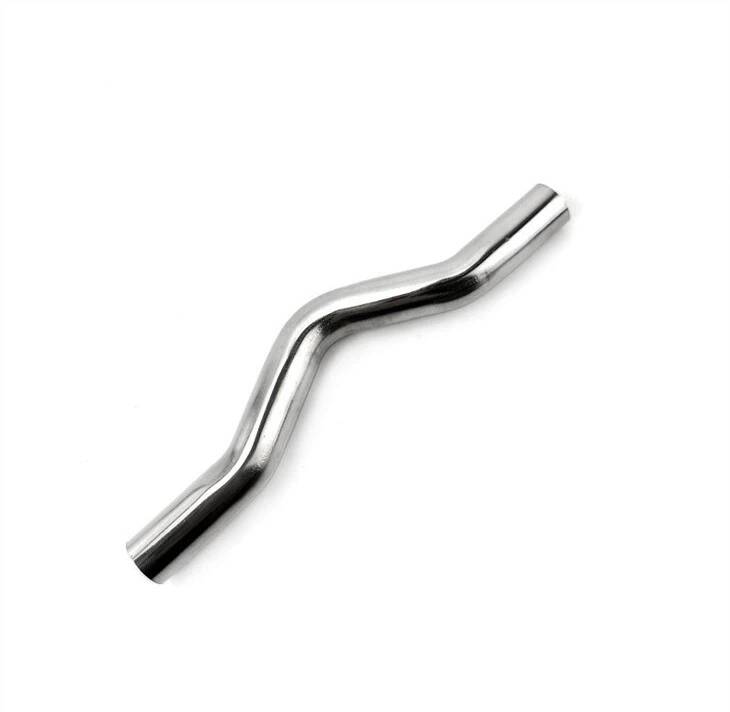

Stainless Steel Press Pipe Bridge routes a compatible tube around a local obstruction. It uses press connections at both ends. Confirm the mating tube outside diameter, press profile, seal material, stainless steel grade and final dimensions against the approved drawing and quotation.

    Size Range: 1/4”~4" (DN10~DN100)

    Thickness:0.6~2MM

    Standards: GB/T19228.2-2011 CJ/T 152-2016 CJ/T466-2014 EN DIN ASME

    Material: SS304,SS316,SS304L ,SS316L.

    Ring Gasket Material: CIIR, EPDM,PTFE, Nitrile.

    Connection Mode of Socket End: D Type and S Type;

    Nominal pressure: PN16; Water pressure test:2.5MPa; Air tightness test pressure: 1.05MPa.

    Process:Pipes - Mechanically formed;

    Surface Treatment: Vibration polishing,Magnetic polishing,Pickling;

    Product Marking: LOGO-Size-Material (Can mark according to customer's requirement.);

    Packing: Plastic bags+ Cartons + Wooden Case;

    Certificates: GB/T19001-2016,ISO9001:2015,CE, Sanitary License ;

    Brand: LIANHE

    Medium: Drinking water(Cold water, hot water.), wastewater, industrial water, Oil, gas.

    Application of all kinds of piping system including Water piping system, Gas piping system, Direct drinking water piping system, Environmental protection piping system, Steam piping system, Heating piping system, Air conditioning piping system, Industrial water piping system and so on;


    Test Items:

    Hydrostatic test, Airtight test, Pressure test, Negative Pressure test, Drawing Test, Temperature change (cold and hot water cycle) test, Hydrostatic bending and Torsion test, Hydrostatic vibration test, Hydrostatic impact test.

    Delivery inspection: Material, Surface, Size, Hydrostatic test, Airtight test;


    Factory inspection Report and Certificates:

    EN 10204/3.1B-MTC

    Raw material inspection certificate.

    100% Radiography Test Report

    Hydraulic seal test report.

    Thread inspection report

    Third Party Inspection Report, etc


    Matching gasket applicable temperature range: -20℃~110℃

    HS Code: 7307230000

    MOQ: 5~10PCS, There are 5000PCS in stock for each product and each size. Can support delivery at any time.

    Free Samples: Yes,Samples are available free of charge. But the express delivery fee is not covered.

    Quotation Time: Within 3 hour.

    Delivery Time: Products of regular size 3~7 days. 25 days for production.

    Price validity: 3~7 days, according to the market.

    Place of Origin: Wenzhou,China


    FAQ:

    When did your factory established?

    Since 2007

    Do you have a export licence?

    Yes.

    Do you have after-sale service?

    Yes, Good after-sale service, handling the customer complaint and solve problem for customers.

    Do you have QC department?

    Yes,we have 6 QC persons.

    What is your terms of delivery?

    We accept EXW, FOB, CFR, CIF, etc. You can choose the one which is the most convenient or cost effective for you.

    What is the payment way?

    1)TT or Wester Union for the trial order

    2)ODM, OEM order, 30% for deposit,70% against the copy B/L.

    We are factory, we can guarantee our price is first-hand, High quality and competitive price.

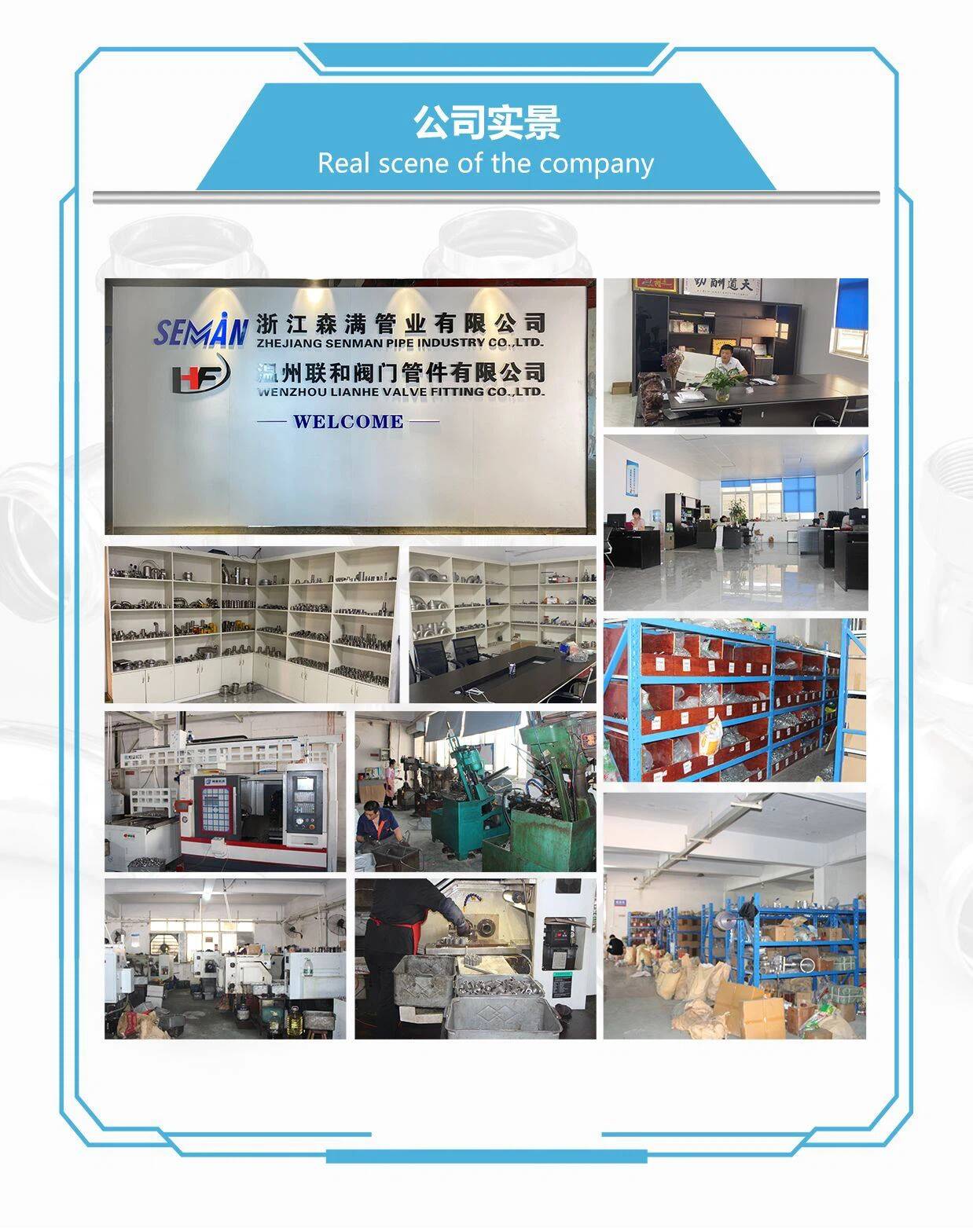

    COMPANY PHOTO(001)

    Certificate Photo(001)

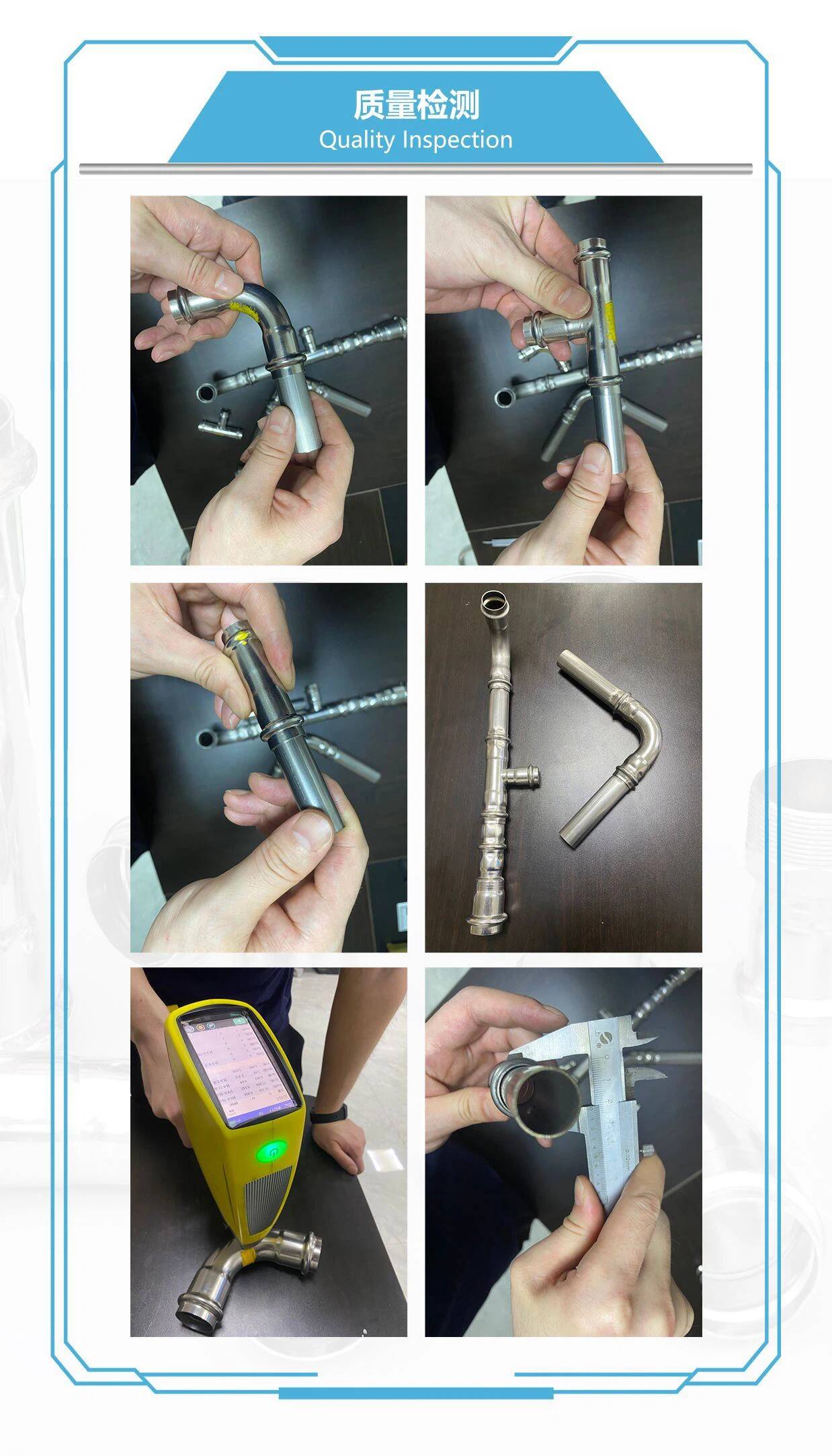

    Press-Fitting QC (001)

    Press Fitting Packing(001)

    Shipping Photo(001)
