Size Range: 1/4"–4" (DN10–DN100)
Wall Thickness: 0.6–2.0 mm
Applicable Standards: GB/T 19228.2-2011, CJ/T 152-2016, CJ/T 466-2014, EN, DIN, and ASME
Available Materials:
0Cr18Ni9, SS304, S30408, SUS304, 1.4301;
0Cr17Ni12Mo2, SS316, SUS316;
SS304L, S30403, 1.4306;
SS316L, S31603, 1.4404.
Sealing Ring Materials: CIIR, EPDM, PTFE, and NBR
Socket Connection: Ring Crimping Connection
Thread Options: NPT and BSP, including BSPP and BSPT
Nominal Pressure: PN16
Hydrostatic Test Pressure: 2.5 MPa
Airtightness Test Pressure: 1.05 MPa
Manufacturing Process: Mechanically formed from stainless steel pipes
Surface Treatments: Vibration Polishing, Magnetic Polishing, and Pickling
Product Marking: LOGO–OD–W.T.–Material. Customer logos and customized product markings can be provided according to specific requirements.
Standard Packaging: Plastic Bags, Export Cartons, and Wooden Cases
Certificates: GB/T 19001-2016, ISO 9001:2015, CE, and Sanitary License
Brand: LIANHE
Applicable Media: Drinking water, cold water, hot water, wastewater, industrial water, oil, gas, and other compatible media.
LIANHE stainless steel ring crimping fittings are suitable for engineering projects, ships, commercial buildings, residential buildings, hospitals, hotels, environmental protection facilities, heating systems, and air-conditioning installations.
The fittings can be applied in various piping systems, including water supply systems, gas piping systems, direct drinking-water systems, environmental protection pipelines, steam systems, heating pipelines, air-conditioning systems, industrial water systems, and other compatible fluid transportation applications.
The actual suitability of the fitting should be confirmed according to the operating pressure, working temperature, transported medium, sealing-ring material, thread standard, and installation environment.
High mechanical strength
Excellent corrosion resistance
Long operating service life
Low fluid-flow resistance
Good vibration and seismic resistance
Reliable and stable connection
Environmentally friendly construction
Fast and convenient installation
Suitable for concealed or embedded installation
Low overall installation and maintenance cost
Good wear resistance
Hygienic and suitable for water systems
Reliable sealing performance with reduced leakage risk
The ring crimping connection method enables fast installation without extensive welding work. When installed using the correct tools and procedures, the fitting provides a stable mechanical connection and dependable sealing performance.
Available product tests include:
Hydrostatic Pressure Test
Airtightness Test
Working Pressure Test
Negative-Pressure Test
Pull-Out Test
Temperature-Cycling Test for Cold and Hot Water
Hydrostatic Bending and Torsion Test
Hydrostatic Vibration Test
Hydrostatic Impact Test
Delivery inspection covers raw-material verification, surface condition, product dimensions, hydrostatic pressure performance, airtightness, marking, and packaging.
Inspection reports and supporting quality documents can be provided according to the confirmed product and order requirements, including:
EN 10204 3.1 Material Test Certificate
Raw-Material Inspection Certificate
Radiographic Testing Report, when applicable
Hydraulic Sealing Test Report
Thread Inspection Report
Third-Party Inspection Report
Other project-specific inspection documents
Document availability and the required inspection scope should be confirmed before placing an order.
Applicable Temperature Range of Matching Gaskets: -20°C to +110°C
The actual temperature range depends on the selected gasket material, transported medium, operating pressure, and service conditions.
LIANHE carries out production-line inspection and final inspection throughout the manufacturing process. Products are checked before delivery to ensure that their materials, dimensions, surfaces, connections, and sealing performance meet the confirmed order requirements.
The principal quality-control procedures include:
Inspecting the outside diameter, wall thickness, and material grade of incoming raw materials.
Checking the length and end condition of raw materials after cutting.
Inspecting the socket dimensions, outside diameter, and wall thickness after mechanical forming.
Checking weld dimensions and surface quality after welding and forming.
Inspecting the surface, dimensions, and socket structure after heat treatment.
Verifying surface quality after polishing, pickling, or other surface treatment.
Conducting hydraulic-pressure and airtightness tests according to the applicable inspection requirements.
Checking product markings, quantities, packaging, and order information before shipment.

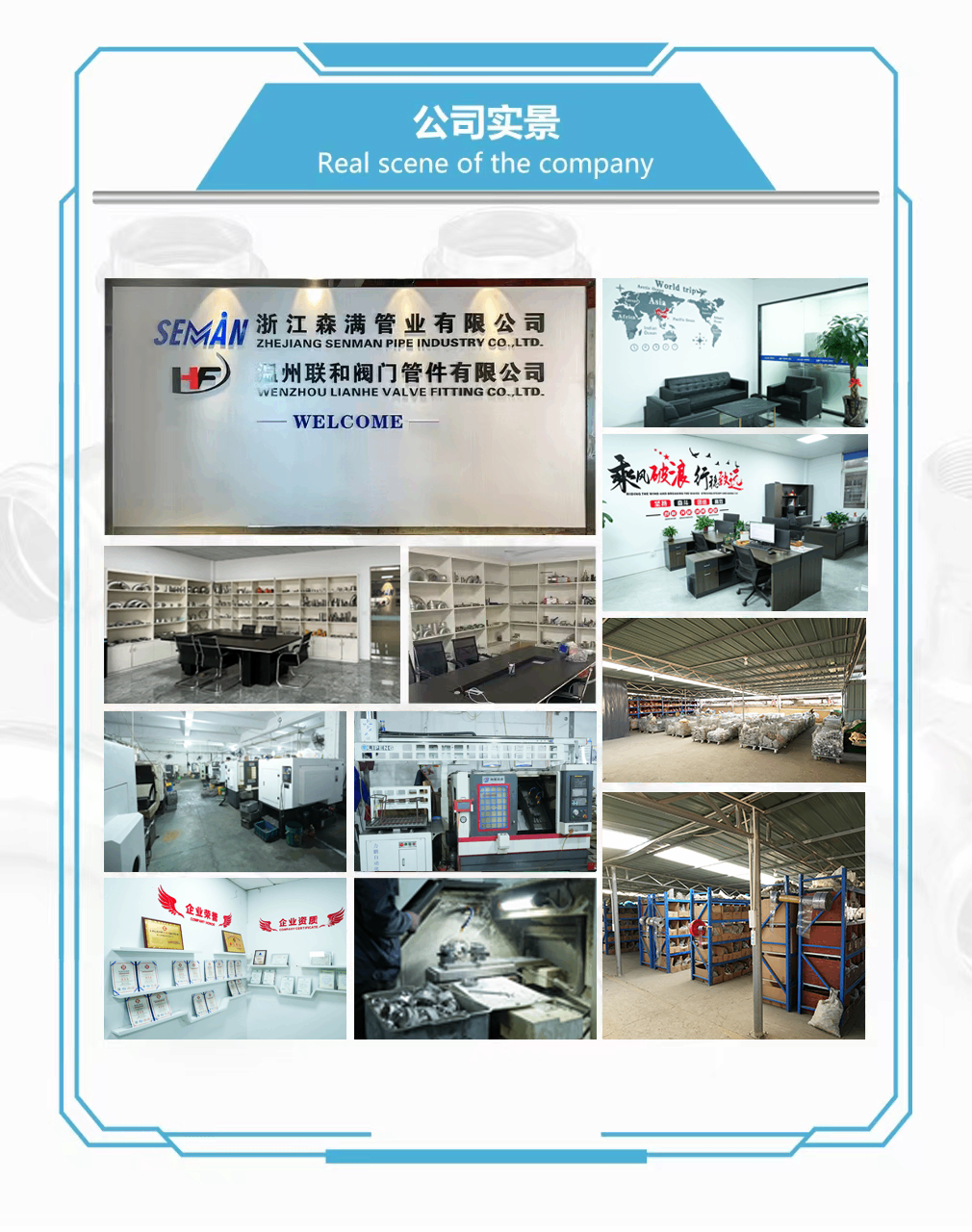

Our manufacturing facility is equipped with five automatic pipe-welding production lines, two laser-cutting machines, five vibration-polishing machines, two magnetic-polishing machines, five airtightness and hydraulic-testing units, three forming machines, three grooving machines, two drilling machines, ten CNC lathes, and six end-flattening machines.
Additional production equipment includes two vertical hydroforming machines, two frame-type hydroforming machines, ten pipe-bending machines, eight automatic argon-arc welding machines, four hydraulic drawing machines, four high-speed hydraulic punching machines, two laser-marking machines, two packaging units, and other related manufacturing and inspection equipment.
HS Code: 7307230000
Payment Terms: A 30% T/T deposit is required in advance, with the remaining 70% T/T balance paid before delivery. Specific payment arrangements can be discussed according to the order.
Payments may be made by T/T, Western Union, PayPal, and other mutually agreed payment methods.
Available Trade Terms: EXW, FOB, CFR, CIF, DDP, and DDU
Products can be transported by sea, air, land freight, or international express service according to the order quantity, destination, delivery schedule, and customer requirements.
Minimum Order Quantity: Normally 5–10 pieces, depending on the product, size, and current stock availability.
Standard products and commonly requested sizes may be available from stock. Inventory quantities and immediate-delivery availability should be confirmed when requesting a quotation.
Free Samples: Samples may be supplied free of charge for product testing and quality evaluation. The international express delivery cost is normally paid by the recipient.
Quotation Time: Normally within three working hours after receiving complete product specifications and quantity requirements.
Delivery Time: Approximately 3–7 days for regular sizes available from stock. Production orders normally require approximately 25 days, depending on the product, quantity, customization requirements, and factory schedule.
Quotation Validity: Normally 3–7 days, subject to raw-material prices and market conditions.
Our standard product quality warranty period is one year. If a confirmed manufacturing-related quality problem occurs during the warranty period, our team will investigate the issue and provide a suitable technical or after-sales solution.
Customers should provide the product model, order number, installation conditions, working pressure, operating temperature, transported medium, and relevant photos or videos to assist with technical evaluation.
Extensive knowledge of international markets and the ability to support different technical and commercial requirements.
Direct manufacturing from our own production facility in Wenzhou, China.
An experienced technical and production team dedicated to maintaining consistent product quality.
Effective production and cost-control systems designed to provide competitive factory pricing.
Extensive experience in the manufacturing, quality management, and international sales of stainless steel press fittings.
Place of Origin: Wenzhou, China
