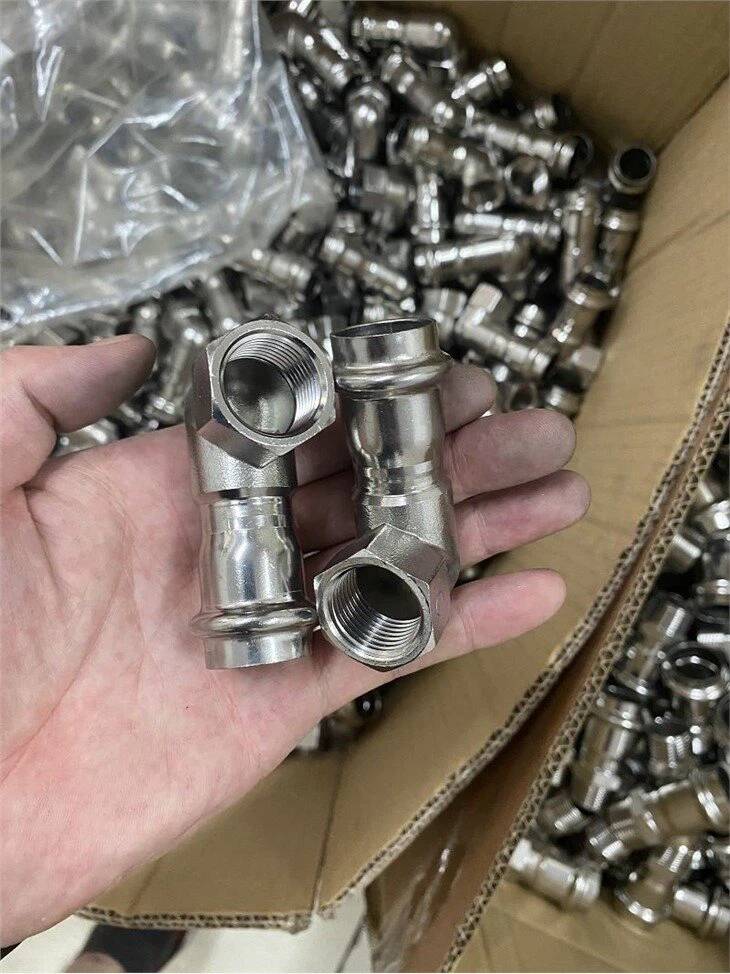

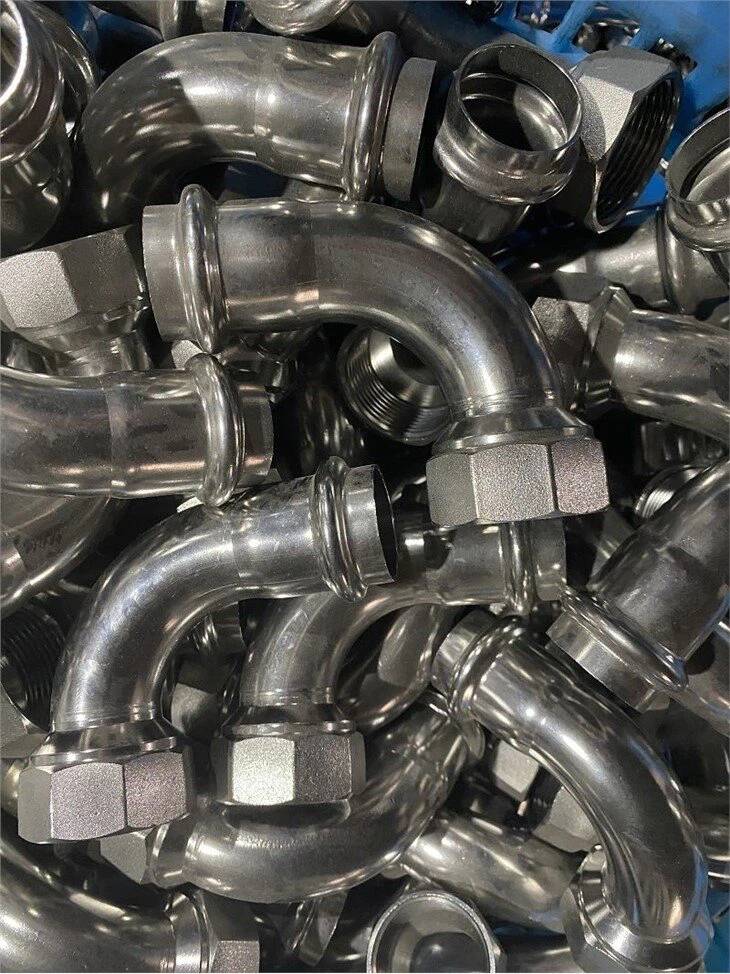

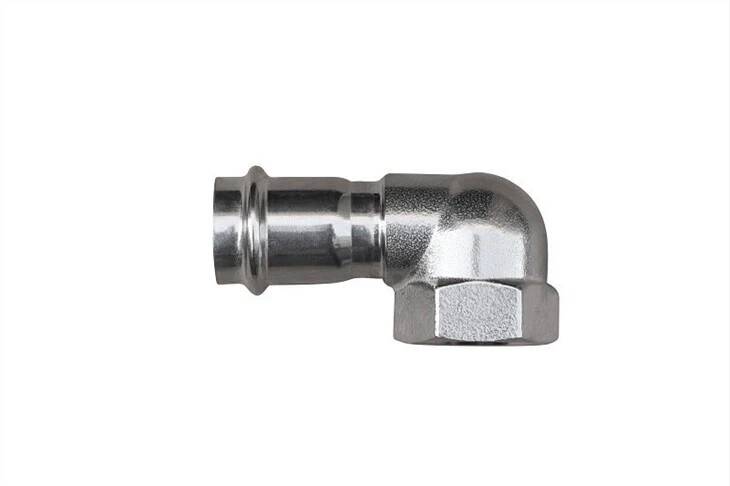

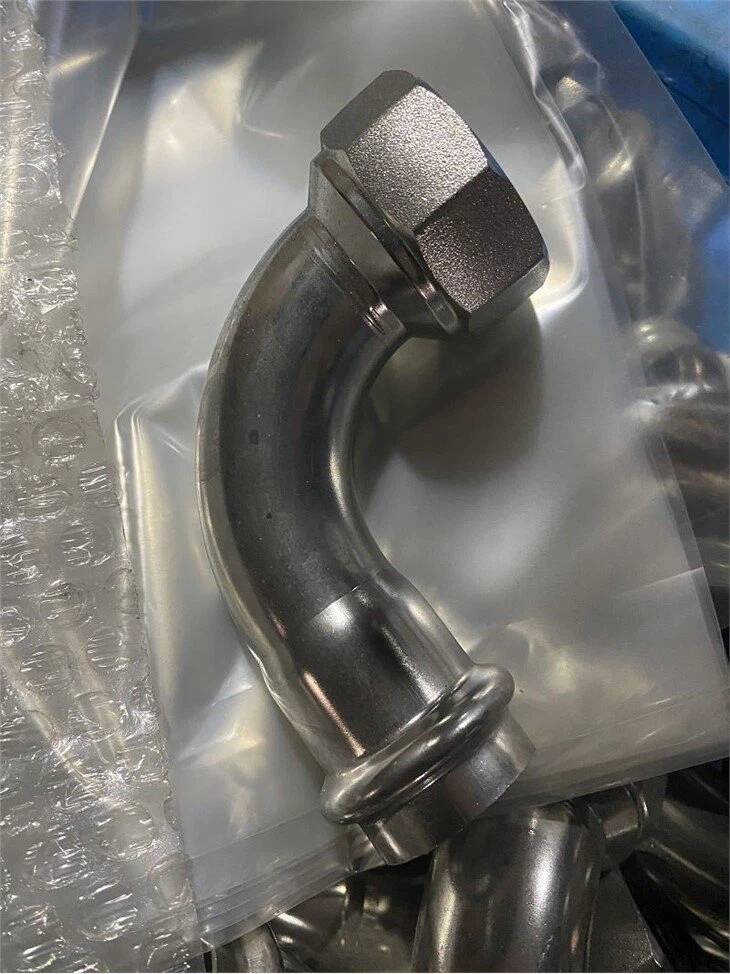

Female Thread Press Fittings 90° Elbow;
Size Range: 1/4"×1/2Rp/in~2"×2Rp/in (DN10×1/2Rp/in~DN50×2Rp/in)
Thickness：0.6~2MM
Standards: GB/T19228.2-2011 CJ/T 152-2016 CJ/T466-2014 EN DIN ASME
Material: SS304 S30408 SUS304,SS316 S31603 SUS316,TP304L,TP316L
Ring Gasket Material: CIIR, EPDM,PTFE, Nitrile.
Connection Mode of Socket End: D Type and S Type;
Nominal pressure: PN16; Water pressure test:2.5MPa; Air tightness test pressure: 1.05MPa.
Process:Pipes - Mechanically formed；
Material: SS304 S30408 SUS304,SS316 S31603 SUS316,TP304L,TP316L
Surface Treatment: Annealing,Vibration polishing，Magnetic polishing，Pickling;
Packing: Plastic bags+ Cartons +Pallet;
Product Marking: Logo Size Material (Can mark the customer's LOGO and mark according to customer's requirement.);
Brand: LIANHE
Application: Engineering projects, Ships, Commercial Buildings, Residential Buildings, Hospitals, Hotels, Environmental Protection, Heating, Air conditioning, etc
Product Quality Control: We have QC person stay on the production lines do to the inspection. All products must have been inspected before delivery. we do online inspection and final inspection.
1. Raw material outside diameter thickness material inspection;
2. The length and end of raw materials shall be inspected after cutting;
3. After machine processing, the socket, outside diameter and thickness are checked;
4. The weld size surface shall be inspected after welding forming.
5. After heat treatment, the surface, size and socket shall be inspected.
6. After surface treatment, check whether the surface is qualified.
7. 100% Hydraulic air tightness test.
8. Marking and Packaging inspection.
Certificates: GB/T19001-2016,ISO9001:2015,CE, Sanitary License ;
Test Certificates:
EN 10204/3.1B-MTC
Raw material inspection certificate.
100% Radiography Test Report
Hydraulic seal test report.
Thread inspection report
Third Party Inspection Report, etc
HS Code: 7307230000
Place of Origin: Wenzhou,China;
FAQ:
Would you have a discount if l have a large order?
Yes we could offer different discount according to your order quantity.
Could you print our company LOGO on the nameplate and package?
Yes, we can do that
What is the payment way?
1)TT or Wester Union for the trial order
2)ODM, OEM order, 30% for deposit,70% against the copy B/L.
What is your terms of delivery?
We accept EXW, FOB, CFR, CIF, etc. You can choose the one which is the most convenient or cost effective for you.
What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.
Alway 15-25days based on general order .
When can I get the price?
Usually we quote within 3hours after we get your inquiry.
We are factory, we can guarantee our price is first-hand, High quality and competitive price.
