Stainless Steel 304/316 Lap Joint Flange for Pipe Connection

Stainless Steel 304/316 Lap Joint Flange is used with a compatible stub end to form a bolted pipe connection. Confirm the stub-end profile, flange standard, nominal size, pressure class, bolt pattern and material grade against the approved drawing and quotation.


    Overview


    The stainless steel 304/316 lap joint flange is used with a compatible stub end in a bolted pipe connection. The loose flange can rotate for bolt-hole alignment; material and service conditions should be confirmed for each order.


    Features


    Unique Lap Joint Design:

    The loose flange ring fits behind a compatible stub end and can rotate to help align the bolt holes.

    Proper pipe alignment and installation remain necessary to avoid undue loads on connected equipment.

    Superior Material Performance:

    304 and 316 stainless steel are available subject to order specifications; select the grade for the intended medium and service conditions.

    Confirm the applicable flange standard, dimensions, pressure class and compatible stub end for the specific order.

    Easy Installation & Maintenance:

    The stub end is joined to the pipe according to its design; the loose flange is positioned behind it for bolting.

    The rotating flange can simplify bolt-hole alignment during installation and maintenance.

    Sealing & Pressure Rating:

    Select a gasket compatible with the flange facing, medium, pressure and temperature.

    Pressure and temperature limits depend on the applicable standard, material, gasket and complete assembly.


    Application


    Perfect for demanding pipe connection scenarios:

    Oil & Gas Offshore: Potential piping applications subject to project-specific material and design approval.

    Power Plant Turbines: Steam piping subject to the applicable pressure-temperature rating and project requirements.

    Chemical Reactors: Flanged connections where material compatibility and applicable regulations are confirmed.

    Marine Vessels: Piping connections subject to project-specific design and inspection requirements.


    FAQ


    Q: What is the difference between lap joint and weld neck flanges?

    A: A lap joint flange rotates behind a stub end; a weld neck flange is welded to the pipe. Select either assembly to suit the specified design and rating.

    Q: Can lap joint flanges be used with non-stainless steel pipes?

    A: Material combinations require project-specific assessment of corrosion, gasket compatibility and operating conditions.

    Q: How to select the correct gasket for my application?

    A: Select the gasket for the specified facing, medium, pressure and temperature with the system designer.

    Q: What is the minimum pipe size for lap joint flanges?

    A: Please provide the required size, standard, pressure class and quantity for confirmation.

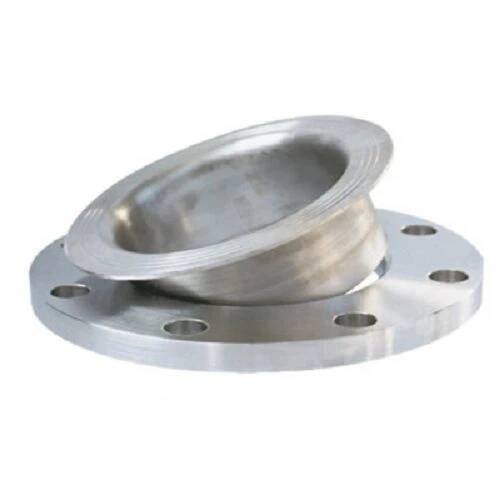

    stainless-steel-lap-joint-flange15445566860
