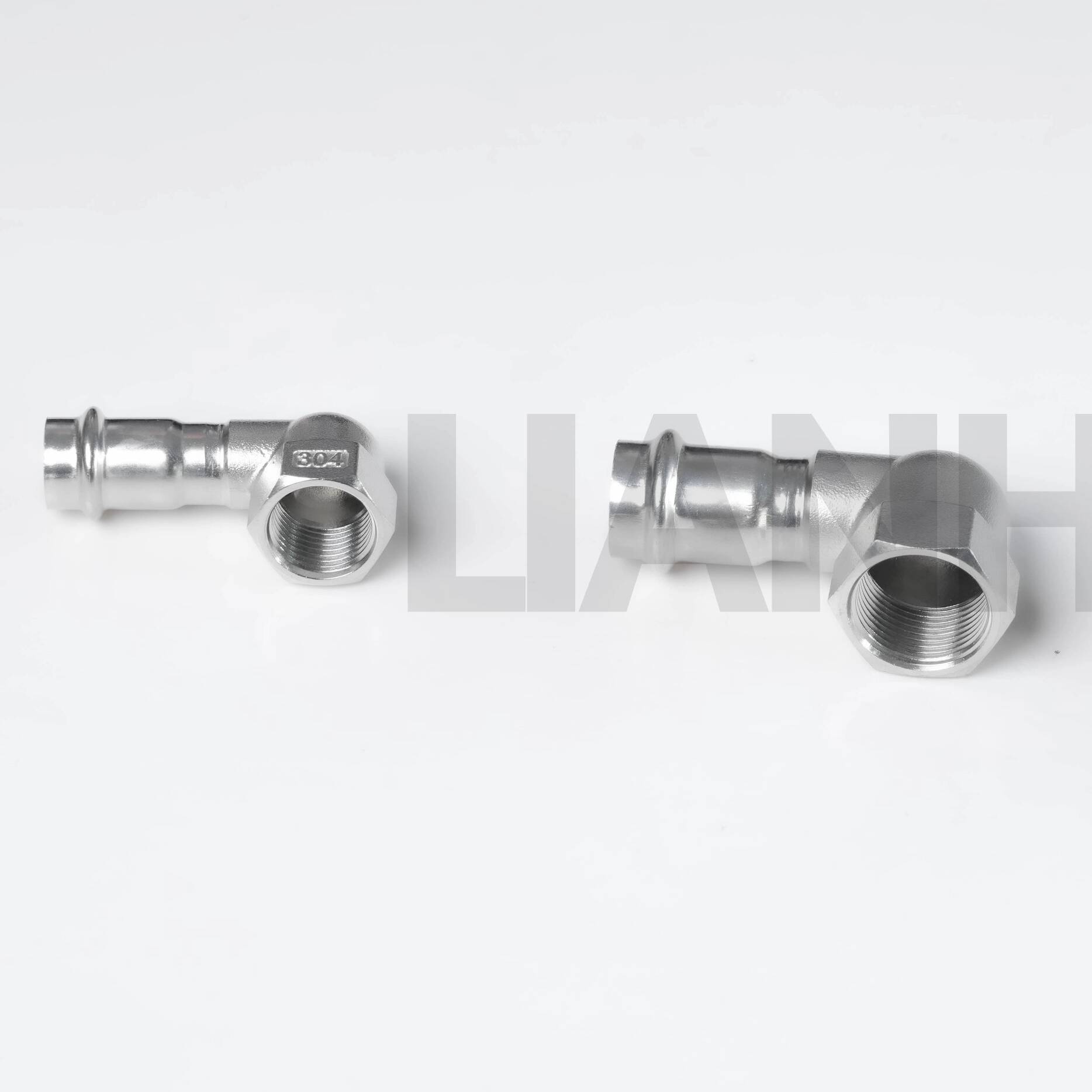

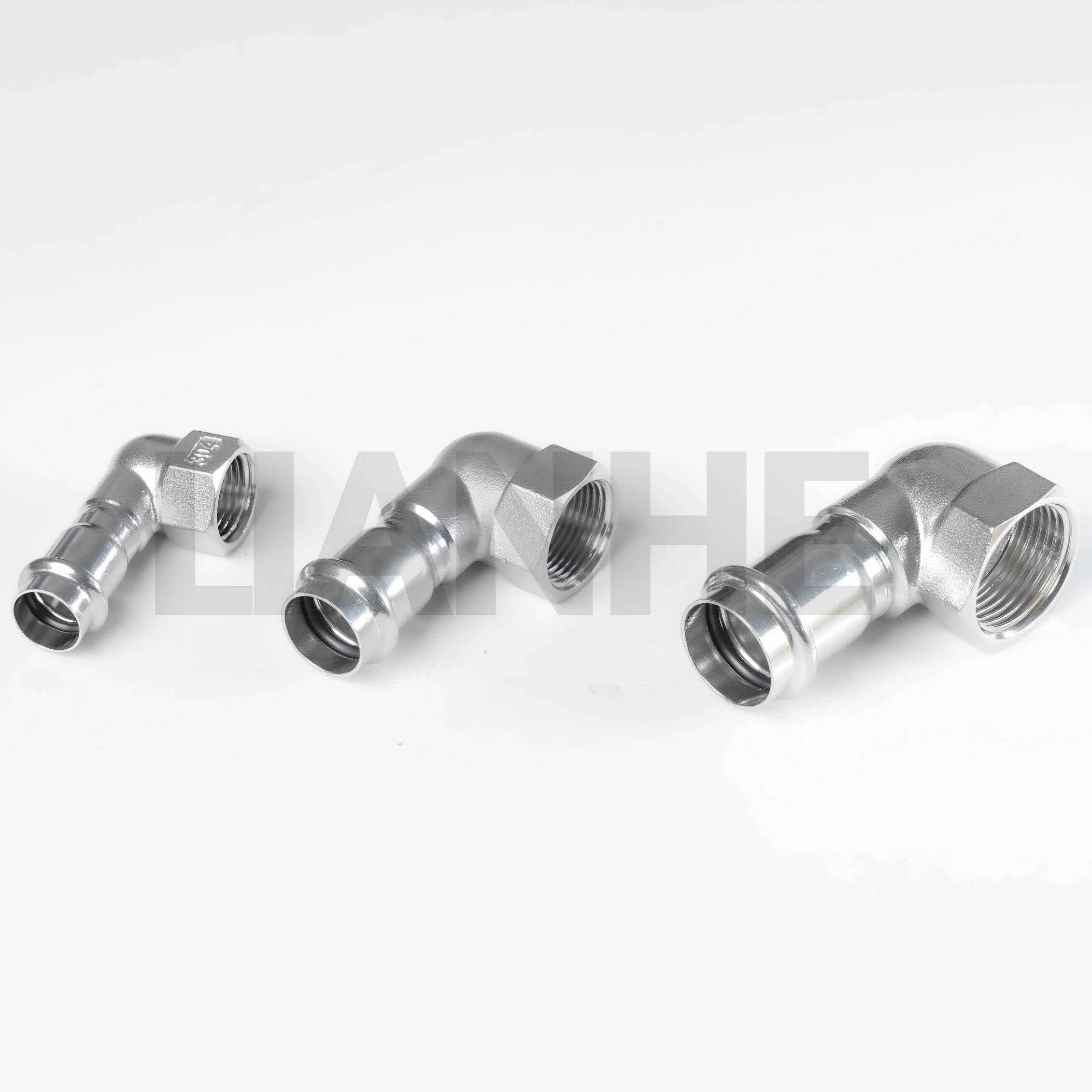

Stainless Steel Female Thread Press 90DEG Short Elbow S Type

Stainless steel female-thread press 90° short elbow changes pipe direction and connects a compatible press-fit tube to a male-threaded component. Confirm the S-type press profile, tube outside diameter, female thread standard, material and seal for the selected piping system.


    Product Specifications


    Parameter Value
    Brand LIANHE
    Size Range 1/4”~4" (DN10~DN100)
    Thickness 0.6~2MM
    Material 0Cr18Ni9 SS304 S30408 SUS304 1.4301, 0Cr17Ni12Mo2 SS316 S31603 SUS316 1.4404, SS304L S30403 1.4306, SS316L S31603 1.4404
    Ring Gasket Material CIIR, EPDM, PTFE, Nitrile
    Connection Mode of Socket End D Type and S Type
    Nominal Pressure PN16
    Water Pressure Test 2.5MPa
    Air Tightness Test Pressure 1.05MPa
    Process Pipes - Mechanically formed
    Surface Treatment Vibration polishing, Magnetic polishing, Pickling
    Product Marking LOGO-OD-W.T-Material (Custom marking available)
    Packing Plastic bags + Cartons + Wooden Case
    Certificates GB/T19001-2016, ISO9001:2015, CE, Sanitary License
    HS Code 7307230000
    MOQ 5~10PCS (5000PCS in stock for each product and size)
    Free Samples Yes (Express delivery fee not included)
    Quotation Time Within 3 hours
    Delivery Time 3~7 days for regular sizes; 25 days for production
    Price Validity 3~7 days (according to market conditions)
    Quality Warranty 1 year
    Payment Terms 30% TT Advance Payment + 70% TT Payment Before Delivery (Negotiable)
    Payment Methods T/T, Western Union, Paypal, etc.
    Shipping Terms EXW, FOB, CFR, CIF, DDP, DDU
    Transportation Support Shipping by sea, air, and express available
    Place of Origin Wenzhou, China


    Product Features

    · High-Quality Materials: Made from durable SS304, SS316, SS304L, and SS316L.

    · Corrosion Resistance: Provides long-lasting protection in challenging environments.

    · Versatile Standards: Compliant with GB/T19228.2-2011, CJ/T 152-2016, CJ/T466-2014, EN, DIN, and ASME standards.

    · Precision Engineering: Manufactured using advanced mechanically formed pipe processes.

    · Flexible Connection Options: Supports D Type and S Type socket ends.

    · Enhanced Sealing: Uses CIIR, EPDM, PTFE, and Nitrile gaskets for improved leak resistance.

    · Comprehensive Surface Treatment: Offers vibration polishing, magnetic polishing, and pickling for a refined finish.


    Product Application

    Suitable for a wide range of piping systems, including:

    · Drinking water systems (cold and hot water)

    · Wastewater and industrial water systems

    · Oil and gas pipelines

    · Engineering projects

    · Commercial and residential buildings

    · Hospitals, hotels, and environmental protection systems

    · Heating, air conditioning, and steam piping systems


    Product Advantages

    Superior Strength and Durability – Built to withstand high pressure and demanding environments.

    Exceptional Corrosion Resistance – Made from high-quality stainless steel for long-lasting performance.

    Optimized Flow Efficiency – Low flow resistance ensures smooth and efficient operation.

    Reliable Sealing Performance – Leak-proof design enhances system safety and efficiency.

    Effortless Installation and Maintenance – Designed for quick assembly and minimal upkeep.

    Ideal for Embedded Installation – Suitable for concealed and underground piping systems.

    Cost-Effective Solution – Offers long-term savings with reduced maintenance and replacement costs.

    Excellent Seismic Resistance – Engineered to withstand seismic activity and vibrations.

    Eco-Friendly Construction – Manufactured using environmentally sustainable materials.

    Safe for Drinking Water Systems – Compliant with health and sanitation standards.

    Enhanced Wear Resistance – Ensures durability against friction and mechanical stress.

    Certified Safety Assurance – BABSL certified for compliance with industry safety standards.


    Quality Control

    · Material Inspection: Raw material diameter, thickness, and specifications checked.

    · Cutting Inspection: Material length and ends examined after cutting.

    · Socket and Dimension Check: Performed post-processing.

    · Weld Inspection: Ensures size and surface quality post-welding.

    · Heat Treatment Check: Final surface and socket inspection after heat treatment.

    · Surface Quality Control: Ensures smooth, refined surfaces.

    · 100% Hydraulic Air Tightness Test

    · Marking and Packaging Inspection


    Inspection Certificates

    · EN 10204/3.1B-MTC

    · Raw Material Inspection Certificate

    · 100% Radiography Test Report

    · Hydraulic Seal Test Report

    · Thread Inspection Report

    · Third Party Inspection Report (Available upon request)


    Our Services

    1. Extensive knowledge of diverse markets to meet unique requirements.

    2. Real manufacturer with factory located in Wenzhou, China.

    3. Strong technical team ensures top-quality production.

    4. Effective cost-control system for competitive pricing.

    5. Abundant experience in press fittings production and sales management.
