Stainless Steel Female Thread Press Tee
  • Stainless Steel Female Thread Press TeeStainless Steel Female Thread Press Tee
  • Stainless Steel Female Thread Press TeeStainless Steel Female Thread Press Tee
  • Stainless Steel Female Thread Press TeeStainless Steel Female Thread Press Tee
  • Stainless Steel Female Thread Press TeeStainless Steel Female Thread Press Tee

Stainless Steel Female Thread Press Tee

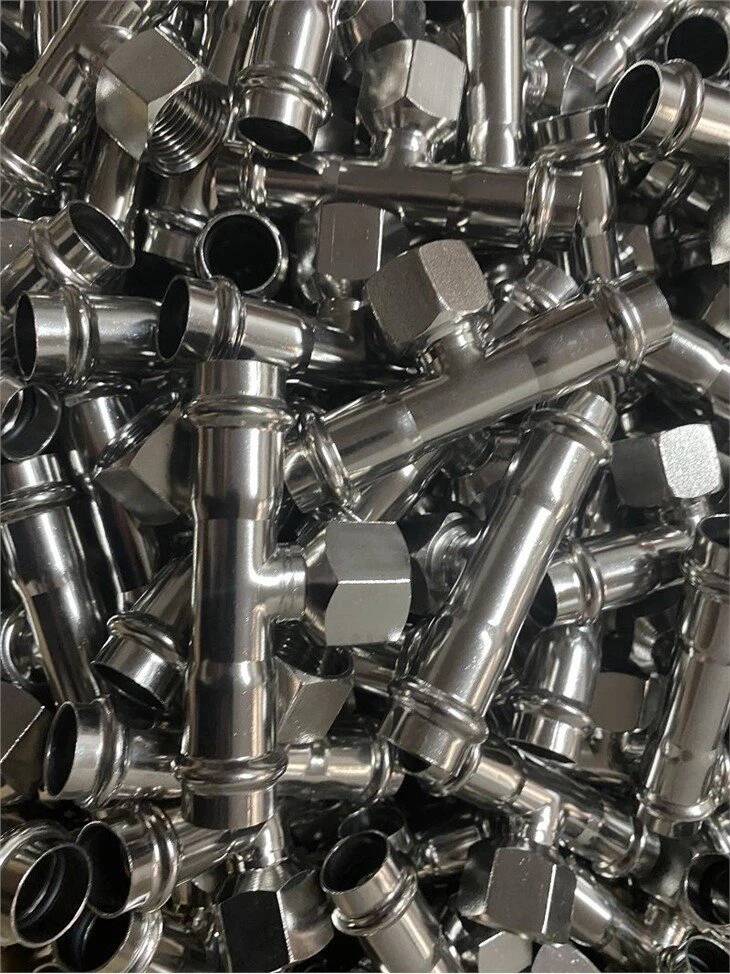

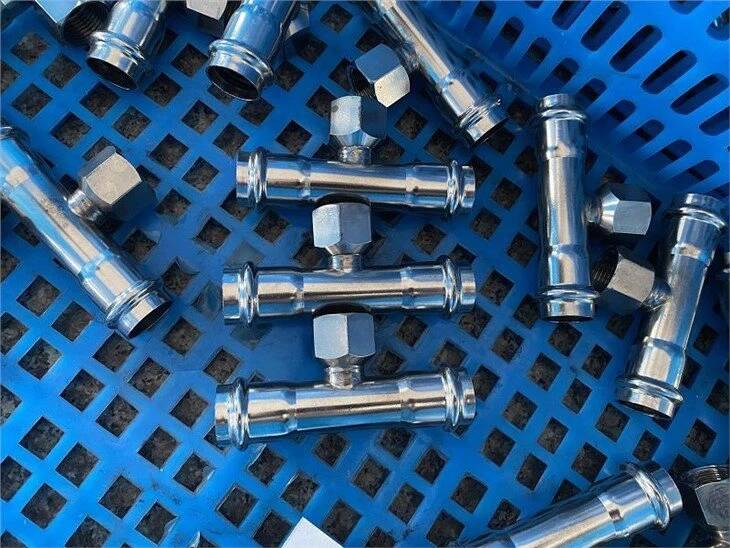

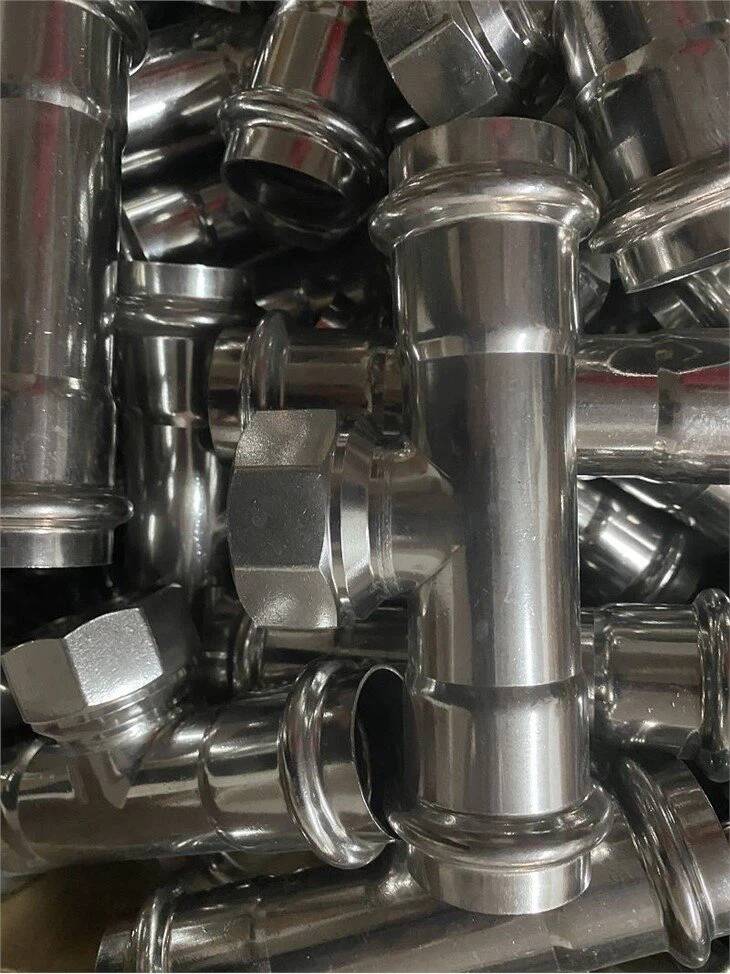

Stainless steel tee with press-fit run ends and a female threaded branch for compatible piping systems.
Confirm tube dimensions, press profile, thread form and branch size for the selected installation.
Material, seal and service limits are subject to the approved specification.

    Size Range: 1/4"×1/2Rp/in~2"×2Rp/in

    Thickness:0.6~2MM

    Standards: EN DIN ASME GB/T19228.2-2011 CJ/T 152-2016 CJ/T466-2014

    Material: 0Cr18Ni9 SS304 ,0Cr17Ni12Mo2 SS316,SS304L ,SS316L.

    Ring Gasket Material: CIIR, EPDM,PTFE, Nitrile.

    Connection Mode of Socket End: D Type and S Type;

    Nominal pressure: PN16; Water pressure test:2.5MPa; Air tightness test pressure: 1.05MPa.

    Process:Pipes - Mechanically formed;

    Surface Treatment: Vibration polishing,Magnetic polishing,Pickling;

    Product Marking: Size and Material (Can mark the customer's LOGO and mark according to customer's requirement.);

    Packing: Plastic bags+ Cartons + Wooden Case;

    Certificates: GB/T19001-2016,ISO9001:2015,CE, Sanitary License ;


    Factory inspection Report and Certificates:

    EN 10204/3.1B-MTC

    Raw material inspection certificate.

    100% Radiography Test Report

    Hydraulic seal test report.

    Thread inspection report

    Third Party Inspection Report, etc


    Brand: LIANHE

    Medium: Drinking water(Cold water, hot water.), wastewater, industrial water, Oil, gas.

    Application of all kinds of piping system including Water piping system, Gas piping system, Direct drinking water piping system, Environmental protection piping system, Steam piping system, Heating piping system, Air conditioning piping system, Industrial water piping system and so on;


    Product Advantages:

    1.High resistance strength;

    2.Corrosion resistance;

    3.Long service life;

    4.Low flow resistance;

    5.Good seismic performance;

    6.BABSL;

    7.The environmental protection;

    8.Easy to install;

    9.Suitable for embedded installation;

    10.Low comprehensive cost;

    11.Wear-resisting;

    12.Health;

    13.Good sealing performance, no leakage


    Delivery inspection: Material, Surface, Size, Hydrostatic test, Airtight test;

    Matching gasket applicable temperature range: -20℃~110℃

    HS Code: 7307230000

    Payment Term: 30%TT Advance Payment+70%TT Payment Before Delivery. ( Note: Specific can be discussed.)

    Available via T/T, Western Union, Paypal Etc. Payment for goods.

    Shipping Terms: EXW, FOB,CFR,CIF,DDP,DDU.

    We can provide shipping by sea, by air and by express.

    Place of Origin: Wenzhou,China


    FAQ:

    What’s your MOQ?

    If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer’s exact situation.

    Do you provide sample ? Is it free?

    If the sample is low value, we will provide the free sample with freight collect. But for some high value samples, we need to collect the sample charge.

    What’s your after-sale service?

    Our quality warranty period is one year. Any quality problem will be solved to customer satisfactions.

    How can I place an order?

    You can contact any of our sales person for an order. Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.

    For designing or further discussion, it is better to contact us with Skype, TradeManger or QQ or WhatsApp or other instant ways, in case of any delays.

    We are factory, we can guarantee our price is first-hand, High quality and competitive price.

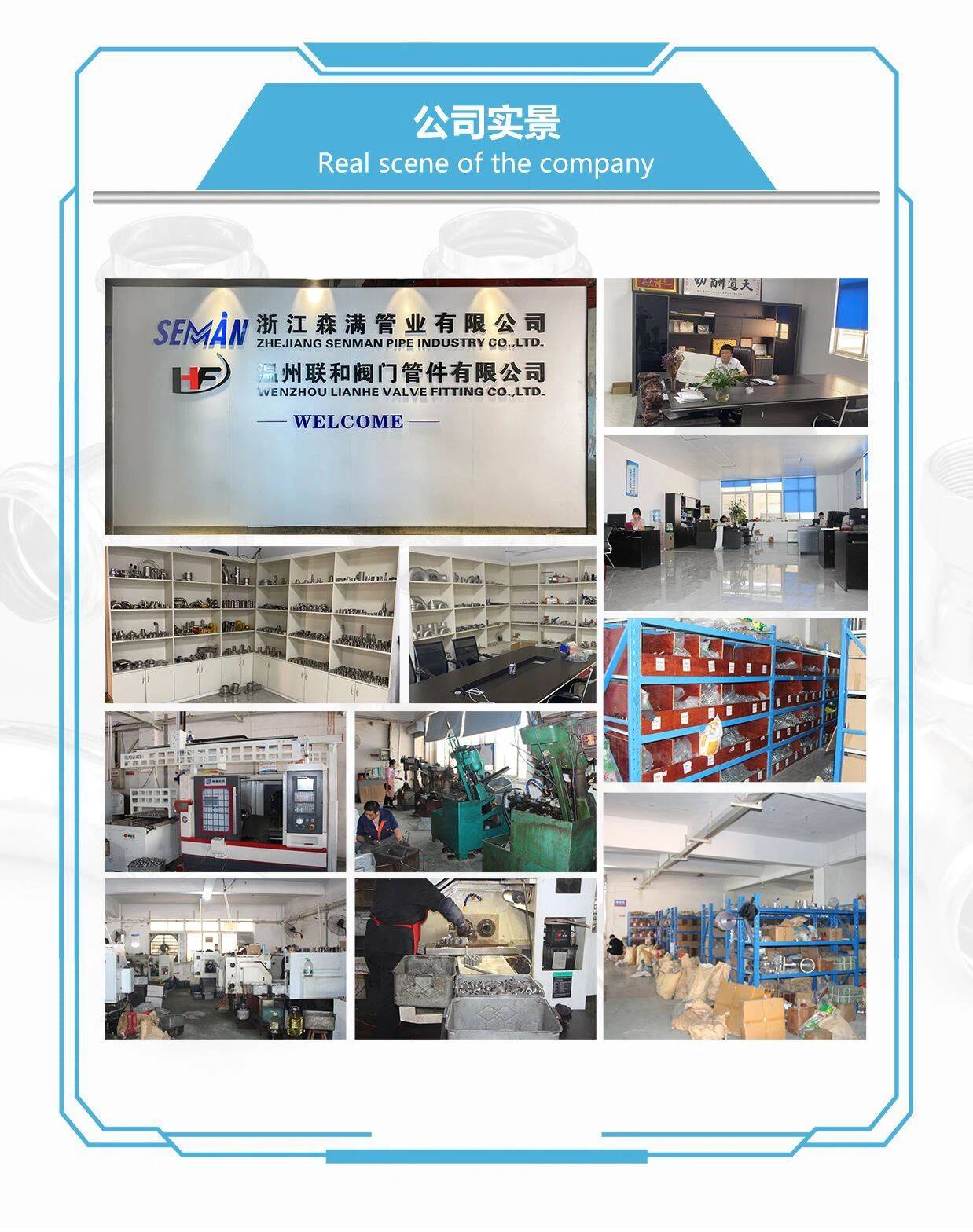

    COMPANY PHOTO(001)

    Certificate Photo(001)

    Press-Fitting QC (001)

    Press Fitting Packing(001)

    Shipping Photo(001)
