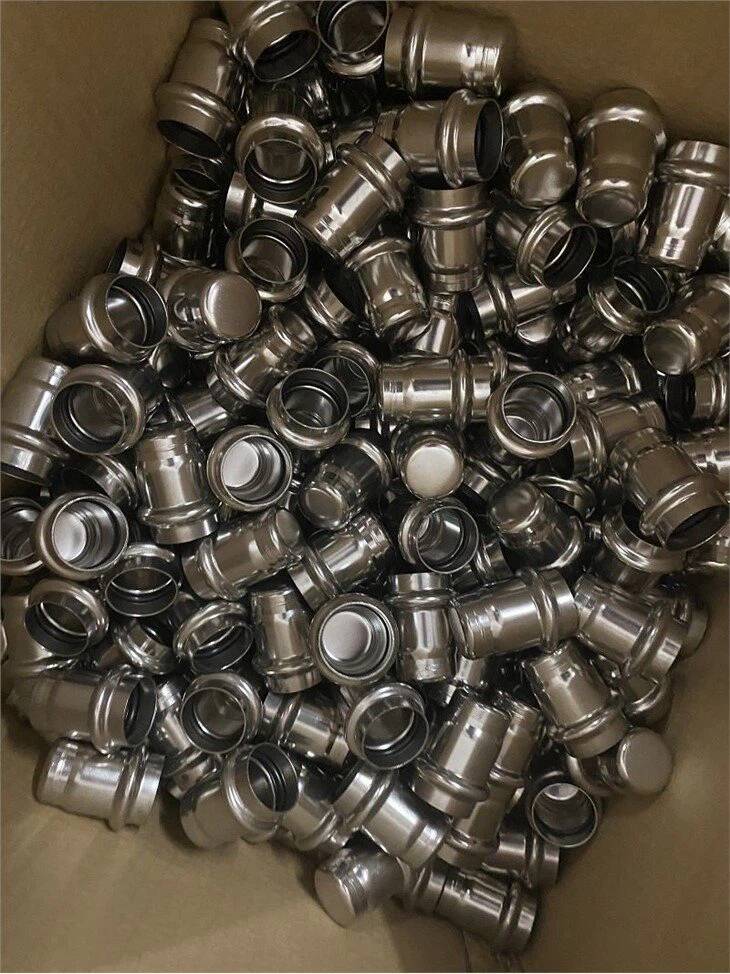

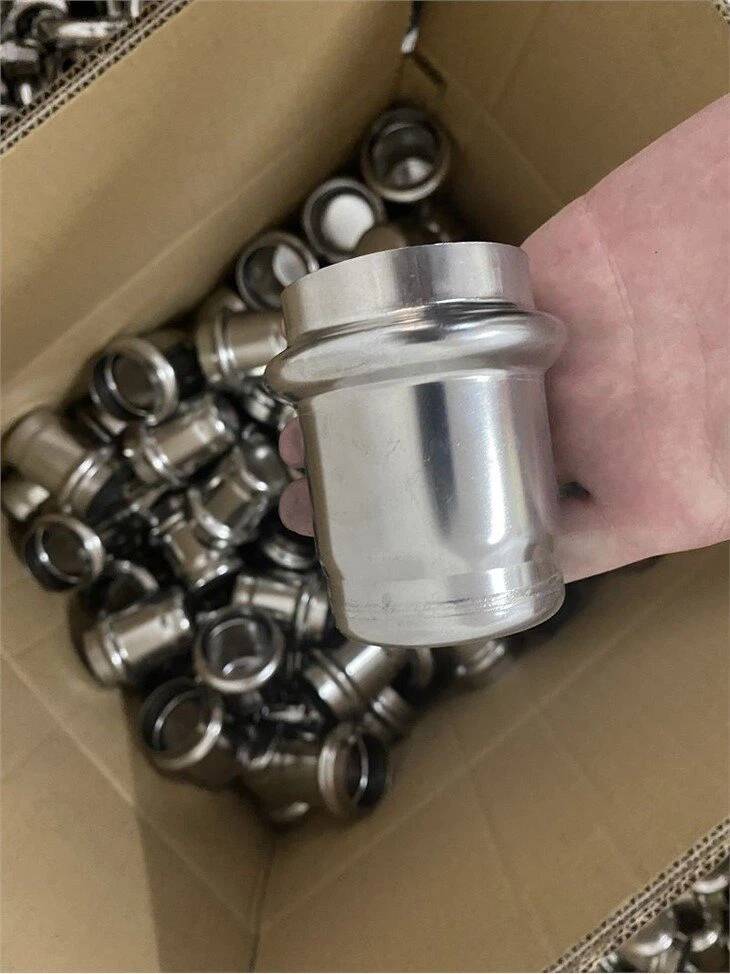

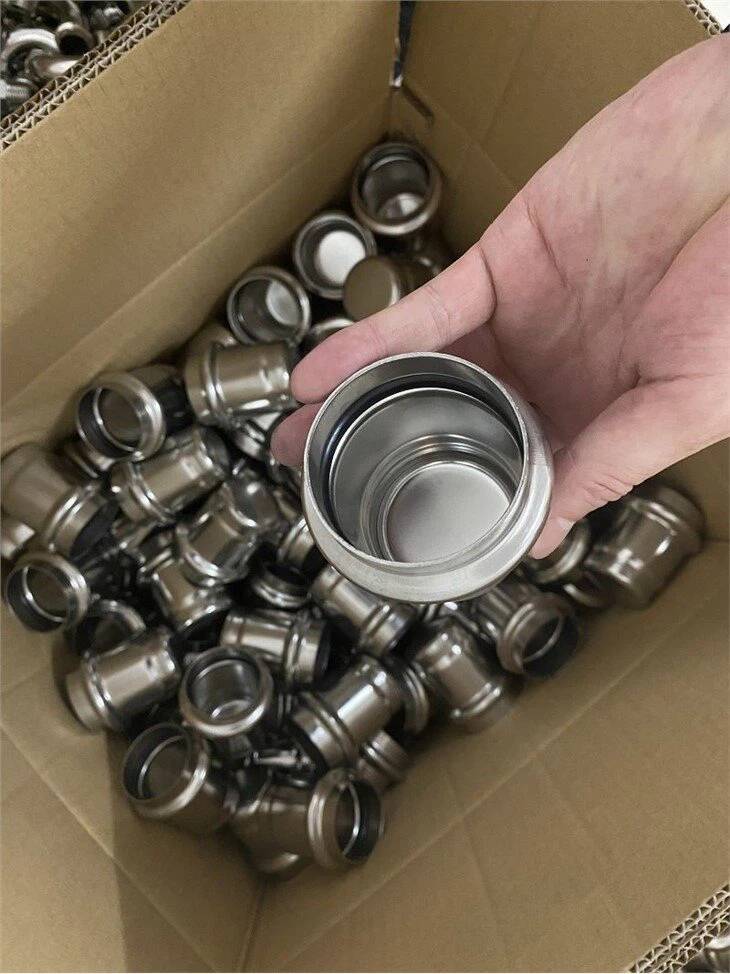

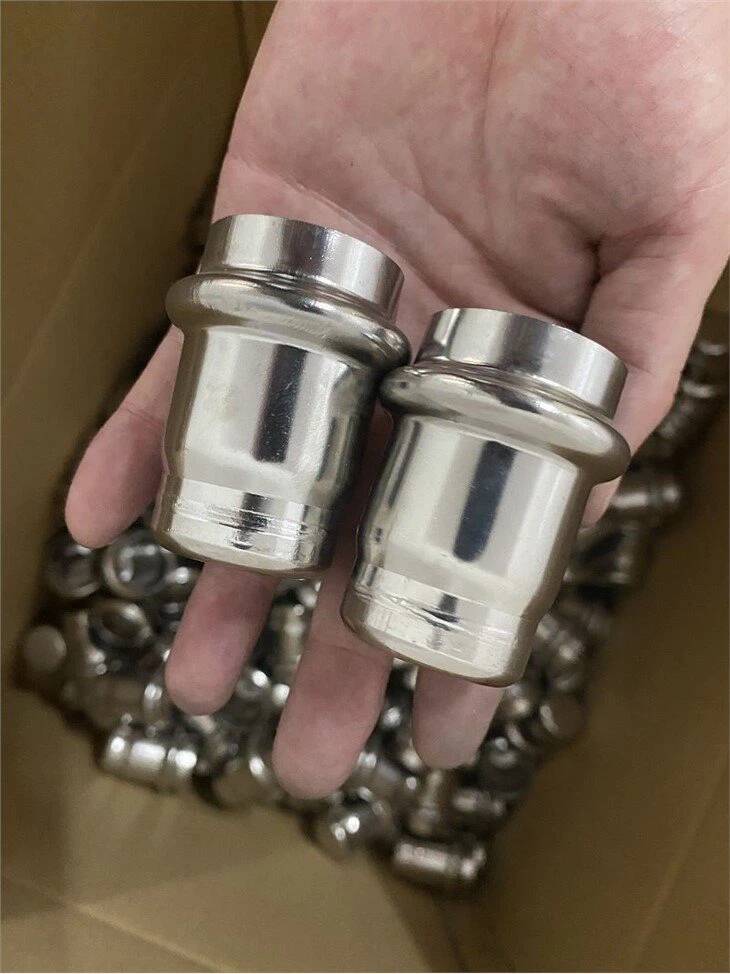

Stainless Steel Press Cap

Stainless steel press cap for closing the end of compatible press-fit pipework.
Confirm the tube size, press profile and seal material for the selected system.
Material grade and pressure and temperature limits require confirmation for the intended service.

    Size Range: DN10~DN100

    Thickness:0.6~2MM

    Standards: DIN GB/T19228.2-2011 CJ/T 152-2016 CJ/T466-2014 EN ASME

    Material: SS304 1.4301,SS316 1.4404,SS304L 1.4306 ,SS316L 1.4404.

    Ring Gasket Material: CIIR, EPDM,PTFE, Nitrile.

    Connection Mode of Socket End: D Type and S Type;

    Nominal pressure: PN16; Water pressure test:2.5MPa; Air tightness test pressure: 1.05MPa.

    Process: Pipes - Mechanically formed;

    Surface Treatment: Vibration polishing,Magnetic polishing,Pickling;

    Product Marking: SIZE,Material (Can mark the customer's LOGO);

    Packing: Plastic bags+ Cartons + Wooden Case or Pallet;

    Certificates: GB/T19001-2016,ISO9001:2015,CE, Sanitary License ;

    Brand: LIANHE

    Medium: Drinking water(Cold water, hot water.), wastewater, industrial water, Oil, gas.

    Application: Engineering projects, Ships, Commercial Buildings, Residential Buildings, Hospitals, Hotels, Environmental Protection, Heating, Air conditioning, etc


    Test Items:

    Hydrostatic test, Airtight test, Pressure test, Negative Pressure test, Drawing Test, Temperature change (cold and hot water cycle) test, Hydrostatic bending and Torsion test, Hydrostatic vibration test, Hydrostatic impact test.

    Delivery inspection: Material, Surface, Size, Hydrostatic test, Airtight test;


    Factory inspection Report and Certificates:

    EN 10204/3.1B-MTC

    Raw material inspection certificate.

    100% Radiography Test Report

    Hydraulic seal test report.

    Thread inspection report

    Third Party Inspection Report, etc


    Matching gasket applicable temperature range: -20℃~110℃

    HS Code: 7307230000

    Payment Term: 30%TT Advance Payment+70%TT Payment Before Delivery. ( Note: Specific can be discussed.)

    Available via T/T, Western Union, Paypal Etc. Payment for goods.

    Shipping Terms: EXW, FOB,CFR,CIF,DDP,DDU.

    We can provide shipping by sea, by air and by express.

    Free Samples: Yes,Samples are available free of charge. But the express delivery fee is not covered.

    Place of Origin: Wenzhou,China


    FAQ:

    Would you have a discount if l have a large order?

    Yes we could offer different discount according to your order quantity.

    Do you accept custom design on size?

    Yes, if the size is reasonable;

    Could you print our company LOGO on the nameplate and package?

    Yes, we can do that

    Can l visit your factory?

    By all means, we warmly welcome your arrival, Before you take off from your country, please let us know. We will show you the way and arrange time to pick you up if possible.

    Can I request to advance the shipment?

    It should be depends on whether there is sufficient inventory in our warehouse.

    Do you looking for Agent?

    Yes, we're looking for the agent all over the world, please contact us for further discussion.

    We are factory, we can guarantee our price is first-hand, High quality and competitive price.

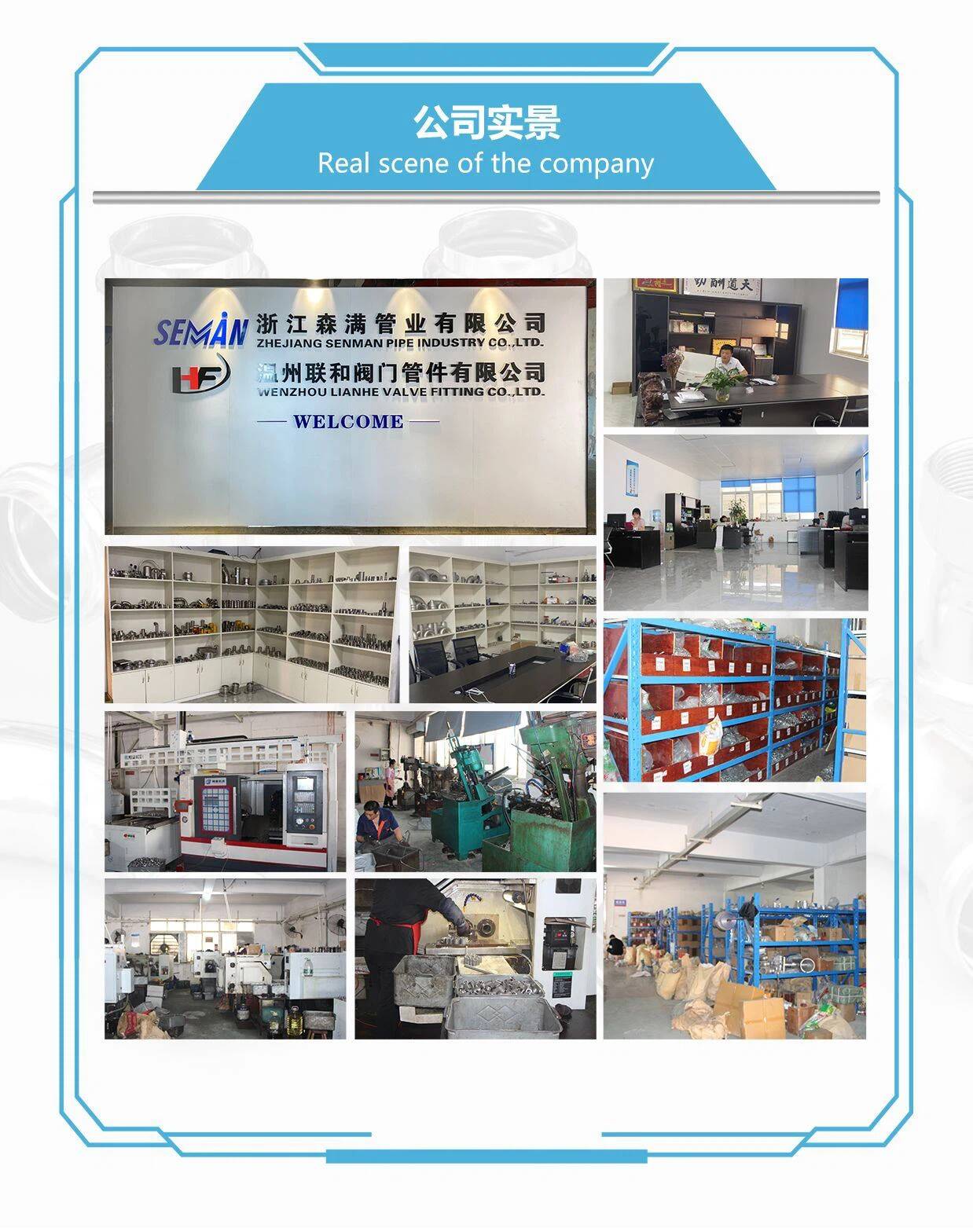

    COMPANY PHOTO(001)

    Certificate Photo(001)

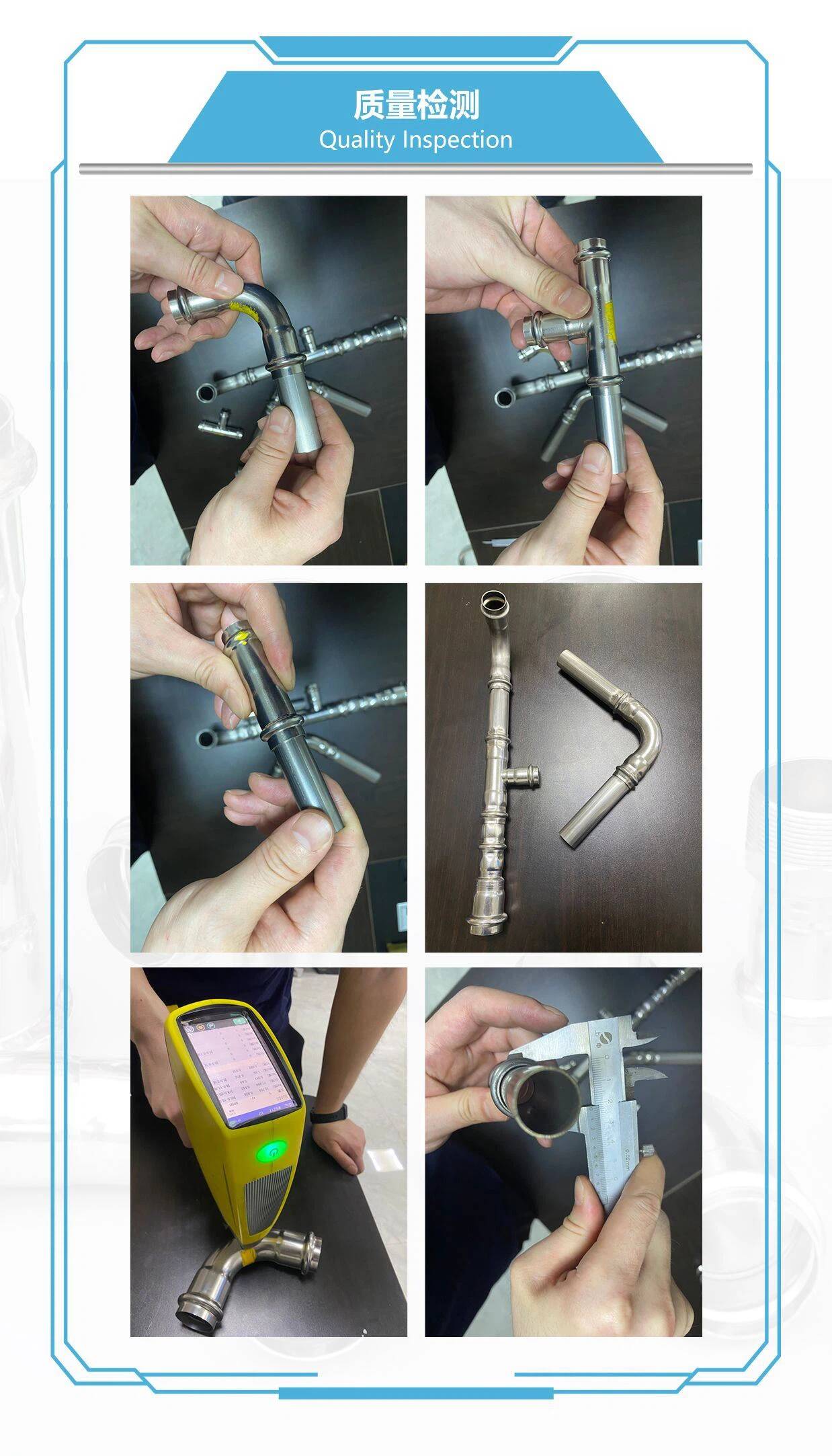

    Press-Fitting QC (001)
