Stainless Steel Raised Face Flange

Stainless Steel Raised Face Flange for a bolted joint with a compatible mating flange and gasket. Specify flange type, standard, nominal size, pressure class, raised-face dimensions and material grade for the exact order.


    Product Overview

    The Stainless Steel Raised Face Flange has a raised sealing face for a bolted piping connection. The main photograph shows a stainless steel ring flange. Select the flange type, facing dimensions and bolt pattern to match the mating flange and gasket.


    Detailed Product Specifications

    Category

    Details

    Product

    Stainless steel flange with raised face

    Facing

    Raised face (RF); gasket dimensions must match

    Connection

    Bolted flange joint to compatible pipe or equipment

    Standard and rating

    Confirm the flange standard, nominal size and pressure class for the selected drawing

    Material

    Specify the stainless steel grade and material documentation


    Key Features & Selection

    Sealing face: The raised face provides the gasket seating area; verify the gasket type and surface condition.

    Fit: Bolt circle, hole count, flange dimensions and mating connection must follow the same specified standard.

    Selection: Confirm material and pressure–temperature suitability for the ordered configuration.


    Quality & Documentation

    Confirm dimensions, material grade and any requested inspection documents against the approved drawing and quotation. No pressure, temperature or certification claim is made without checking the ordered configuration.


    Ordering Information

    Please provide flange type, standard, nominal size, pressure class, RF dimensions, material grade, quantity and any drawing or inspection requirements.


    01 实景

    02 证书

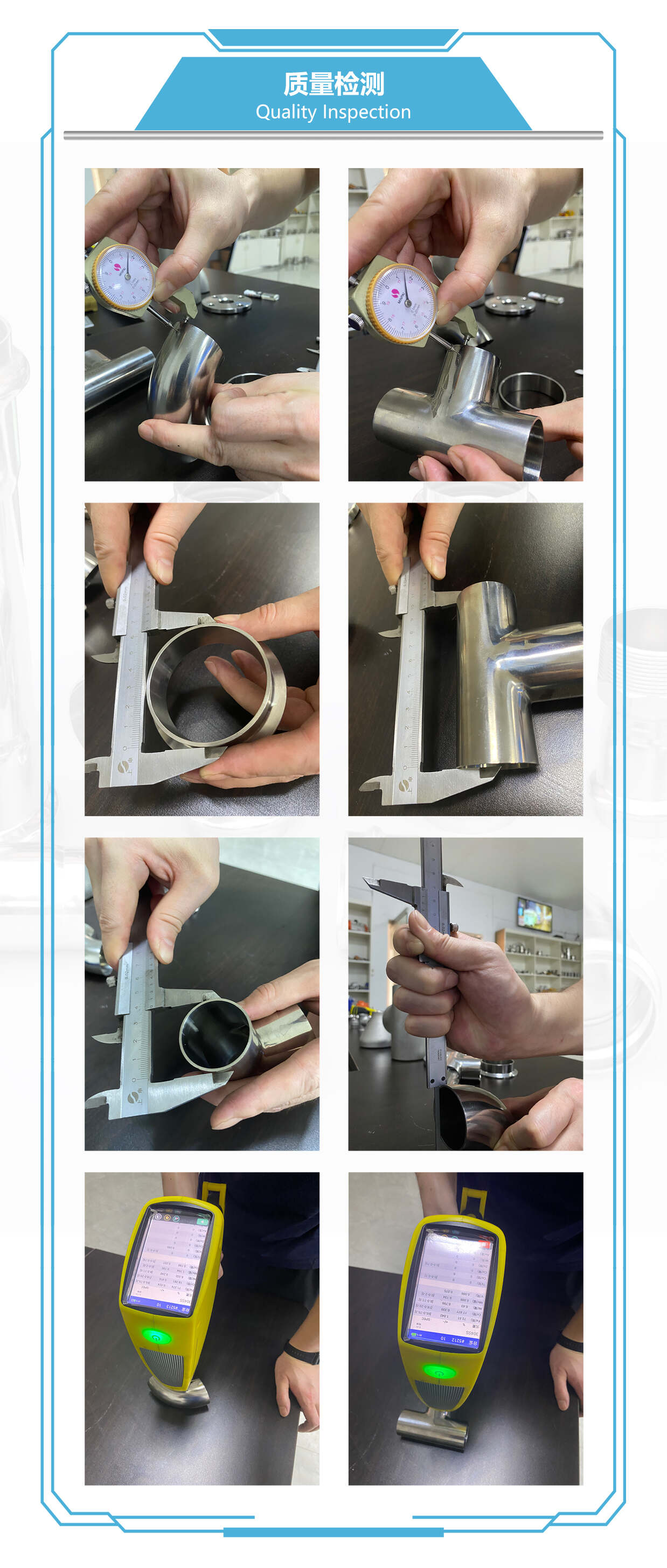

    03 产品检验图
