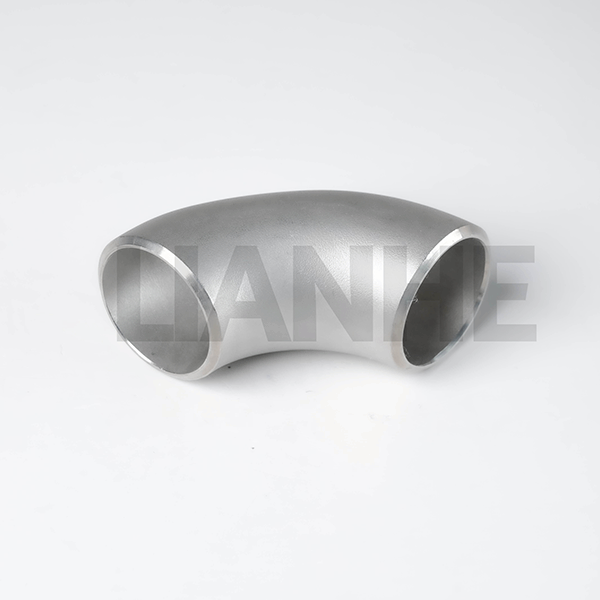

Heavy-Duty Stainless Steel Butt Weld 45DEG Elbow for Industrial Piping

Overview

The Heavy-Duty Stainless Steel BW (Butt-Weld) 45-Degree Elbow is a premium pipe fitting designed to change direction in high-pressure, high-temperature piping systems while maintaining structural integrity and flow efficiency. Constructed from seamless 304 or 316 stainless steel, this elbow features butt-weld ends (ANSI B16.25 compliant) and a 1.5D radius, making it ideal for heavy-duty applications requiring minimal pressure loss and vibration resistance.

Features

Robust Seamless Construction:

Manufactured from extruded stainless steel (304 for general use, 316 for corrosive media), with wall thickness compliant with schedule 40/80 and yield strength ≥250 MPa.

Butt-weld ends (beveled 37°-45°) meet ANSI B16.25 and ASME B1.20.7 standards, ensuring full penetration welds and leak-free connections.

Flow-Optimized Design:

1.5D centerline radius reduces pressure loss by 30% compared to short-radius elbows, with a polished internal bore (Ra ≤1.6μm) minimizing turbulence and scale buildup.

45° angle distributes stress evenly during high-flow conditions, suitable for systems with up to 1,500 GPM flow rate (12" elbows).

Environmental Resistance:

316 stainless steel variant resists chloride-induced pitting (critical in marine and saltwater applications), with a passivated surface extending service life in harsh environments.

Temperature range: -250°C to 800°C (with proper welding procedures), suitable for cryogenic liquids and high-temperature steam lines.

Installation Compliance:

Available in sizes 1" to 48" NPS, with custom wall thicknesses for special projects (e.g., nuclear-grade piping meeting ASME BPVC Section III).

Magnetic particle inspection (MPI) and hydrostatic testing (1.5x MAWP) ensure zero defects in critical applications.

Application

Perfect for high-demand industrial piping systems:

Fire Protection: NFPA 20-compliant elbows in wet/dry sprinkler systems, ensuring reliable flow in commercial high-rises and industrial facilities.

Chemical Processing: Diverting corrosive media in reaction vessels and heat exchangers, with 316 stainless steel meeting CEPDG standards for hazardous chemicals.

Power Generation: Steam and condensate lines in thermal plants, withstanding rapid temperature changes (500°C to ambient) and high-pressure cycles (up to 200 bar).

Marine & Offshore: Seawater intake systems and subsea pipelines, with 316 stainless steel enduring constant exposure to saltwater and dynamic loading.

FAQ

Q: What is the difference between 1.5D and short-radius (1D) elbows?

A: 1.5D elbows (long-radius) offer better flow characteristics and lower pressure loss, while 1D elbows are more compact but increase turbulence and pressure drop.

Q: Can these elbows be used in underground pipelines?

A: Yes, but apply anti-corrosion wrap (e.g., polyethylene tape) and use a concrete encasement for extra protection in corrosive soils.

Q: What welding electrodes are recommended for 316 stainless steel?

A: Use E316L-16 (GTAW) or E316L-17 (SMAW) electrodes to match the base metal's corrosion resistance and ductility.

Q: How to measure the elbow's straightness after welding?

A: Use a laser alignment tool to ensure the elbow's axis deviation is ≤1mm/m, critical for maintaining pipeline integrity in long runs.
