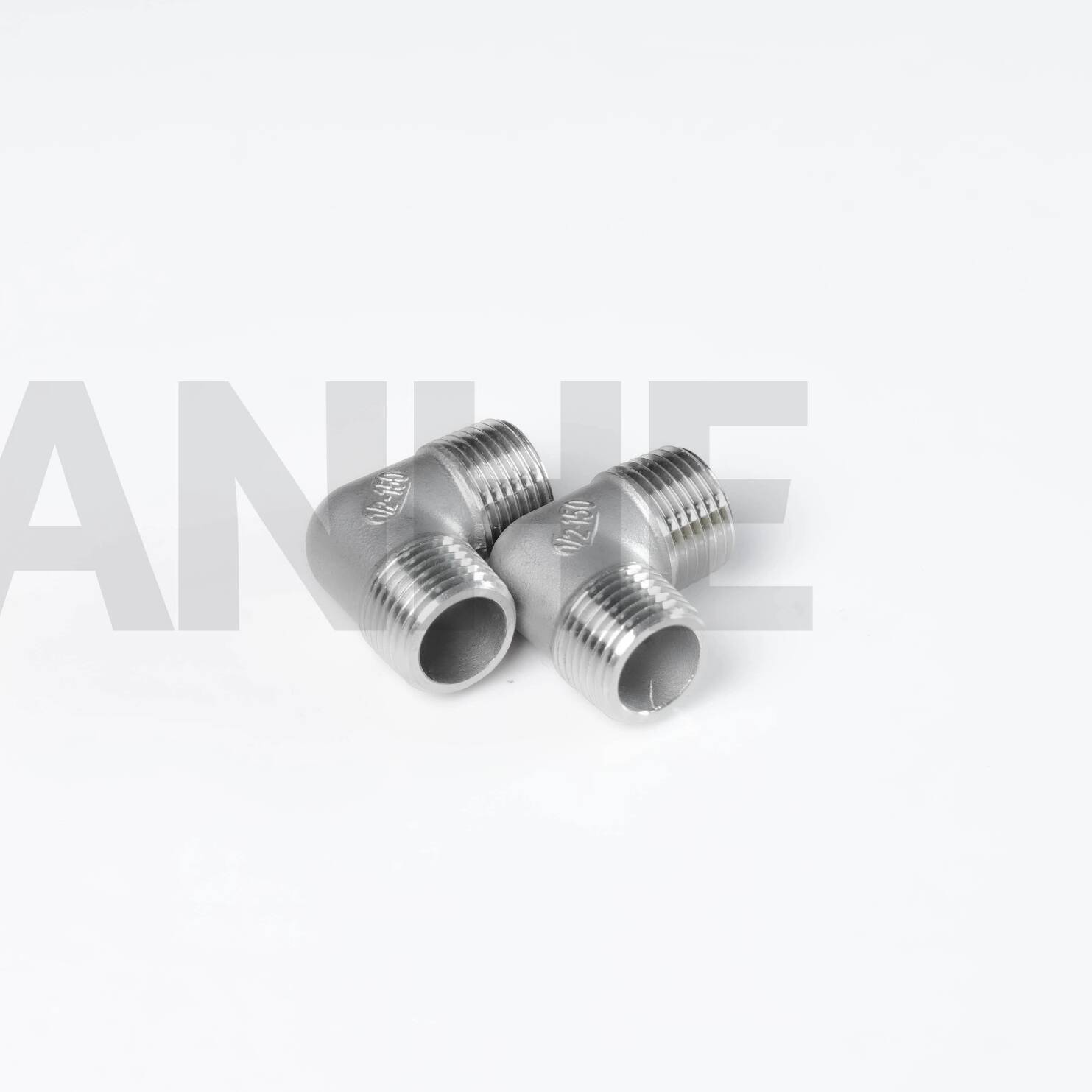

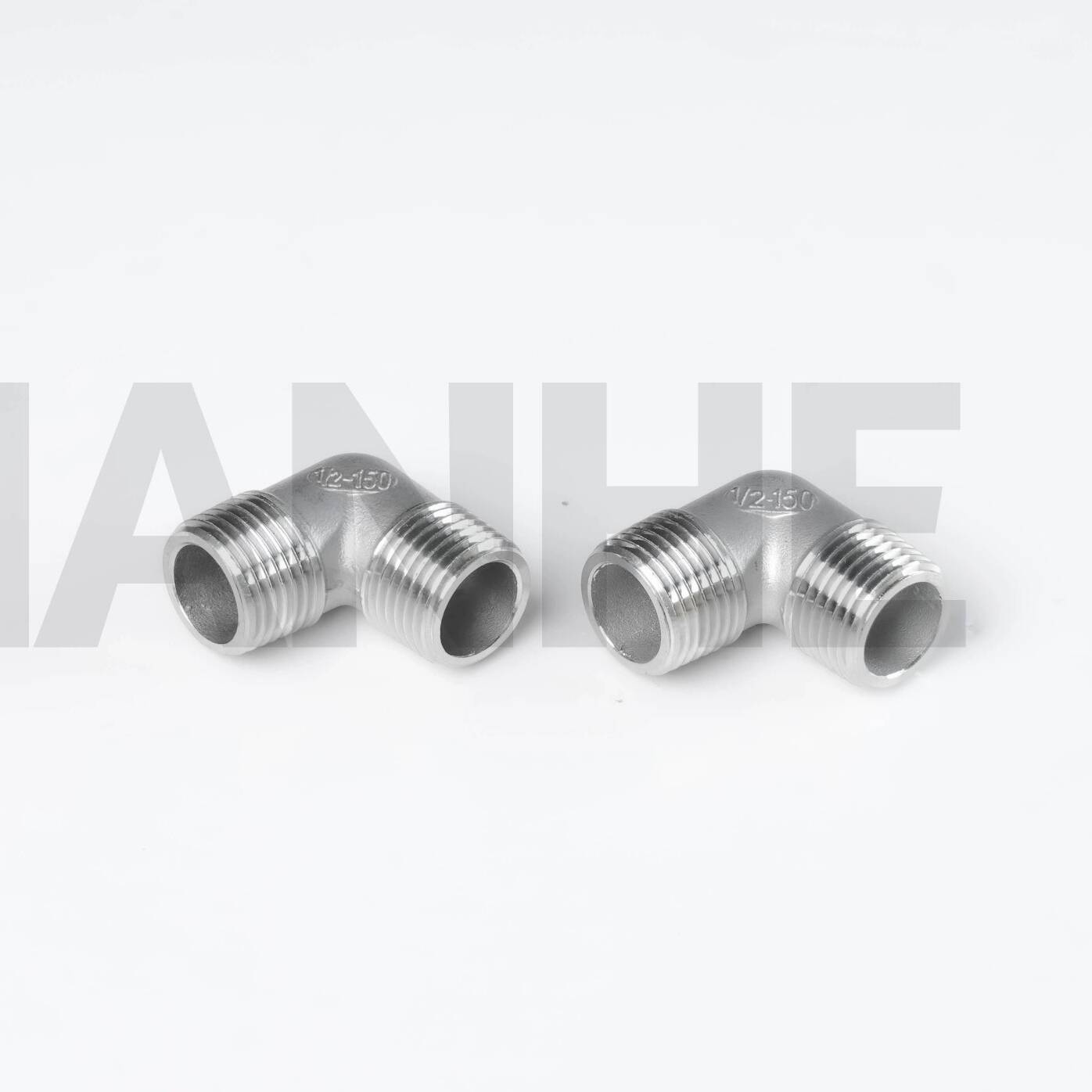

The High-Pressure Stainless Steel 150# 90-Degree Threaded Elbows are precision-engineered pipe fittings designed to change direction in high-pressure threaded systems while ensuring leak-free connections and structural stability. Made from 304 or 316 stainless steel, these elbows feature NPT threads (ANSI B1.20.1) and a 1.5D radius, ideal for industrial and commercial applications requiring both strength and corrosion resistance.
Premium Material & Threading:
Constructed from ASTM A312 stainless steel (304 or 316), with a minimum tensile strength of 515 MPa and elongation ≥30% for impact resistance in high-pressure scenarios.
Female NPT threads (60° angle, 11.5 threads per inch for 1/2"-2" sizes) machined to ±0.05mm tolerance, tested to 1.5x working pressure (150 PSI for 150# rating).
Flow & Stress Optimization:
1.5D centerline radius (ANSI B16.11 compliant) reduces flow resistance and turbulence, achieving Cv values 10% higher than standard short-radius elbows.
Reinforced heel and toe sections (1.2x wall thickness) withstands thermal expansion and vibration, critical for pump and compressor connections.
Versatile Compatibility:
Connects to carbon steel, stainless steel, and plastic pipes with NPT threads, suitable for air, water, oil, and non-corrosive gas applications.
Available in sizes 1/8" to 4" NPS, with schedule 40 (standard pressure) and schedule 80 (high-pressure) options (up to 3,000 PSI for schedule 80).
Compliance & Finish:
Meet ASME B16.11 and MSS SP-83 standards, with optional electropolishing (Ra ≤0.8μm) for high-purity systems in pharmaceutical and semiconductor industries.
Passivated surface (for 316 elbows) reduces metal ion leaching, ensuring compliance with FDA 21 CFR Part 177 for food-grade applications.
Ideal for high-pressure and corrosive environments:
Industrial Hydraulics: Redirecting hydraulic fluid in machinery and automation systems, with 316 elbows resisting degradation from oil additives.
HVAC Systems: Condensate and refrigerant lines in commercial buildings, with 304 elbows providing reliable connections in humid environments.
Chemical Labs: High-purity chemical transfer lines, with electropolished 316 elbows minimizing contamination risks in reagent delivery systems.
Marine Hardware: Connecting onboard freshwater and fuel lines, with 316 stainless steel enduring saltwater spray and corrosion for 10+ years.
Q: Can these elbows be used with British Standard Pipe (BSP) threads?
A: No, they feature NPT threads; use a NPT-to-BSP adapter for compatibility with metric thread systems.
Q: What thread sealant is recommended?
A: Use PTFE tape or pipe dope for water/gas; for high-pressure oil systems, consider anaerobic sealants for enhanced leak resistance.
Q: How to prevent galling in stainless steel threads?
A: Apply anti-seize compound (nickel-based for high temperatures) and avoid over-tightening beyond the recommended torque (e.g., 40 N·m for 1" elbows).
Q: Are there fire-safe options for flammable media?
A: While not fire-rated, 316 stainless steel’s high melting point (1,400°C) makes it suitable for moderate fire-risk environments when paired with metal gaskets.
