Stainless Steel Thread Class150 90DEG Elbow
  • Stainless Steel Thread Class150 90DEG ElbowStainless Steel Thread Class150 90DEG Elbow
  • Stainless Steel Thread Class150 90DEG ElbowStainless Steel Thread Class150 90DEG Elbow
  • Stainless Steel Thread Class150 90DEG ElbowStainless Steel Thread Class150 90DEG Elbow
  • Stainless Steel Thread Class150 90DEG ElbowStainless Steel Thread Class150 90DEG Elbow

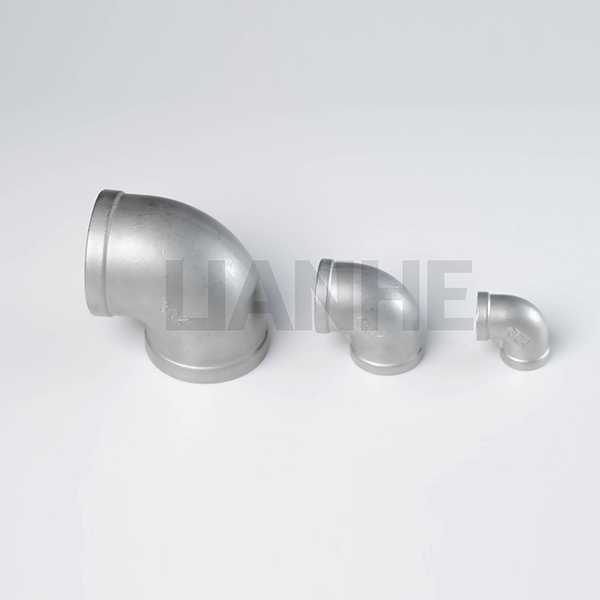

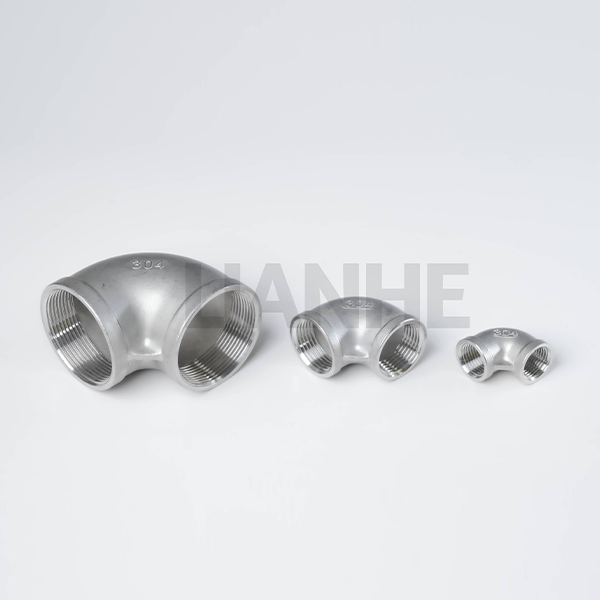

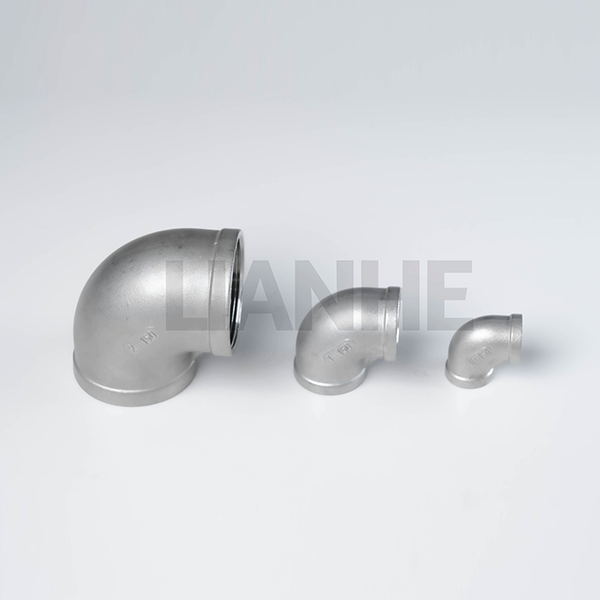

Stainless Steel Thread Class150 90DEG Elbow

This stainless steel threaded elbow changes the direction of a compatible pipe run by 90°. Match the female thread form, connection size and material grade to the mating components. The listed size range is 1/8 in. to 4 in.; confirm the selected configuration and service conditions before ordering.

    Technical Specifications

    Parameter

    Specification

    Size Range

    1/8"–4" (DN6–DN100)

    Pressure Rating

    Class 150

    Applicable Standards

    ISO 4144, GB/T 26120, MSS SP-43

    Connection Type

    Female Threaded Connection

    Available Thread Standards

    NPT, BSPT, BSPP, BSP, DIN 2999, ISO 228

    Manufacturing Process

    Precision Investment Casting and Machining

    Available Materials

    SS304 / CF8 / SUS304 / 1.4308SS316 / CF8M / SUS316 / 1.4408SS304LSS316L

    Surface Treatment

    Pickling

    Standard Packaging

    Plastic Bags, Export Cartons, Wooden Cases

    Brand

    LIANHE

    Applicable Media

    Water, Oil, Gas, Diluted Acids, and Other Media Compatible with the Selected Stainless Steel Grade

    Product Marking

    Size and Material Grade. Customer Logos, Brand Names, Batch Numbers, and Other Customized Markings Can Be Provided According to Specific Requirements.

    OEM Service

    Available. Customized Stainless Steel Threaded Pipe Fittings Can Be Manufactured According to Customer Drawings, Samples, Technical Specifications, and Special Project Requirements.

    Product Applications

    LIANHE stainless steel threaded pipe fittings are designed for dependable connections in industrial, commercial, and residential pipeline systems. The precision-cast stainless steel body provides good mechanical strength, corrosion resistance, dimensional stability, and long-term operating performance.

    These threaded fittings are suitable for:

    • General industrial piping systems

    • Water supply and water-treatment systems

    • Oil and compatible fuel pipelines

    • Gas transmission systems

    • Household water installations

    • Pharmaceutical production facilities

    • Chemical-processing equipment

    • Food and beverage processing systems

    • Commercial and residential buildings

    • General fluid-control applications

    The actual suitability of the product should be evaluated according to the working pressure, operating temperature, transported medium, stainless steel grade, thread standard, and installation environment.

    For acids, chemicals, or other corrosive media, customers should verify material compatibility before ordering. SS304 and SS316 provide different levels of corrosion resistance, and the appropriate material should be selected according to the specific medium concentration, temperature, and operating conditions.

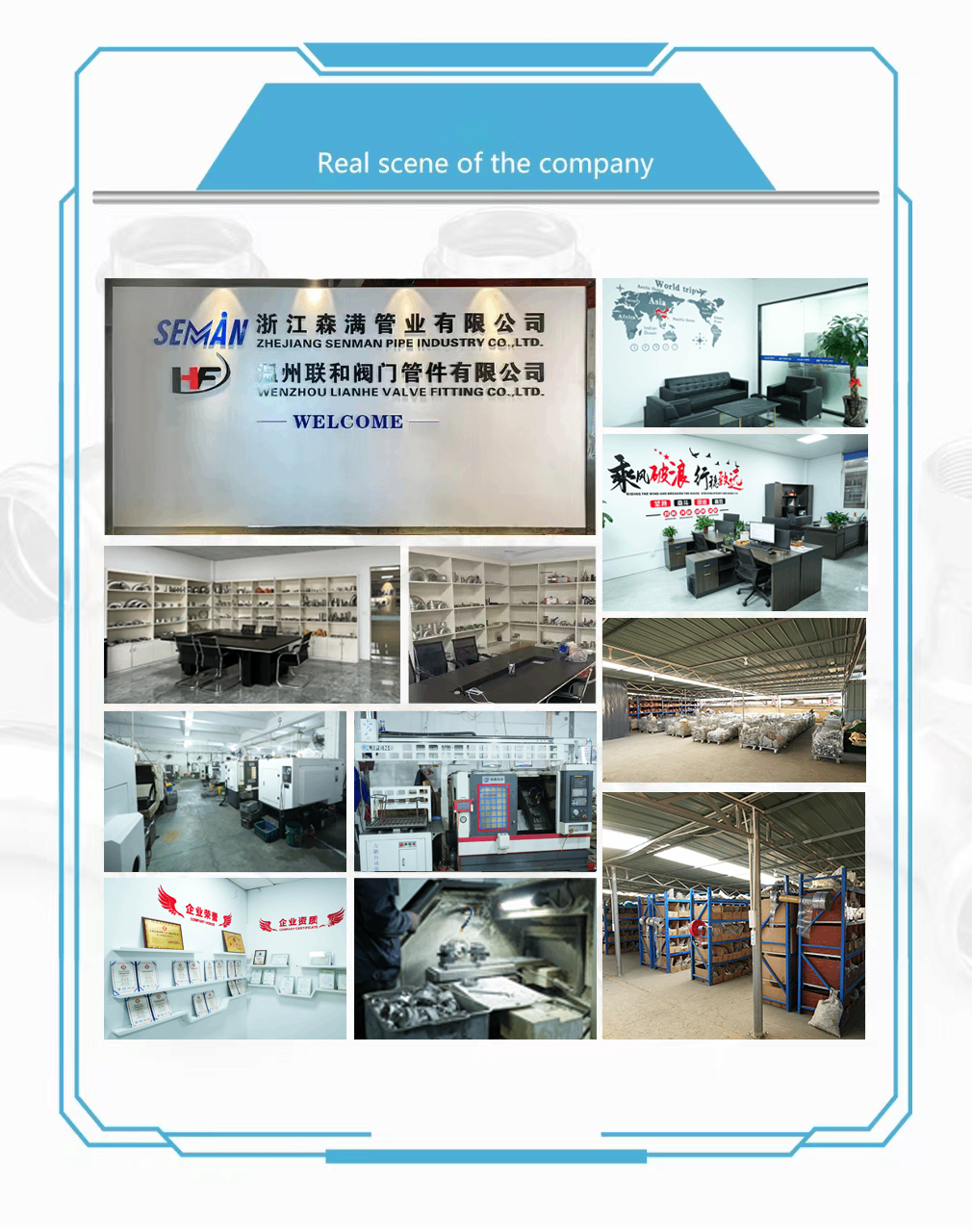

    Production Equipment

    Our manufacturing facility is equipped with five automatic CNC lathes, thirty CNC lathes, five tapping machines, one laser-cutting machine, three cutting machines, three polishing machines, one laser-marking machine, one packaging machine, and other related manufacturing and inspection equipment.

    These production capabilities support investment casting finishing, precision machining, thread processing, surface treatment, product marking, inspection, and export packaging for standard and customized stainless steel threaded pipe fittings.

    HS Code: 7307220000

    Quality Certifications: ISO 9001:2015 and CE

    Payment and Shipping Terms

    Payment Terms: A 30% T/T deposit is required in advance, with the remaining 70% T/T balance paid before delivery. Specific payment arrangements can be discussed according to the order value and cooperation conditions.

    Available payment methods include T/T, Western Union, PayPal, and other mutually agreed methods.

    Available Trade Terms: EXW, FOB, CFR, CIF, DDP, and DDU

    We can arrange delivery by sea freight, air freight, land transportation, or international express service. The shipping method can be selected according to the order quantity, destination, required delivery time, and transportation budget.

    Minimum Order Quantity

    MOQ: Normally 10 pieces.

    We maintain stock of many regular stainless steel threaded pipe fitting sizes. The minimum order quantity for non-standard or customized products will be determined according to the product dimensions, material, tooling requirements, manufacturing process, and actual production conditions.

    Stock quantities and immediate-delivery availability should be reconfirmed when requesting a quotation or placing an order.

    Samples and Quotation

    Free Samples: Yes. Free samples may be provided for product inspection, material evaluation, or project testing. International express delivery charges are normally paid by the recipient unless otherwise agreed.

    Quotation Time: Quotations for standard products can normally be provided within three working hours after receiving complete size, material, thread, quantity, and delivery information.

    Quotations for customized or non-standard products are normally provided within one working day after the customer’s drawings and technical requirements have been reviewed.

    Delivery Time

    Regular-size products available from stock can normally be delivered within 3–7 days.

    The production time for non-standard or customized products is normally approximately 25 days. The actual delivery schedule depends on the product type, material availability, order quantity, manufacturing complexity, inspection requirements, and factory production plan.

    After-Sales Service

    Our standard product quality warranty period is one year. If a manufacturing-related quality problem is confirmed during the warranty period, our team will investigate the cause and provide an appropriate technical or after-sales solution.

    To help us evaluate an issue efficiently, customers should provide the product model, order number, installation method, operating pressure, temperature, transported medium, and relevant photos or videos.
