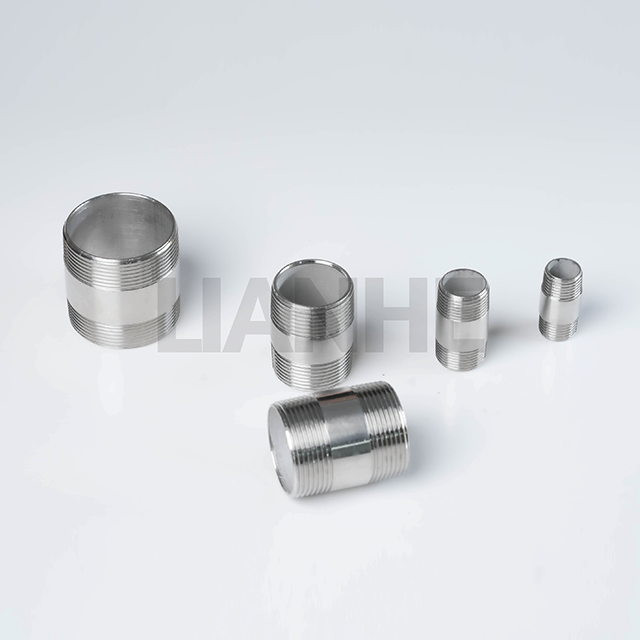

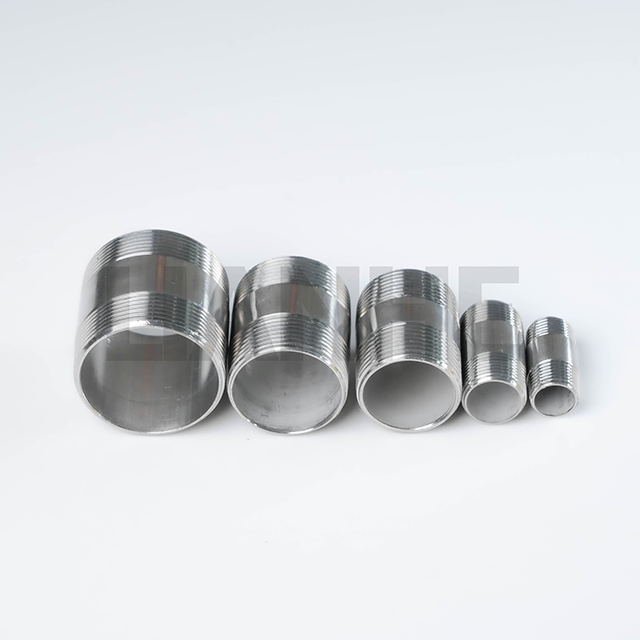

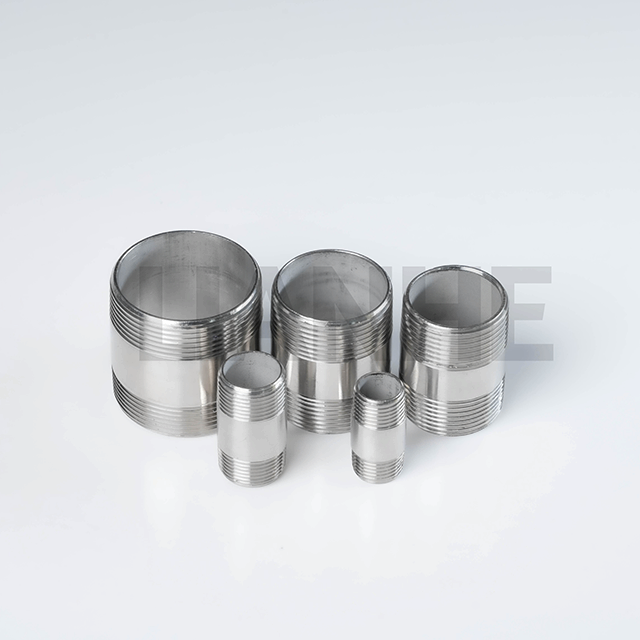

Stainless Steel Nipple Male Thread

Technical Specifications

Size Range: 1/8"–4" (DN6–DN100)

Wall Thickness: SCH 10S–SCH 80S, approximately 2–5 mm. Customized wall thicknesses are available.

Standard Lengths: 50 mm, 75 mm, 100 mm, 125 mm, 150 mm, and 200 mm. Customized lengths are available.

Connection Type: Male Threaded Connection

Available Thread Standards: NPT, BSPT, and BSP

Manufacturing Process: Machined from Stainless Steel Pipe or Tube

Available Materials: ASTM A312 TP201, TP304, TP304L, TP316L, TP321, TP310, TP317, and other grades upon request

Surface Treatment: Pickling or Polishing

Product Marking: According to customer requirements

Packaging: Approximately 10–50 pieces per plastic bag, 500–1,000 pieces per carton, and wooden cases where required. Actual packaging depends on product size and quantity.

Certificates: ISO 9001:2015, GB/T 19001-2016, and CE documentation for applicable products

Brand: LIANHE

HS Codes: 7307220000 / 7307230000

Place of Origin: Wenzhou, Zhejiang, China

Applications

Suitable for compatible water, oil, gas, diluted acids, and other industrial media.

Typical applications include:

• Construction piping systems

• Refrigeration equipment

• Fuel-gas systems

• Medical and food-processing equipment

• Environmental protection systems

• Chemical-processing facilities

• Water-treatment equipment

Material, thread, wall thickness, and sealing compatibility should be confirmed according to the medium, pressure, temperature, and mating connection.

Product Features

1. Manufactured from stainless steel pipe or tube

2. Multiple sizes and wall thicknesses available

3. Standard and customized lengths

4. NPT and BSPT thread options

5. Good corrosion resistance

6. Pickled or polished surfaces

7. Customized markings supported

8. Convenient installation and maintenance

Quality Control

1. Inspect the dimensions and material grade of incoming raw materials.

2. Check thread dimensions during machining.

3. Inspect thread burrs, dimensions, and surface condition before marking.

4. Perform final product and packaging inspection before shipment.

Commercial Terms

Payment Terms: 30% deposit and 70% balance before delivery. T/T, Western Union, PayPal, and other agreed methods are available.

Shipping Terms: EXW, FOB, CFR, CIF, DDP, and DDU. Delivery can be arranged by sea, air, land transportation, or international express.

Brand: LIANHE
Place of Origin: Wenzhou, Zhejiang, China
