316 Stainless Steel Ff Flange

Size: 3/8”~60" (DN10~DN1500);
Pressure: Class 150lbs ~2500lbs;PN6, PN10, PN16, PN25, PN40;5K, 10K, 20K;
Flange Type:Plate Flange, Slip On Flange, Weld Neck Flange, Blind Flange, Lap Joint Flanges.
Flange Face: RF, FF, RTJ;
Manufacturing Standard: ANSI B16.5, ASME B16.47, JIS B2220, EN1092-1, BS4504, GB/T9119, HG/T20592, DIN2502/2503/25727/2565/2566/2573/2576/2632~2638/86029/86030, AS2129, GOST 12821;
Material: A182 F304, F304L, F316, F316L, F310S, F321, F347, 0Cr18Ni9, 0Cr17Ni12Mo2, 1.4301, 1.4404, 1.4306, 1.4404;S31803, S32205, S32750, S32760, 904L;
Technology: Forging, CNC lathe processing;
Mark: SIZE, Pressure, Standard, Material, Heat No.(Can mark the customer's LOGO );

View More >> Send Inquiry >>

Stainless Steel Water Pipe

Size Range: 1/4”~8" (DN10~DN200)

Thickness：0.6~5MM

Standards: GB/T19228.1-2011、 EN、 DIN 、ASME

Material: 0Cr18Ni9 SS304 S30408 SUS304 1.4301, 0Cr17Ni12Mo2 SS316 S31603 SUS316 1.4404, SS304L S30403 1.4306, SS316L S31603 1.4404.

Ring Gasket Material: CIIR, EPDM,PTFE, Nitrile.

Nominal pressure: PN16; Water pressure test:2.5MPa; Air tightness test pressure: 1.05MPa.

Process: ERW、Welding；

Surface Treatment: Vibration polishing，Magnetic polishing，Pickling;

View More >> Send Inquiry >>

Stainless Steel Vertical Check Valve With Full Bore Size 1/4" To 4"

Product advantages: The product has a wide range of applications, simple installation, good sealing performance, corrosion resistance, long service life and other advantages.

Size: 1/4"to 4"(DN8-DN100) Full Bore

Type: Vertical Check Valve,Horizontal Check Valve,Wafer Check Valve;

End connection: Screwed Cap and Female Threaded(Inside Threaded) BSPT BSP NPT , DIN259/2999,ISO 228

View More >> Send Inquiry >>

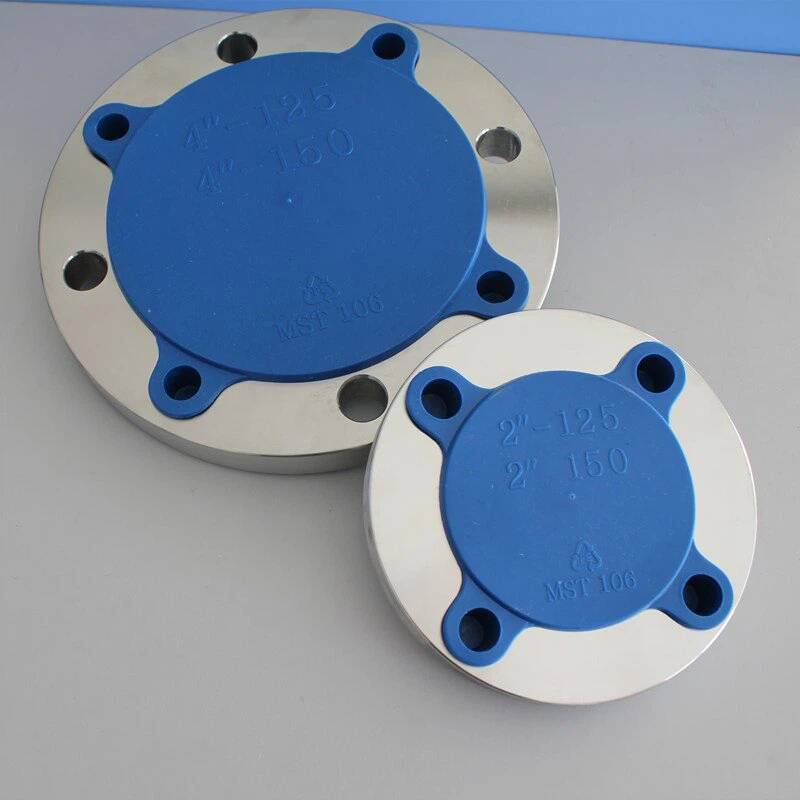

Forged Stainless Steel Flange

Size: 3/8”~60" (DN10~DN1500);
Pressure: Class 150lbs ~2500lbs;PN6, PN10, PN16, PN25, PN40;5K, 10K, 20K;
Flange Type:Plate Flange, Slip On Flange, Weld Neck Flange, Blind Flange, Lap Joint Flanges.
Flange Face: RF, FF, RTJ, Male Face, Female Face, Tongue Face T, Groove Face G,
Manufacturing Standard: ANSI B16.5, ASME B16.47, JIS B2220, EN1092-1, BS4504, GB/T9119, HG/T20592, DIN2502/2503/25727/2565/2566/2573/2576/2632~2638/86029/86030, AS2129, GOST 12821;
Material: A182 F304, F304L, F316, F316L, F310S, F321, F347, 0Cr18Ni9, 0Cr17Ni12Mo2, 1.4301, 1.4404, 1.4306, 1.4404;S31803, S32205, S32750, S32760, 904L;
Technology: Forging, CNC lathe processing;
Mark: Logo, Size, Pressure, Standard, Material, Heat No.(Can mark according to customer's requirement.);

View More >> Send Inquiry >>

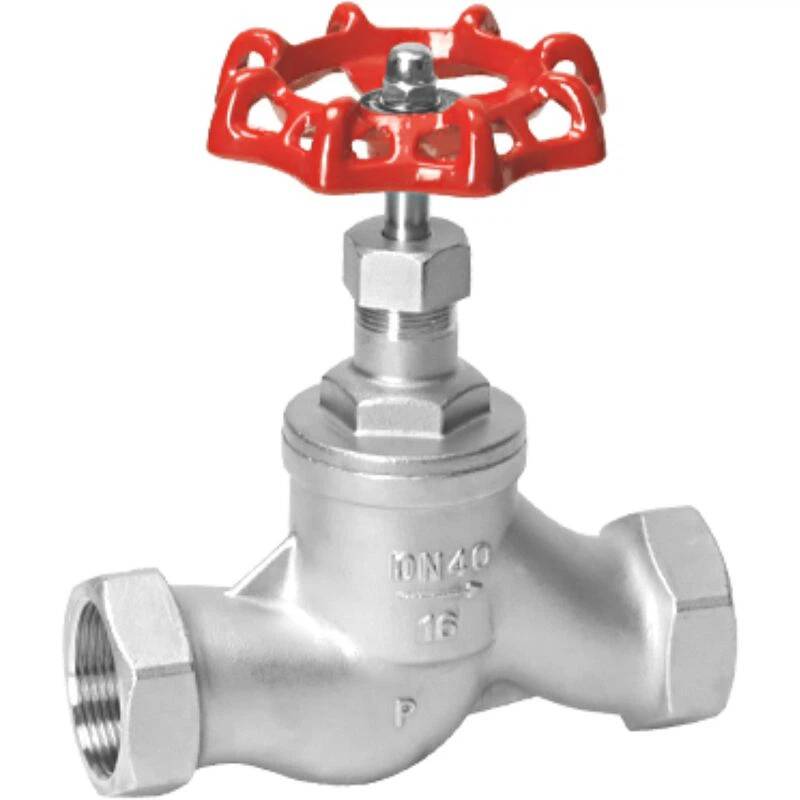

Stainless Steel Thread Globe Valve

Size: 1/4"to 4"(DN8-DN100) Full Bore
End connection: Female Threaded BSPT BSP NPT , DIN259/2999,ISO 228
Process:Investment Casting Body - CNC lathe processing.
Working Pressure: 200PSI.
Operation mode: Manual operation.
Material: ASTM A358 CF8,CF8M SS304,SS316.

View More >> Send Inquiry >>

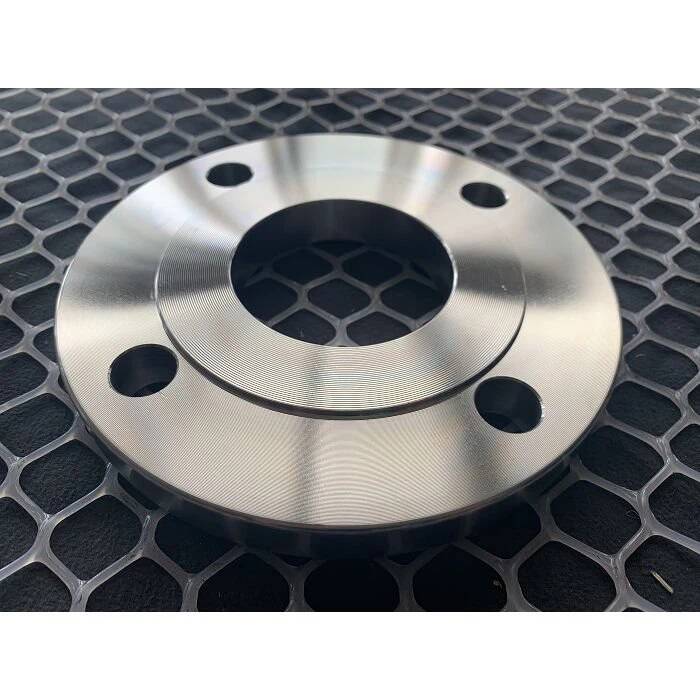

304 Stainless Steel Rf Flange

Size: 3/8”~60" (DN10~DN1500);
Pressure: Class 150lbs ~2500lbs;PN6, PN10, PN16, PN25, PN40;5K, 10K, 20K;
Flange Type: Plate Flange, Slip On Flange, Weld Neck Flange, Blind Flange, Lap Joint Flanges.
Flange Face: RF, FF, RTJ, Male Face, Female Face, Tongue Face T, Groove Face G,
Manufacturing Standard: ANSI B16.5, ASME B16.47, JIS B2220, EN1092-1, BS4504, GB/T9119, DIN2502/2503/25727/2565/2566/2573/2576/2632~2638/86029/86030, AS2129, GOST 12821;
Material: SS304, SS304L, SS316, SS316L, SS321, SS310S, SS347, 0Cr18Ni9, 0Cr17Ni12Mo2, 1.4301, 1.4404, 1.4306, 1.4404;S31803, S32205, S32750, S32760, 904L;
Technology: Forging, CNC lathe processing;
Mark: Logo, Size, Pressure, Standard, Material, Heat No.(Can mark the customer's LOGO and mark according to customer's requirement.);

View More >> Send Inquiry >>

lianhevf is a professional Other manufacturer and supplier in China. We warmly welcome you to wholesale high quality products at competitive prices from our factory.
