Stainless Steel S-Type Press 90° Elbow with Female Thread

Product Description

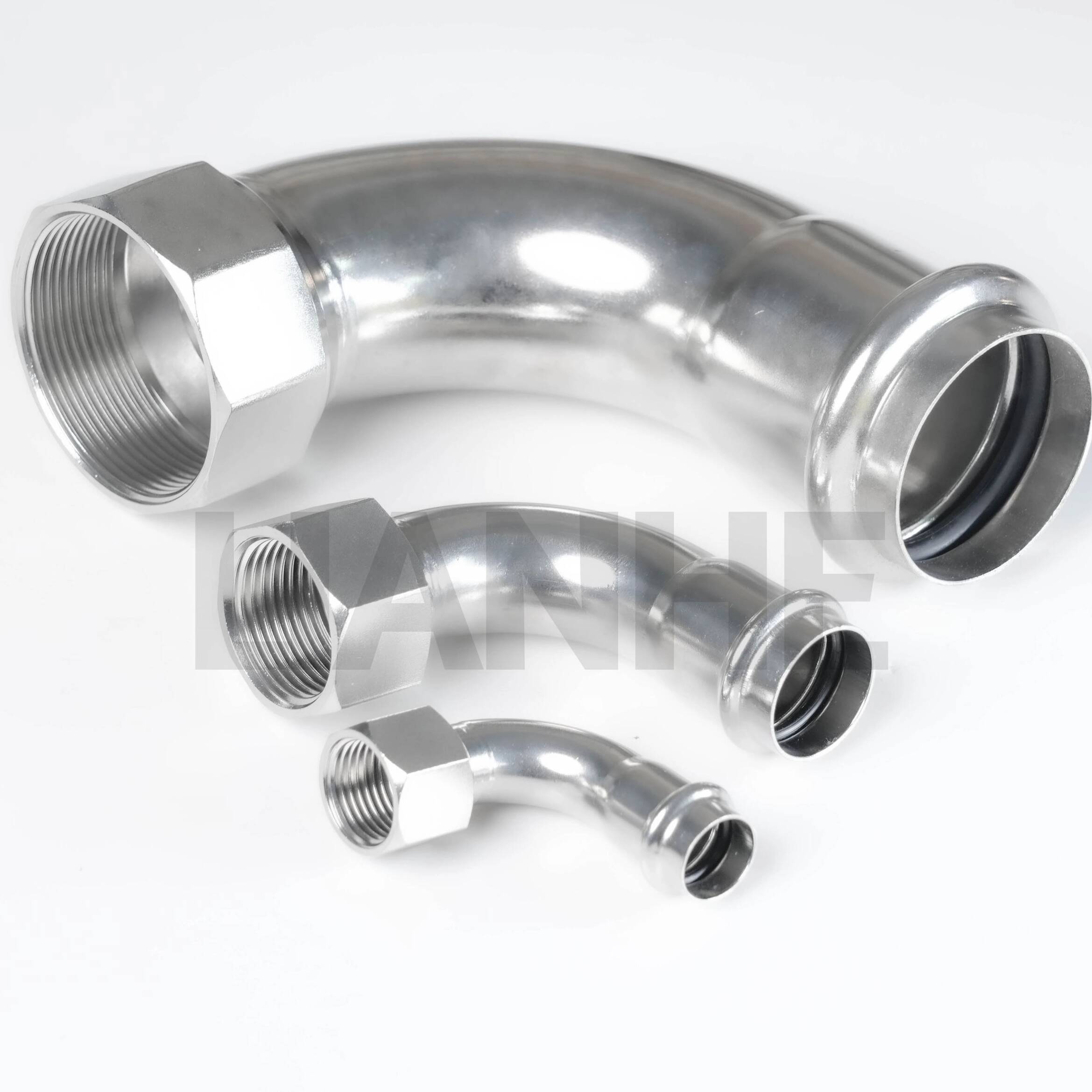

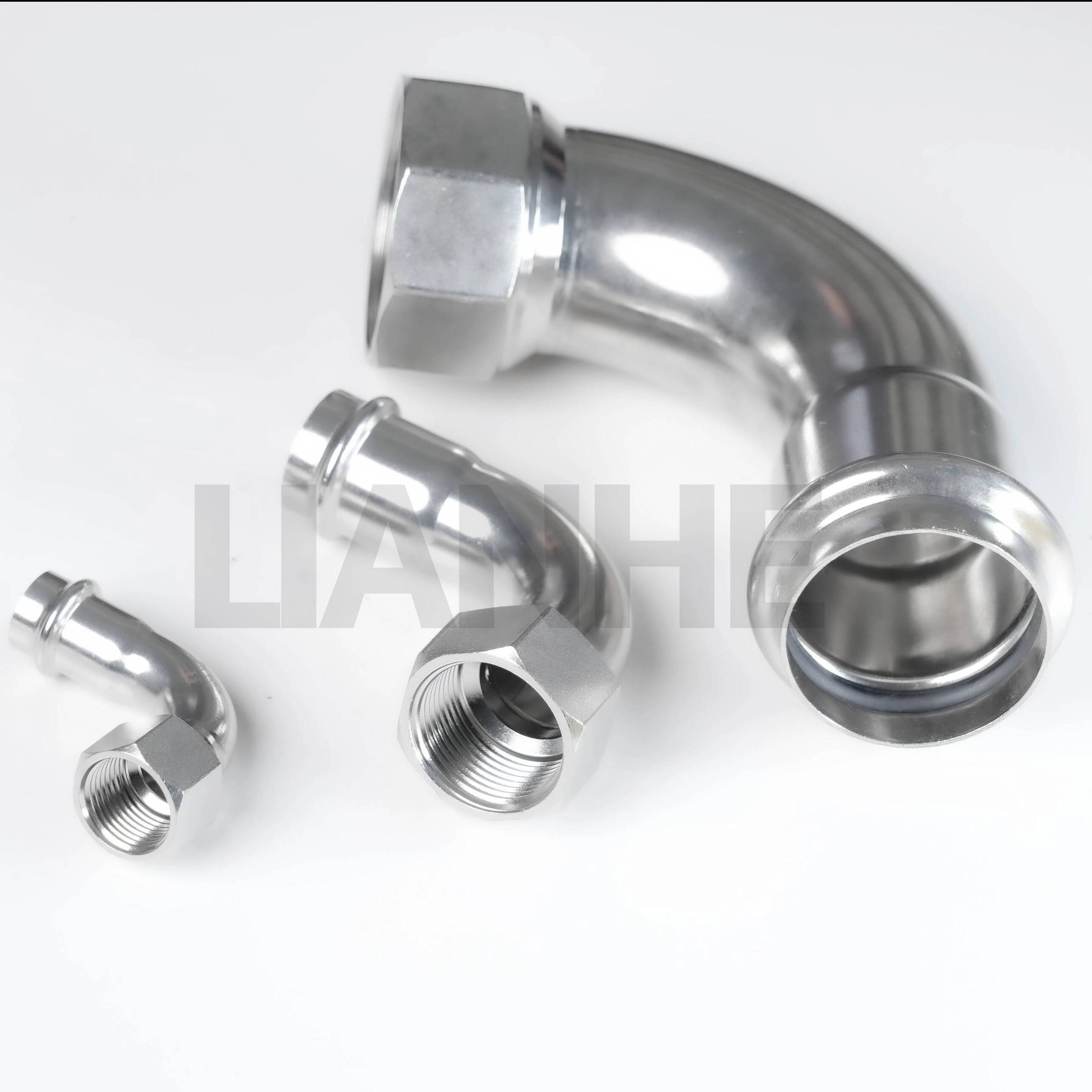

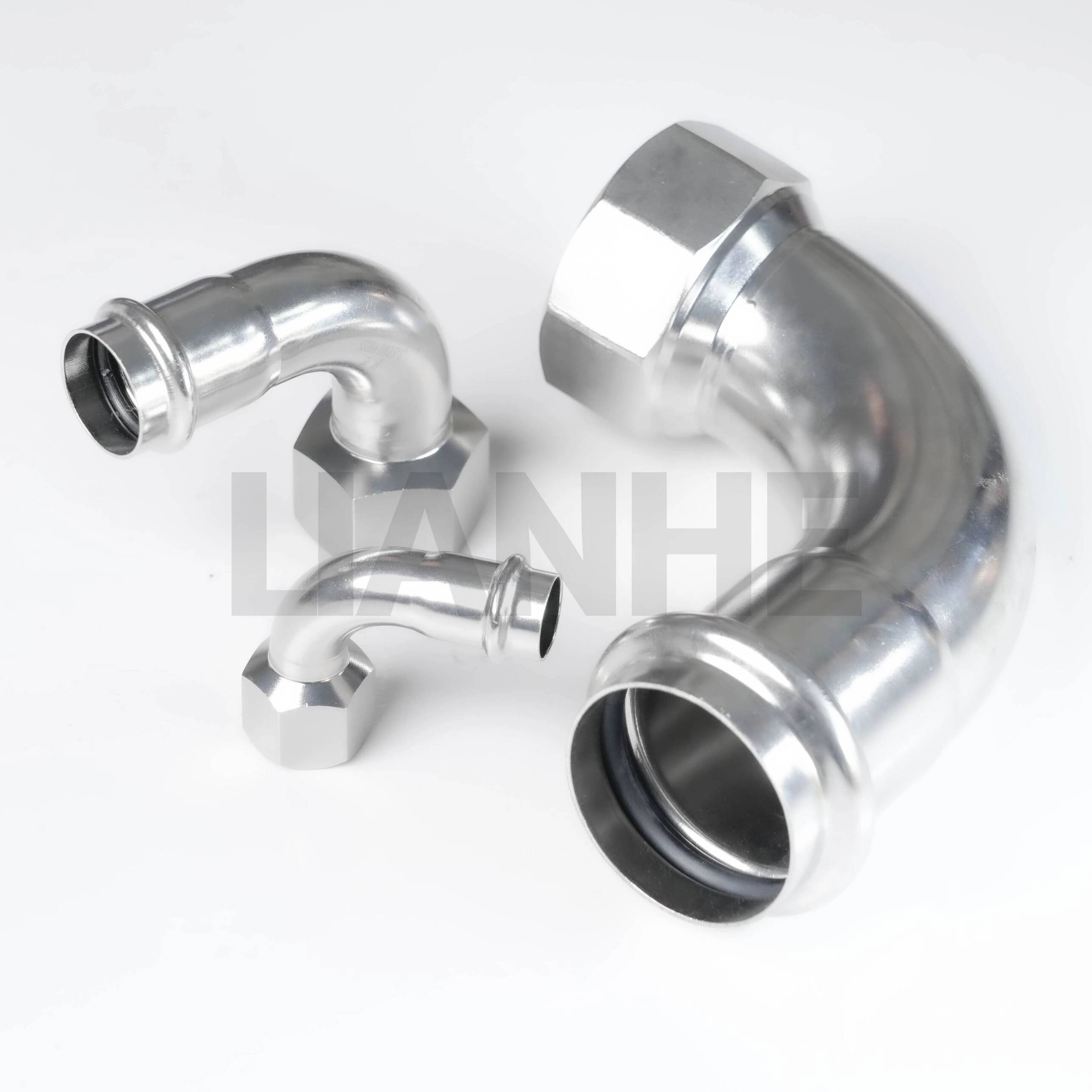

The LIANHE Stainless Steel S-Type Press 90° Elbow with Female Thread connects a press-fit pipe to a compatible externally threaded component while changing the pipeline direction by 90 degrees.

Its S-type press socket supports fast, flame-free installation, while the female threaded end can connect valves, instruments, equipment, or other threaded pipeline components.

Technical Specifications

Size Range: 1/4"–4" (DN10–DN100)

Wall Thickness: 0.6–2.0 mm

Available Materials:

• SS304, 0Cr18Ni9, S30408, and 1.4301

• SS304L, S30403, and 1.4306

• SS316 and 0Cr17Ni12Mo2

• SS316L, S31603, and 1.4404

Connection Type: S-Type Press Socket × Female Thread

Thread Options: NPT, BSPT, and BSPP

Nominal Pressure: PN16

Hydrostatic Test Pressure: 2.5 MPa

Airtightness Test Pressure: 1.05 MPa

Applicable Standards: GB/T 19228.2-2011, CJ/T 152-2016, CJ/T 466-2014, EN, DIN, and ASME

Sealing-Ring Materials: CIIR, EPDM, PTFE, and NBR

Gasket Temperature Range: -20°C to +110°C, depending on material and medium

Manufacturing Process: Mechanically formed from stainless steel pipes

Surface Treatment: Vibration Polishing, Magnetic Polishing, or Pickling

Product Marking: LOGO + OD + Wall Thickness + Material. Customized markings are available.

Packaging: Plastic Bags, Export Cartons, and Wooden Cases

Brand: LIANHE

Place of Origin: Wenzhou, Zhejiang, China

Applications

Suitable for compatible drinking water, cold and hot water, wastewater, industrial water, oil, and gas systems.

Typical applications include:

• Water supply and drainage

• Heating and air-conditioning systems

• Equipment and instrument connections

• Commercial and residential buildings

• Industrial piping projects

• Hospitals, hotels, and ships

Product Advantages

1. Changes pipeline direction by 90 degrees

2. Combines press and female threaded connections

3. Fast, flame-free installation

4. Good corrosion resistance

5. Multiple thread and gasket options

6. Compact design for restricted spaces

7. Reliable sealing when correctly installed

8. Customized markings available

Installation requires a press tool and jaw compatible with the specified S-type profile. NPT, BSPT, and BSPP threads cannot be used interchangeably unless compatibility has been confirmed.

Quality Control

Standard inspection includes:

1. Raw-material and wall-thickness inspection

2. Socket, thread, angle, and dimensional inspection

3. Weld and surface inspection where applicable

4. Hydrostatic-pressure and airtightness testing

5. Product-marking and packaging inspection

Available documents include EN 10204 3.1 Material Test Certificates, raw-material certificates, thread and dimensional reports, hydraulic test reports, and third-party inspection reports.

Commercial Terms

MOQ: Normally 5–10 pieces, depending on size and stock availability.

Free Samples: Available for selected standard products; express charges are normally paid by the recipient.

Quotation Time: Normally within three working hours.

Payment Terms: 30% T/T deposit and 70% balance before delivery. Western Union, PayPal, and other agreed methods are available.

Shipping Terms: EXW, FOB, CFR, CIF, and DDP. Delivery can be arranged by sea, air, land transportation, or international express.

Warranty: One year against confirmed manufacturing defects.

Manufacturer: LIANHE
Place of Origin: Wenzhou, Zhejiang, China
