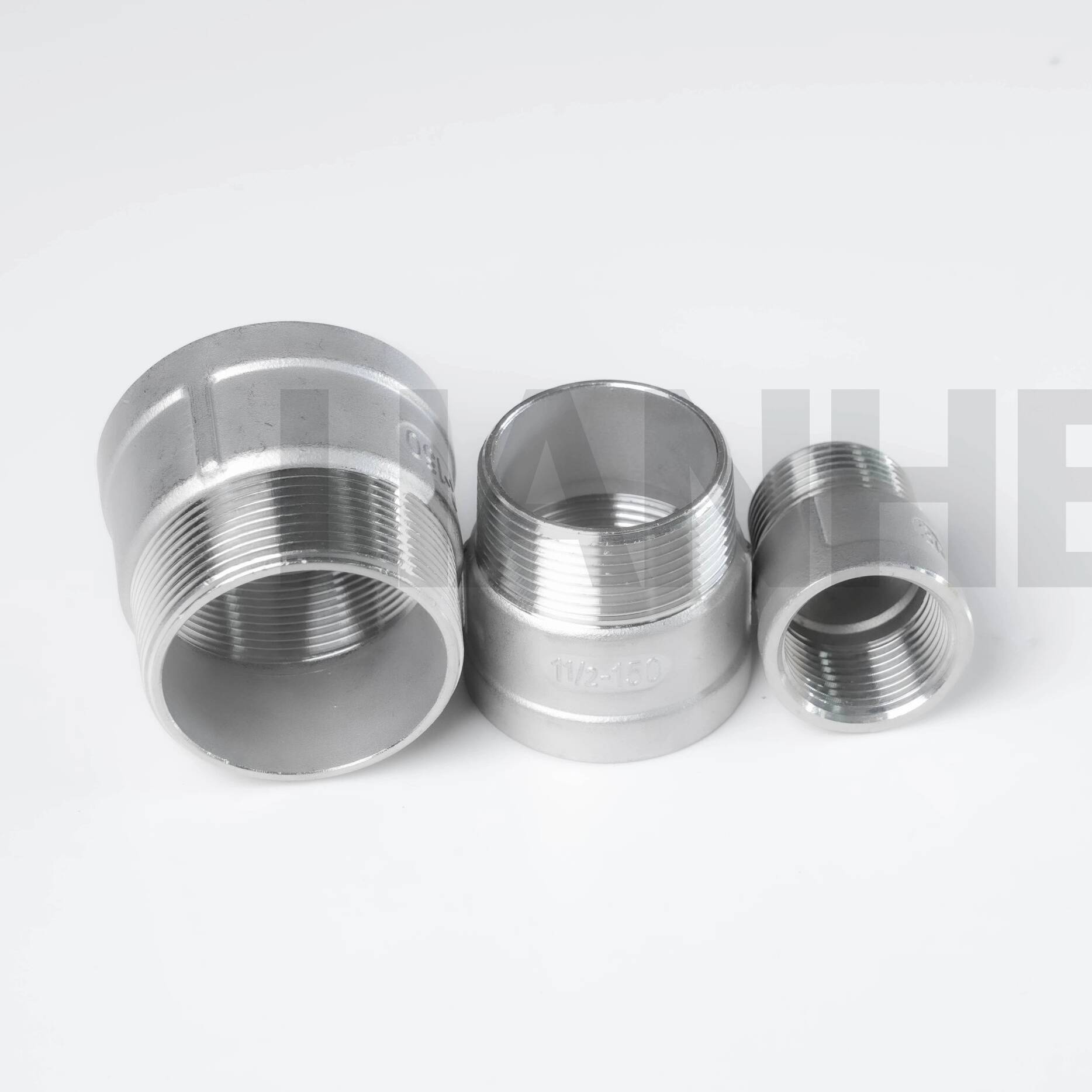

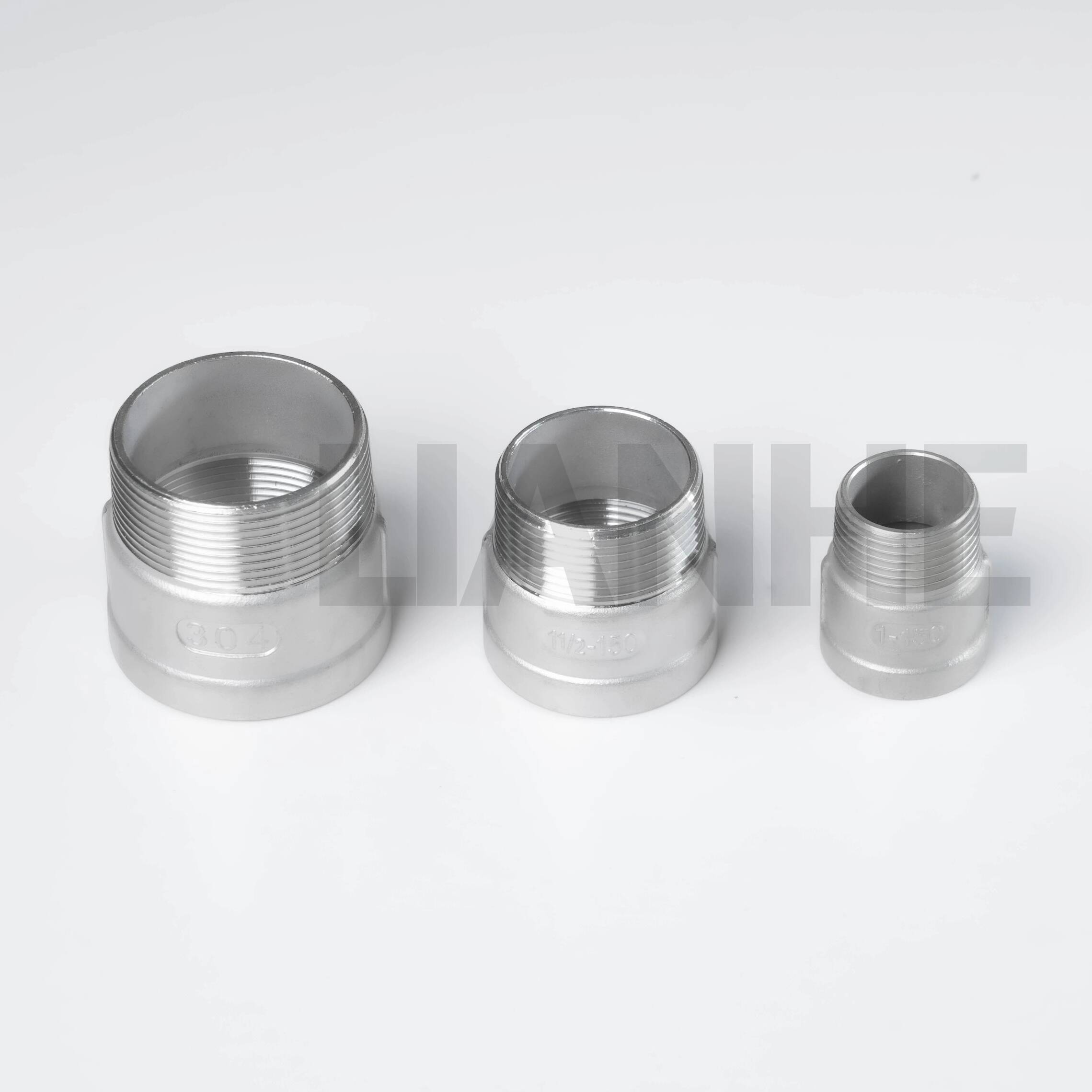

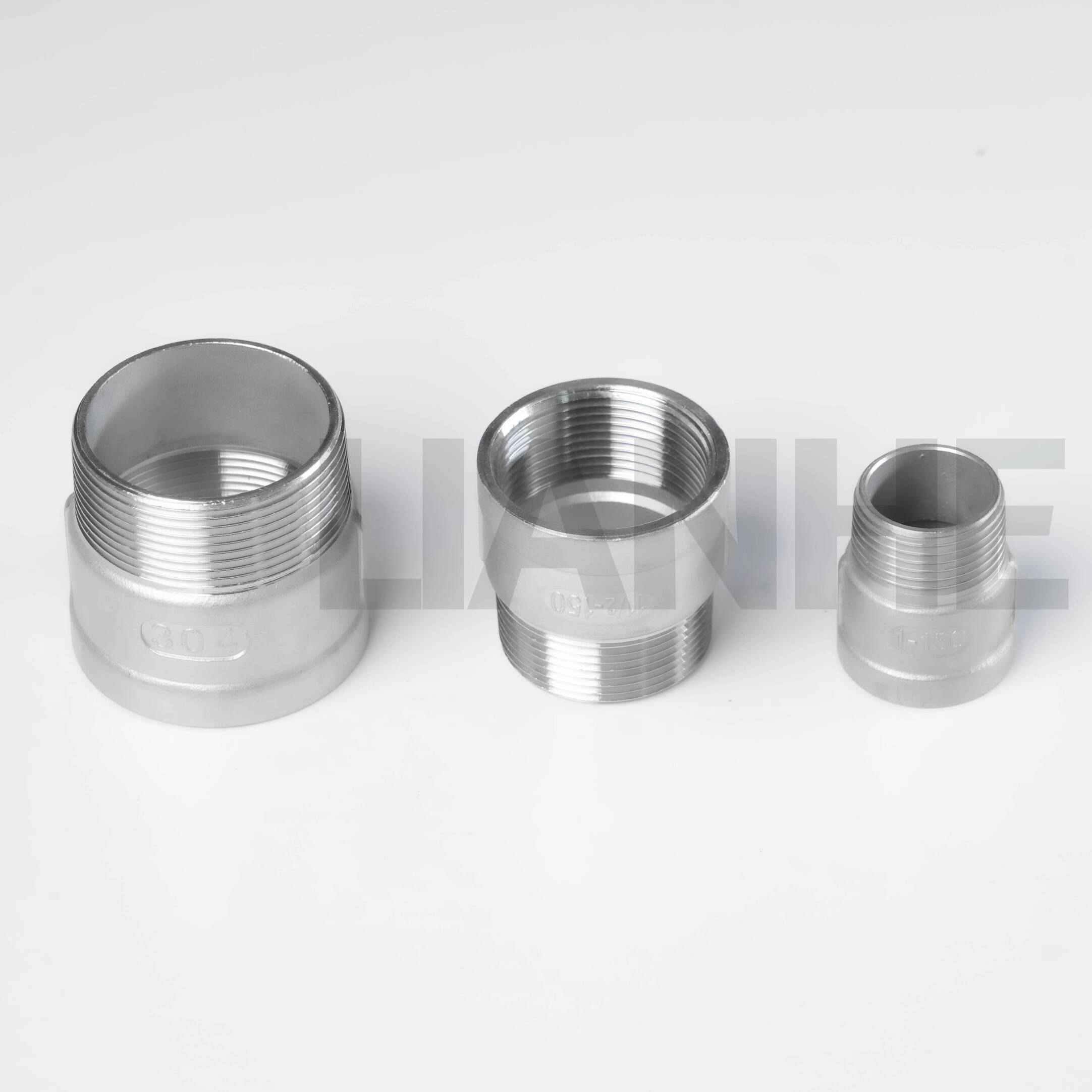

Stainless Steel M/F Thread Reducer

Stainless steel M/F thread reducer connects female and male threaded pipe components of different nominal sizes. It provides a compact transition in threaded piping. Confirm both connection sizes, thread standards, material grade, pressure requirements and sealing method before ordering.

    Technical Specifications

    Size Range: 1/4"–4" (DN8–DN100)

    Pressure Rating: Class 150

    Applicable Standards: ISO 4144 and GB/T 26120

    Connection Type: Female and Male Threaded Connections

    Available Thread Standards:

    • BS 21: BSPT and BSPP

    • ANSI B2.1: NPT

    • DIN 259 and DIN 2999

    • ISO 228

    Manufacturing Process: Investment-Cast Body with Precision CNC Machining

    Casting Method: Lost-Wax Investment Casting

    Available Materials:

    • SS201 and 1.4372

    • SS304 and 1.4301

    • SS316 and 1.4401

    • SS316L and 1.4404

    • Other stainless steel grades upon request

    Surface Treatment Options: Pickling or Degreasing and Cleaning

    Standard Packaging: Plastic Bags, Export Cartons, and Pallets

    Brand: LIANHE

    HS Code: 7307220000

    Place of Origin: Wenzhou, Zhejiang, China

    The final dimensions, material grade, thread standard, surface treatment, and pressure rating should be confirmed according to the intended application and project requirements.

    Applicable Media

    The products can be supplied for use with compatible liquid and gaseous media, including:

    • Water

    • Oil and compatible liquid media

    • Gas and compatible gaseous media

    • Diluted acids and compatible chemical media

    Material and sealing compatibility should be evaluated according to the chemical composition, concentration, operating temperature, system pressure, and expected service life.

    Different stainless steel grades provide different levels of corrosion resistance. Customers should confirm the appropriate material before using the products with acids, chemicals, chlorides, fuel gas, or other demanding media.

    Application Areas

    The products can be used in a variety of industrial, commercial, and equipment piping applications, including:

    • Construction and building-service pipelines

    • Fuel-gas systems using compatible materials and sealing methods

    • Medical equipment and facility piping

    • Food and beverage processing equipment

    • Environmental protection systems

    • Chemical-processing equipment

    • Water-treatment facilities

    • Industrial water pipelines

    • Machinery and instrument connections

    • General fluid-control systems

    For medical, food, fuel-gas, chemical, or other regulated applications, customers should confirm whether additional material documentation, product testing, surface treatment, certification, or industry-specific approval is required.

    Manufacturing Process

    The product body is manufactured using lost-wax investment casting. This process supports the production of complex stainless steel structures with consistent dimensions and good surface quality.

    After casting, the critical dimensions and threaded connections are processed using CNC lathes. Precision machining helps maintain thread accuracy, dimensional consistency, and compatibility with the specified connection standard.

    The principal manufacturing procedures may include:

    1. Wax-pattern preparation

    2. Shell making and drying

    3. Wax removal

    4. Stainless steel melting and casting

    5. Shell removal and casting cleaning

    6. Heat treatment, where required

    7. CNC machining

    8. Thread processing

    9. Surface treatment

    10. Inspection, marking, and packaging

    The actual production process may vary according to the product specification, material grade, dimensions, and inspection requirements.

    Thread Options

    Female and male threaded connections are available according to BS 21, ANSI B2.1, DIN 259/2999, and ISO 228 specifications.

    NPT, BSPT, and BSPP threads may have different profiles, taper characteristics, pitch dimensions, and sealing methods. They should not be connected interchangeably unless dimensional and sealing compatibility has been technically confirmed.

    Tapered pipe threads generally create the primary connection through thread engagement and an appropriate thread sealant. Parallel threads may require a gasket, sealing face, O-ring, or other sealing component, depending on the product structure.

    Customers should specify the required thread type, nominal size, male or female configuration, sealing method, and mating-component information when requesting a quotation.

    Surface Treatment

    Available surface-treatment options include pickling or degreasing and cleaning.

    Pickling can help remove surface contamination, heat tint, and free iron introduced during manufacturing. Degreasing and cleaning help remove machining oil, dirt, and other process residues.

    The appropriate treatment should be selected according to the intended application, appearance requirements, cleanliness requirements, and customer specifications.

    Additional polishing, passivation, or specialized cleaning may be available subject to technical confirmation.

    Certificates

    Available certificates include:

    • ISO 9001:2015

    • GB/T 19001-2016

    • CE documentation for applicable products

    The scope and availability of individual certificates should be confirmed according to the selected product, intended use, pressure classification, and destination market.

    Test Certificates and Inspection Reports

    Inspection reports and quality documents can be supplied according to the confirmed specifications and order requirements, including:

    • EN 10204 3.1 Material Test Certificate

    • Raw-Material Inspection Certificate

    • Radiographic Testing Report, when applicable

    • Hydraulic Test Report, where applicable

    • Thread Inspection Report

    • Dimensional Inspection Report

    • Third-Party Inspection Report

    • Other project-specific quality documents

    The required inspection scope, sampling ratio, documentation, and third-party witnessing arrangements should be confirmed before production.

    Product Quality Control

    LIANHE applies inspection procedures throughout raw-material verification, casting, machining, thread processing, surface treatment, marking, and packaging.

    The principal quality-control procedures include:

    1. Conducting PMI material verification and measuring the outside diameter and wall thickness of incoming raw materials.

    2. Measuring and inspecting threaded connections during machining and production.

    3. Inspecting the surface condition and checking thread dimensions before product marking.

    4. Performing final dimensional, visual, and specification inspection before packaging.

    5. Checking shipping marks, labels, quantities, packaging materials, and related order information after packing.

    Products are approved for shipment after completing the applicable inspection procedures.

    Additional pressure testing, chemical composition verification, mechanical testing, or third-party inspection can be arranged according to customer and project requirements.

    Packaging

    Each product is protected with a plastic bag to reduce exposure to dust, moisture, and surface contamination.

    Products are then packed in reinforced export cartons and consolidated on pallets for storage and international transportation.

    Customized cartons, customer logos, labels, barcodes, wooden cases, pallet protection, and other packaging arrangements can be provided according to confirmed order requirements.

    Payment Terms

    Our standard payment term is a 30% T/T deposit paid in advance, with the remaining 70% T/T balance paid before delivery.

    Specific payment conditions can be discussed according to the order value, product requirements, and cooperation arrangements.

    Available payment methods include:

    • T/T bank transfer

    • Western Union

    • PayPal

    • Other mutually agreed payment methods

    Shipping Terms

    Available Trade Terms: EXW, FOB, CFR, CIF, DDP, and DDU

    Products can be delivered by:

    • Sea freight

    • Air freight

    • Land transportation

    • International express service

    The appropriate shipping method can be selected according to the order quantity, package volume, destination, required delivery date, and transportation budget.

    Shipping costs, transit times, packaging requirements, and delivery conditions should be confirmed before dispatch.

    Brand: LIANHE
    Place of Origin: Wenzhou, Zhejiang, China
