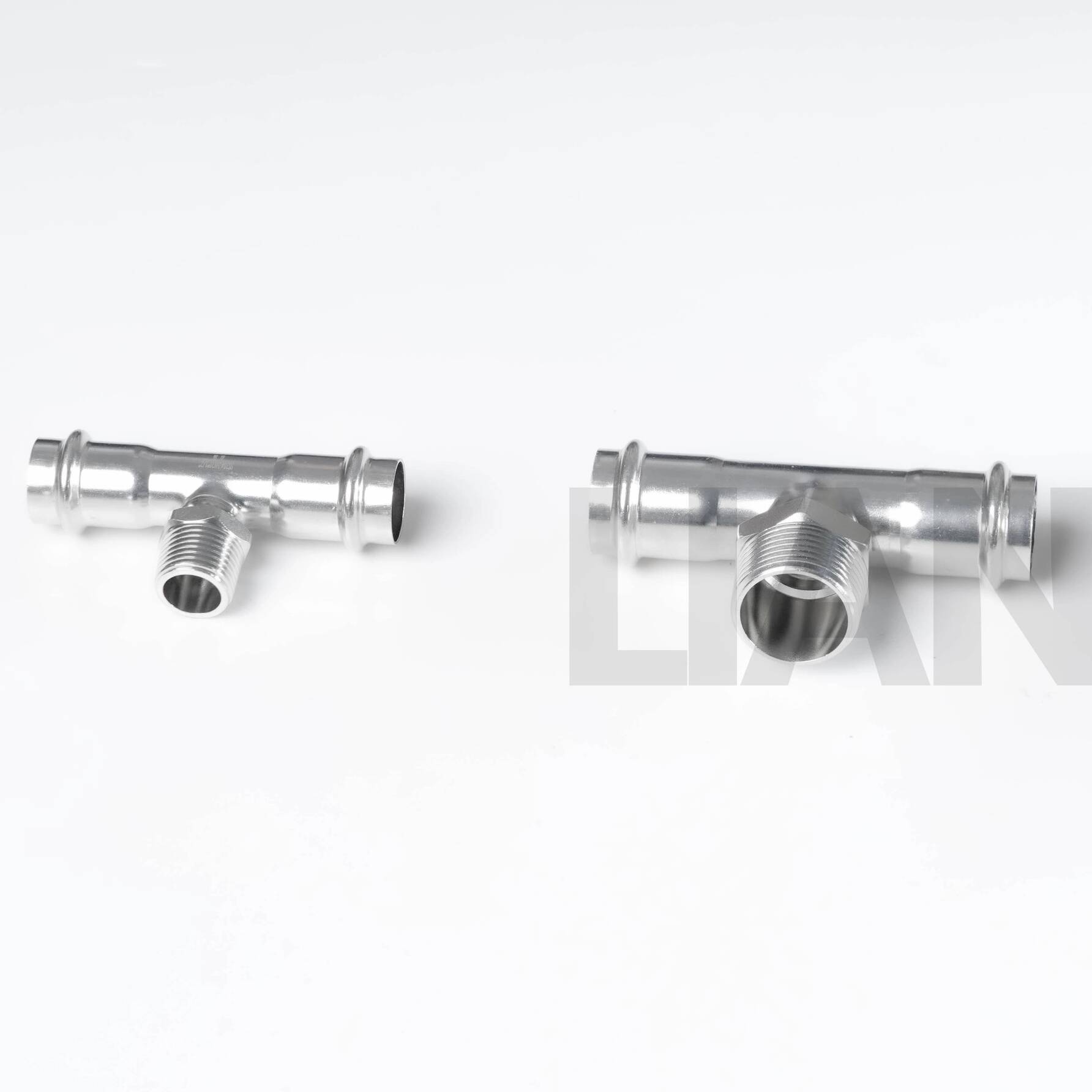

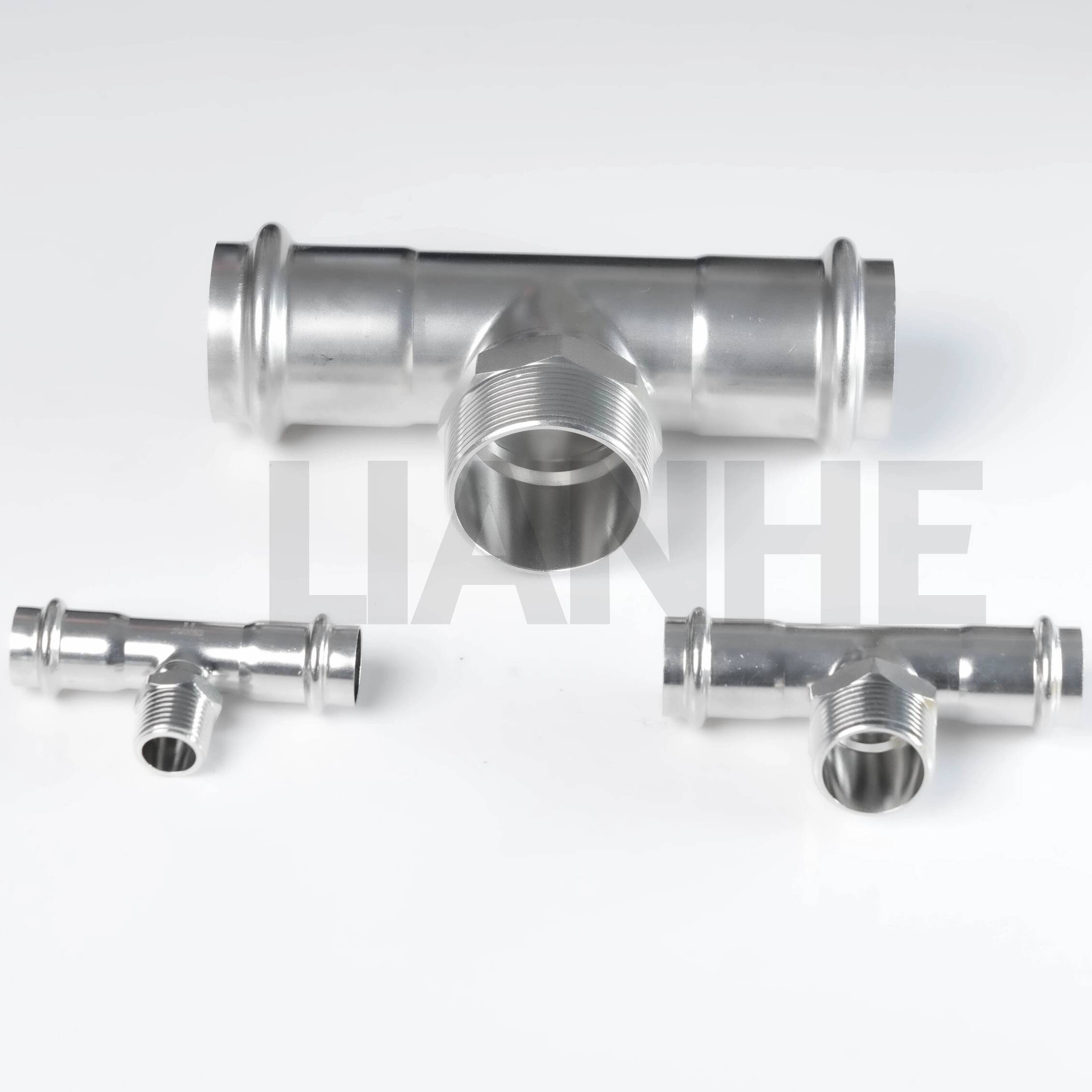

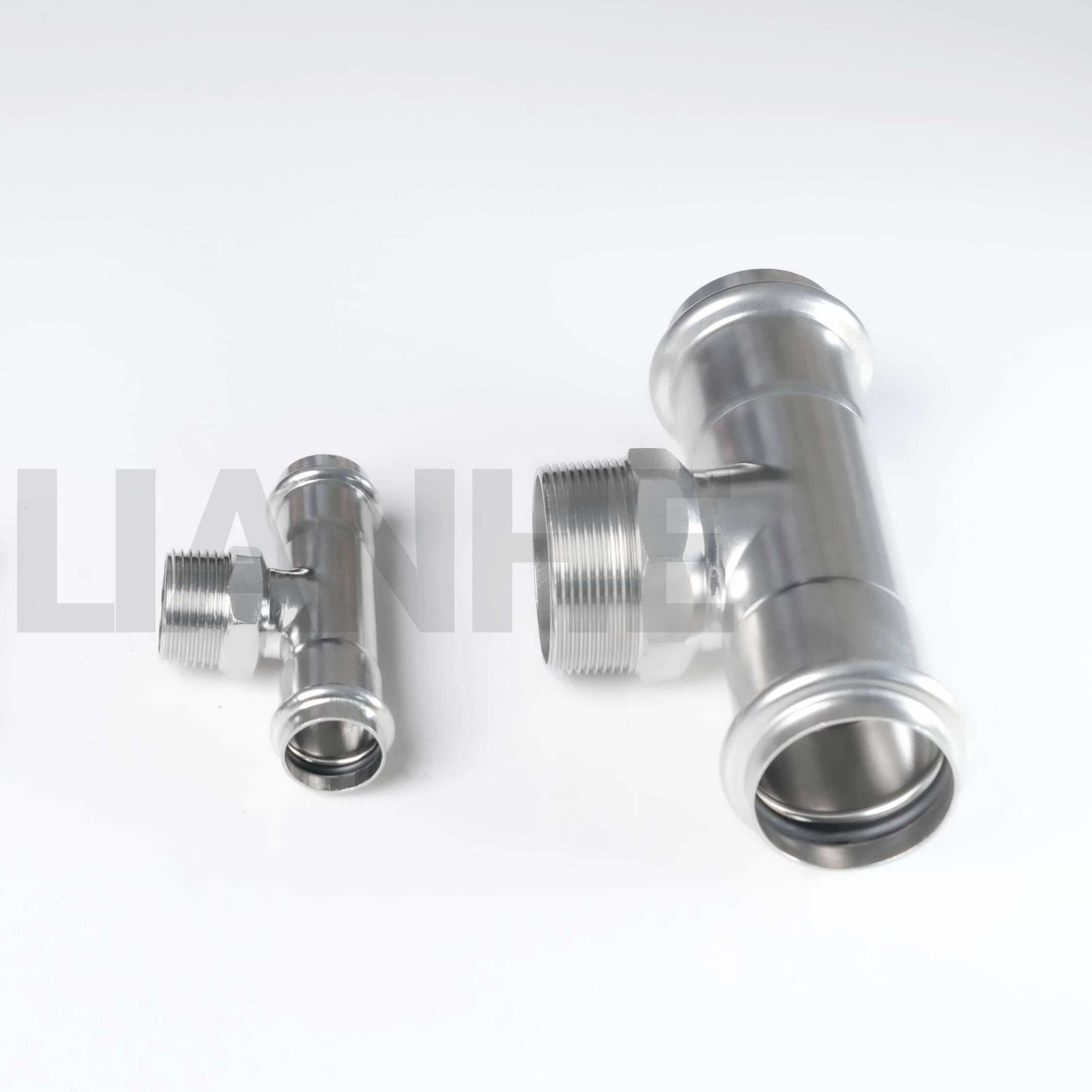

Stainless Steel S-Type Press Tee with Male Threaded Branch

Product Description

The LIANHE Stainless Steel S-Type Press Tee with Male Threaded Branch combines two press-fit pipe connections with a male threaded branch.

The S-type press ends support fast, flame-free installation, while the threaded branch connects compatible valves, instruments, equipment, or threaded pipeline components.

Technical Specifications

Size Range: 1/4"–4" (DN10–DN100)

Wall Thickness: 0.6–2.0 mm

Applicable Standards: GB/T 19228.2-2011, CJ/T 152-2016, CJ/T 466-2014, EN, DIN, and ASME

Available Materials:

• 0Cr18Ni9, SS304, S30408, SUS304, and 1.4301

• 0Cr17Ni12Mo2, SS316, and SUS316

• SS304L, S30403, and 1.4306

• SS316L, S31603, and 1.4404

Sealing-Ring Materials: CIIR, EPDM, PTFE, and NBR

Connection Type: Two S-Type Press Ends with One Male Threaded Branch

Thread Options: NPT, BSPP, and BSPT

Nominal Pressure: PN16

Hydrostatic Test Pressure: 2.5 MPa

Airtightness Test Pressure: 1.05 MPa

Gasket Temperature Range: -20°C to +110°C, depending on the selected material and medium

Manufacturing Process: Mechanically formed from stainless steel pipes

Surface Treatment: Vibration Polishing, Magnetic Polishing, or Pickling

Product Marking: LOGO + OD + Wall Thickness + Material. Customized markings are available.

Packaging: Plastic Bags, Export Cartons, and Wooden Cases

Certificates: GB/T 19001-2016, ISO 9001:2015, CE documentation for applicable products, and Sanitary License

Brand: LIANHE

HS Code: 7307230000

Place of Origin: Wenzhou, Zhejiang, China

Applications

Suitable for compatible drinking water, cold and hot water, wastewater, industrial water, oil, and gas systems.

Typical applications include water supply, heating, air conditioning, gas systems, equipment branches, commercial buildings, residential buildings, ships, hospitals, and hotels.

Product Advantages

1. Press-to-thread branch connection

2. Fast, flame-free installation

3. Good corrosion resistance

4. Low flow resistance

5. Multiple thread and gasket options

6. Reliable sealing when correctly installed

7. Reduced installation time and labor costs

8. Suitable for equipment and instrument branches

NPT, BSPT, and BSPP threads have different profiles and sealing methods and should not be used interchangeably unless compatibility has been confirmed.

Quality Control

1. Raw-material, outside-diameter, and wall-thickness inspection

2. Cutting and pipe-end inspection

3. Socket, thread, and dimensional inspection

4. Weld and surface inspection where applicable

5. Inspection after heat treatment and surface finishing

6. Hydraulic-pressure and airtightness testing

7. Product-marking and packaging inspection

Available documents include EN 10204 3.1 Material Test Certificates, raw-material certificates, thread and dimensional reports, hydraulic test reports, and third-party inspection reports.

Commercial Terms

MOQ: Normally 5–10 pieces, depending on size and stock availability.

Free Samples: Available for selected standard products; express charges are normally paid by the recipient.

Quotation Time: Normally within three working hours.

Delivery Time: Approximately 3–7 days for regular products and approximately 25 days for new production.

Payment Terms: 30% T/T deposit and 70% balance before delivery.

Shipping Terms: EXW, FOB, CFR, CIF, DDP, and DDU.

Warranty: One year against confirmed manufacturing defects.

Manufacturer: LIANHE
Place of Origin: Wenzhou, Zhejiang, China
