Overview
Stainless Steel Press 45deg Elbow B Type is a common type of connection used in pipe bends to change the direction of the pipe. It is used to connect two pipes of the same or different nominal diameters to make a 45° turn in the pipe. It is made of stainless steel and is available in different sizes and wall thicknesses. Our high quality Stainless Steel Press 45deg Elbow B Type is used in a wide range of applications and is commonly found in various machinery and plants.
Features
All our Stainless Steel Press 45deg Elbow B Type are surface treated and coated with a corrosion resistant paint so that they will not rust even after a long period of use. In addition, it has an attractive shape, uniform wall thickness and continuous operation, making it suitable for mass production. It also has excellent resistance to impact, vibration and deformation, resulting in a long life and low maintenance.
More Info.
Size Range: 1/4”~4" (DN10~DN100)
Thickness：0.6~2MM
Standards: GB/T19228.2-2011 CJ/T 152-2016 CJ/T466-2014 EN DIN ASME
Material: 0Cr18Ni9 SS304,0Cr17Ni12Mo2 SS316,TP304L,TP316L;
Ring Gasket Material: CIIR, EPDM,PTFE, Nitrile;
Type: A type and B type;
Connection Mode of Socket End: D Type and S Type;
Surface Treatment: Annealing, Vibration polishing，Magnetic polishing;
Product Marking: Size and Material(Customer LOGO can be marked. )
Packing: Plastic bags+ Cartons +Pallet;
Brand: LIANHE
Test Items:
Hydrostatic test, Airtight test, Pressure test, Negative Pressure test, Drawing Test, Temperature change (cold and hot water cycle) test, Hydrostatic bending and Torsion test, Hydrostatic vibration test, Hydrostatic impact test.
Payment Term: 30%TT Advance Payment+70%TT Payment Before Delivery. ( Note: Specific can be discussed.)
Available via T/T, Western Union, Paypal Etc. Payment for goods.
Shipping Terms: EXW, FOB,CFR,CIF,DDP,DDU.
We can provide shipping by sea, by air and by express.
Our Service
1. We are familiar with different markets and can meet special requirements.

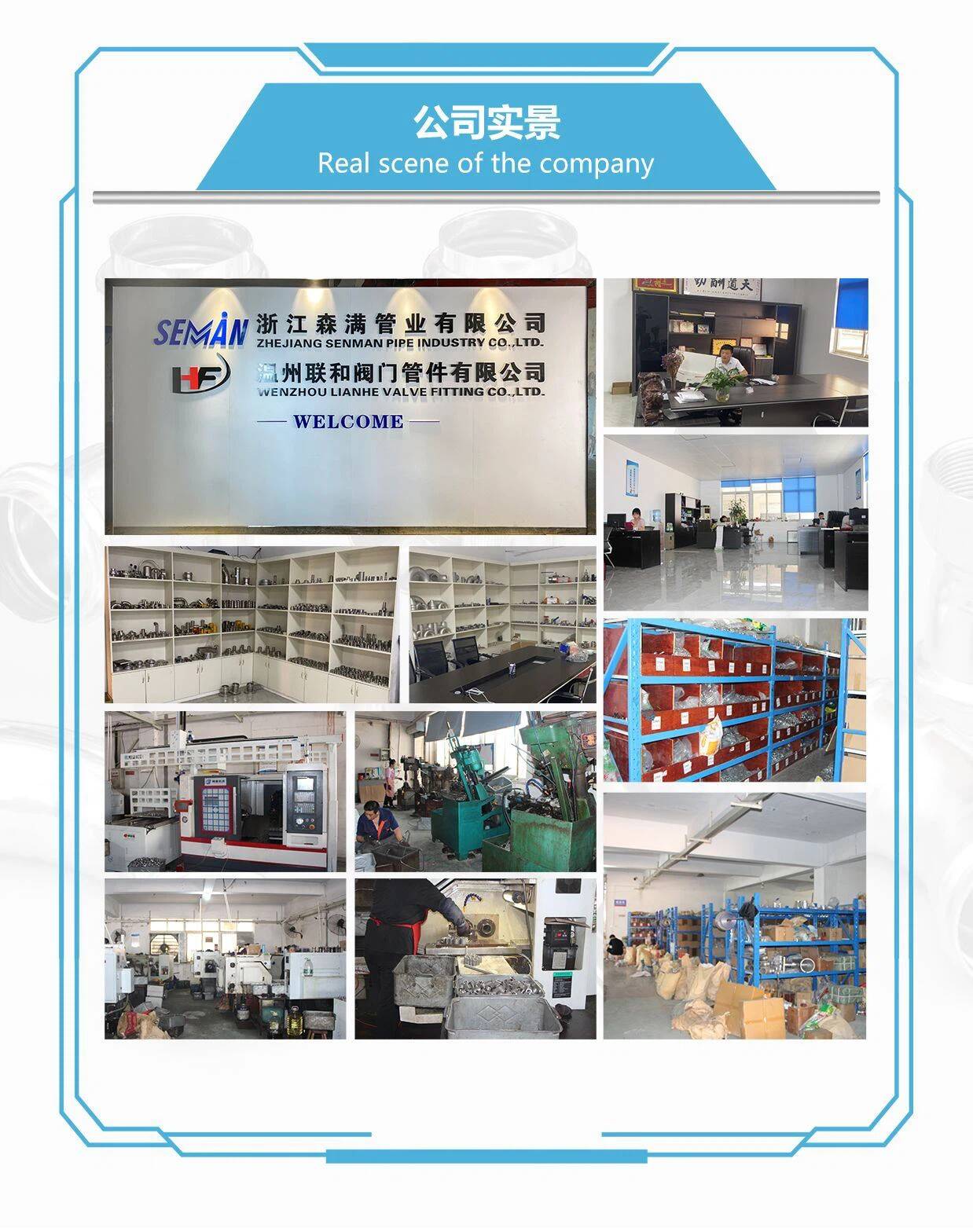

2. We are a real manufacturer and our own factory is located in Wenzhou, China.
3. A strong professional technical team ensures that the best quality products are produced.
4. Our special cost control system ensures to provide the most favorable price.
5. We have a wealth of stamping parts production and sales management.
HS Code: 7307230000
Place of Origin: Wenzhou, China
FAQ:
What kind of production equipment does the factory have?
1 Laser cutting machine,1 Vibrator machine, 1 Bench drill,1 Column hydraulic press, 1 Frame hydraulic press, 1 Hydraulic high speed punching machine, 1 Laser typewriter, 1CNC lathe,1 Packaging machine and other equipment.

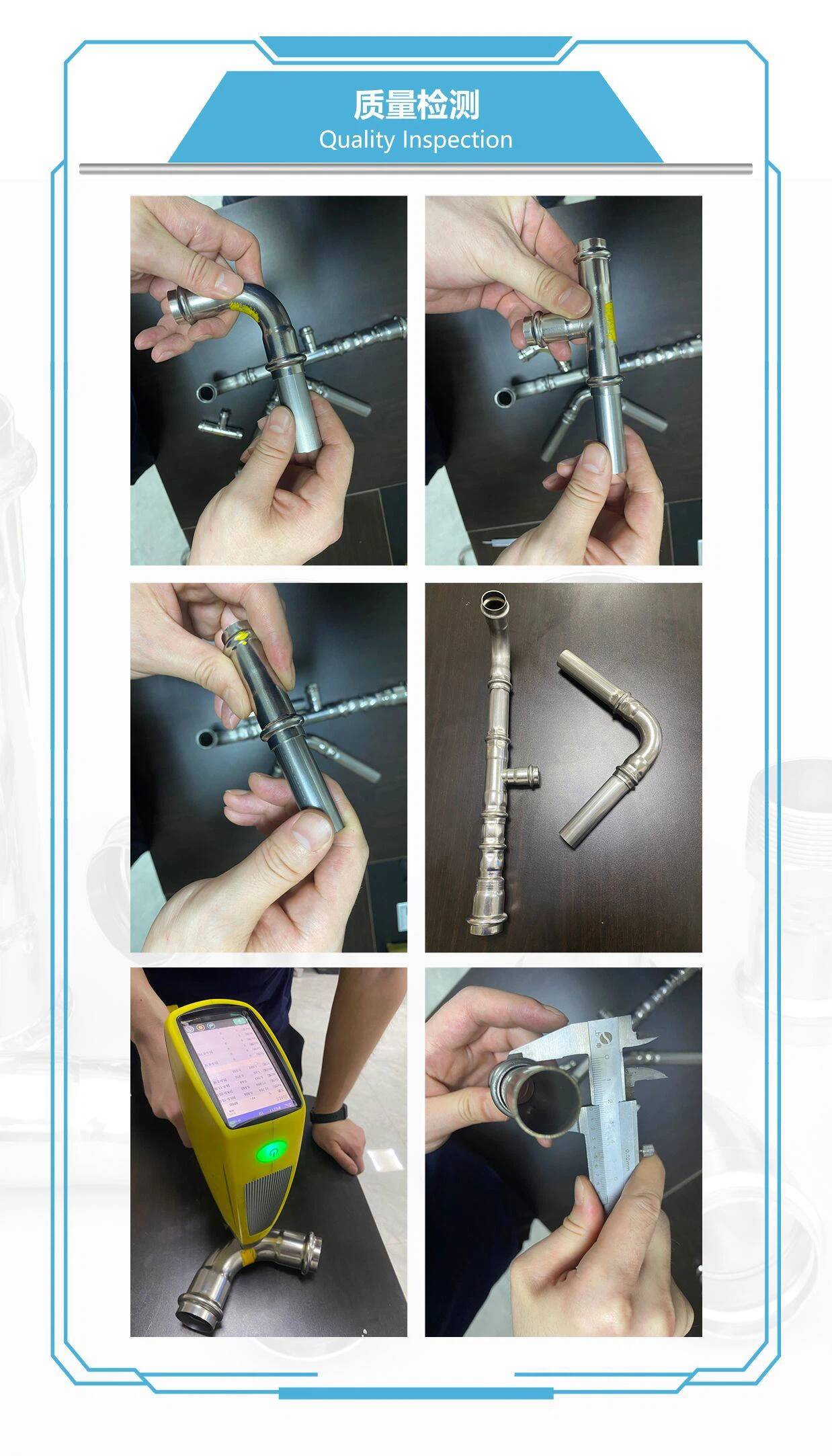

What inspection equipment does the factory have?
Spectrum detector, Airtight and Hydrostatic test equipment, Calipers, Thickness meter, Ring gauge, Plug gauge;
What certifications are available?
GB/T19001-2016,ISO9001:2015,CE, Sanitary License ;
What factory inspection reports are available?
EN 10204/3.1B-MTC
Raw material inspection certificate.
100% Radiography Test Report
Hydraulic seal test report.
Thread inspection report
Third Party Inspection Report, etc
We are factory, we can guarantee our price is first-hand, High quality and competitive price.
