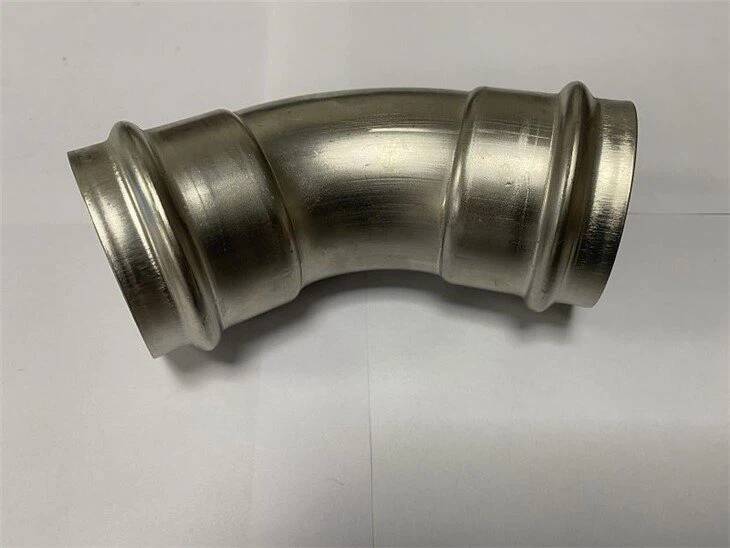

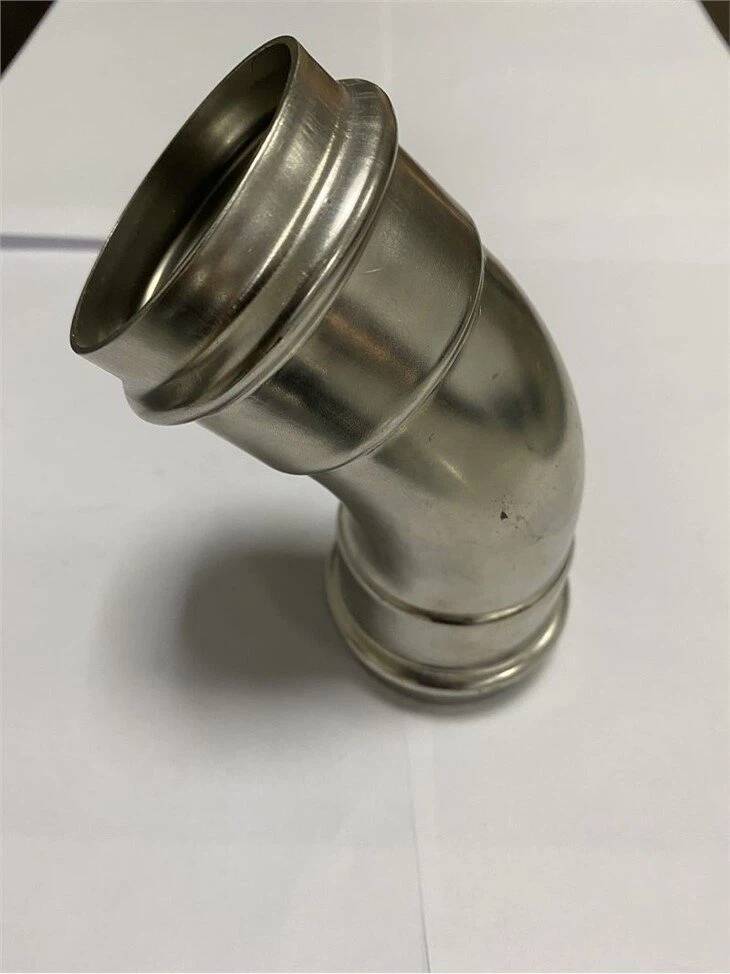

Stainless Steel Press 45DEG Elbow
  • Stainless Steel Press 45DEG ElbowStainless Steel Press 45DEG Elbow
  • Stainless Steel Press 45DEG ElbowStainless Steel Press 45DEG Elbow
  • Stainless Steel Press 45DEG ElbowStainless Steel Press 45DEG Elbow
  • Stainless Steel Press 45DEG ElbowStainless Steel Press 45DEG Elbow

Stainless Steel Press 45DEG Elbow

Function: Changes pipe direction by 45° in a compatible press-fit system.
Connection: Press ends; confirm the press profile, tube dimensions and seal for the order.
Listed size range: 1/4"–4" (DN10–DN100); verify the selected size.
Material and service limits are subject to the approved drawing and quotation.

    Size Range: 1/4”~4" (DN10~DN100)

    Thickness:0.6~2MM

    Standards: GB/T19228.2-2011 CJ/T 152-2016 CJ/T466-2014 EN DIN ASME

    Material: 0Cr18Ni9 SS304,0Cr17Ni12Mo2 SS316 ,TP304L,TP316L;

    Ring Gasket Material: CIIR, EPDM,PTFE, Nitrile.

    Type: A type and B type;

    Connection Mode of Socket End: D Type and S Type;

    Nominal pressure: PN16; Water pressure test:2.5MPa; Air tightness test pressure: 1.05MPa.

    Surface Treatment:Annealing, Vibration polishing,Magnetic polishing;

    Packing: Plastic bags+ Cartons + Wooden Case or Pallet;

    Brand: LIANHE

    Medium: Drinking water, wastewater, industrial water, gas.

    Application of all kinds of piping system including Water piping system, Gas piping system, Direct drinking water piping system, Environmental protection piping system, Steam piping system, Heating piping system, Air conditioning piping system, Industrial water piping system and so on;

    Product Marking: Size and Material (Can mark the customer's LOGO );

    Certificates: GB/T19001-2016,ISO9001:2015,CE, Sanitary License ;


    Factory inspection Report and Certificates:

    EN 10204/3.1B-MTC

    Raw material inspection certificate.

    100% Radiography Test Report

    Hydraulic seal test report.

    Thread inspection report

    Third Party Inspection Report, etc


    HS Code: 7307230000

    Quotation Time: Within 3 hour.

    Delivery Time: Products of regular size 3~7 days. 25 days for production.

    Price validity: 3~7 days, according to the market.


    Our Services

    1. Good knowledge on different market can meet special requirements.

    2. Real manufacturer with our own factory located in ***********Wenzhou China

    3. Strong professional technical team ensure to produce the top quality products.

    4. Special cost control system ensure to provide the most favorable price.

    5. Abundance of press fittings production and sales management.

    Place of Origin: Wenzhou,China;


    FAQ:

    What are the advantages of press fittings compared with other fittings?

    1.High resistance strength;

    2.Corrosion resistance;

    3.Long service life;

    4.Low flow resistance;

    5.Good seismic performance;

    6.BABSL;

    7.The environmental protection;

    8.Easy to install;

    9.Suitable for embedded installation;

    10.Low comprehensive cost;

    11.Wear-resisting;

    12.Health;

    13.Good sealing performance, no leakage

    What is the temperature of the matching sealing gasket?

    -20℃ to 110 ℃

    What tests will be done to press fittings?

    Hydrostatic test, Airtight test, Pressure test, Negative Pressure test, Drawing Test, Temperature change (cold and hot water cycle) test, Hydrostatic bending and Torsion test, Hydrostatic vibration test, Hydrostatic impact test.

    Can you give me a discount?

    Discount is available,but we have to see the real quantity,we have different price based on different quantity,how much discounts is determined by the quantity,moreover,our price is very competitive in the field

    Can l visit your factory?

    By all means, we warmly welcome your arrival, Before you take off from your country, please let us know. We will show you the way and arrange time to pick you up if possible.

    We are factory, we can guarantee our price is first-hand, High quality and competitive price.

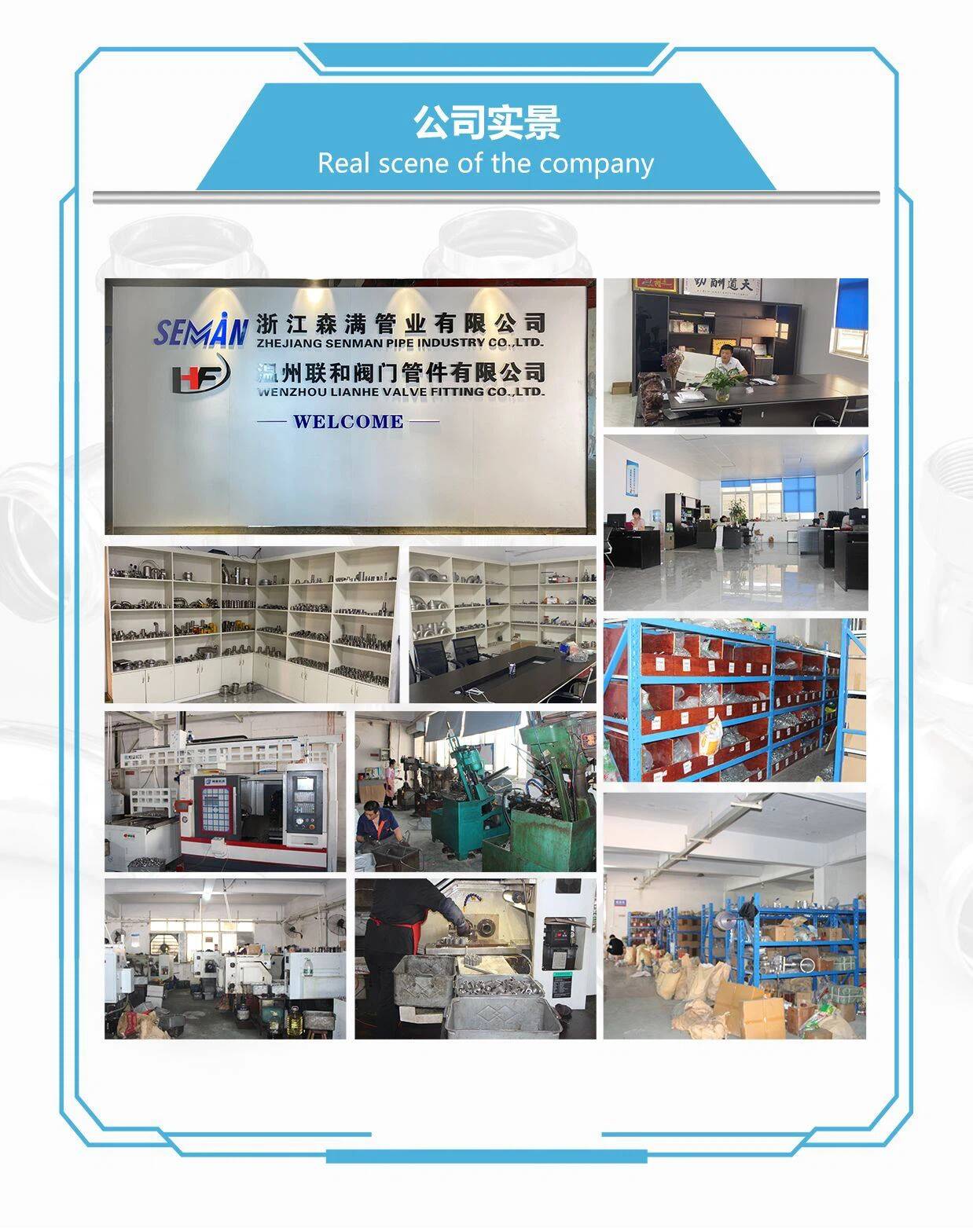

    COMPANY PHOTO(001)
