Stainless Steel Press 90DEG Long Elbow S Type For Piping Systems

Description of S Type Stainless Steel Press 90° Long Elbow

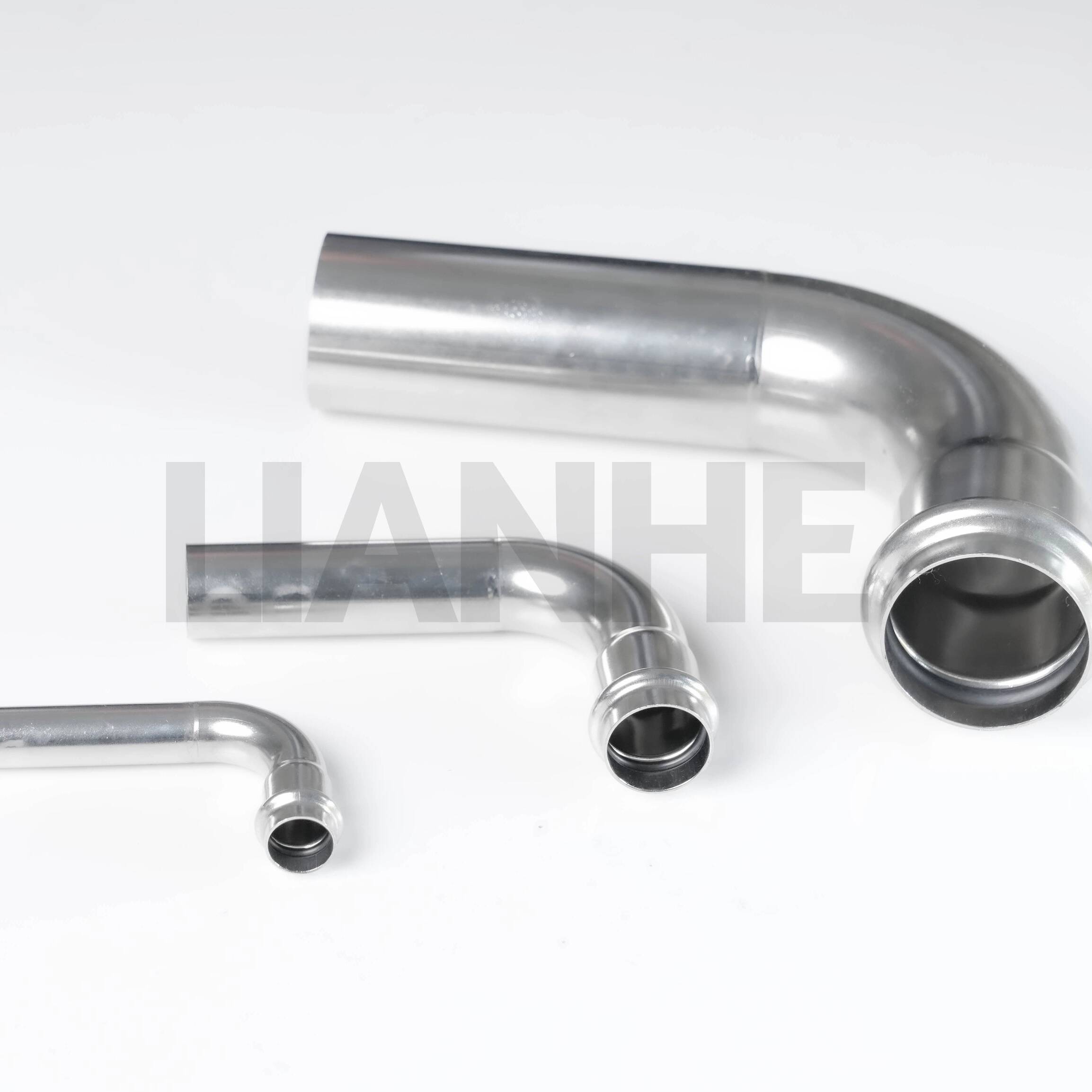

The LIANHE Stainless Steel Press 90° Long Elbow S Type is designed to change the direction of a compatible stainless steel pipeline by 90 degrees. Its extended bend profile provides a smoother directional transition than a compact elbow, helping maintain stable flow through water, gas and industrial piping systems.

Manufactured from mechanically formed stainless steel pipe, the elbow combines dimensional accuracy, corrosion resistance and reliable joint performance. The S-type press socket allows fast installation without conventional threading or on-site welding.

Technical Specifications

Actual pressure, temperature and media compatibility should be confirmed according to the selected stainless steel grade, gasket, pipe size and applicable system standard.

Production Capacity and Equipment

LIANHE operates its own manufacturing facility in Wenzhou, China. The factory uses pipe forming, welding, machining, polishing and pressure-testing equipment to support the production of stainless steel press fittings.

Main production equipment includes:

• 5 automatic pipe-welding production lines

• 2 laser-cutting machines

• 2 laser-marking machines

• 5 vibration-polishing machines

• 2 magnetic-polishing machines

• 5 airtightness and hydraulic-testing units

• 3 forming machines

• 3 grooving machines

• 2 drilling machines

• 10 CNC lathes

• 6 end-facing machines

• 2 vertical water-expansion machines

• 2 frame-type water-expansion machines

• 10 pipe-bending machines

• 8 automatic argon-arc welding machines

• 4 hydraulic drawing machines

• 4 high-speed hydraulic punching machines

• Packaging and related production equipment

Quality Control System

Dedicated quality-control personnel perform in-process and final inspections. Products are inspected before shipment according to the applicable product specification and order requirements.

Eight-Step Quality Control Process

1. Inspect the raw-material grade, outside diameter and wall thickness.

2. Check the material length and pipe-end condition after cutting.

3. Inspect the socket, outside diameter and wall thickness after machining.

4. Check the elbow-forming area, weld dimensions and surface condition where applicable.

5. Inspect the surface, dimensions, bend shape and socket after heat treatment.

6. Check the finished surface after polishing or pickling.

7. Perform the applicable hydraulic and airtightness tests.

8. Verify product markings, quantities and packaging before shipment.

Testing and Delivery Inspection

Available test items may include:

• Hydrostatic testing

• Airtightness testing

• Pressure testing

• Negative-pressure testing

• Drawing tests

• Hot- and cold-water cycle testing

• Hydrostatic bending and torsion testing

• Hydrostatic vibration testing

• Hydrostatic impact testing

Delivery inspection covers the material, surface finish, dimensions, hydrostatic performance and airtightness according to the applicable inspection plan.

Packaging, Shipping and Trading Terms

• Packaging: Plastic bags, cartons and wooden cases

• MOQ: Generally 5–10 pieces

• Stock: Subject to the requested size, material and current inventory

• Samples: Free standard samples may be available; courier charges are not included

• Quotation Time: Normally within three hours after receiving complete requirements

• Price Validity: Generally 3–7 days, depending on material-market conditions

• Stock Delivery: Approximately 3–7 days for regular sizes available from stock

• Production Lead Time: Approximately 25 days

• Payment Terms: 30% T/T deposit and 70% balance before delivery; specific terms can be discussed

• Payment Methods: T/T, Western Union and PayPal

• Trade Terms: EXW, FOB, CFR, CIF, DDP and DDU

• Shipping Methods: By sea, air or international express

• Warranty: Standard one-year quality warranty

If a confirmed product-quality issue occurs within the applicable warranty conditions, LIANHE will work with the customer to provide an appropriate solution.
