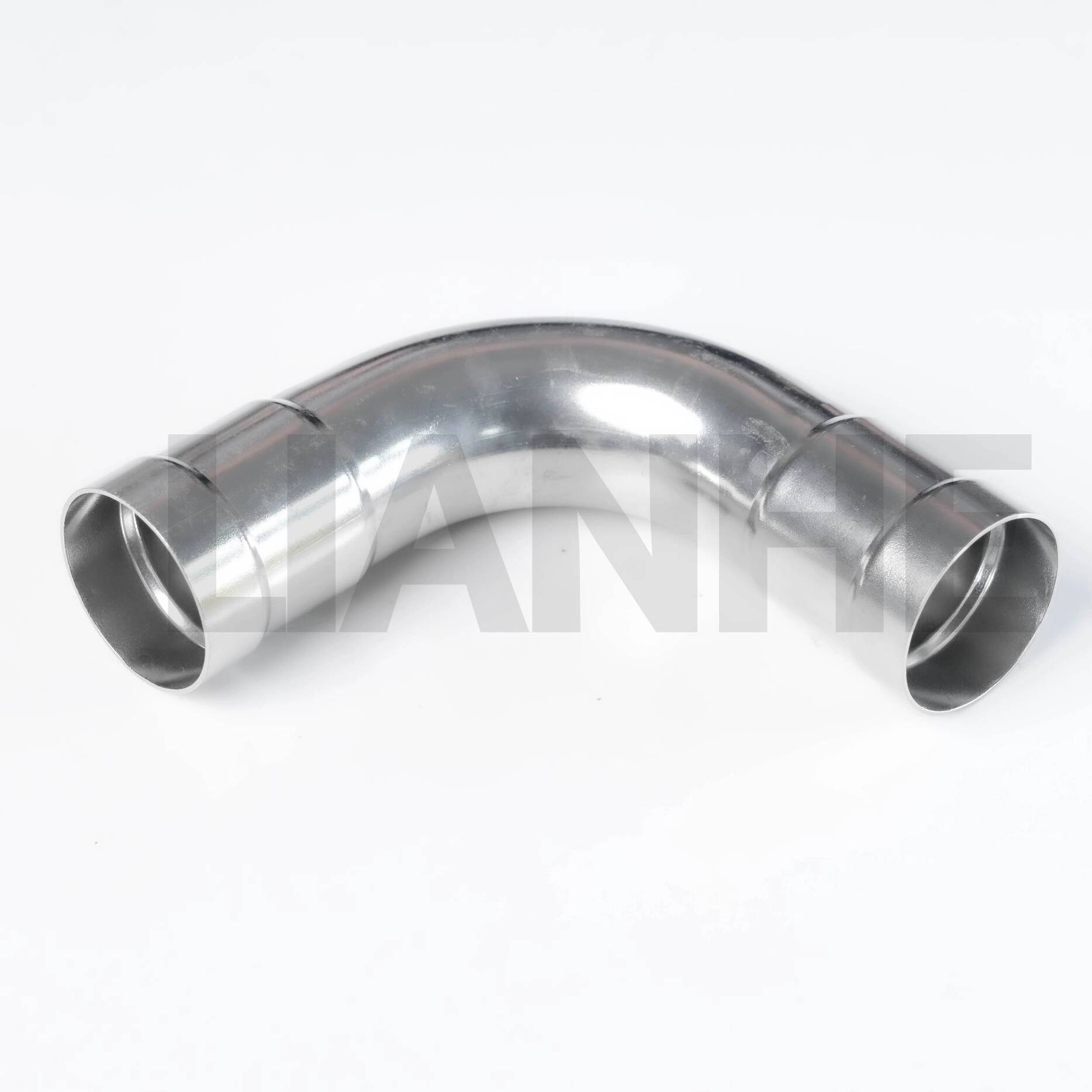

Stainless Steel Ring Crimping 90DEG Elbow

Technical Specifications

Product Applications

LIANHE stainless steel ring crimping fittings are designed for fast, reliable, and durable pipeline connections. They are suitable for engineering projects, ships, commercial buildings, residential buildings, hospitals, hotels, environmental protection facilities, heating installations, and air-conditioning systems.

The fittings can be used in a wide range of pipeline systems, including:

• Domestic and commercial water supply systems

• Cold-water and hot-water piping systems

• Direct drinking-water pipelines

• Gas distribution systems

• Wastewater transportation systems

• Environmental protection pipelines

• Steam piping systems

• Heating systems

• Air-conditioning pipelines

• Industrial water systems

• Other compatible fluid transportation systems

Product suitability should be confirmed according to the operating pressure, working temperature, transported medium, sealing-ring material, installation method, and applicable project standard.

Product Testing

Available inspection and performance tests include:

• Hydrostatic Pressure Test

• Airtightness Test

• Working Pressure Test

• Negative-Pressure Test

• Pull-Out Test

• Cold- and Hot-Water Temperature-Cycling Test

• Hydrostatic Bending and Torsion Test

• Hydrostatic Vibration Test

• Hydrostatic Impact Test

The applicable tests and sampling ratio depend on the selected product, governing standard, project requirements, and confirmed inspection plan.

Delivery Inspection

Products are inspected before shipment. Standard delivery inspection covers:

• Material grade

• Surface condition

• Product dimensions

• Socket dimensions

• Wall thickness

• Product markings

• Hydrostatic performance

• Airtightness performance

• Packaging and quantities

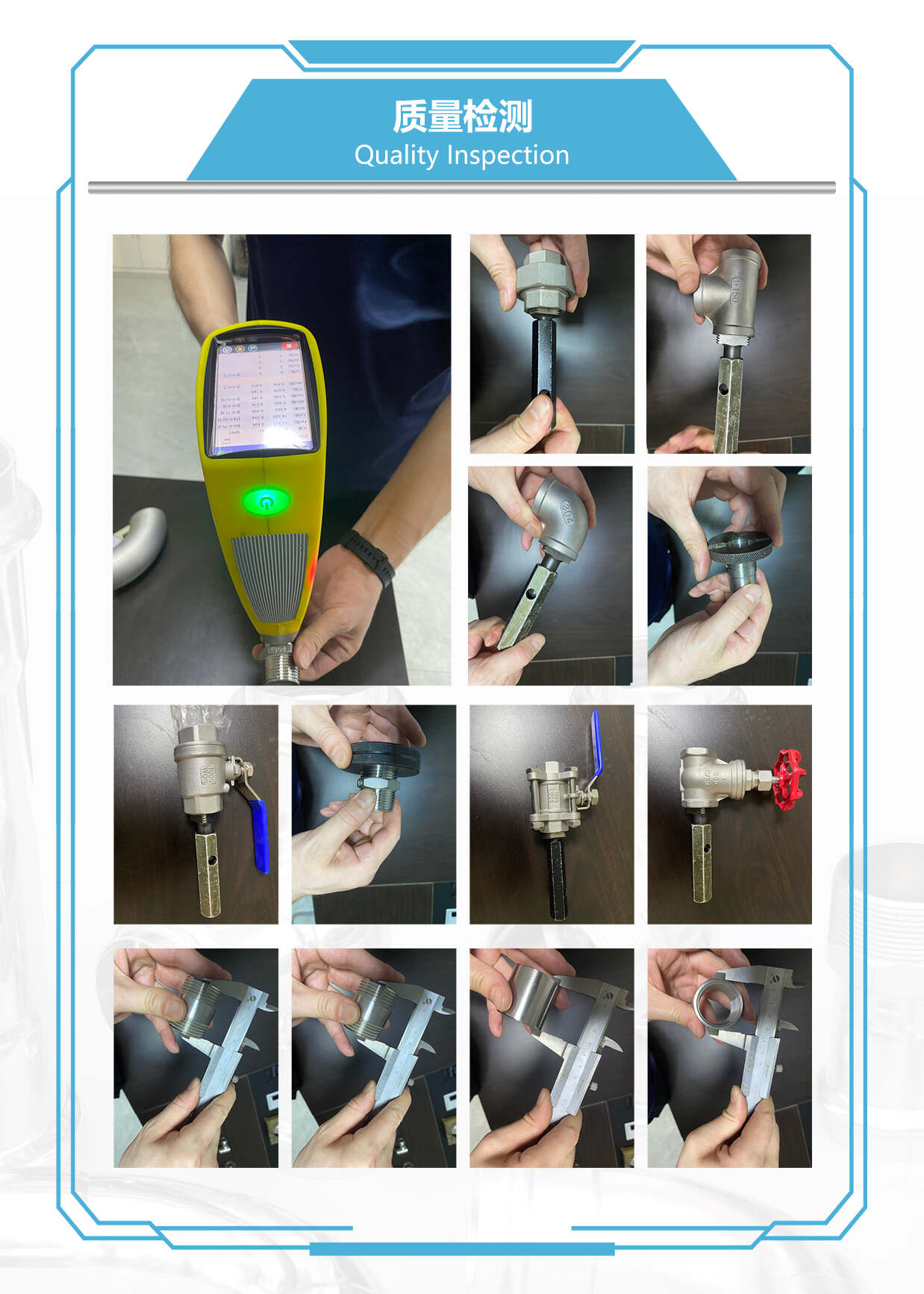

Product Quality Control

LIANHE performs in-process inspection and final inspection throughout production. Raw materials, dimensions, sockets, surfaces, sealing performance, markings, and packaging are checked before the finished products are approved for delivery.

Our main quality-control procedures include:

1. Inspecting the outside diameter, wall thickness, material grade, and surface condition of incoming raw materials.

2. Checking the length, cutting position, and end condition of raw materials after cutting.

3. Inspecting the socket dimensions, outside diameter, and wall thickness after mechanical forming and machining.

4. Checking weld dimensions, weld appearance, and surface quality after welding and forming.

5. Inspecting the product surface, dimensions, and socket structure after heat treatment.

6. Verifying surface quality after vibration polishing, magnetic polishing, pickling, or other surface treatment.

7. Performing hydraulic-pressure and airtightness tests according to the applicable inspection requirements.

8. Checking product markings, order quantities, packaging materials, labels, and shipping marks before shipment.

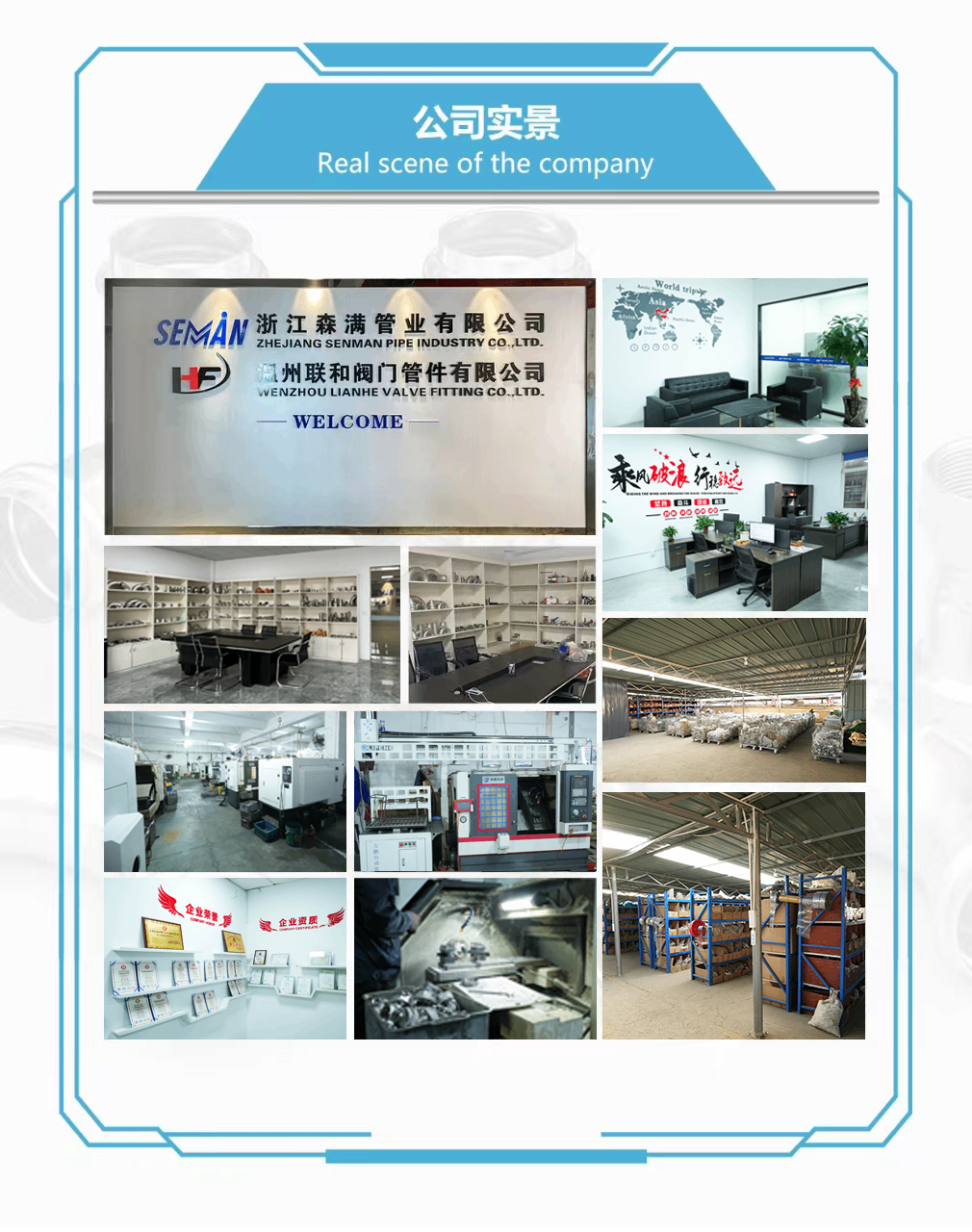

Production Equipment

Our manufacturing facility is equipped with five automatic pipe-welding production lines, two laser-cutting machines, five vibration-polishing machines, two magnetic-polishing machines, five airtightness and hydraulic-testing units, three forming machines, three grooving machines, two drilling machines, ten CNC lathes, and six end-processing machines.

Additional equipment includes two vertical hydroforming machines, two frame-type hydroforming machines, ten pipe-bending machines, eight automatic argon-arc welding machines, four hydraulic drawing machines, four high-speed hydraulic punching machines, two laser-marking machines, two packaging units, and other related production and inspection equipment.

These production capabilities support pipe preparation, forming, machining, welding, heat treatment, surface finishing, testing, product marking, and export packaging.

HS Code: 7307230000

Payment Terms

Our standard payment term is a 30% T/T deposit paid in advance, with the remaining 70% T/T balance paid before delivery. Specific payment conditions can be discussed according to the order value and cooperation requirements.

Available payment methods include T/T, Western Union, PayPal, and other mutually agreed methods.

Shipping Terms

Available Trade Terms: EXW, FOB, CFR, CIF, DDP, and DDU

Products can be transported by sea freight, air freight, land transportation, or international express service. A suitable shipping method can be recommended according to the order volume, destination, required delivery date, and transportation budget.

Minimum Order Quantity and Stock

MOQ: Normally 5–10 pieces, depending on the product model, size, and current inventory.

We maintain inventory for many regular products and commonly requested sizes. Selected products may have up to 5,000 pieces available in stock, supporting short delivery times and flexible purchasing requirements.

Because stock levels change continuously, the available quantity for each product and size should be reconfirmed before placing an order.

Samples and Quotation

Free Samples: Samples can be provided free of charge for product evaluation and project testing. The international express delivery cost is normally paid by the recipient.

Quotation Time: A quotation can normally be provided within three working hours after receiving the complete product specifications, material, size, quantity, and delivery destination.

Quotation Validity: Normally 3–7 days, subject to stainless steel raw-material prices, exchange-rate fluctuations, and current market conditions.

Delivery Time

Regular products and standard sizes available from stock can normally be delivered within 3–7 days.

Orders requiring new production normally take approximately 25 days. The actual delivery schedule depends on the product specifications, material availability, order quantity, inspection requirements, customized packaging, and factory production plan.
