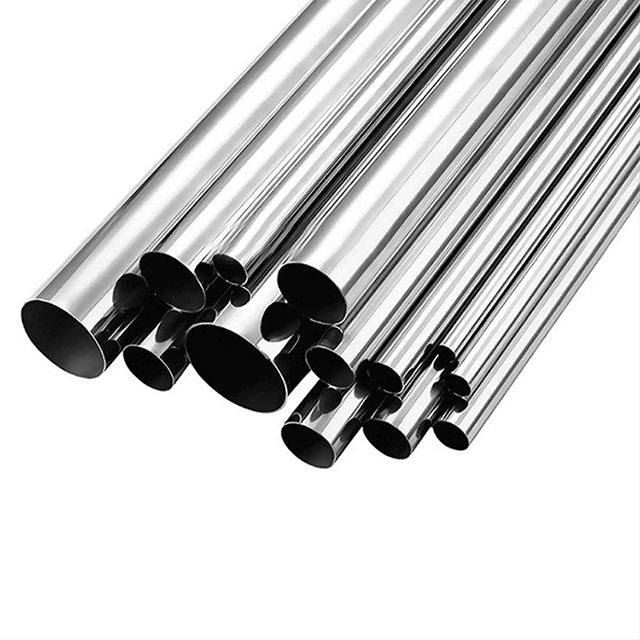

Stainless Steel Sanitary Pipe

Technical Specifications

Size Range: 1/2"–12" (12.7–305 mm)

Available Wall Thicknesses: 1.5 mm, 1.65 mm, 2.0 mm, 3.0 mm, and 4.0 mm

Wall thickness varies according to the selected size, dimensional standard, working conditions, and customer requirements.

Available Materials:

• TP304, 0Cr18Ni9, SS304, and S30408

• TP316L, SS316L, and S31603

• 0Cr17Ni12Mo2 and SS316

• SS304L and S30403

Dimensional Standards: 3-A, SMS, IDF, DIN 11850/11851, ISO 2037, BS 4825, and JIS G 3447

Material Standards: ASTM A270, ASTM A269, GB, and DIN

Manufacturing Options: Seamless or Welded Construction

Connection Type: Weld End

Product Marking: LOGO–Size–Material–Standard. Customer logos, private brands, batch information, and other customized markings can be applied according to specific requirements.

Surface Treatment: Internal and External Mirror Polishing, up to 320 Grit

Standard Packaging: Bubble Wrap or Plastic Packaging, Export Cartons, Woven-Bag Protection, and Wooden Cases

Certificates: GB/T 19001-2016, ISO 9001:2015, and CE documentation for applicable products

Brand: LIANHE

HS Code: 7307290000

Place of Origin: Wenzhou, Zhejiang, China

The final dimensions, wall thickness, material grade, surface finish, and manufacturing method should be confirmed according to the applicable standard and project requirements.

Materials and Manufacturing

Products are available in different stainless steel grades to support various hygienic, commercial, and industrial applications. Material selection should be based on the transported medium, operating temperature, system pressure, corrosion conditions, cleaning procedures, and installation environment.

TP304 and SS304 provide good general corrosion resistance for many standard applications. TP316L and SS316L provide improved resistance in environments involving chlorides, chemicals, or more demanding hygienic conditions.

Seamless and welded manufacturing options are available. The appropriate manufacturing method should be selected according to the applicable standard, dimensions, working conditions, inspection requirements, and customer specifications.

Dimensional and Material Standards

Available dimensional standards include 3-A, SMS, IDF, DIN 11850/11851, ISO 2037, BS 4825, and JIS G 3447. Because these standards may use different outside diameters, wall thicknesses, tolerances, and connection dimensions, customers should provide the exact required standard when requesting a quotation.

Material specifications are available according to ASTM A270, ASTM A269, applicable GB standards, and applicable DIN standards.

Products manufactured according to different standards may not be dimensionally interchangeable, even when their nominal sizes appear similar. The outside diameter, wall thickness, weld-end dimensions, tolerances, and surface requirements should be confirmed before production.

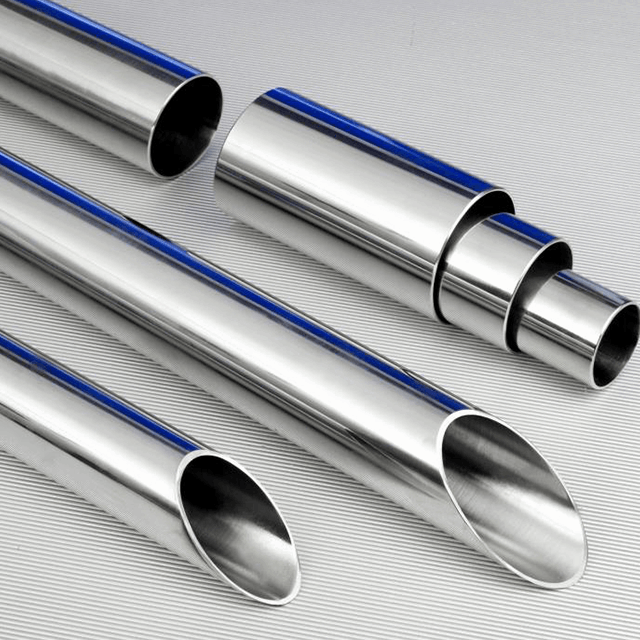

Surface Treatment

The internal and external surfaces can be mirror polished to a specified finish, with 320-grit polishing available.

A polished surface helps improve appearance, cleanliness, and resistance to the accumulation of process residues. The required surface condition should be selected according to the intended application and cleaning requirements.

If a project requires a specific roughness value, such as Ra measured in micrometres, the required value and measurement location should be stated separately. A polishing-grit designation does not by itself guarantee a specific Ra value.

Product Marking

Standard product markings may include:

• LIANHE logo

• Product size

• Stainless steel material grade

• Applicable standard

• Batch or traceability information, when required

Customer logos, private brands, project numbers, heat numbers, and other customized markings can be applied according to the confirmed order requirements.

The marking method and content should be confirmed before production, particularly when permanent laser marking or complete material traceability is required.

Quality Assurance

LIANHE applies in-process and final inspection procedures throughout raw-material preparation, cutting, machining, forming, welding, surface finishing, testing, marking, and packaging.

Products are inspected before delivery to verify that their materials, dimensions, surfaces, weld areas, connection ends, markings, and packaging comply with the confirmed requirements.

Factory Inspection Reports and Certificates

Inspection documents can be supplied according to the confirmed product specifications and order requirements, including:

• EN 10204 3.1 Material Test Certificate

• Raw-Material Inspection Certificate

• Radiographic Testing Report, when applicable

• Hydraulic Test Report

• Dimensional Inspection Report

• Surface-Finish Inspection Report

• Third-Party Inspection Report

• Other project-specific quality documents

The required inspection scope, testing ratio, certificate type, surface documentation, and third-party witnessing arrangements should be confirmed before production.

Delivery Inspection

Standard inspection before shipment covers:

• Stainless steel material grade

• Outside diameter and wall thickness

• Product dimensions and tolerances

• Weld-end dimensions

• Internal and external surface condition

• Weld appearance, where applicable

• Hydrostatic test, where required

• Product markings

• Quantity and packaging

Additional inspection items can be arranged according to the governing standard, intended application, and customer requirements.

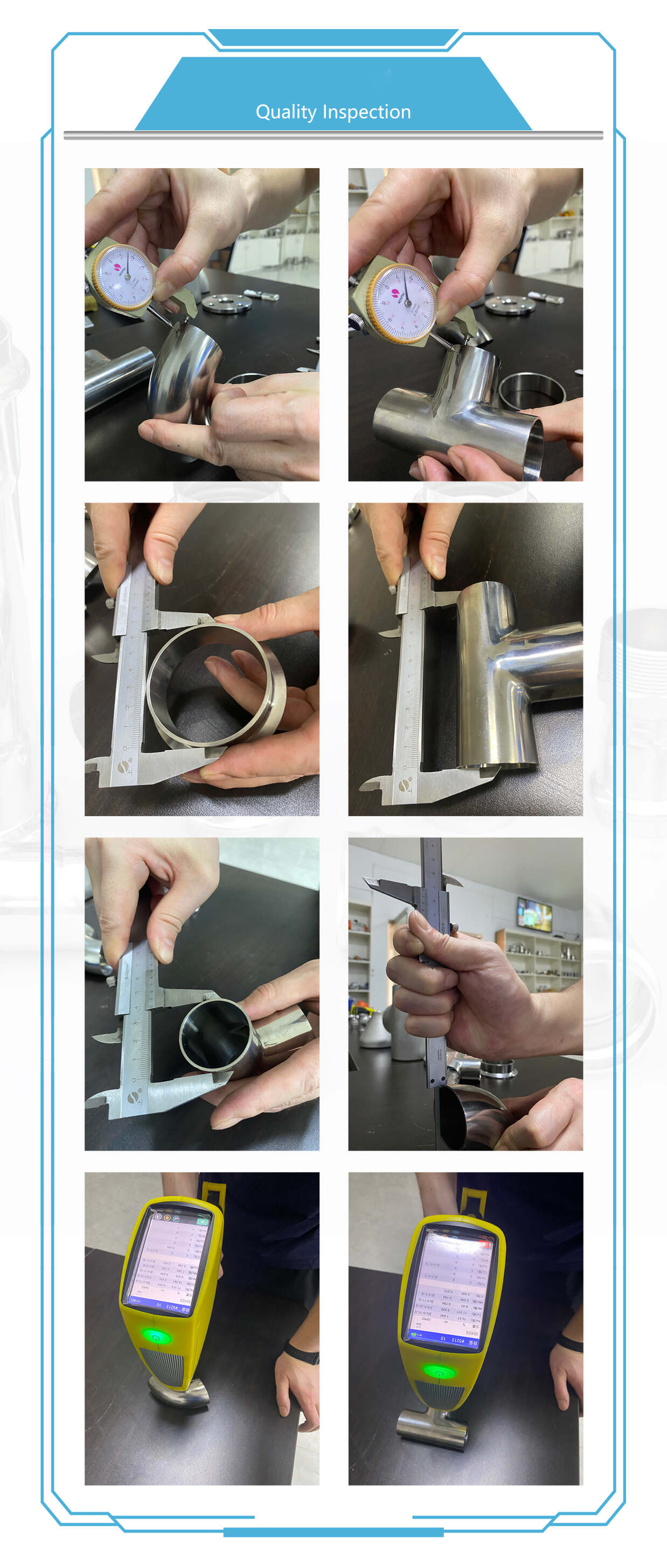

Product Quality Control

Quality-control personnel perform production-line and final inspections. The principal inspection procedures include:

1. Inspecting the outside diameter, wall thickness, material grade, documentation, and surface condition of incoming raw materials.

2. Checking the length, cutting position, and end condition of raw materials after cutting.

3. Inspecting the outside diameter, wall thickness, connection ends, and critical dimensions after machining or forming.

4. Checking weld dimensions, weld appearance, alignment, and surface quality after welding, where applicable.

5. Inspecting the internal and external surfaces after polishing and other surface-treatment procedures.

6. Performing hydrostatic or airtightness testing according to the applicable product and inspection requirements.

7. Inspecting product markings, quantities, packaging materials, labels, and shipping marks before shipment.

Products are released for delivery after completing the applicable inspection procedures.

Packaging

Products are initially protected with bubble wrap or plastic packaging to reduce exposure to dust, moisture, scratches, and surface contamination.

They are then packed in export cartons, wrapped with woven-bag protection where required, and consolidated in wooden cases for international transportation.

Customized cartons, labels, barcodes, pallet packing, customer logos, and other packaging arrangements can be provided according to the confirmed order requirements.

Payment Terms

Our standard payment term is a 30% T/T deposit paid in advance, with the remaining 70% T/T balance paid before delivery. Specific payment conditions can be discussed according to the order value, product requirements, and cooperation arrangements.

Available payment methods include:

• T/T bank transfer

• Western Union

• PayPal

• Other mutually agreed payment methods

Shipping Terms

Available Trade Terms: EXW, FOB, CFR, CIF, DDP, and DDU

Products can be delivered by:

• Sea freight

• Air freight

• Land transportation

• International express service

The appropriate shipping method can be selected according to the order quantity, package volume, destination, required delivery schedule, and transportation budget.

Shipping costs, transit times, export packaging, and delivery conditions should be confirmed before dispatch.

After-Sales Service

Our standard product quality warranty period is one year.

If a manufacturing-related quality problem is confirmed during the warranty period, our team will investigate the cause and provide an appropriate technical or after-sales solution.

Customers should provide the order number, material grade, dimensional standard, product size, wall thickness, installation conditions, transported medium, operating pressure, working temperature, and relevant photos or videos to assist with technical evaluation.
