Stainless Steel Thread Class150 Cross

Stainless Steel Thread Class150 Cross with four female threaded ports for a four-way pipe connection. Specify port sizes, thread form and stainless steel grade. Confirm the final pressure rating and dimensions for the selected model.


    Product Overview

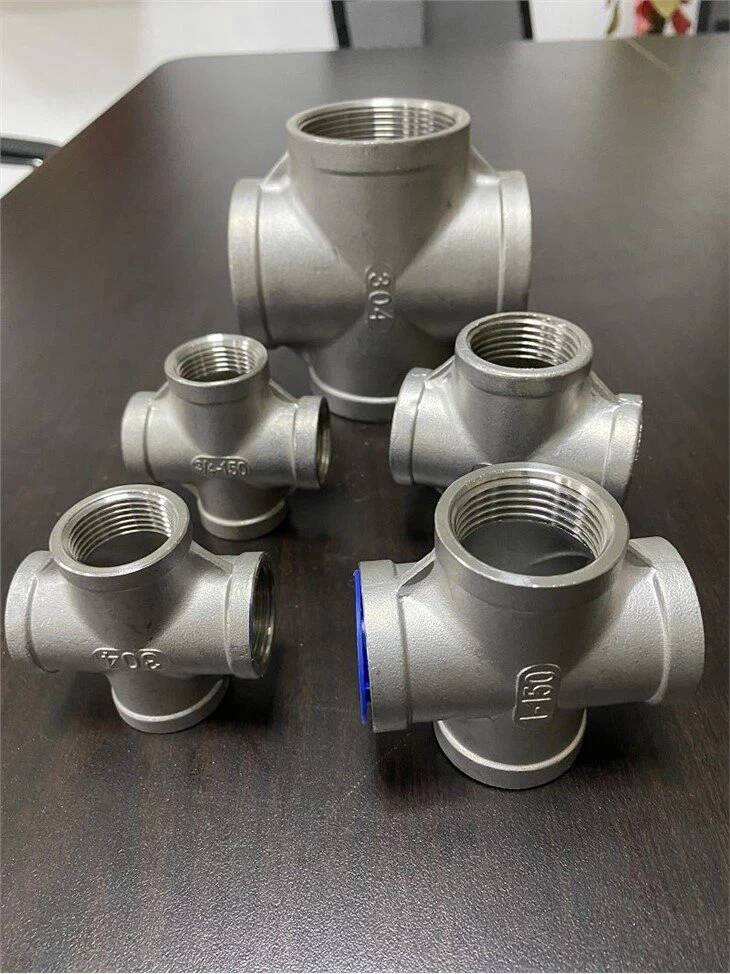

    The Stainless Steel Thread Class150 Cross provides four branches at right angles in a compatible threaded pipe system. The main product photo shows four female threaded openings. Select the thread form, size and material for the mating pipework.


    Detailed Product Specifications

    Category

    Details

    Product

    Four-way threaded cross

    Connection

    Four female threaded openings, as shown in the product photo

    Thread form

    Confirm BSPT, BSPP or NPT for the selected configuration

    Size

    Confirm the nominal size of each branch against the approved drawing

    Material

    Specify the stainless steel grade and required documentation


    Key Features & Selection

    Four-way branch: The body provides four ports for distributing or collecting flow in a compatible piping arrangement.

    Connection fit: All mating male threads must match the specified female thread form and size.

    Operating conditions: Confirm the pressure–temperature limits of the exact casting and connection before use.


    Quality & Documentation

    Confirm dimensions, material grade and any requested inspection documents against the approved drawing and quotation. No pressure, temperature or certification claim is made without checking the ordered configuration.


    Ordering Information

    Please state the four port sizes, thread form, material grade, quantity and any inspection or drawing requirements.
