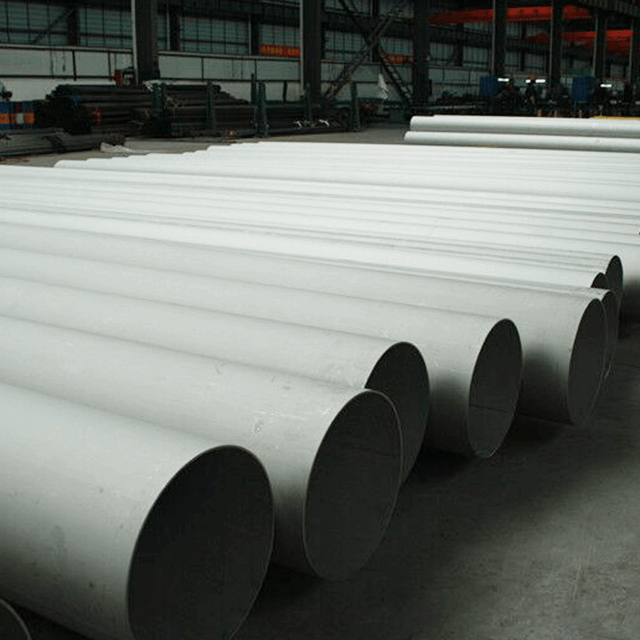

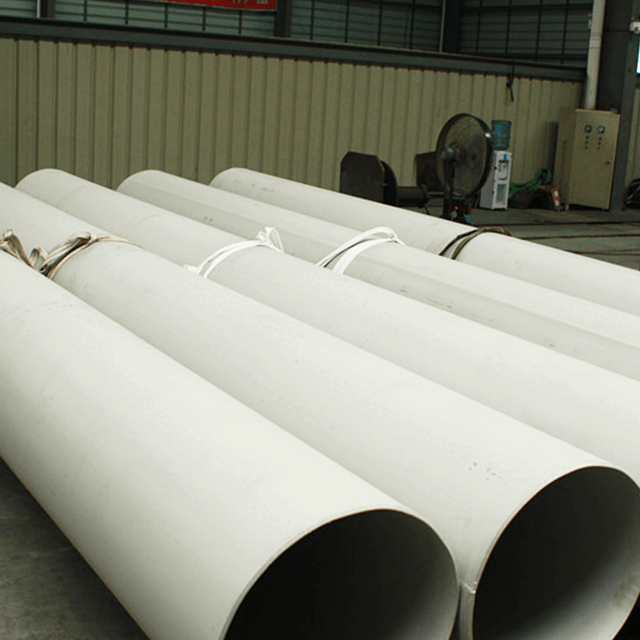

Stainless Steel Welded Pipe

Technical Specifications

Size Range: 1/2"–60" (DN15–DN1500)

Wall Thickness: SCH 5S, SCH 10/10S, SCH 20, STD, SCH 40/40S, XS, and SCH 80/80S; approximately 1.65–60 mm

Manufacturing Process: Welded Construction using ERW or EFW Technology

End Connection: Butt Weld

Applicable Manufacturing Standards: ASTM A312, ASTM A249, GB/T 14975, GB/T 17976, GB/T 12459, GB 9948, GOST 12088-88, EN 10216-5, DIN 17456, and DIN 17458

Dimensional Standards: ASME B36.19, ASME B36.10, GB, GOST, DIN, and EN

Available Materials:

• TP304, TP304L, and 0Cr18Ni9

• TP316L, 0Cr17Ni12Mo2, and 1.4404

• TP310S, TP321, and TP347

• 1.4301 and 1.4306

• S31803 and S32205 Duplex Stainless Steel

• S32750 and S32760 Super Duplex Stainless Steel

• 904L Stainless Steel

Surface Treatment: Solution Annealing, Polishing, Pickling, Sand Rolling, or Sandblasting

Product Marking: LOGO + Product Name + Size + Standard + Material. Customized markings are available.

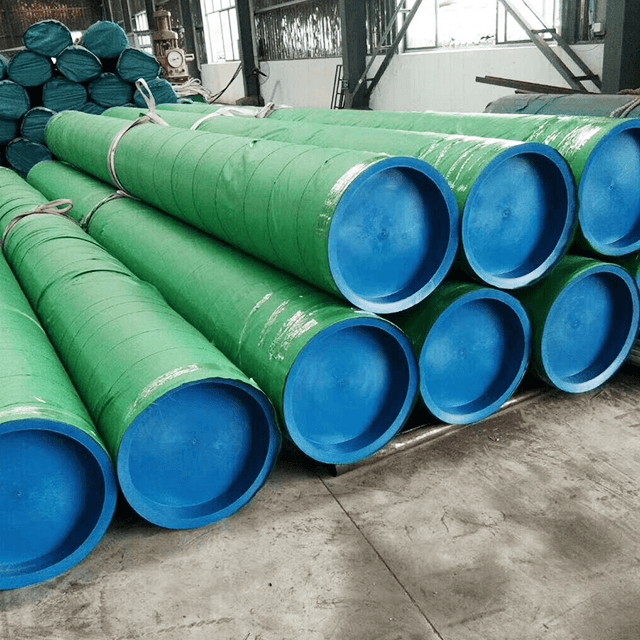

Packaging: Bubble Wrap or Plastic Protection, Wooden Cases, or Pallets

Certificates: GB/T 19001-2016, ISO 9001:2015, and CE documentation for applicable products

Brand: LIANHE

HS Code: 7307210000

Place of Origin: Wenzhou, Zhejiang, China

Applications

Suitable for compatible applications in:

• Chemical and petrochemical facilities

• Pharmaceutical and food-processing plants

• Breweries

• Cryogenic processing facilities

• Waste-treatment systems

• Pulp and paper plants

• Gas-processing and separation facilities

• Other industrial pipeline projects

Nuclear or military applications require project-specific qualifications, approvals, material traceability, and inspection.

Product Advantages

1. Excellent corrosion resistance

2. Long operating service life

3. Low internal flow resistance

4. Wide range of sizes and wall thicknesses

5. Multiple stainless steel grades available

6. ERW and EFW manufacturing options

7. Customized production supported

8. Reduced maintenance requirements

Testing and Inspection

Available tests include:

• Ultrasonic Testing

• Radiographic Testing, when applicable

• Positive Material Identification

• Liquid Penetrant Testing

• Dimensional Inspection

• Surface Inspection

• Hardness Testing

Available documents include raw-material certificates, EN 10204 3.1 Material Test Certificates, nondestructive testing reports, dimensional reports, and third-party inspection reports.

Quality Control

1. Inspect raw-material grade, outside diameter, and wall thickness.

2. Check length and end condition after cutting.

3. Inspect outside diameter, wall thickness, and end dimensions after processing.

4. Check weld dimensions and surface quality after forming.

5. Inspect the surface after heat treatment and finishing.

6. Perform applicable hydraulic or airtightness tests.

7. Verify markings, quantities, and packaging before shipment.

Quotation Requirements

Please provide:

• Product name

• Size and wall thickness

• Material grade

• Applicable standard

• Required quantity

• Inspection requirements

Commercial Terms

MOQ: Normally 5–10 pieces, depending on specification and stock availability.

Free Samples: Available for selected standard products. Express delivery charges are normally paid by the recipient.

Quotation Time: Normally within three working hours.

Quotation Validity: Normally 3–7 days, subject to market conditions.

Delivery Time: Approximately 3–7 days for standard products available from stock and approximately 25 days for new production.

Payment Terms: 30% T/T deposit and 70% balance before delivery. Western Union, PayPal, and other agreed payment methods are available.

Shipping Terms: EXW, FOB, CFR, CIF, DDP, and DDU. Delivery can be arranged by sea, rail, truck, air, or international express.

Warranty: One year against confirmed manufacturing defects.

Brand: LIANHE
Place of Origin: Wenzhou, Zhejiang, China
