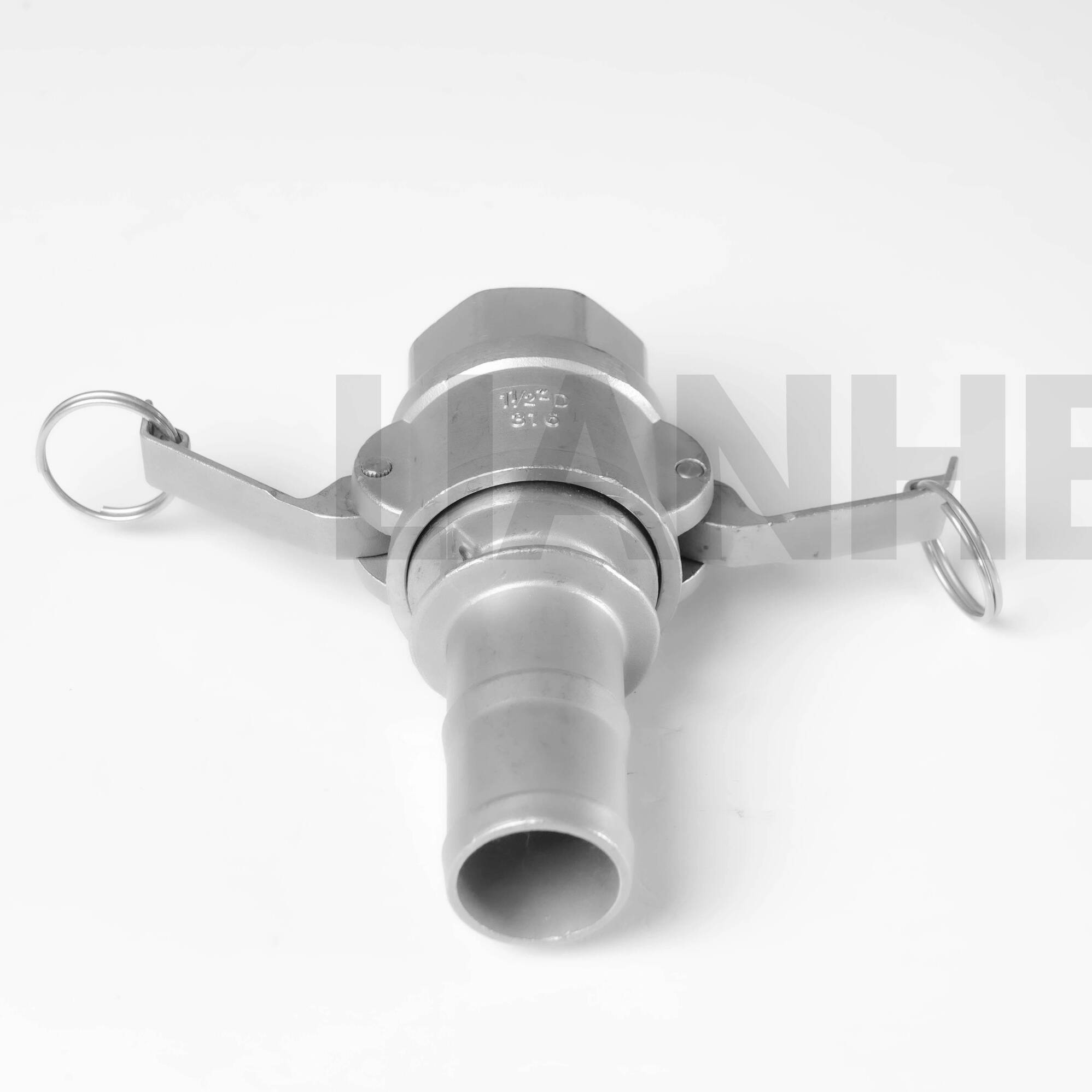

Hygienic Stainless Steel C-Type Quick Coupler for Tube Systems

Stainless Steel C-Type Quick Coupler is designed to make a detachable connection with a compatible mating coupling. Confirm the coupling profile, end connection, nominal size, material grade, seal and intended service before ordering. Final specifications are subject to the approved drawing and quotation.

    Hygienic Stainless Steel C-Type Quick Coupler

    Product Description

    The Hygienic Stainless Steel C-Type Quick Coupler is designed for fast assembly and disassembly in compatible food, beverage, pharmaceutical, cosmetic, and biotechnology piping systems.

    Its stainless steel construction and smooth internal surface support hygienic fluid handling and convenient cleaning. Compatible gaskets can be selected according to the process medium, temperature, pressure, and cleaning requirements.

    Technical Specifications

    Size Range: 1/2"–12" (DN15–DN300)

    Material: SS316L Stainless Steel

    Connection Type: C-Type Quick Connection

    Referenced Standard: ISO 2852, subject to dimensional confirmation

    Working Pressure: Up to 10 bar, depending on size, gasket, temperature, and connection structure

    Available Gasket Materials: EPDM, Silicone, and PTFE

    Internal Surface Roughness: Ra ≤0.8 μm

    Optional Surface Finish: Electropolishing; lower Ra values available subject to inspection and confirmation

    Indicative Temperature Range: -40°C to +200°C, depending on the selected gasket and operating conditions

    Available Documents:

    • EN 10204 3.1 Material Test Certificate

    • Material Traceability Report

    • Surface-Roughness Inspection Report

    • Gasket Compliance Documentation, when applicable

    • Third-Party Inspection Report

    Product Advantages

    1. Fast assembly and disassembly

    2. SS316L corrosion-resistant construction

    3. Smooth internal surface for convenient cleaning

    4. EPDM, silicone, and PTFE gasket options

    5. Suitable for compatible CIP and SIP processes

    6. Reduced maintenance and cleaning time

    7. Multiple sizes and surface finishes available

    8. Material traceability supported

    Applications

    Suitable for compatible applications in:

    • Dairy and beverage processing

    • Breweries and juice-production lines

    • Food-processing equipment

    • Pharmaceutical production systems

    • Biotechnology equipment

    • Cosmetic and personal-care production

    • Filtration, mixing, and filling systems

    • General hygienic fluid-transfer pipelines

    The connection dimensions, gasket material, working pressure, temperature, vacuum conditions, surface roughness, and cleaning process must be confirmed before ordering.

    Installation and Maintenance

    1. Inspect the sealing surfaces and gasket before assembly.

    2. Confirm that all components use compatible dimensions.

    3. Position the gasket correctly without twisting or extrusion.

    4. Secure the connection according to the specified assembly method.

    5. Perform a pressure or leakage test before operation.

    6. Inspect and replace the gasket according to its actual condition, process medium, temperature, and cleaning cycles.

    Place of Origin: Wenzhou, Zhejiang, China


    Parameter Value
    Connection Type Female
    Application Area Fluid Transportation
    Standards MIL A-A, EN/DIN
    Materials Stainless Steel, Aluminum, Brass, PP
    Size Range 1/2" ~ 4"
    Connection Method Female Connection
    Manufacturing Process Gravity Casting
    Sealing Material NBR (Nitrile Rubber)
    OEM Support Available
    Certification ISO 9001
