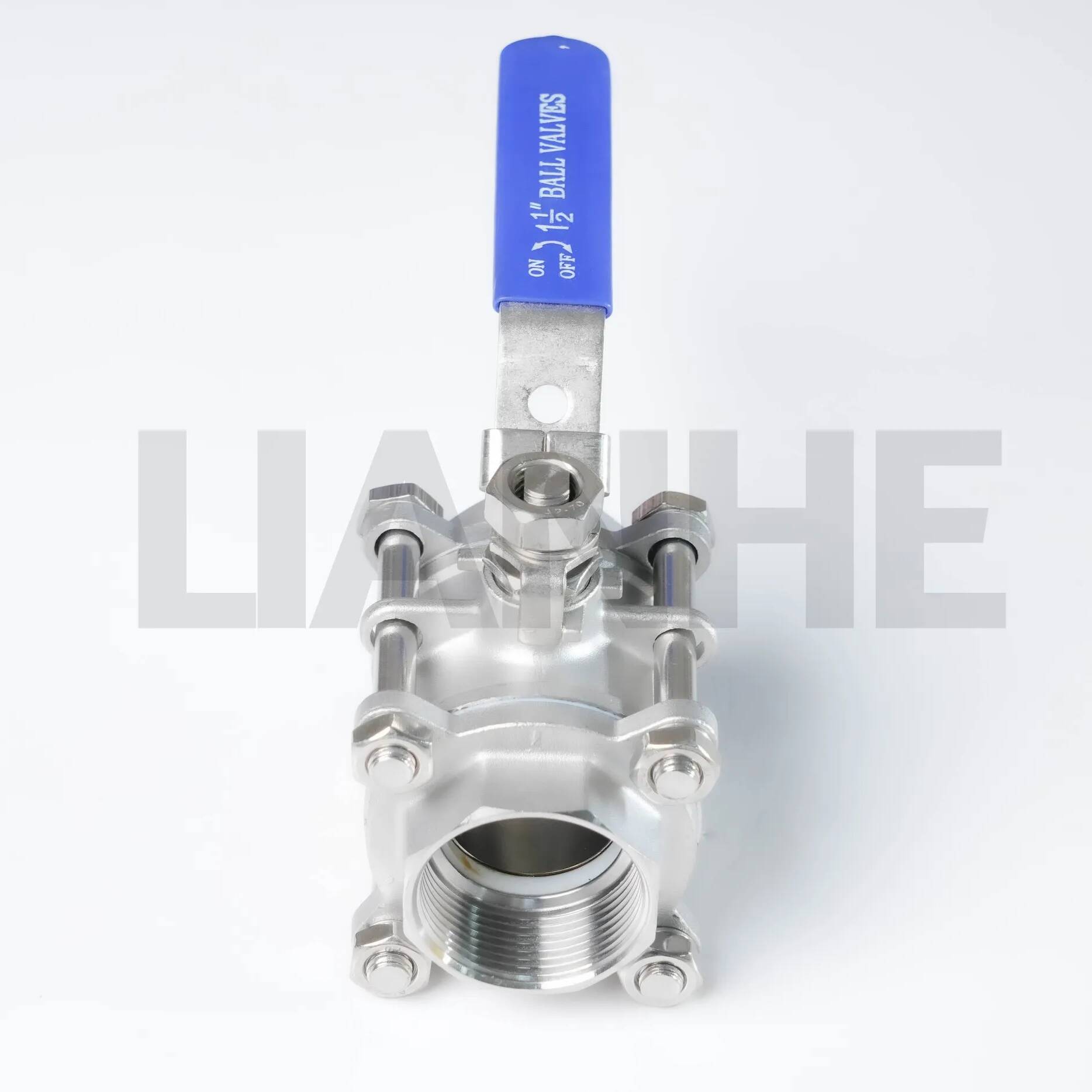

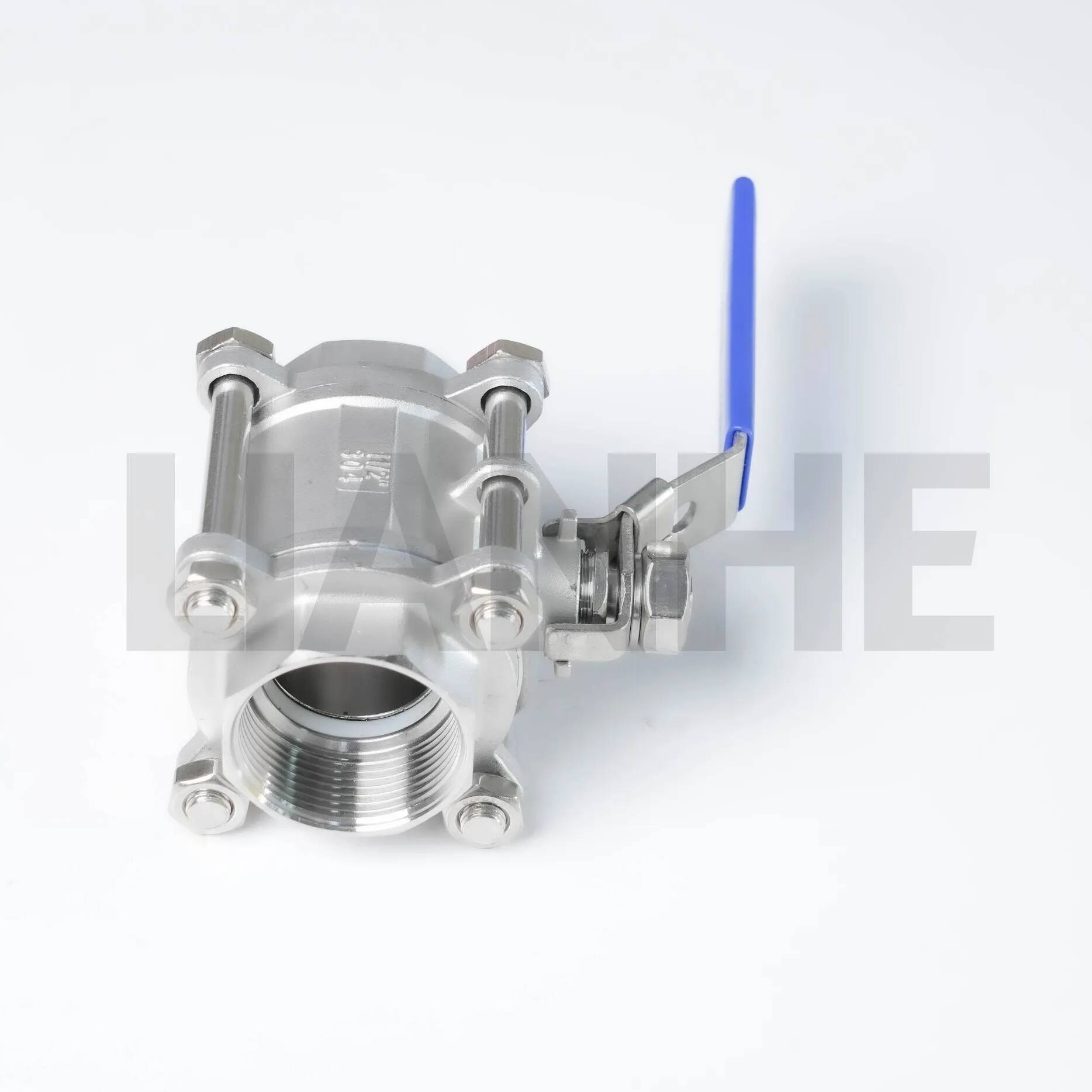

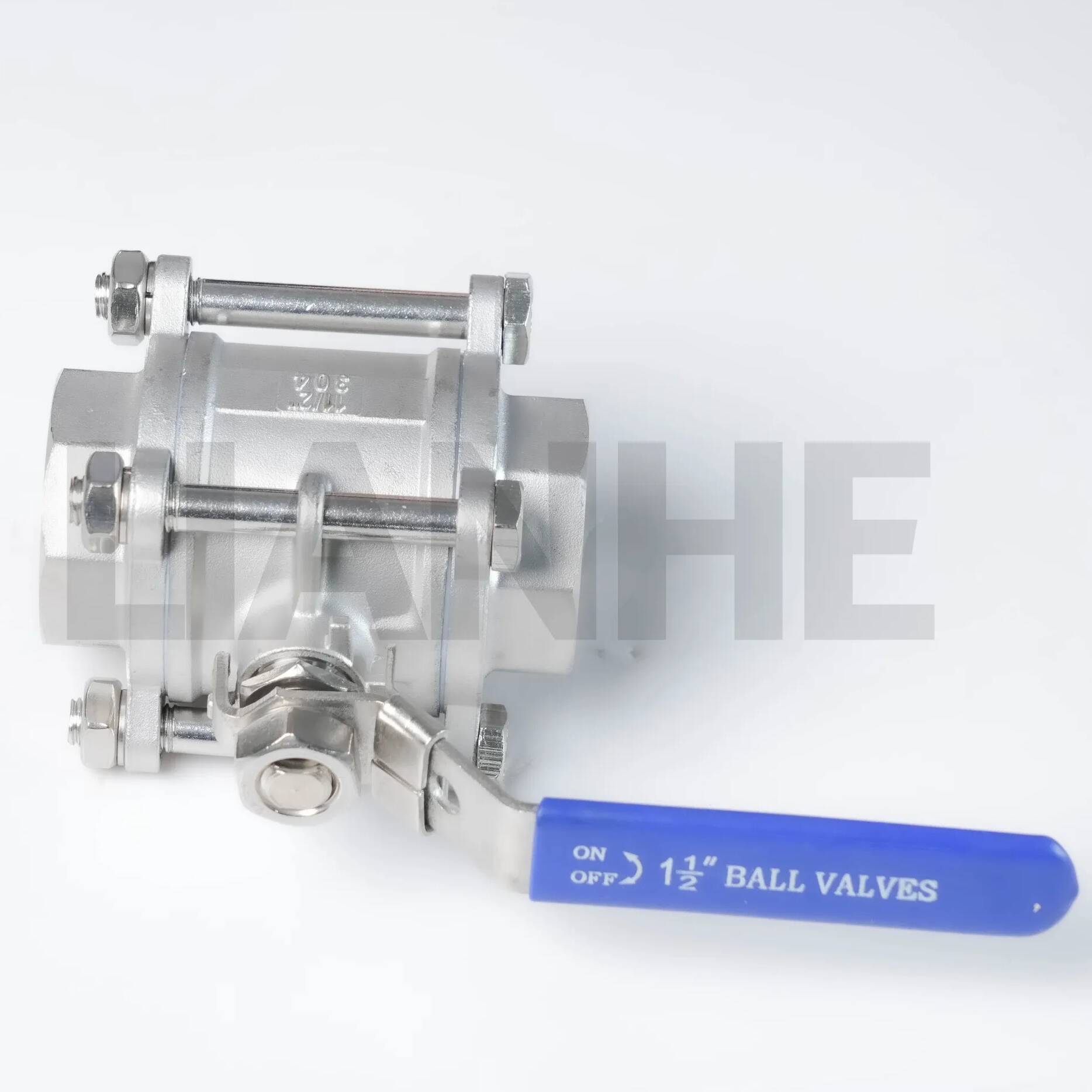

Stainless Steel 3-Piece Threaded Full Port Ball Valve with Handle 304/316

Stainless Steel 3-Piece Threaded Ball Valve with Handle provides manual quarter-turn on/off control through threaded ends. Confirm the thread form and size, bore, valve material and seat selection for the intended medium and operating conditions. Grade 304 or 316 availability and final specifications are subject to the approved drawing and quotation.


    Product Specifications


    Parameter Value
    Size 1/4" to 4" (DN8-DN100) Full Bore
    End Connection BSPT, BSP, NPT Female Threaded, DIN259/2999, ISO 228
    Working Pressure 1000 PSI for W.O.G
    Process Investment Casting Body - CNC lathe processing
    Stem Type Blow-out proof stem
    Operation Manual (Lock Lever Handle Available)
    Adjustable Stem Packing Yes
    Temperature Range -60 to 450°F
    Seals and Seats Pure Teflon
    Leakage Test 100% leakage tested at 100 PSI air under water
    Material - Valve Body SS304 (CF8, SUS304, 1.4308), SS316 (CF8M, SUS316, 1.4408), SS304L, SS316L
    Material - Handles and Nuts SS201, SS304, SS316 (According to customer needs)
    Brand LIANHE
    Certificates GB/T19001-2016, ISO9001:2015, CE
    HS Code 8481.804090
    Country of Origin Wenzhou, China
    Payment Term 30% TT Advance Payment + Delivery Payment Balance (Negotiable)
    Payment Methods T/T, Western Union, Paypal, etc.
    Shipping Terms EXW (Wenzhou), FOB (Ningbo, Shanghai Port), CFR, CIF, DDP, DDU
    Transportation Support International express by land, sea, and air


    Product Features

    · Durable Construction: Made from high-quality SS304, SS316, SS304L, and SS316L for superior strength and corrosion resistance.

    · Flexible End Connections: Supports BSPT, BSP, and NPT Female Threaded standards for versatile installation.

    · Enhanced Sealing: Pure Teflon seals and seats ensure maximum leak resistance.

    · Wide Temperature Range: Operates effectively from -60°F to 450°F.

    · Secure Design: Blow-out proof stem for added safety.

    · Easy Operation: Manual control with an optional lock lever handle.


    Product Application

    · Widely used in water, oil, and gas (W.O.G) systems.

    · Suitable for industrial pipelines, chemical processing, food and beverage, and pharmaceutical industries.

    · Designed for high-pressure environments requiring secure flow control.


    Product Advantages

    · High Pressure Resistance — Rated for 1000 PSI, ideal for demanding conditions.

    · Corrosion Resistance — Durable stainless steel body ensures longevity.

    · Reliable Leak Protection — 100% leakage tested to ensure performance.

    · Flexible Installation — Multiple end connection standards for compatibility.

    · Adjustable Stem Packing — Reduces maintenance efforts.

    · OEM Support — Custom designs manufactured to meet specific requirements.


    Quality Control

    · Each production stage has dedicated QC personnel for inspection.

    · Final inspection performed per order specifications before shipment.


    Inspection Certificates


    · EN 10204/3.1B-MTC

    · Raw material inspection certificate

    · 100% Radiography Test Report

    · Hydraulic seal test report

    · Thread inspection report

    · Third Party Inspection Report (available upon request)


    Additional Notes

    · OEM Available: Custom manufacturing based on customer drawings and requirements.

    · Flexible Payment Options: Supports T/T, Western Union, Paypal, etc.

    · Shipping Options: Comprehensive delivery support for EXW, FOB, CFR, CIF, DDP, and DDU terms.
