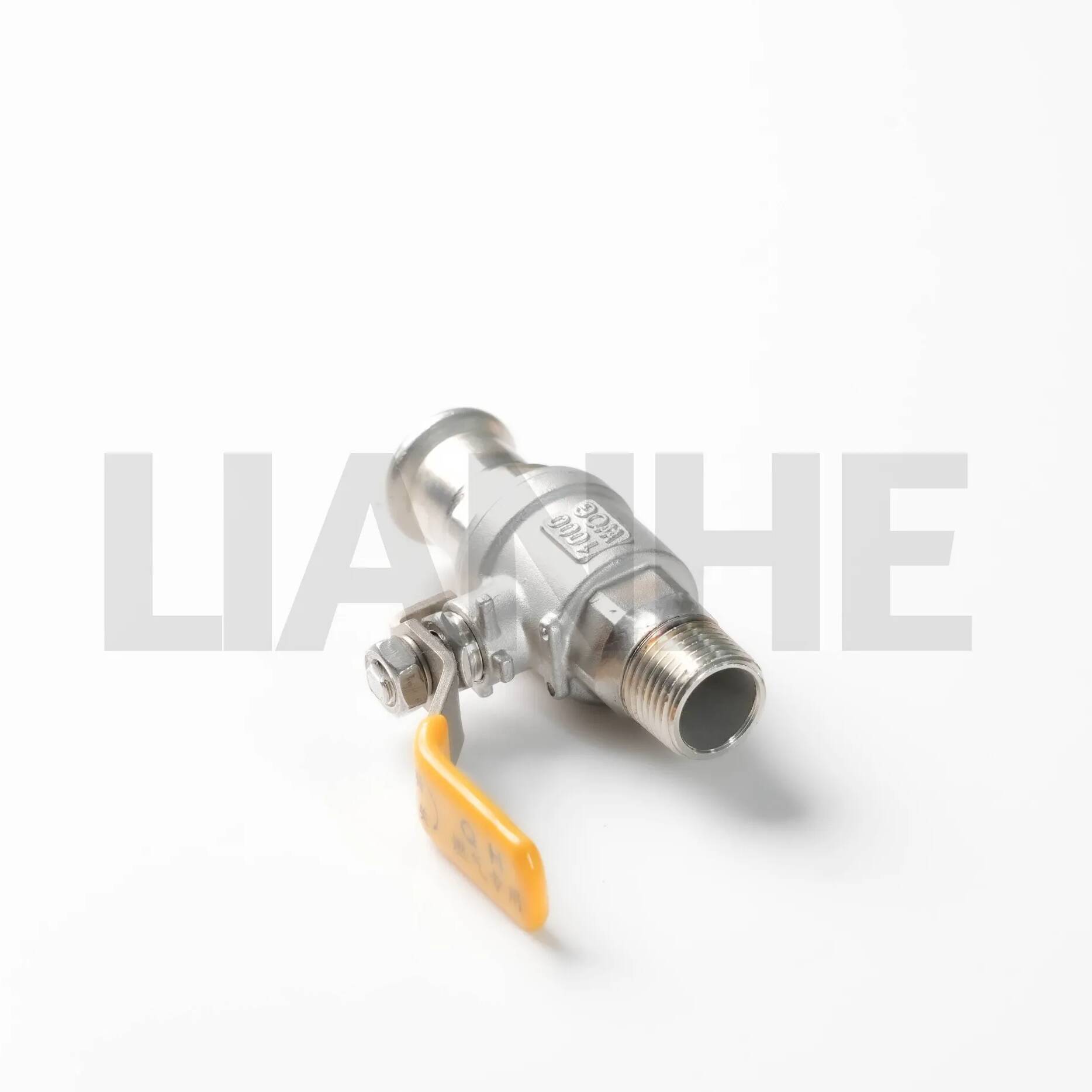

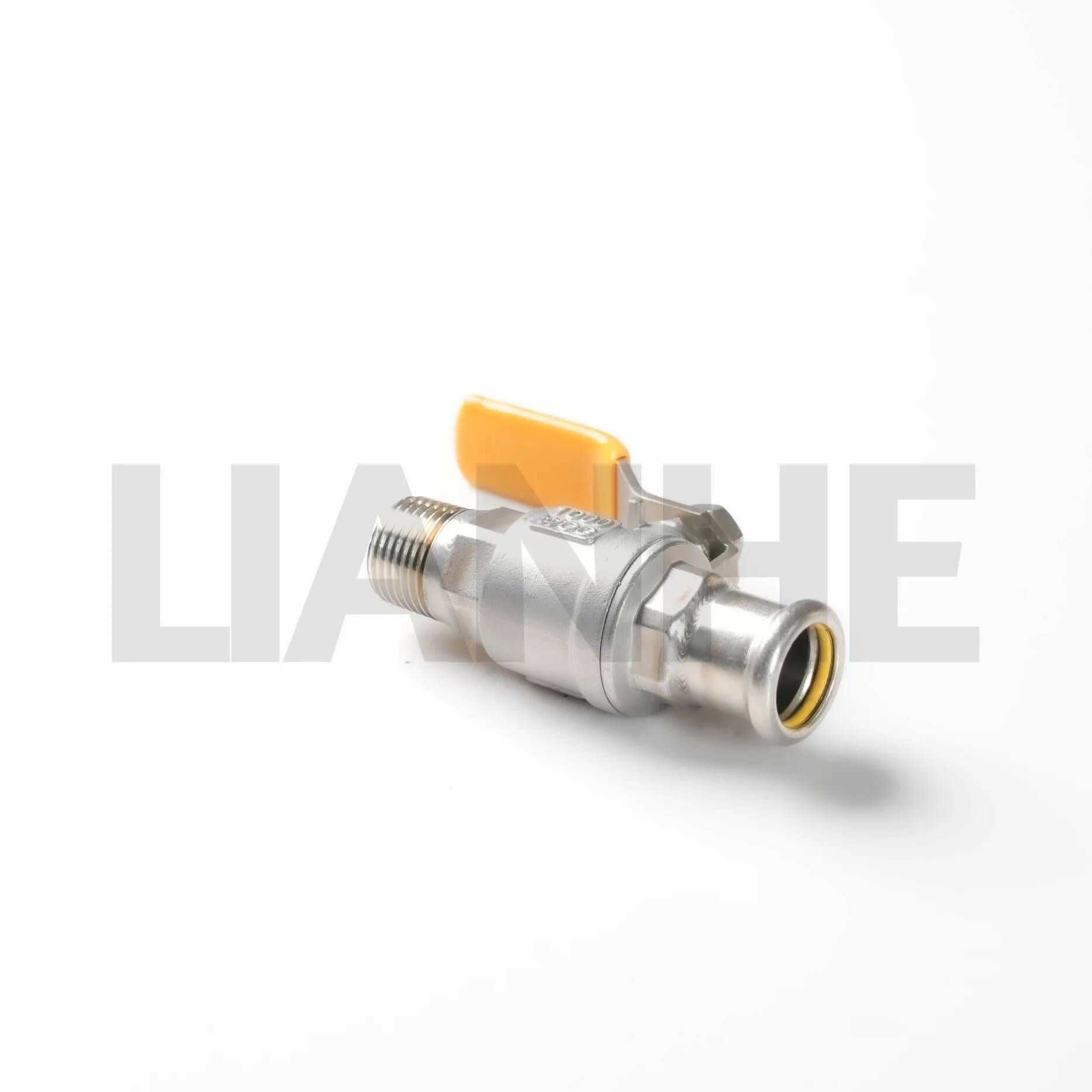

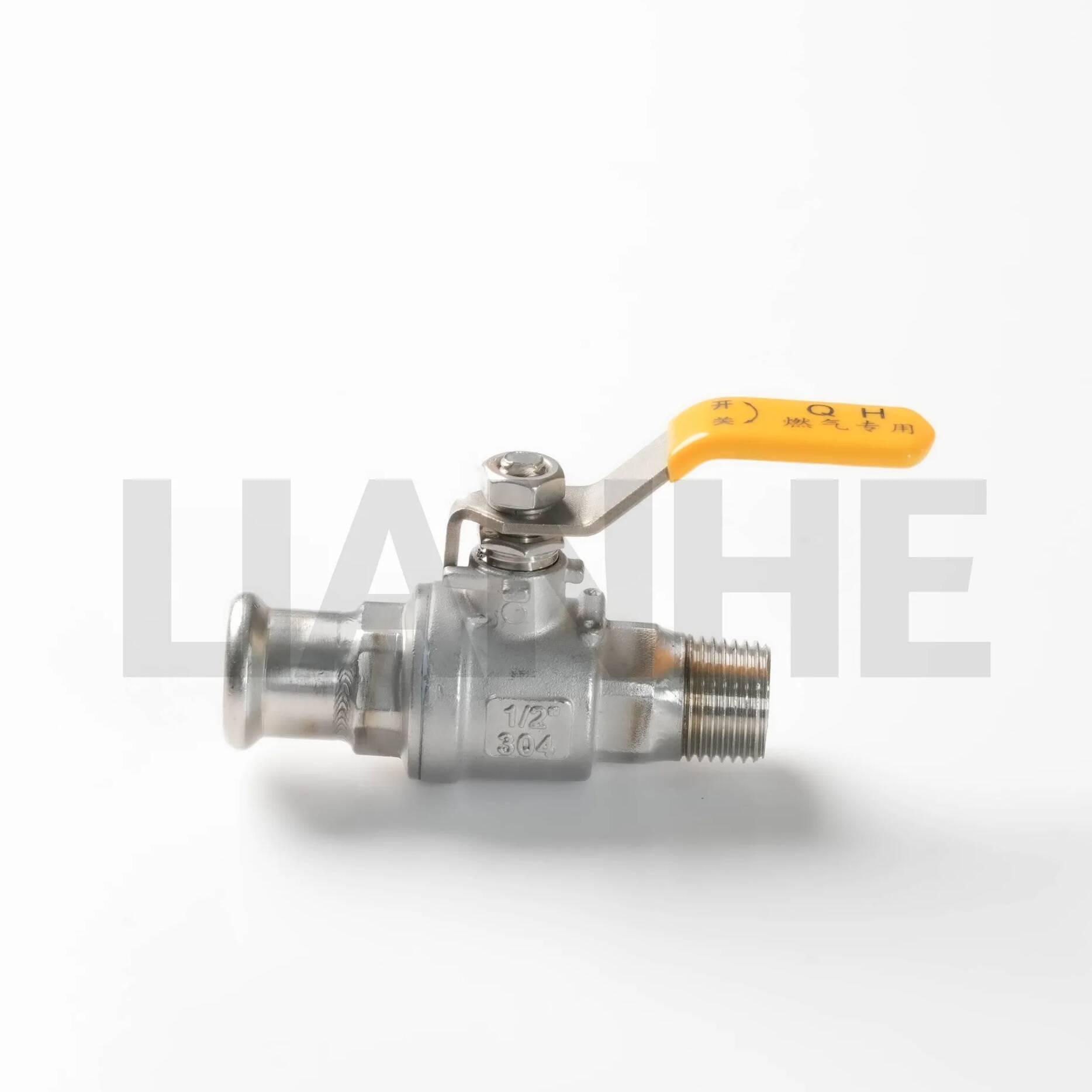

Stainless Steel D-Type Press-to-Thread Ball Valve

Product Description

The LIANHE Stainless Steel D-Type Press-to-Thread Ball Valve combines a D-type press connection with a threaded connection for manual on/off flow control.

Its press end supports fast, flame-free pipeline installation, while the threaded end connects compatible pipes, instruments, gauges, or equipment. SS304 and SS316 materials provide good corrosion resistance for suitable water and industrial-fluid applications.

Technical Specifications

Connection Type: D-Type Press End × Female NPT Thread, subject to final confirmation

Available Body Materials: SS304 or SS316

Seat Material: PTFE

Operation: Manual Lever Handle

Press-End Working Pressure: Up to PN16 at 20°C, subject to size, seal, pipe, and installation conditions

Indicative Temperature Range: -20°C to +150°C, subject to PTFE seat and press-seal compatibility

Manufacturing Process: Investment Casting and Precision CNC Machining

Brand: LIANHE

Place of Origin: Wenzhou, Zhejiang, China

The working pressure of the complete valve assembly is limited by its lowest-rated component. The press end, threaded end, valve body, seat, sealing ring, and pipe must all be compatible with the intended operating conditions.

Product Features

1. Combines press and threaded connections

2. Manual quarter-turn operation

3. Flame-free press installation

4. SS304 and SS316 body options

5. PTFE valve seat

6. Compact structure

7. Good corrosion resistance

8. Suitable for system upgrades and equipment connections

Installation requires a press tool and jaw compatible with the specified D-type profile. It is not a tool-free connection.

Applications

Suitable for compatible applications in:

• Residential and commercial water systems

• Industrial fluid-control systems

• Machinery and equipment pipelines

• Skid-mounted systems

• Building renovation projects

• Laboratory fluid systems, subject to material compatibility

For chemicals, acids, solvents, drinking water, gas, or other regulated media, the material, seals, pressure rating, and required certification must be confirmed before ordering.

Installation Notes

1. Confirm the pipe material, outside diameter, and D-type press profile.

2. Cut and deburr the pipe without damaging the sealing ring.

3. Mark the required insertion depth.

4. Insert the pipe fully into the press socket.

5. Use a compatible press tool and jaw to complete the pressing cycle.

6. Apply the correct sealing method to the threaded connection.

7. Perform a pressure and leakage test before operation.

Manufacturer: LIANHE
Place of Origin: Wenzhou, Zhejiang, China
