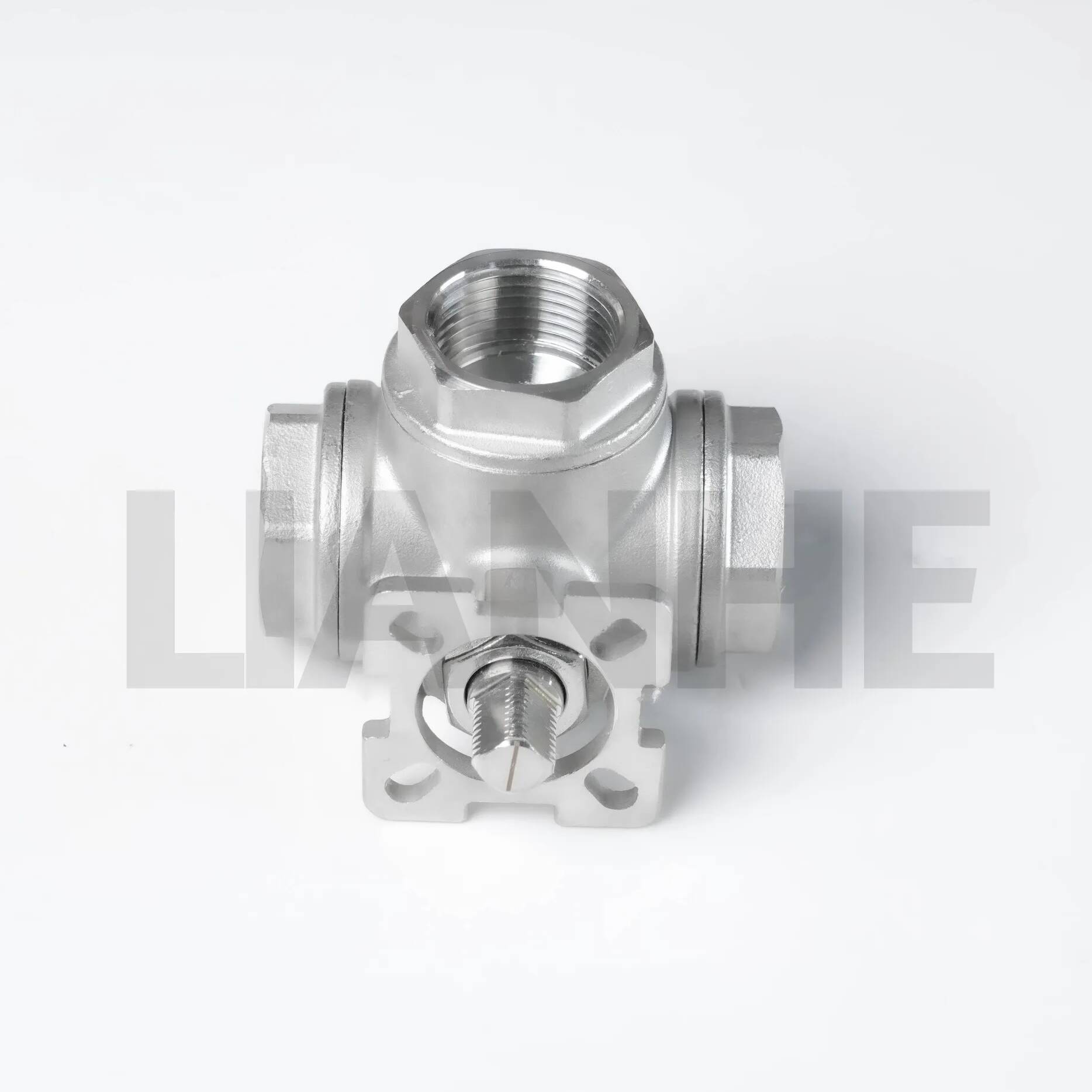

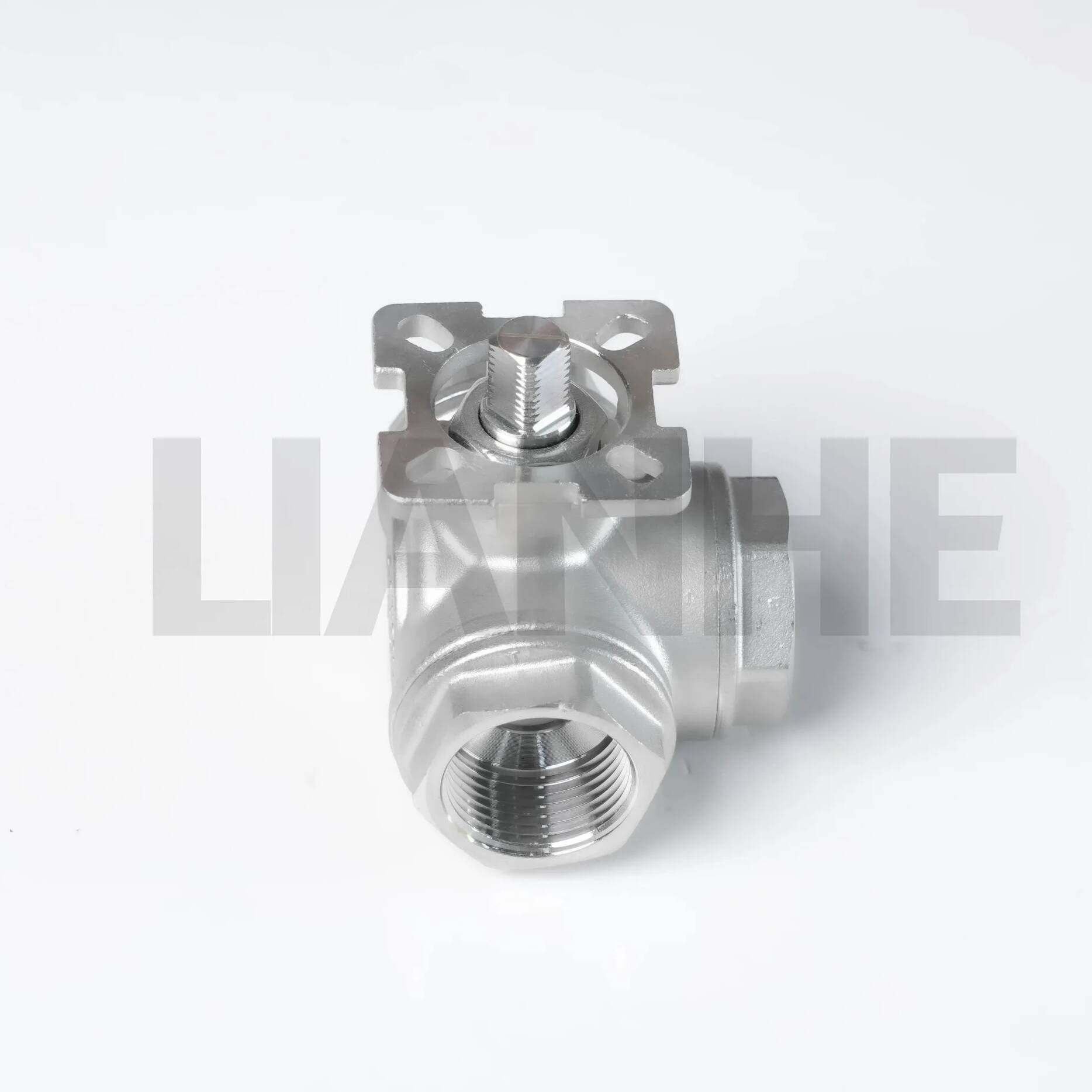

T Type Ball Valve With Platform

T-Type Ball Valve With Platform combines a multi-port flow path with a mounting platform for a compatible actuator. Confirm the port configuration and switching pattern, mounting interface, end connection, material grade and service conditions before ordering. Final specifications are subject to the approved drawing and quotation.

    T TYPE BALL VALVE WITH PLATFORM



    Size: 1/4"to 4"(DN8-DN100) Full Bore



    End connection: The End to End Thread conforms to BSPT BSP NPT Female Threaded(Inside Thread), DIN259/2999,ISO 228



    Process:Investment Casting Body and Cap.

    Working Pressure: 1000PSI for WOG.

    Adjustable stem packing

    Pure teflon seals and seats

    Temperature range: -60 to 450°

    Blow-out proof stem

    100%leakage tested at 100PSI air under water

    Hydrostatic test pressure:1500PSI

    Operation: Electric actuator or pneumatic actuator control.

    ISO-5211 direct mounting pad.



    Material: Valve Body ASTM A358 CF8( SS304),CF8M(SS316);



    Brand: LIANHE;



    HS Code: 8481804090



    Note: OEM is acceptable and manufactures special requirements according to your drawings.



    Payment Term: 30%TT Advance +70%TT Payment Before Shipping. ( Note: Other differences may be negotiated..)



    Supports T/T, Western Union, Paypal Etc. To pay;



    Shipping Term: EXW, FOB,CFR,CIF,DDP,DDU.



    Shipping Type: Land transport, sea transport, air transport, international express.



    Nearby Ports: Ningbo,Shanghai,Wenzhou;



    MOQ: 10pcs,For each size of ball valve, our warehouse has a corresponding stock. Can meet the needs of customers fast delivery.





    Testing tools:

    The spectral detector performs PMI inspection

    Caliper thickness meter is used to measure dimensions

    Ring gauge plug gauge for thread measurement

    Air tightness testing equipment and water pressure testing equipment.



    Country of origin: Wenzhou,China
