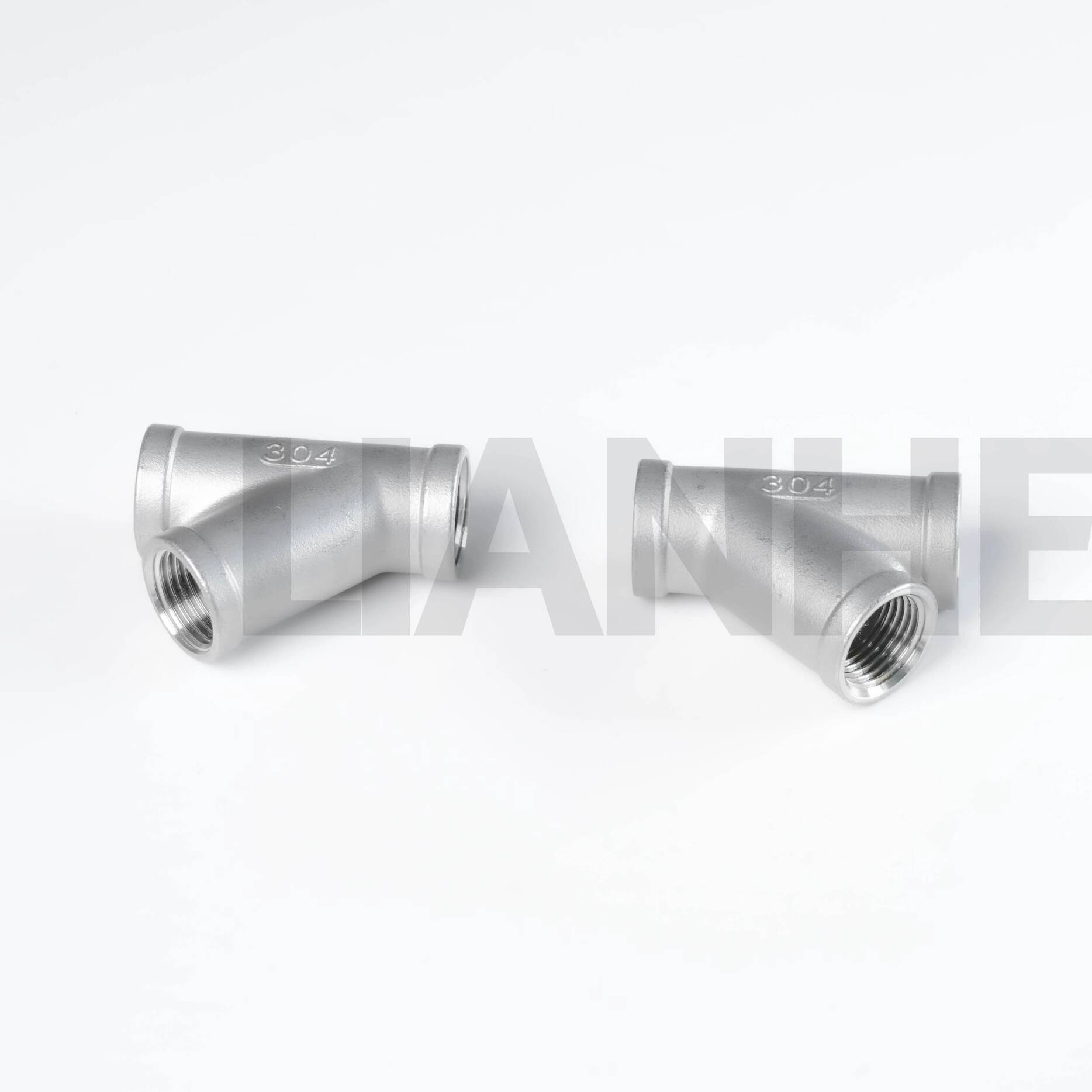

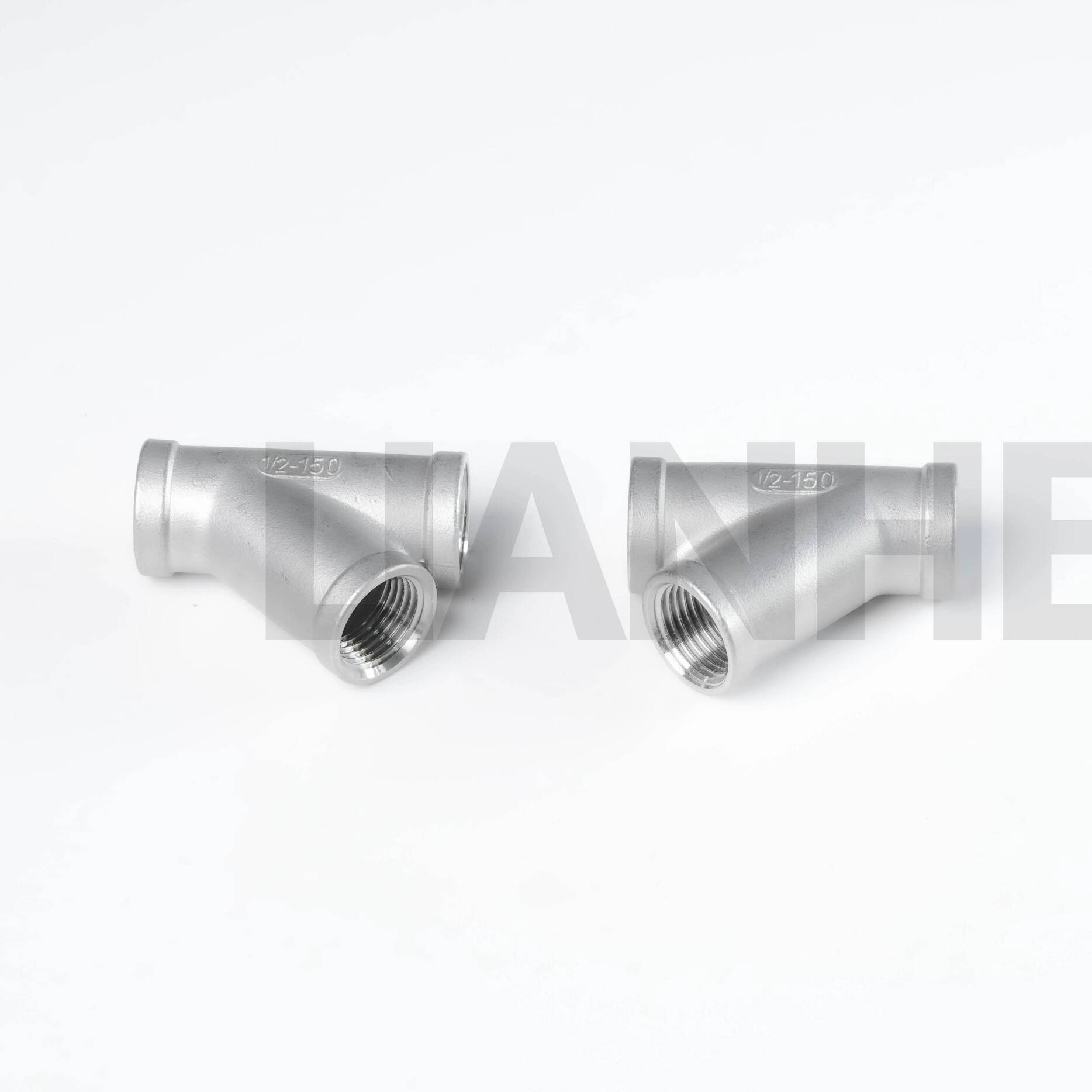

High-Purity Stainless Steel BSPT Thread Class 150 Y-Type Tee for Process Systems

This stainless steel Y-type threaded tee forms a three-way connection in compatible pipework. Specify the thread standard and port gender for each connection, along with the material grade and dimensions. Confirm the exact configuration and service conditions before ordering.


    Overview


    The High-Purity Stainless Steel BSPT (British Standard Pipe Taper) Thread Class 150 Y-Type Tee is a precision pipe fitting designed for reliable branch connections in high-purity and corrosive fluid systems. Constructed from 304L or 316L stainless steel, this tee features BSPT threads (ISO 7-1 compliant) and a Y-shaped design, ensuring smooth flow transition and minimal turbulence in process piping.


    Features


    High-Purity Material & Finish:

    304L (low carbon) or 316L (extra low carbon) stainless steel, with a passivated surface (Ra ≤0.8μm) to reduce metal ion leaching, critical for ultra-pure water and pharmaceutical applications.

    Seamless construction (no welds) minimizes particle entrapment, meeting 3-A Sanitary Standards and FDA 21 CFR Part 177 for direct food contact.

    Precision Threading & Design:

    BSPT threads (55° taper) compliant with ISO 7-1, providing leak-tight connections without additional sealants, compatible with metric pipes and fittings (e.g., DIN, BS EN).

    Y-type geometry (60° branch angle) reduces flow resistance by 15% compared to traditional tees, with a reinforced branch connection (1.5x wall thickness) for pressure surges.

    Corrosion & Pressure Resistance:

    Rated for Class 150 (300 PSI at 20°C), with 316L stainless steel offering superior resistance to intergranular corrosion in welded systems without post-weld annealing.

    Temperature range: -250°C to 450°C (316L), suitable for cryogenic ethanol lines and hot water sanitization systems.

    Compliance & Certification:

    Meet EN 10226-1, NSF/ANSI 61, and USP Class VI standards, with material traceability reports and mill certificates available for critical applications.

    Optional electropolishing (Ra ≤0.4μm) for semiconductor-grade purity, ideal for ultra-pure water (UPW) and chemical mechanical planarization (CMP) processes.


    Application


    Perfect for high-purity and corrosive fluid distribution:

    Pharmaceutical Manufacturing: Branch connections in purified water (PW) and water-for-injection (WFI) systems, compliant with cGMP and EU GMP guidelines.

    Semiconductor Fabrication: Chemical delivery lines for photoresist and etching agents, with 316L stainless steel preventing particle contamination in cleanroom environments.

    Food & Beverage: Beverage blending systems and dairy pasteurization lines, ensuring no product residue buildup in the Y-branch junction.

    Biotech Research: Laboratory fluid transfer lines for cell culture media and reagents, with BSPT threads compatible with European equipment standards.


    FAQ


    Q: What is the difference between BSPT and NPT threads?

    A: BSPT (55°) is commonly used in Europe, while NPT (60°) is standard in North America. Use a BSPT-to-NPT adapter for cross-standard compatibility.

    Q: Can this tee be used with plastic pipes?

    A: Yes, compatible with PVC, PP, and PEX pipes via BSPT-to-plastic adapters, but avoid high-pressure applications with rigid plastic pipes.

    Q: How to clean the tee for high-purity applications?

    A: Use deionized water flushing or steam-in-place (SIP) at 121°C for 30 minutes; avoid abrasive cleaners that may damage the passivated surface.

    Q: What is the maximum working pressure for 316L stainless steel?

    A: 300 PSI at 20°C (Class 150); higher pressure ratings (Class 300/600) are available with thicker wall schedules (schedule 80/160).
