Size Range: 1/8"–4" (DN6–DN100)
Pressure Rating: Class 150
Applicable Standards: ISO 4144, MSS SP-43, and GB/T 26120
Connection Type: Female Thread × Male Thread
Available Thread Standards: NPT, BSPT, BSP, DIN 2999, and ISO 228
Manufacturing Process: Lost-Wax Investment Casting and Precision CNC Machining
Available Materials: SS201, SS304, SS316, SS316L, and other stainless steel grades upon request
Available Gasket Materials: PTFE, Silicone Rubber, and FKM Fluororubber
Surface Treatment: Degreasing and Cleaning
Standard Packaging: Plastic Bags, Export Cartons, and Wooden Cases
Brand: LIANHE
Product Marking: Size + Material Grade + Class 150
HS Code: 7307220000
Place of Origin: Wenzhou, Zhejiang Province, China

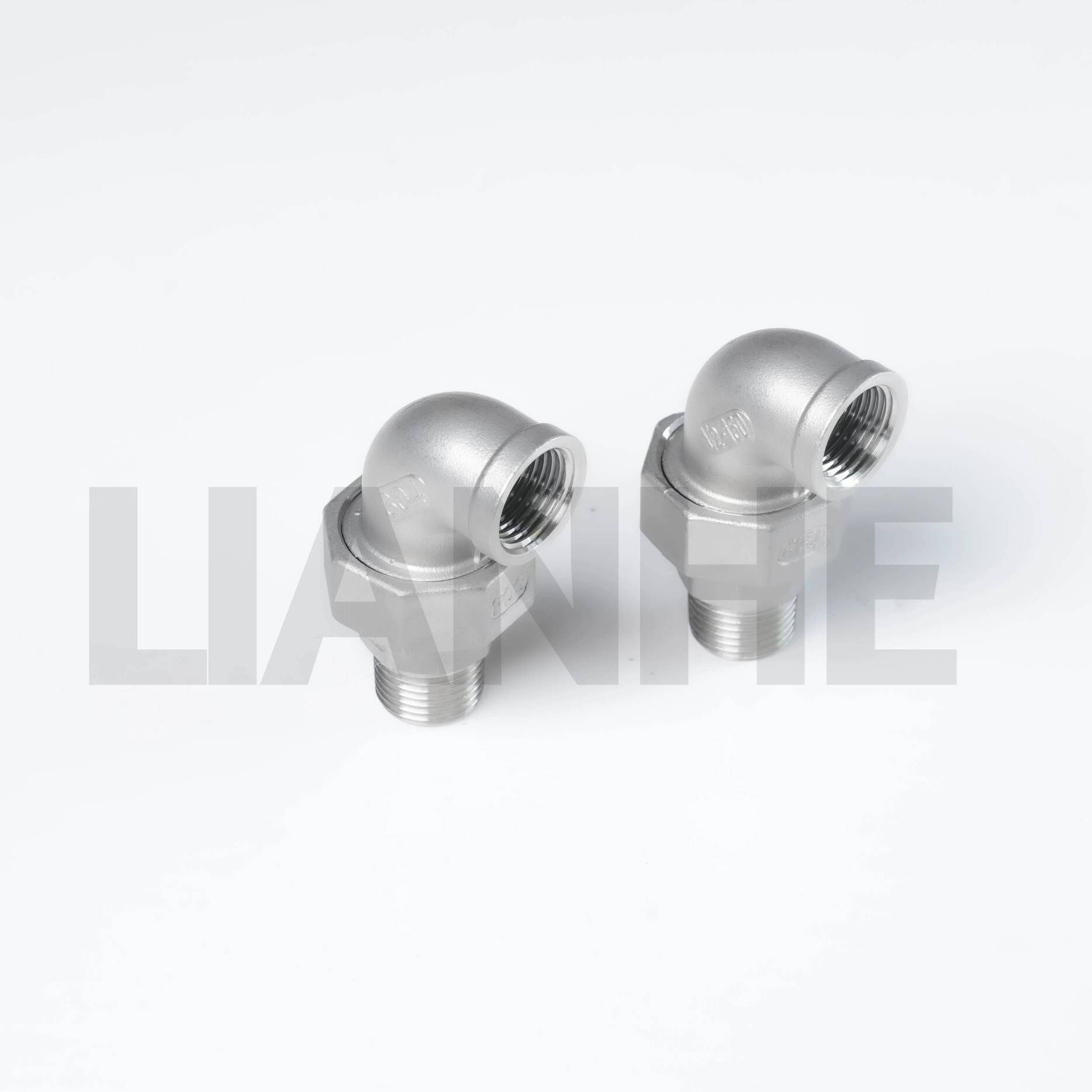

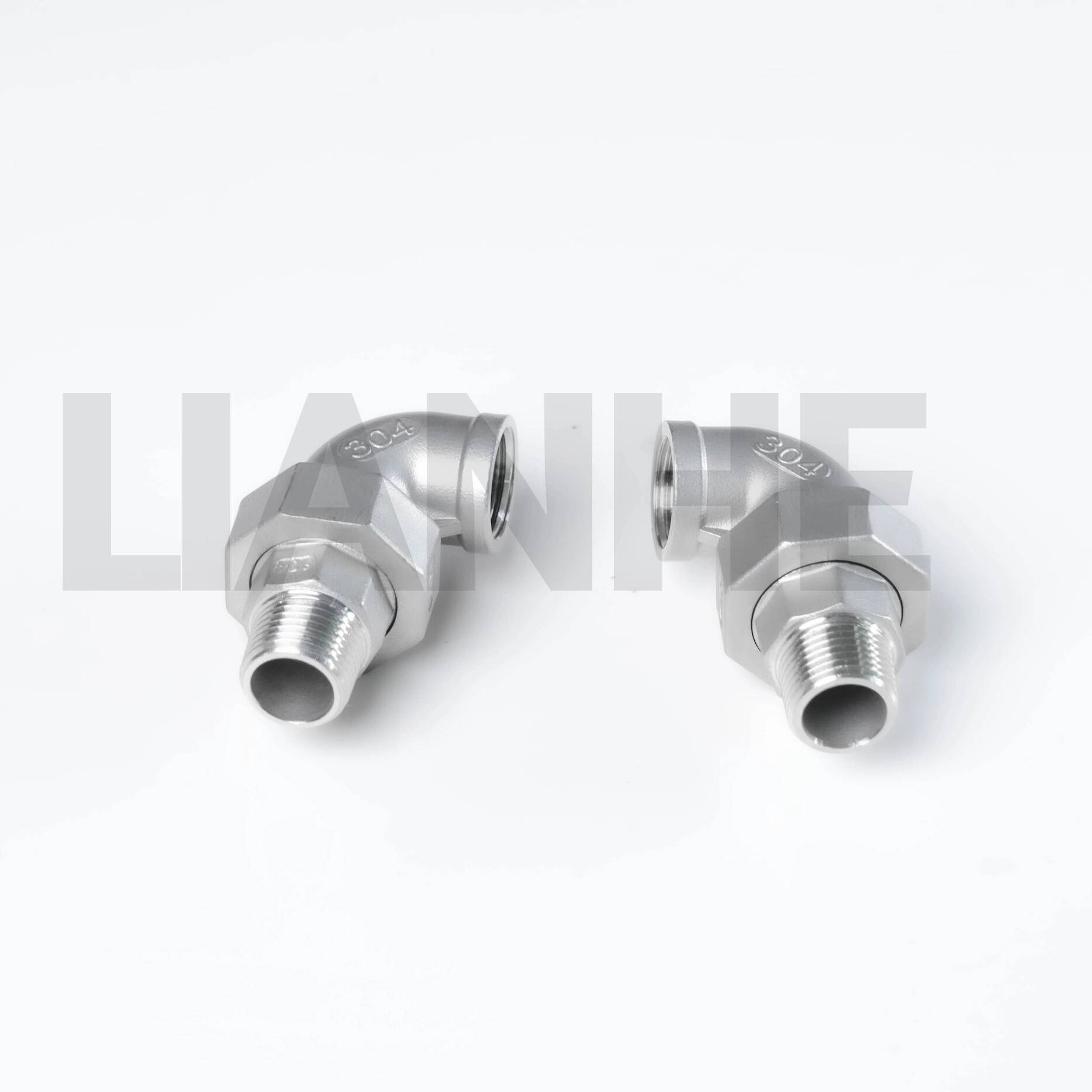

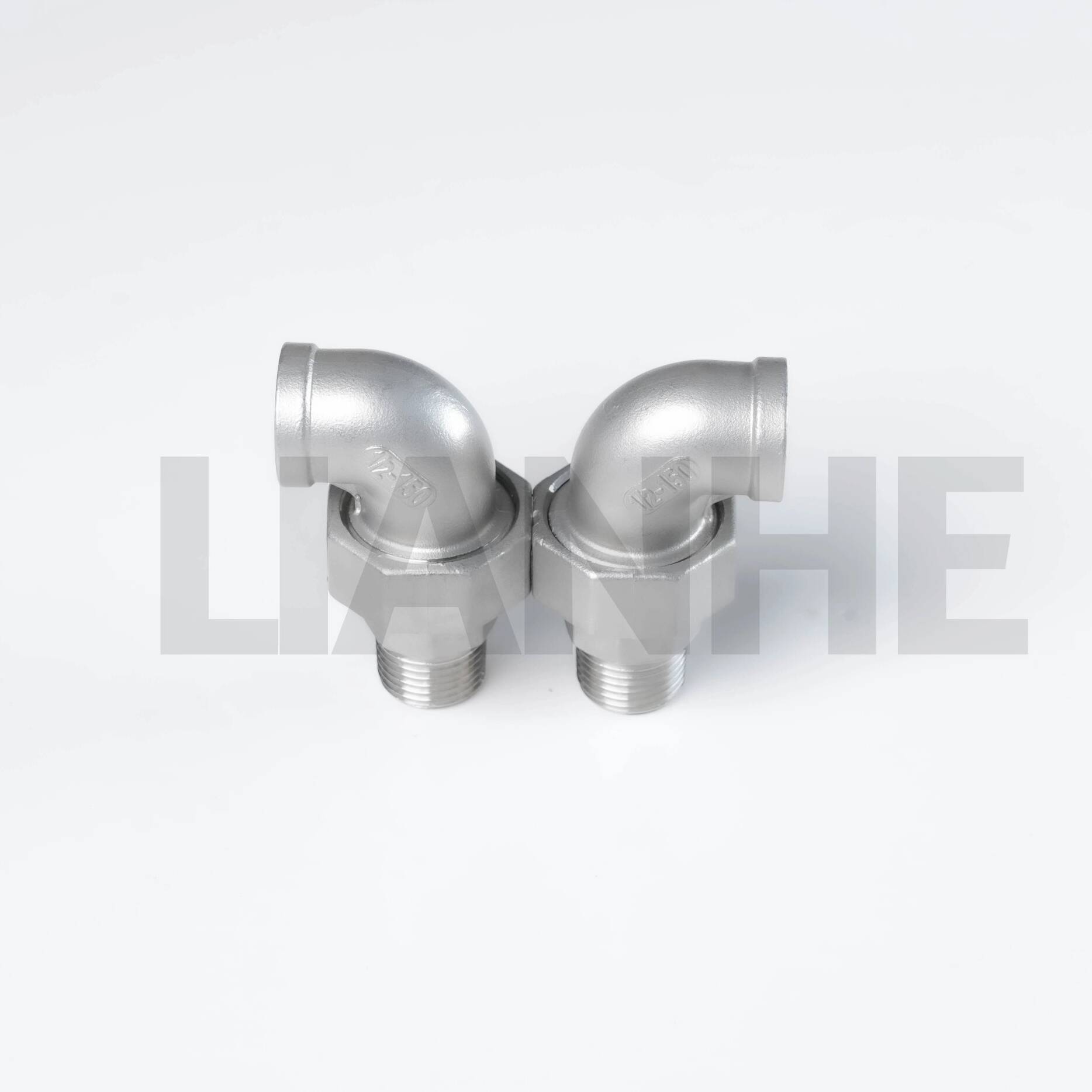

LIANHE stainless steel female-to-male threaded fittings are designed to connect pipes, valves, instruments, and other pipeline components with different threaded-end configurations. The female and male threaded structure provides a convenient solution for pipeline conversion, equipment installation, extension, repair, and maintenance.
The fitting body is manufactured using lost-wax investment casting technology and finished through precision CNC machining. This manufacturing process helps provide consistent dimensions, accurate thread profiles, good mechanical strength, and dependable connection performance.
Available in SS201, SS304, SS316, and SS316L, the fittings can be selected according to the transported medium, operating temperature, corrosion conditions, installation environment, and project requirements.
Precision lost-wax investment-cast stainless steel body
Accurate female and male threads produced by CNC machining
Multiple international thread standards available
Good mechanical strength and dimensional stability
Excellent corrosion and oxidation resistance
Convenient installation, inspection, and maintenance
Multiple stainless steel grades available
Suitable for standard and customized pipeline projects
Different gasket materials available when required
Degreased and cleaned product surface
OEM and ODM manufacturing support
Customized markings and export packaging available
The threaded connection allows the fitting to be installed without extensive on-site welding. This can simplify pipeline assembly, reduce installation time, and make future maintenance or replacement more convenient.
Correct identification of the thread standard is essential. NPT, BSPT, BSP, DIN 2999, and ISO 228 threads may use different thread profiles, taper angles, dimensions, and sealing methods. They should not be connected interchangeably unless their compatibility has been technically confirmed.
Suitable thread sealant, sealing tape, gasket, or sealing compound should be selected according to the thread type, working pressure, temperature, and transported medium.
Available sealing materials include PTFE, silicone rubber, and FKM fluororubber. Each material provides different levels of temperature resistance, chemical compatibility, flexibility, and sealing performance.
The appropriate gasket material should be selected according to:
Transported medium
Working pressure
Operating temperature
Chemical concentration
Hygiene requirements
Required service life
Installation environment
For fuel gas, chemical, food, medical, and high-temperature applications, the compatibility of the gasket and stainless steel material should be confirmed before ordering.
LIANHE stainless steel female-to-male threaded fittings can be used in a wide range of industrial and commercial pipeline systems, including:
Construction and building-service pipelines
Fuel-gas systems using compatible materials and seals
Medical equipment and facility piping
Food and beverage processing equipment
Environmental protection systems
Chemical-processing equipment
Water-treatment facilities
Industrial water pipelines
Machinery and instrument connections
General fluid-control systems
The final product configuration should be selected according to the working pressure, operating temperature, transported medium, stainless steel grade, thread standard, gasket material, and installation conditions.
For medical, food, fuel-gas, chemical, or other regulated applications, customers should confirm whether additional testing, surface treatment, certification, or quality documentation is required.
OEM and ODM orders are accepted. We can also manufacture customized stainless steel threaded fittings according to customer drawings, samples, technical specifications, and special application requirements.
Available customization options include:
Product dimensions
Female and male thread combinations
Stainless steel material grades
Thread directions and specifications
Gasket and sealing materials
Surface-treatment requirements
Customer logos and product markings
Inspection and testing requirements
Labels and export packaging
Customers should provide complete drawings, dimensions, materials, operating conditions, quantities, and inspection standards when requesting customized products.
Each fitting is protected with a plastic bag to reduce exposure to moisture, dust, and surface contamination. Products are then packed in reinforced export cartons and consolidated in wooden cases when required.
This standard export packaging method helps protect the fittings from impact, scratches, contamination, and handling damage during storage and international transportation.
Customized cartons, customer logos, barcodes, labels, pallet packing, and other packaging arrangements can be supplied according to confirmed order requirements.
Our standard payment term is a 30% T/T deposit paid in advance, with the remaining 70% T/T balance paid before delivery. Specific payment arrangements can be discussed according to the order value and cooperation conditions.
Available payment methods include:
T/T bank transfer
Western Union
L/C
PayPal
Other mutually agreed payment methods
Available Trade Terms: EXW, FOB, CFR, CIF, DDP, and DDU
Products can be delivered by sea freight, air freight, land transportation, or international express service.
The shipping method can be selected according to the order quantity, package volume, destination, required delivery schedule, and transportation budget.
For regular-size products, the minimum order quantity normally ranges from 1 to 20 pieces, depending on the product size, material grade, thread combination, and current stock availability.
MOQ for Non-Standard Products: Normally 500 pieces
The minimum order quantity for customized products may vary according to the dimensions, material, casting requirements, machining complexity, tooling costs, and inspection scope.
Free Samples: Free samples may be provided for dimensional verification, material evaluation, and product testing. The international express delivery cost is normally paid by the recipient.
Quotation Time for Regular Products: Normally within two working hours after receiving complete specifications and quantity requirements.
Quotation Time for Non-Standard Products: Normally within one working day after reviewing the customer’s drawings and technical requirements.
Regular-size products available from stock can normally be delivered within 3–7 days.
The production time for customized or non-standard products is normally approximately 35 days. The actual delivery schedule depends on material availability, order quantity, casting requirements, machining complexity, inspection scope, packaging requirements, and the current production plan.
LIANHE provides professional support throughout product selection, order confirmation, manufacturing, packaging, transportation, installation, and after-sales communication.
Our service advantages include:
Professional experience in export packaging, printing, and international delivery
Reliable stainless steel casting and machining capabilities
Flexible payment options, including T/T, Western Union, L/C, and PayPal
Quality stainless steel materials at competitive factory prices
Small orders available for regular-size products
Fast responses to quotations and technical inquiries
Secure and efficient international transportation arrangements
OEM and customized product design support for global customers
If a product-related problem occurs, customers should provide the product model, order number, installation conditions, operating pressure, temperature, transported medium, and relevant photos or videos. Our technical team will evaluate the information and provide an appropriate solution.
