Size Range: 1/8"–4" (DN6–DN100)
Pressure Rating: Class 150
Applicable Standards: ISO 4144, MSS SP-43, and GB/T 26120
Connection Type: Female Thread × Male Thread
Available Thread Standards: NPT, BSPT, BSP, DIN 2999, and ISO 228
Manufacturing Process: Lost-Wax Investment Casting and Precision CNC Machining
Available Materials: SS201, SS304, SS316, SS316L, and other stainless steel grades upon request
Available Gasket Materials: PTFE, Silicone Rubber, and FKM Fluororubber
Surface Treatment: Degreasing and Cleaning
Standard Packaging: Plastic Bags, Export Cartons, and Wooden Cases
Brand: LIANHE
Product Marking: Size + Material Grade + Class 150
HS Code: 7307220000
Place of Origin: Wenzhou, China

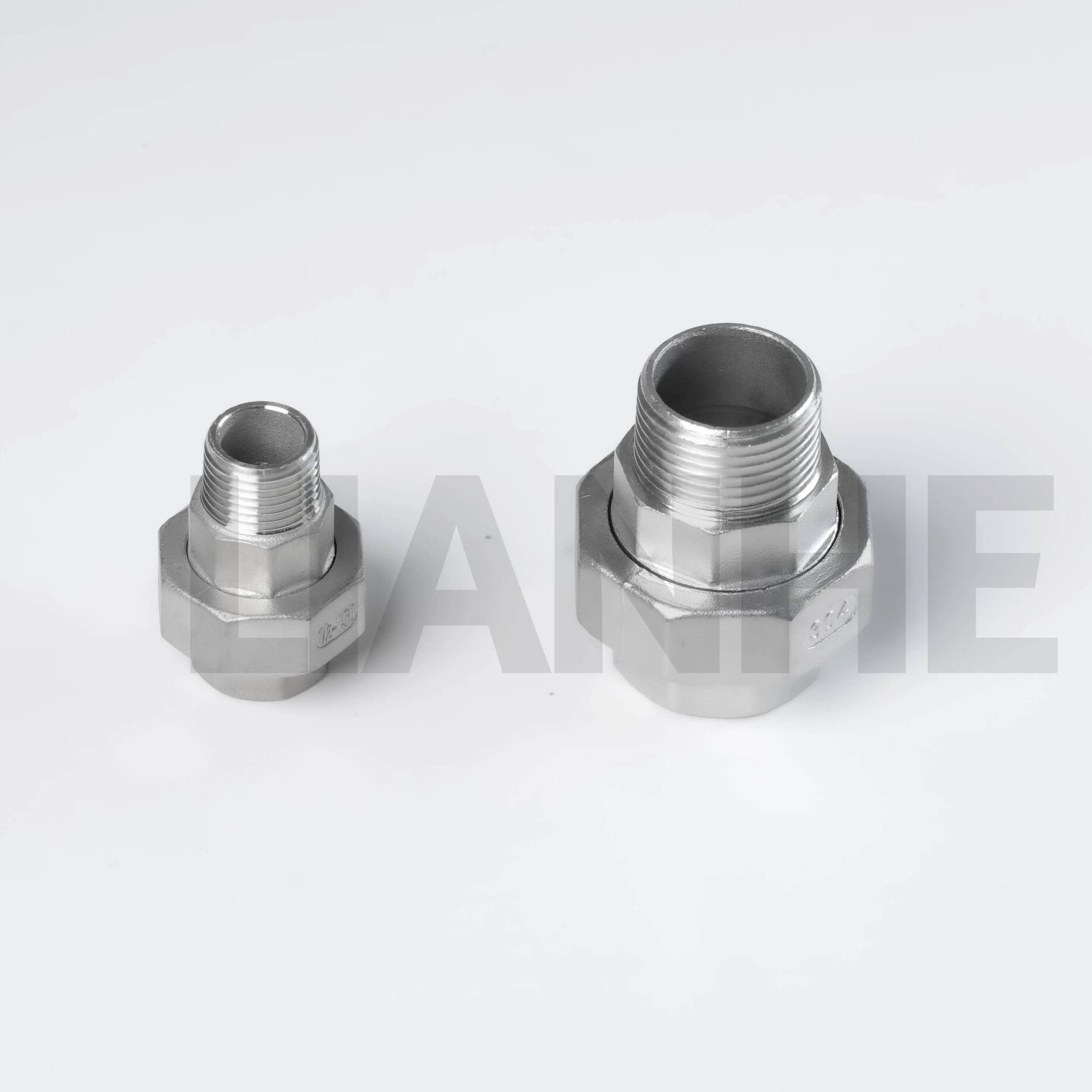

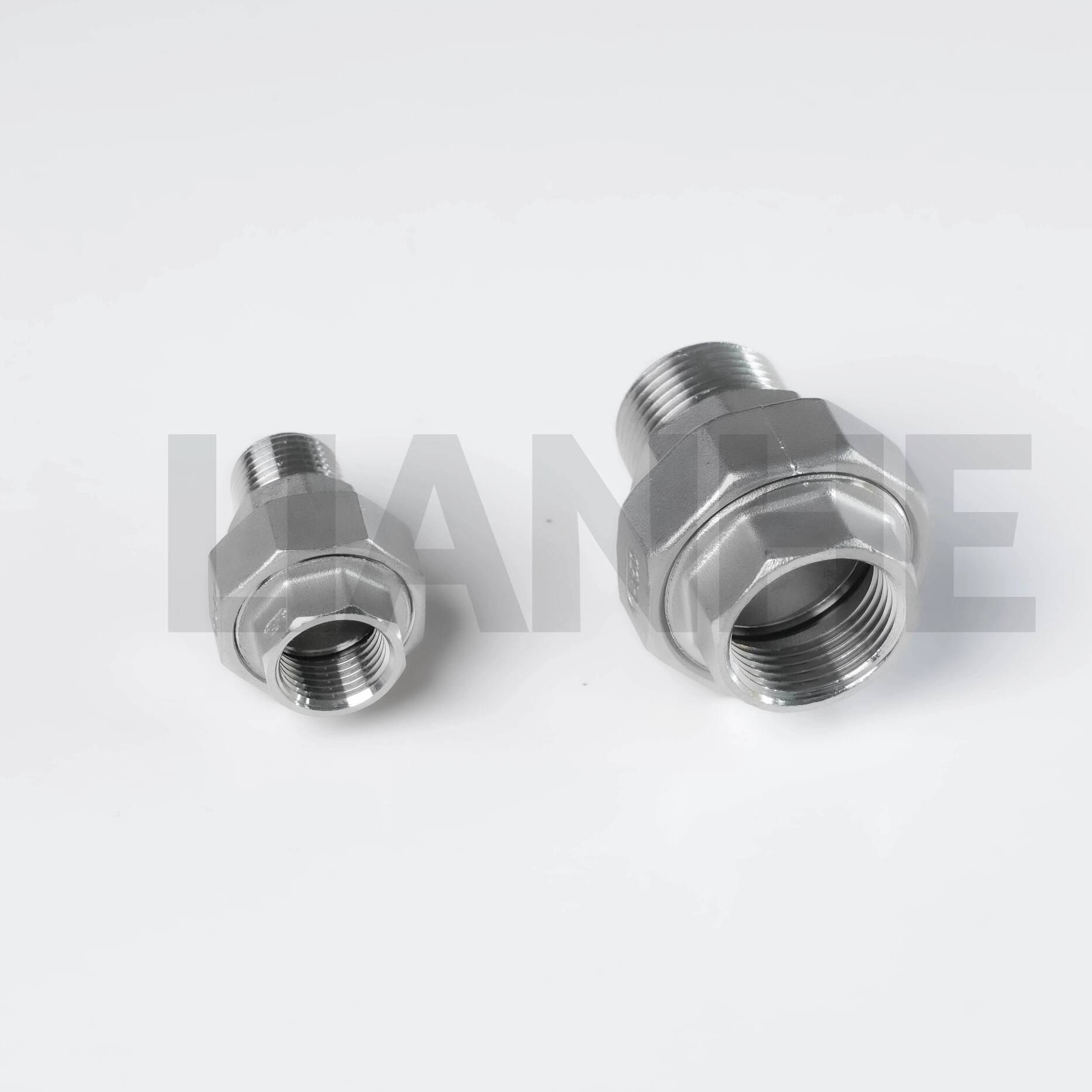

LIANHE stainless steel female-to-male threaded fittings are designed to connect pipes, valves, instruments, and other pipeline components with different threaded-end configurations. The female and male threaded structure provides a practical solution for pipeline conversion, extension, equipment installation, and maintenance.
The fitting body is manufactured using lost-wax investment casting technology and finished by precision CNC machining. This manufacturing process helps provide consistent dimensions, accurate thread profiles, stable mechanical strength, and dependable connection performance.
Available in SS201, SS304, SS316, and SS316L, the fittings can be selected according to the operating environment, transported medium, corrosion conditions, temperature, and project requirements.
Precision lost-wax investment-cast construction
Accurate female and male threaded connections
Multiple international thread standards available
Good mechanical strength and dimensional stability
Excellent corrosion and oxidation resistance
Convenient installation and maintenance
Suitable for standard and customized piping projects
Multiple stainless steel grades available
Different gasket materials available
Clean, degreased surface treatment
OEM and ODM manufacturing supported
Customized markings and packaging available
The threaded connection allows installation without extensive on-site welding. This can simplify pipeline assembly, shorten installation time, and make future inspection, maintenance, or replacement more convenient.
Correct identification of the thread standard is essential. NPT, BSPT, BSP, DIN 2999, and ISO 228 threads may have different profiles, taper angles, and sealing methods. They should not be connected interchangeably unless their dimensional and sealing compatibility has been technically confirmed.
Available sealing materials include PTFE, silicone rubber, and FKM fluororubber. Each gasket material provides different temperature resistance, chemical compatibility, flexibility, and sealing performance.
The appropriate gasket should be selected according to:
Transported medium
Working pressure
Operating temperature
Chemical concentration
Hygiene requirements
Expected service life
Installation environment
For fuel gas, chemicals, food, medical, and high-temperature applications, gasket compatibility should be confirmed before placing an order.
LIANHE stainless steel female-to-male threaded fittings are suitable for a wide range of industrial and commercial pipeline systems, including:
Construction and building-service pipelines
Fuel-gas systems using compatible materials and seals
Medical equipment and facility piping
Food and beverage processing equipment
Environmental protection systems
Chemical-processing equipment
Water-treatment facilities
Industrial water pipelines
Machinery and instrument connections
General fluid-control systems
The final product configuration should be selected according to the working pressure, temperature, transported medium, stainless steel grade, thread standard, gasket material, and installation conditions.
Additional testing, surface treatment, certificates, or quality documents may be required for medical, food, fuel-gas, chemical, or other regulated applications.
OEM and ODM orders are accepted. Stainless steel threaded fittings can also be manufactured according to customer drawings, samples, technical specifications, and special project requirements.
Available customization options include:
Product dimensions and wall thickness
Female and male thread combinations
Stainless steel material grades
Gasket materials
Surface-treatment requirements
Customer logos and product markings
Inspection and testing requirements
Labels and export packaging
Customers should provide complete drawings, dimensions, materials, operating conditions, quantities, and inspection requirements when requesting customized products.
Each fitting is protected with a plastic bag to help prevent moisture, dust, and surface contamination. Products are then packed in reinforced export cartons and consolidated in wooden cases when required.
Customized cartons, customer logos, barcodes, labels, pallet packing, and other packaging arrangements can be provided according to the confirmed order requirements.
Our standard payment term is a 30% T/T deposit paid in advance, with the remaining 70% T/T balance paid before delivery. Specific payment arrangements can be discussed according to the order value and cooperation conditions.
Available payment methods include T/T, Western Union, L/C, PayPal, and other mutually agreed methods.
Available Trade Terms: EXW, FOB, CFR, CIF, DDP, and DDU
Products can be delivered by sea freight, air freight, land transportation, or international express service.
The shipping method can be selected according to the order quantity, destination, required delivery schedule, package volume, and transportation budget.
For regular-size products, the minimum order quantity normally ranges from 1 to 20 pieces, depending on the product size, material, thread combination, and current stock availability.
MOQ for Non-Standard Products: Normally 500 pieces
The minimum order quantity for customized products may vary according to the dimensions, material grade, casting requirements, machining complexity, tooling cost, and inspection scope.
Free Samples: Free samples may be provided for dimensional verification, material evaluation, and product testing. The international express delivery cost is normally paid by the recipient.
Quotation Time for Regular Products: Normally within two working hours after receiving complete specifications and quantity requirements.
Quotation Time for Non-Standard Products: Normally within one working day after reviewing the customer’s drawings and technical requirements.
Regular-size products available from stock can normally be delivered within 3–7 days.
The production time for customized or non-standard products is normally approximately 35 days. The actual schedule depends on material availability, order quantity, casting requirements, machining complexity, inspection requirements, packaging, and the current production plan.
LIANHE provides professional support throughout product selection, order confirmation, manufacturing, packaging, transportation, installation, and after-sales communication.
Our service advantages include:
Professional experience in export packaging, printing, and international delivery
Reliable stainless steel casting and machining capabilities
Flexible payment options, including T/T, Western Union, L/C, and PayPal
Quality stainless steel materials at competitive factory prices
Small orders available for regular products
Fast response to quotations and technical inquiries
Secure and efficient international transportation arrangements
OEM and customized product design support
If a product-related problem occurs, customers should provide the product model, order number, installation conditions, operating pressure, temperature, transported medium, and relevant photos or videos. Our technical team will evaluate the information and provide an appropriate solution.
