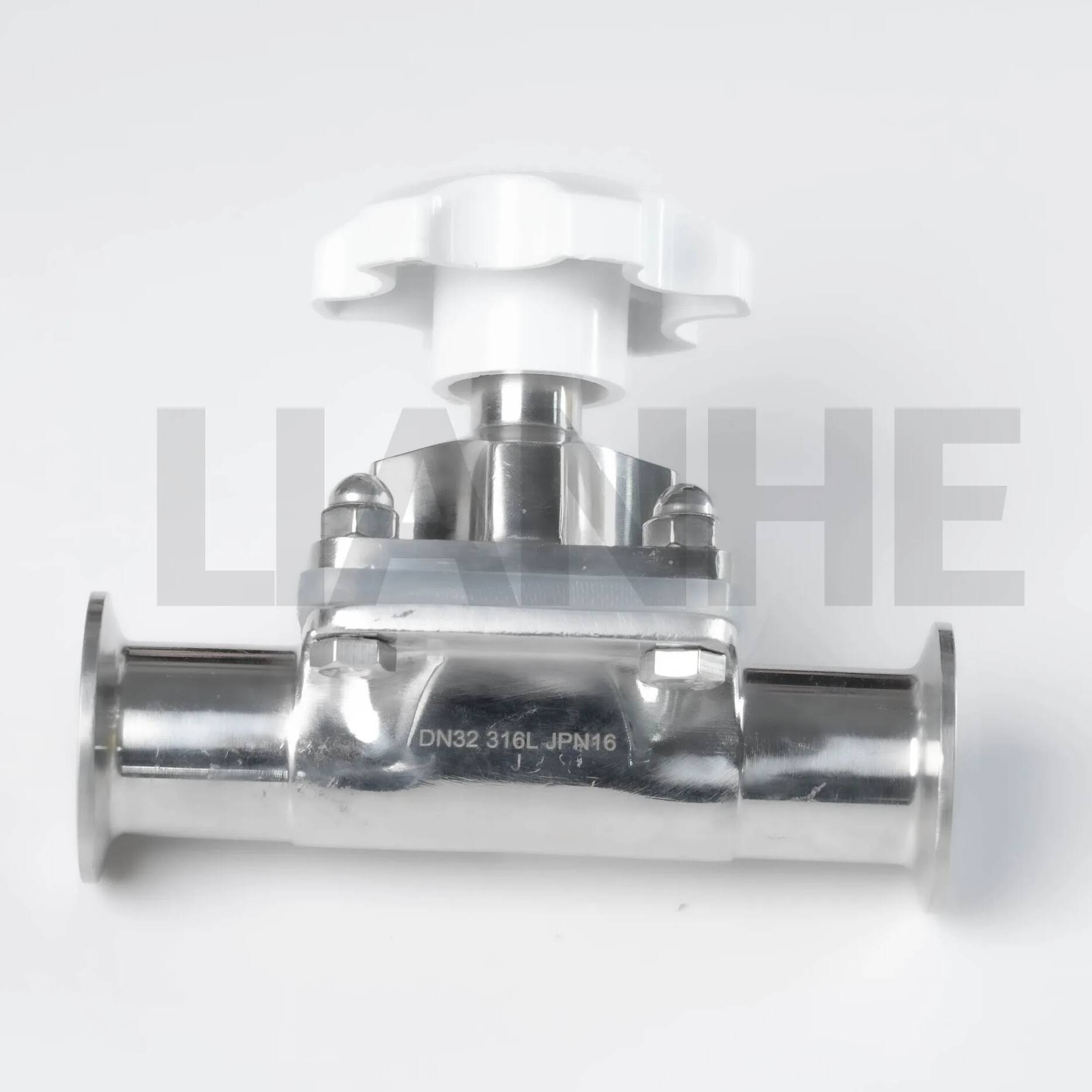

Stainless Steel Sanitary Clamp Diaphragm Valve

Stainless Steel Sanitary Clamp Diaphragm Valve controls flow through a flexible diaphragm in a compatible hygienic line. Confirm the clamp dimensions, body and diaphragm materials, valve size, actuation method and operating conditions against the approved drawing and quotation.

    Stainless Steel Sanitary Clamp Diaphragm Valve

    Product Description

    The LIANHE Stainless Steel Sanitary Clamp Diaphragm Valve is designed for hygienic flow control in food, beverage, dairy, pharmaceutical, and other sanitary processing systems.

    Its diaphragm structure separates the operating mechanism from the process medium, supporting hygienic operation and convenient cleaning. Manual, pneumatic, and electric actuation options are available.

    Technical Specifications

    Size Range: 1/2"–2 1/2" (DN15–DN65)

    Applicable Standards: 3-A, SMS, IDF, and DIN

    Available Materials:

    • SS304 and S30408

    • SS304L and S30403

    • SS316

    • SS316L and S31603

    Diaphragm Materials: VMQ Silicone, EPDM, and FKM

    Connection Options:

    • Weld End × Weld End

    • Clamp End × Clamp End

    Actuation Options: Manual, Pneumatic, or Electric

    Working Pressure: 0–10 bar

    Pneumatic Control Pressure: 5–8 bar

    Indicative Temperature Ranges:

    • VMQ: -50°C to +180°C

    • EPDM: -20°C to +135°C

    • FKM: -30°C to +230°C

    Sterilization Temperature: Up to 150°C for a maximum of 20 minutes, subject to diaphragm compatibility

    Internal Surface Roughness: Ra 0.4–0.8 μm

    External Surface Roughness: Ra 0.8–1.6 μm

    Manufacturing Process: Forging and Precision Machining

    Product Marking: LOGO + Size + Material + Standard

    Packaging: Bubble Wrap or Plastic Packaging, Export Cartons, Woven-Bag Protection, and Wooden Cases

    Certificates: GB/T 19001-2016, ISO 9001:2015, and CE documentation for applicable products

    Brand: LIANHE

    HS Code: 7307290000

    Place of Origin: Wenzhou, Zhejiang, China

    Product Advantages

    1. Hygienic diaphragm-isolated flow path

    2. Good corrosion resistance

    3. Manual, pneumatic, and electric options

    4. Weld-end and clamp-end configurations

    5. Smooth internal surface for convenient cleaning

    6. Multiple diaphragm materials available

    7. Long service life under suitable conditions

    8. Suitable for compatible sanitary applications

    The diaphragm material should be selected according to the medium, temperature, pressure, cleaning chemicals, and sterilization process.

    Applications

    Suitable for compatible applications in:

    • Food and beverage processing

    • Dairy-production systems

    • Pharmaceutical equipment

    • Biotechnology facilities

    • Brewing systems

    • Clean-in-place and sterilization systems

    • Cosmetic-processing equipment

    • General hygienic fluid-control systems

    Quality and Inspection

    Available documents include:

    • EN 10204 3.1 Material Test Certificate

    • Raw-Material Inspection Certificate

    • Hydraulic Test Report

    • Dimensional and Surface-Finish Inspection Report

    • Radiographic Testing Report, when applicable

    • Third-Party Inspection Report

    Sealing materials can be supplied according to applicable FDA 21 CFR 177.2600 requirements when supported by the corresponding material documentation.

    Payment Terms

    Payment Terms: 30% T/T deposit and 70% balance before delivery. Western Union, PayPal, and other agreed methods are available.

    Manufacturer: LIANHE
    Place of Origin: Wenzhou, Zhejiang, China

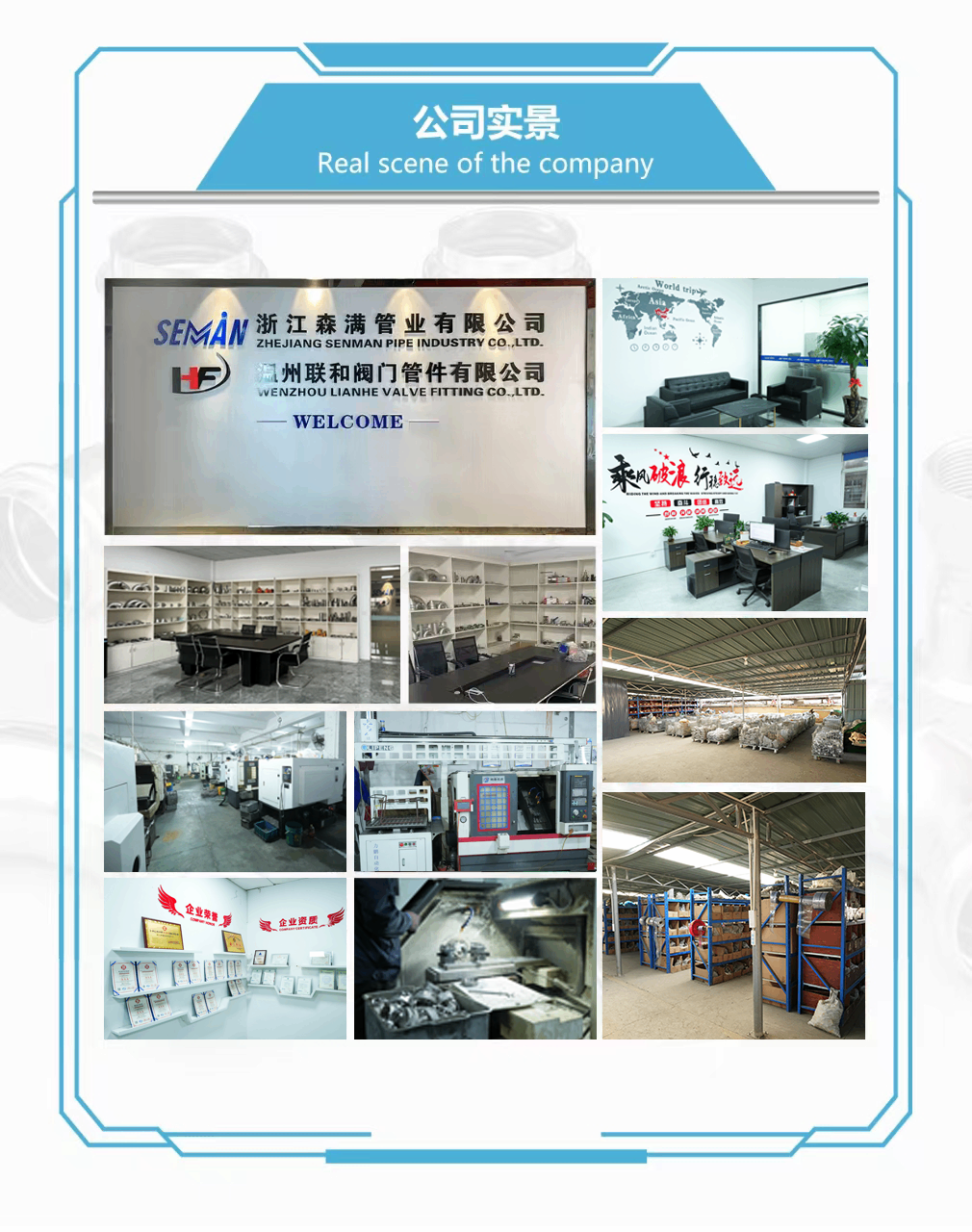

    01 实景

    02 证书

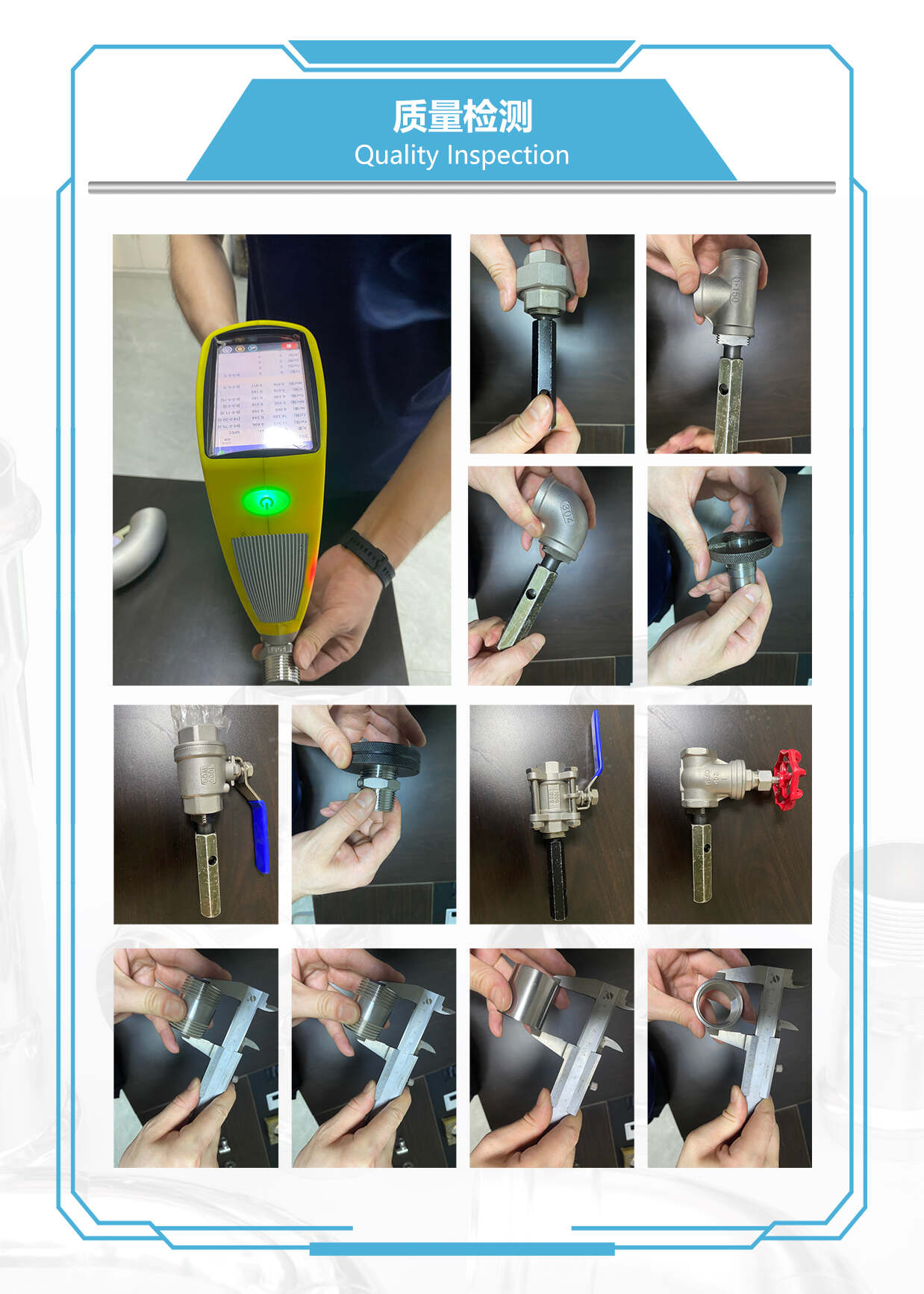

    03 产品检验图

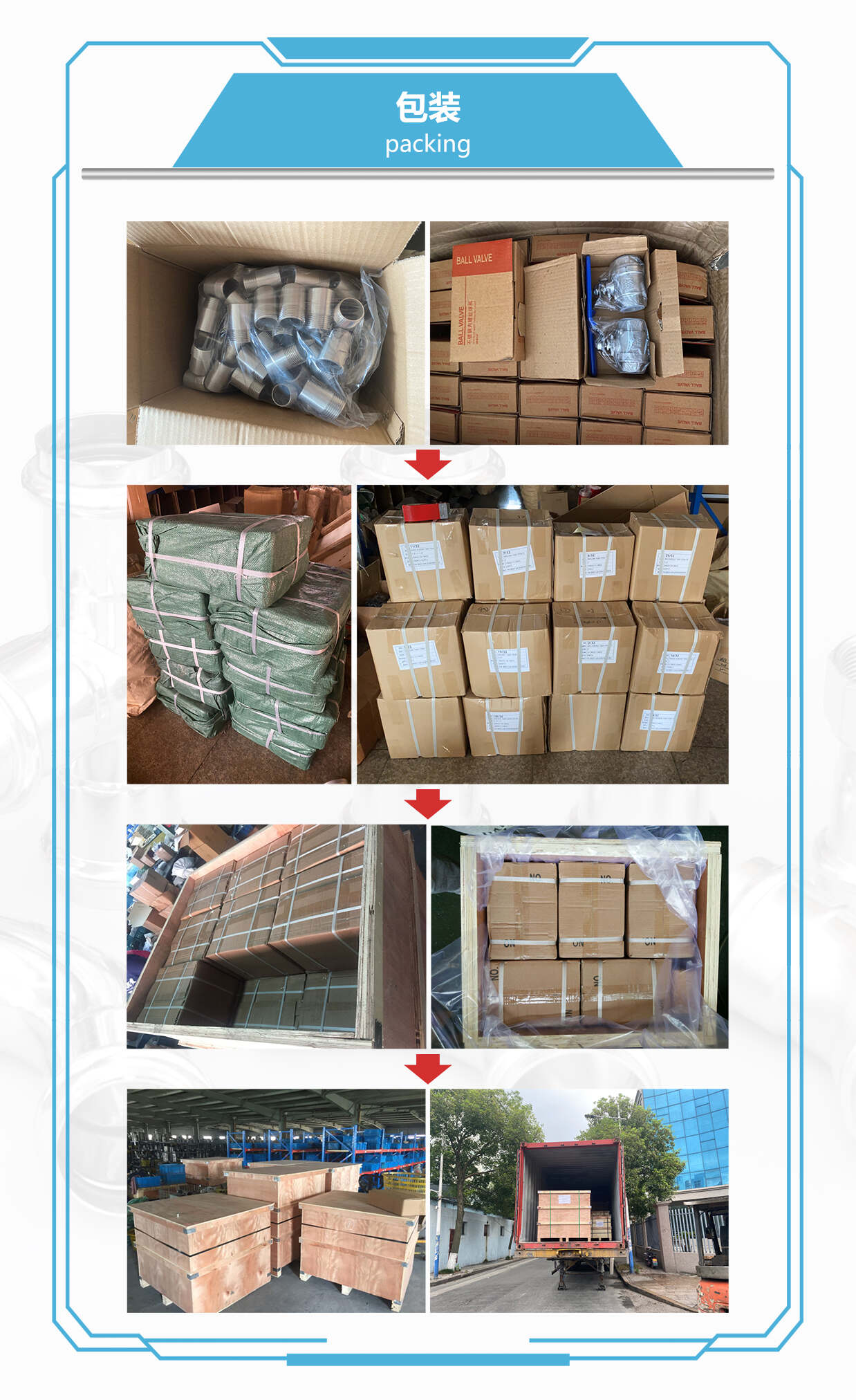

    04 产品包装图

    05 运输图
