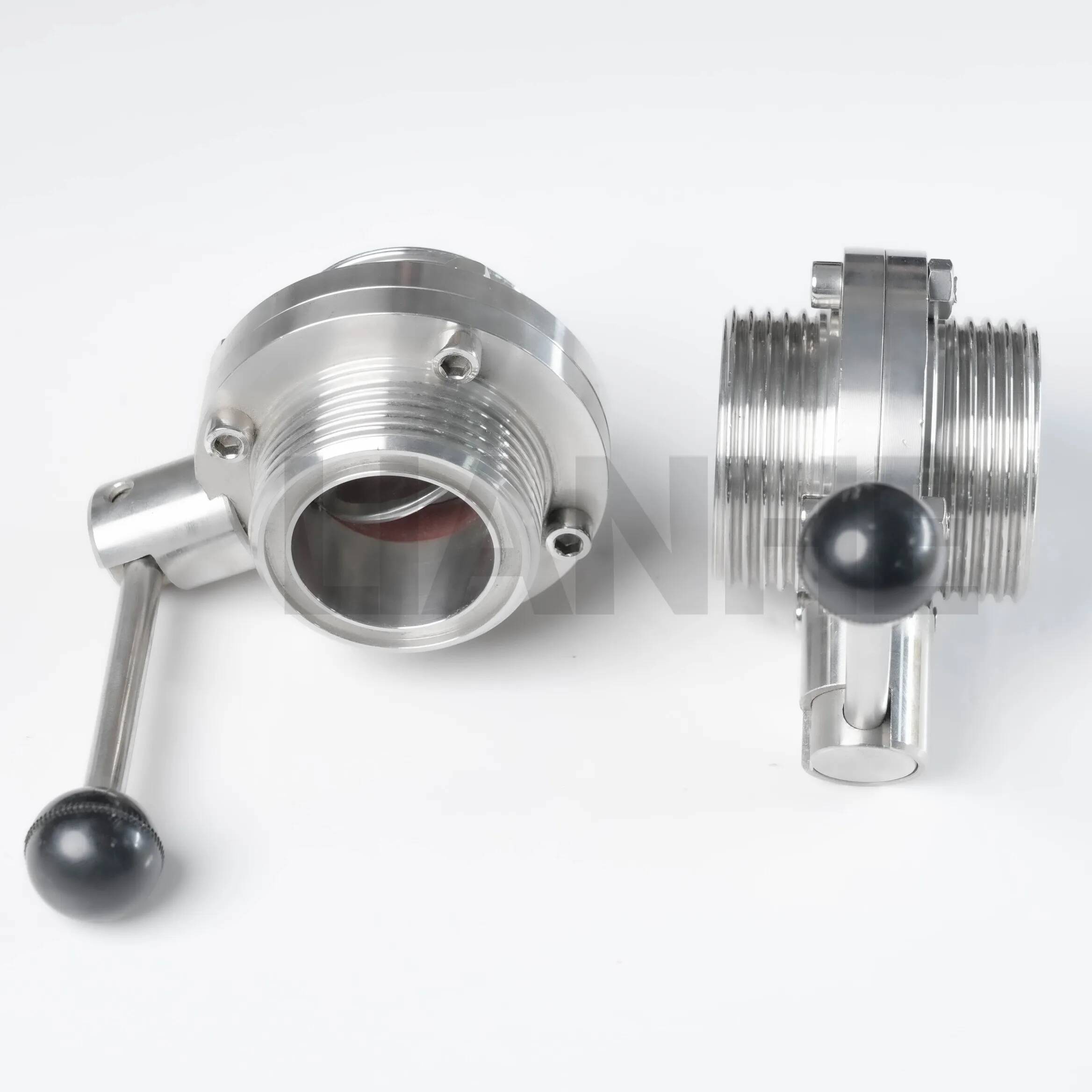

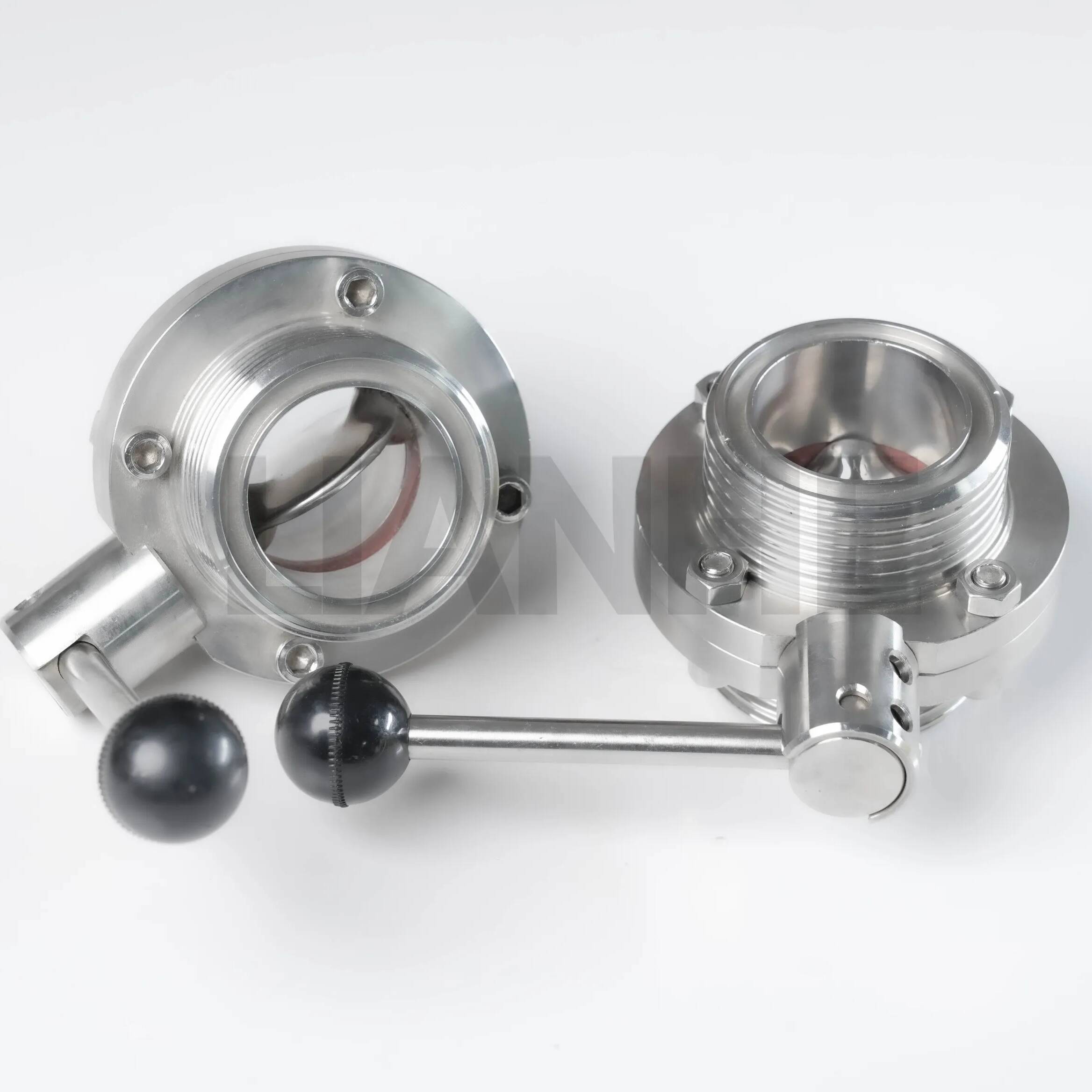

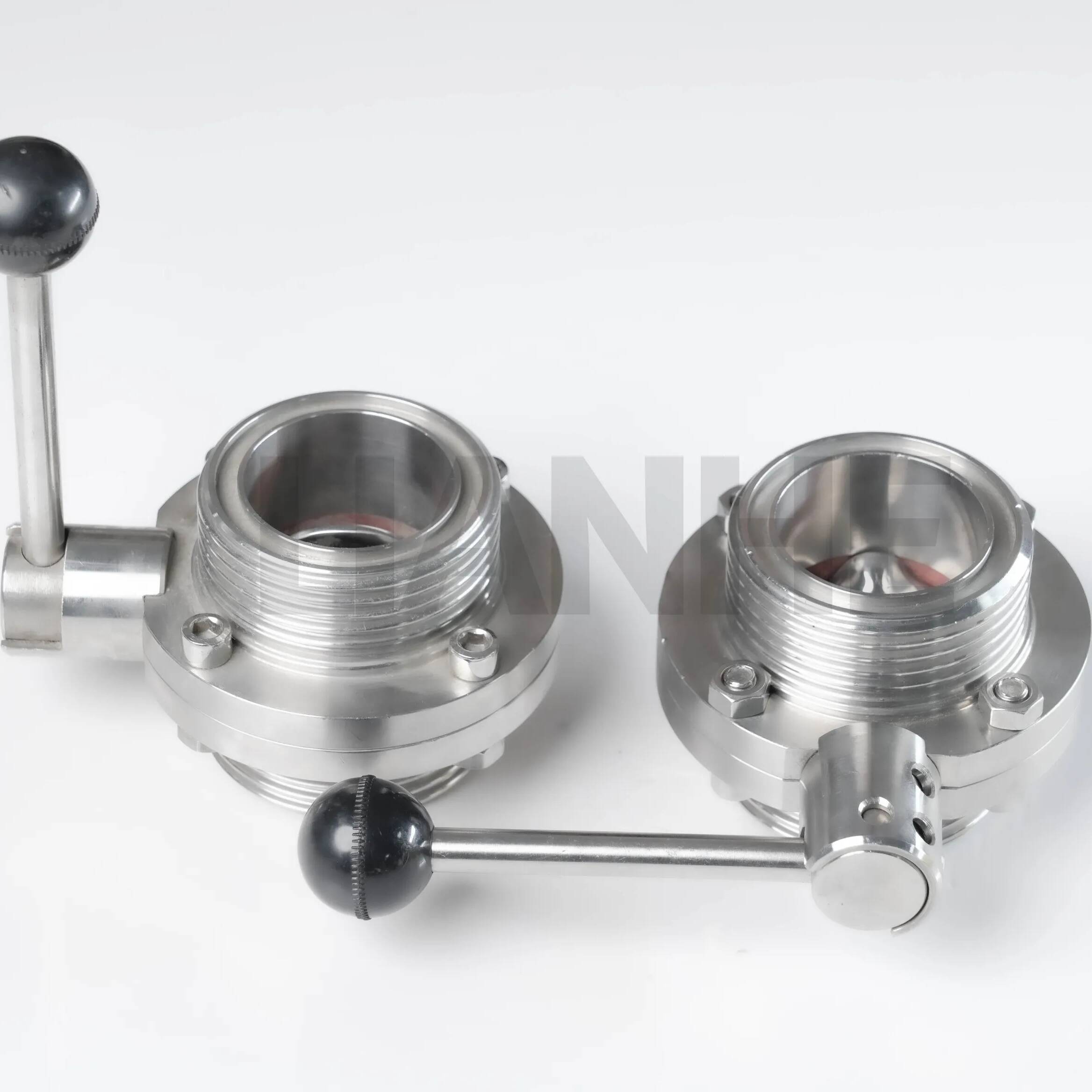

Stainless Steel Sanitary Threaded Butterfly Valve

Stainless Steel Sanitary Threaded Butterfly Valve provides quarter-turn flow control in a compatible hygienic line. Confirm the threaded connection profile, valve size, stainless steel grade, seat material, handle or actuator arrangement and operating conditions against the approved drawing and quotation.

    Product Introduction

    The LIANHE Stainless Steel Sanitary Threaded Butterfly Valve is designed for high hygiene standards and reliable performance in industries such as food processing, dairy, beverage, pharmaceutical, and chemical engineering. Manufactured from premium SS304/SS316 stainless steel, this valve offers exceptional corrosion resistance, long service life, and low flow resistance, ensuring stable operation in demanding environments.



    Stainless Steel Sanitary Threaded Butterfly Valve Product Specifications

    Size: 1/2”~6" (DN15~DN150);



    Standard: 3A SMS IDF DIN;



    Material: SS304 S30408,SS316 S31603,SS304L S30403,SS316L S31603;

    Sealing Material: VMQ,EPDM,FPM(Adopt import sealing materials,with all the seal material the FDA117.2600);



    Body Type: Weld-Weld,Male-Male Thread,Clamp-Clamp,Weld-Male Thread, Weld-Clamp, Male Thread-Liner,Male Thread-Flange,Three-Piece,Flange-Flange;



    Butterfly valve handle type: Lever Handle, Duck bill stainless steel handle,Duck bill plastic handle;



    Driving mode: Manual, Electric, Pneumatic;



    Pressure of Work: 0~10Bar; Control air Pressure: 5~8Bar;



    Working Temperature: VMQ:-50~+180℃ EPDM:-20~+135℃ FPM: -30~+230℃

    Sterilization Temperature: 150℃ (MAX 20min)



    Surface Treatment: Inside: Ra≥0.4-0.8um,Outside:Ra≥0.8~1.6um



    Mark: Logo-SIZE-Material-Standard;



    Processing technology: Forging, Machining;



    Packing: Bubble wrap or Plastic package-Cartons-Wrapped in woven bags-Wooden Case;



    Certificates: GB/T19001-2016,ISO9001:2015,CE;



    Factory Inspection Report and Certificates:

    EN 10204/3.1B-MTC;

    Raw material inspection certificate;

    100% Radiography Test Report;

    Hydraulic seal test report;

    Third Party Inspection Report, etc;



    Brand: LIANHE;



    HS Code: 7307290000



    Payment Term: 30%TT Advance Payment+70%TT Payment Before Delivery;( Note: Specific can be discussed.)



    Available via T/T, Western Union, Paypal Etc. Payment for goods;



    Place of Origin: Wenzhou,China


    Product Advantages

    • Corrosion Resistance: Resistant to rust, chemicals, and harsh environmental conditions, ensuring durability in various applications.

    • Long Service Life: Engineered for extended use, reducing the need for frequent replacements and maintenance.

    • Low Flow Resistance: Optimized design minimizes friction, improving efficiency and performance in fluid transport.

    • Environmental Protection: Made from eco-friendly materials, contributing to sustainable and green solutions.

    • Easy to Install: Lightweight and user-friendly design allows for quick and hassle-free installation.

    • Low Comprehensive Cost: Combines durability, low maintenance, and efficiency, providing excellent cost-effectiveness over time.

    • Health, Sanitation, and Safety: Non-toxic and hygienic materials ensure safe use in water supply, food, and other sensitive applications.
