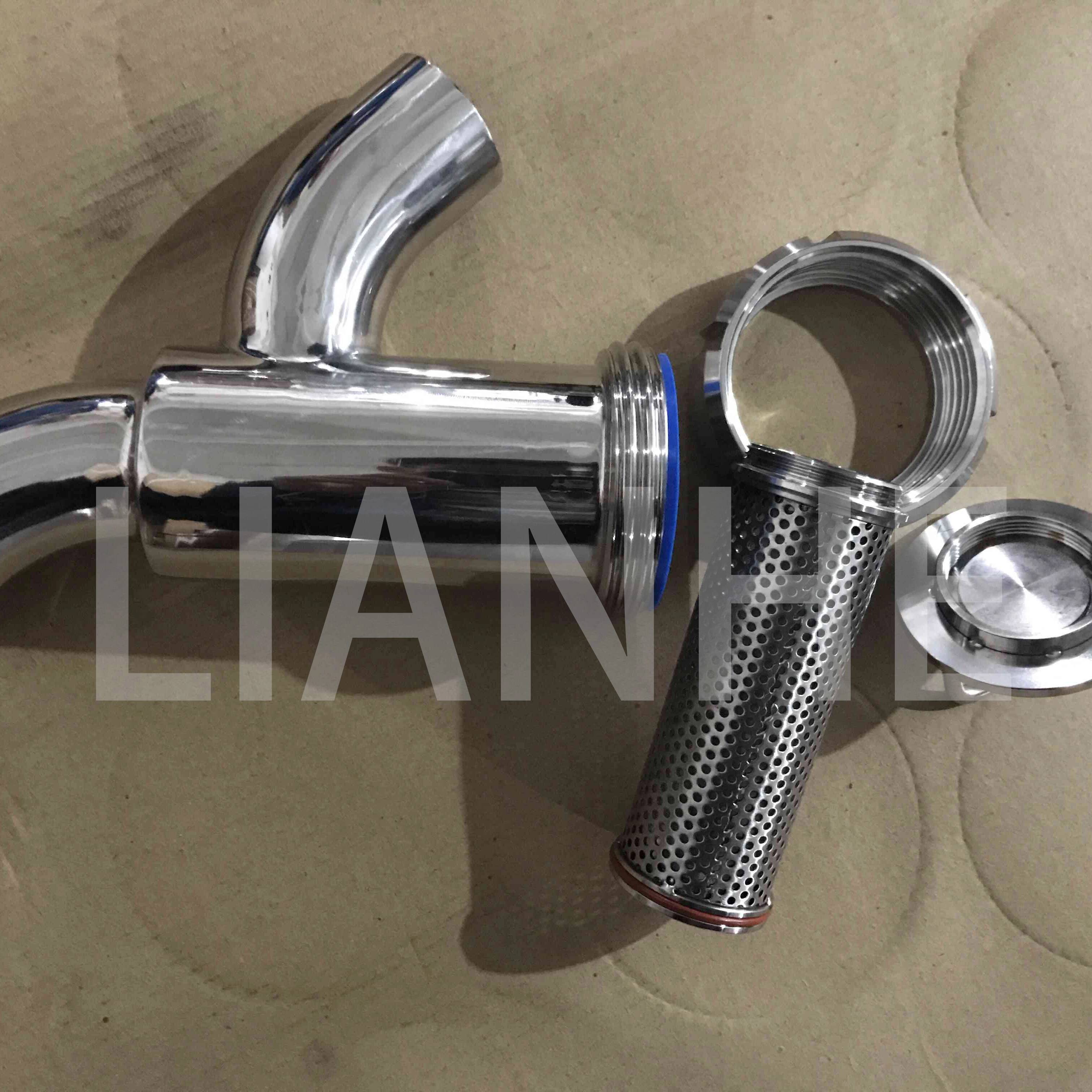

Stainless Steel Sanitary Strainer

Product Description

The LIANHE Stainless Steel Sanitary Strainer is designed to remove solid particles and impurities from compatible hygienic process media.

Straight, angle-type, and Y-type configurations are available for food, beverage, dairy, pharmaceutical, brewing, and other sanitary piping systems.

Technical Specifications

Size Range: 1"–4" (DN25–DN100)

Available Materials: SS304, SS316, SS304L, and SS316L

Applicable Standards: 3-A, SMS, IDF, and DIN

Available Types:

• Straight Strainer

• Angle-Type Strainer

• Y-Type Strainer

Connection Options: Weld End or Clamp End

Sealing Materials: VMQ Silicone, EPDM, and FKM/FPM

Working Pressure: 0–10 bar

Indicative Temperature Ranges:

• VMQ: -50°C to +180°C

• EPDM: -20°C to +135°C

• FKM/FPM: -30°C to +230°C

Sterilization Temperature: Up to 150°C for a maximum of 20 minutes, subject to seal compatibility

Internal Surface Roughness: Ra 0.4–0.8 μm

External Surface Roughness: Ra 0.8–1.6 μm

Manufacturing Process: Forging and Precision Machining

Product Marking: LOGO + Size + Material + Standard

Packaging: Bubble Wrap or Plastic Packaging, Export Cartons, Woven-Bag Protection, and Wooden Cases

Certificates: GB/T 19001-2016, ISO 9001:2015, and CE documentation for applicable products

Brand: LIANHE

HS Code: 7307290000

Place of Origin: Wenzhou, Zhejiang, China

Product Advantages

1. Removes particles from sanitary process media

2. Straight, angle, and Y-type options

3. Good corrosion resistance

4. Smooth internal surface for convenient cleaning

5. Weld-end and clamp-end connections

6. Multiple sealing materials available

7. Easy inspection and maintenance

8. Suitable for compatible hygienic applications

Applications

Suitable for compatible applications in:

• Food and beverage processing

• Dairy-production systems

• Brewing equipment

• Pharmaceutical facilities

• Biotechnology systems

• Drinking-water processing

• Cosmetic-production equipment

• General hygienic pipelines

The filter element, mesh size, seal material, pressure, and temperature range should be selected according to the medium and required filtration accuracy.

Quality and Inspection

Available documents include:

• EN 10204 3.1 Material Test Certificate

• Raw-Material Inspection Certificate

• Hydraulic Test Report

• Dimensional and Surface-Finish Inspection Report

• Radiographic Testing Report, when applicable

• Third-Party Inspection Report

Sealing materials can be supplied according to applicable FDA 21 CFR 177.2600 requirements when supported by corresponding material documentation.

Payment Terms

Payment Terms: 30% T/T deposit and 70% balance before delivery. Western Union, PayPal, and other agreed methods are available.

Manufacturer: LIANHE
Place of Origin: Wenzhou, Zhejiang, China
