1Pc Stainless Steel Thread Ball Valve
  • 1Pc Stainless Steel Thread Ball Valve1Pc Stainless Steel Thread Ball Valve
  • 1Pc Stainless Steel Thread Ball Valve1Pc Stainless Steel Thread Ball Valve
  • 1Pc Stainless Steel Thread Ball Valve1Pc Stainless Steel Thread Ball Valve

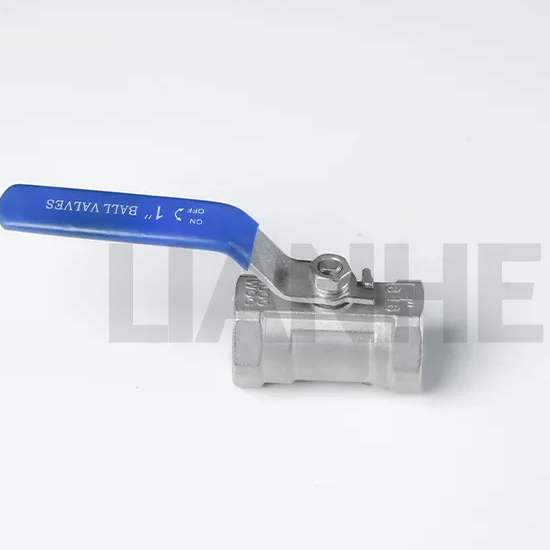

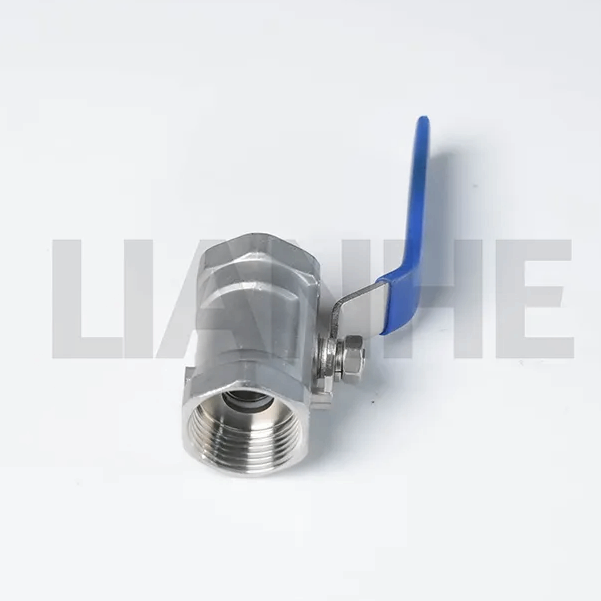

1Pc Stainless Steel Thread Ball Valve

1Pc Stainless Steel Thread Ball Valve provides quarter-turn on/off control in a compatible piping system. Specify the thread form and size, port configuration, body and seat materials, handle arrangement and operating conditions. Final specifications are subject to the approved drawing and quotation.


    STAINLESS STEEL 1PC THREAD BALL VALVE


    Size: 1/4"to 4"(DN8-DN100)



    Max Pressure: 1000WOG



    End connection: Female Threaded,BS21(BSPT & BSP), ANSI B2.1(NPT), DIN259/2999,ISO 228



    Port: Full Bore & Reduced Bore



    Casting process: Investment Casting Body



    Processing technology: CNC lathe processing.



    Blow-out proof stem



    Operation: Manual(Lock Lever Handle Avaliable)



    Material: Valve Body-SS304(CF8, SUS304, 1.4308),SS316 (CF8M, SUS316, 1.4408), SS304L, SS316L

    Handles and Nuts: SS201, SS304, SS316 (According to customer needs)



    Brand: LIANHE;



    HS Code: 8481804090



    OEM & ODM both acceptable.



    Certificates: GB/T19001-2016 ISO9001:2015 、CE



    Test Certificates:

    EN 10204/3.1B-MTC

    Raw material inspection certificate.

    100% Radiography Test Report

    Hydraulic seal test report.

    Thread inspection report

    Third Party Inspection Report, etc



    Quality Control:

    1.All raw material checked once it arrive our factory.

    2.All pieces and logo and all details checked during production.

    3.All packing details checked during production.

    4.All production quality and packing checked on final inspection after finished.

    Each process should be inspected by relevant QC personnel.



    Payment Term: 30%TT Deposit + Delivery payment balance. ( Note: Specific can be discussed.) Support T/T, Western Union, Paypal Etc payment.



    Shipping Terms: EXW(WENZHOU), FOB(Ningbo,Shanghai Port), CFR, CIF, DDP, DDU. We support international express transportation by land, sea and air
