Free Samples: We can supply samples free of charge. However, we do not bear the express fee of the sample.
Size: 1/4"to 4"(DN8-DN100) Full Bore
End connection: The End to End Thread conforms to BSPT BSP NPT Female Threaded(Inside Thread), DIN259/2999,ISO 228
Process:Investment Casting Body and Cap.
Working Pressure: 1000PSI for WOG.
Adjustable stem packing
Pure teflon seals and seats
Temperature range: -60 to 450°
Quality control:
1.All raw material checked once it arrive our factory.
2.All pieces and logo and all details checked during production.
3.All packing details checked during production.
4.All production quality and packing checked on final inspection after finished.
Each process should be inspected by relevant QC personnel.

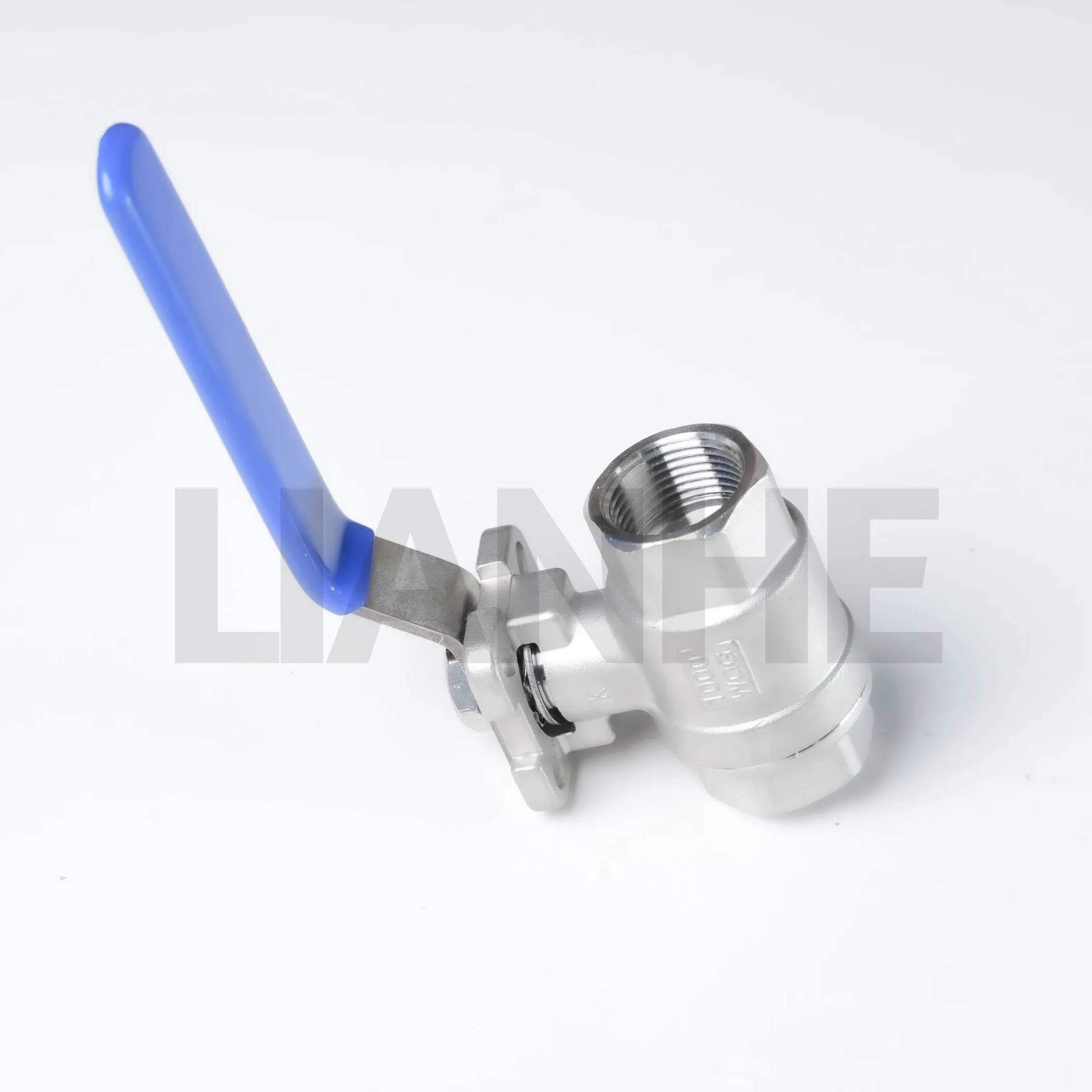

The 2-Piece Threaded Ball Valve with Platform is a versatile, cost-effective solution for on/off flow control in low-to-medium pressure piping systems. Featuring a two-piece body with NPT threads (ANSI/ASME B1.20.1) and a built-in mounting platform, this valve combines easy installation with reliable performance in commercial and industrial applications. The compact design and lightweight construction make it ideal for tight spaces and portable equipment.
User-Friendly Design:
Integral ISO 5211 mounting platform for direct actuator attachment (electric, pneumatic, or manual), eliminating adapter plates and reducing installation time by 30%.
Handwheel or lever operation with clear position indicator (open/closed), compatible with lockout/tagout devices for safety compliance.
Threaded Connection Advantages:
NPT tapered threads (male/female) provide leak-tight connections without additional welding, suitable for quick assembly/disassembly in maintenance scenarios.
Thread sealant not required for water/gas applications (PTFE seat ensures bubble-tight seal up to 100 PSI).
Durable Construction:
Body materials: Carbon steel (ASTM A105), stainless steel (A316), or brass (C37700), with optional electroless nickel plating for enhanced corrosion resistance.
Full-port and reduced-port options: Full-port (100% flow efficiency) for minimal pressure drop; reduced-port (space-saving) for low-flow applications.
Wide Operational Range:
Pressure rating: 1,000 PSI (carbon steel), 1,500 PSI (stainless steel), suitable for air, water, oil, and non-corrosive gases.
Temperature range: -20°C to 180°C (PTFE seat); -40°C to 260°C (RPTFE seat), adaptable to diverse environmental conditions.
Suitable for commercial and light industrial settings:
Plumbing & HVAC: Residential and commercial water supply systems, heating/cooling loops, and compressed air lines.
Food & Beverage: Sanitary applications with stainless steel variants (polished to 316L, FDA-compliant), ideal for breweries, dairies, and bottling plants.
Marine & RV: Saltwater-resistant brass valves for onboard plumbing and recreational vehicle piping, with NPT threads compatible with standard marine fittings.
Industrial Equipment: Portable pumps, mixers, and filtration systems requiring quick-connect valves for modular setups.
Q: Can the valve be used with vacuum systems?
A: Yes, the PTFE seat provides reliable shutoff in vacuum conditions (down to 29" Hg), but metal seats are recommended for frequent vacuum cycles.
Q: What is the difference between full-port and reduced-port models?
A: Full-port valves have the same bore as the pipe (e.g., 2" valve for 2" pipe), while reduced-port valves have a smaller bore (e.g., 1.5" bore in a 2" valve) for compactness.
Q: Is the mounting platform compatible with all actuators?
A: The ISO 5211 platform is universal, compatible with most quarter-turn actuators; check actuator torque requirements against valve specifications.
Q: How to prevent thread corrosion in saltwater applications?
A: Use stainless steel valves with anti-seize compound on threads, and avoid dissimilar metal contact (e.g., brass valves with steel pipes).
