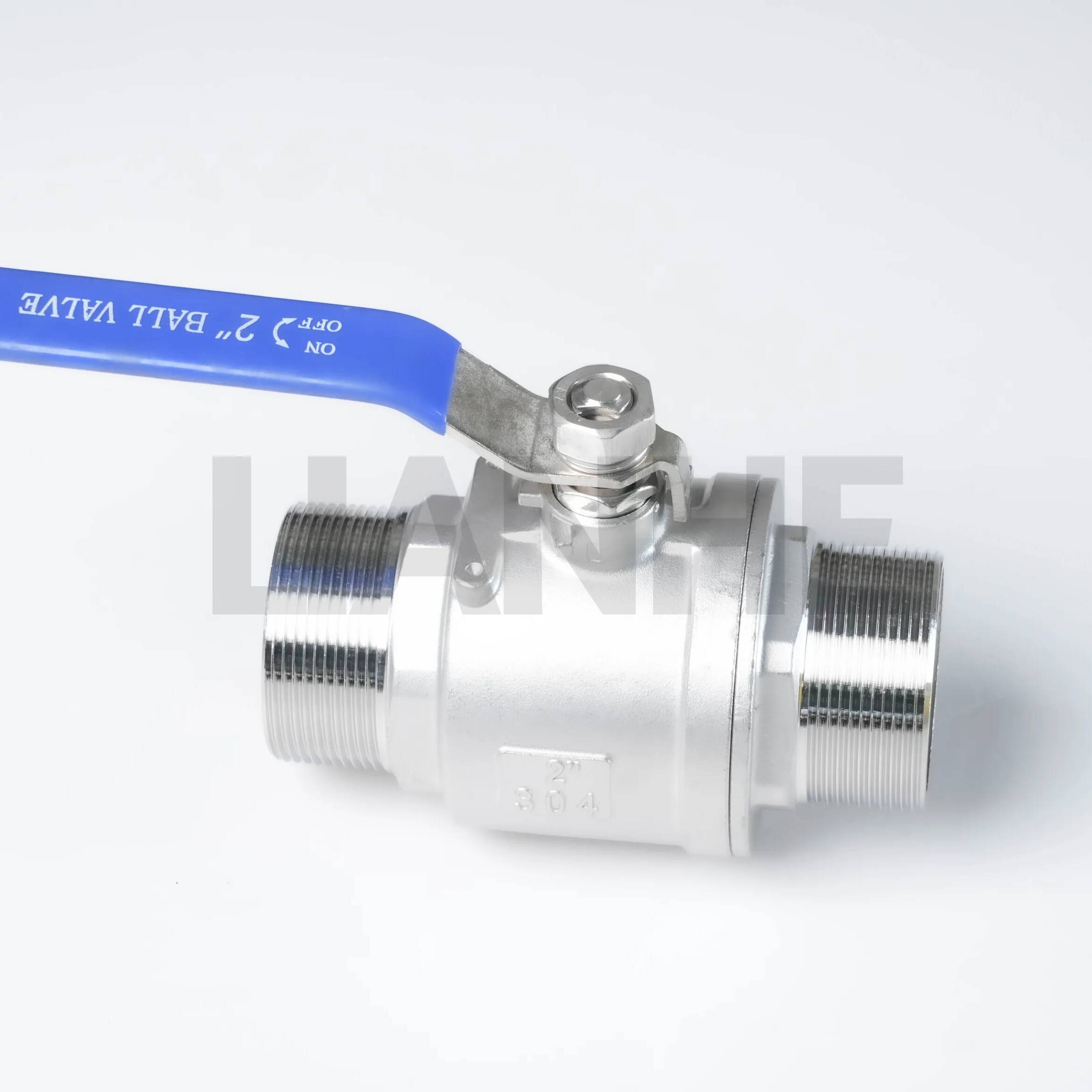

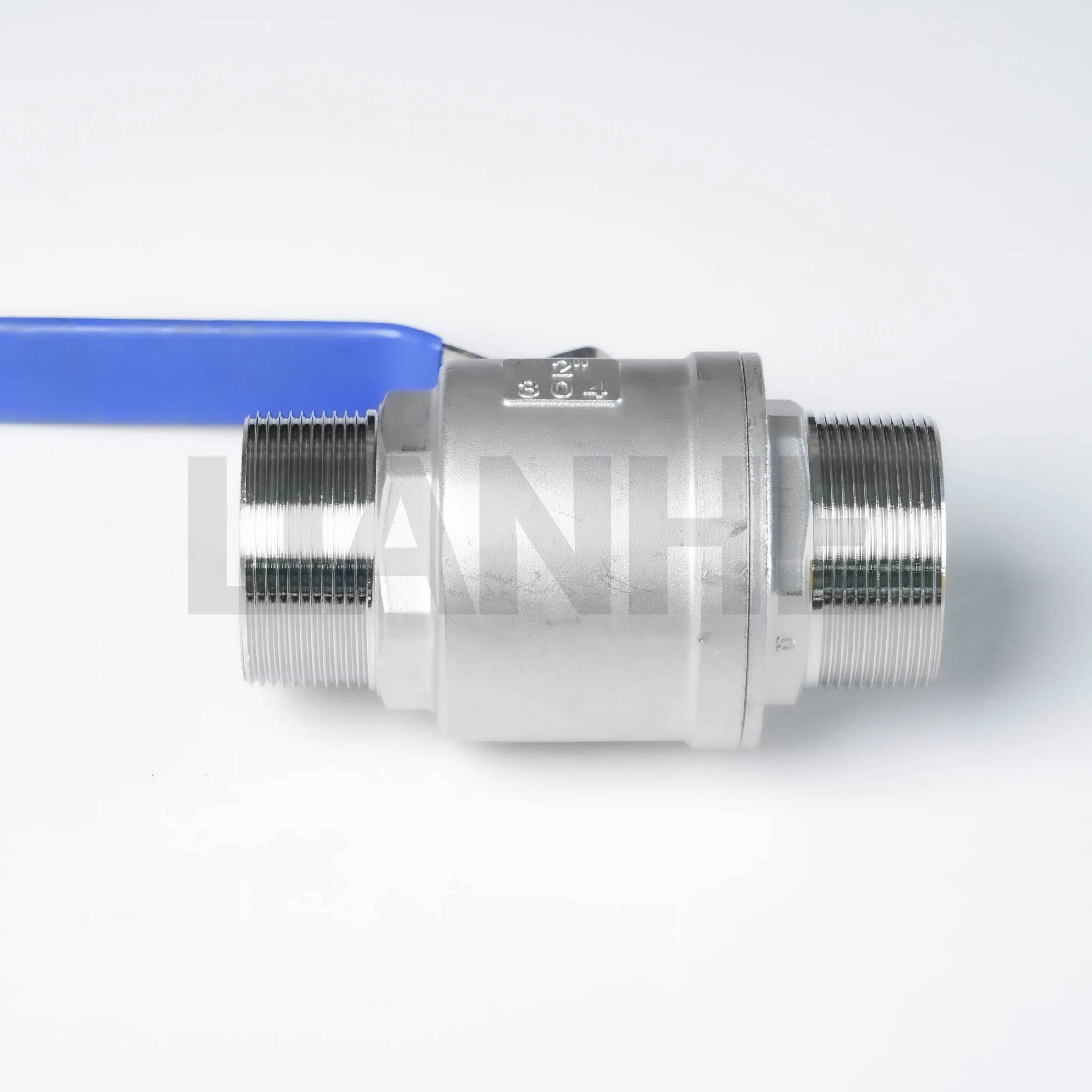

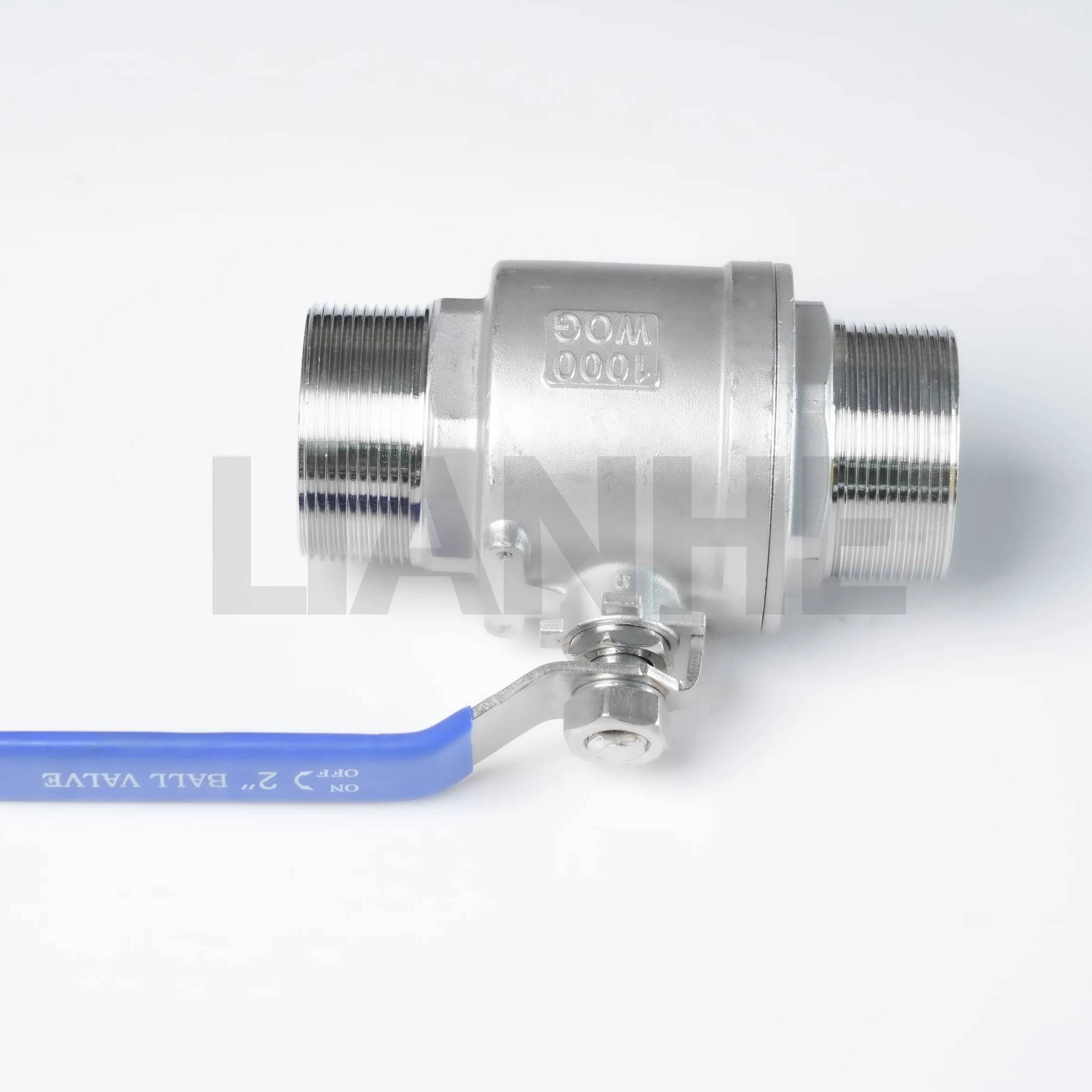

High-Pressure Stainless Steel 2-Piece Male Thread Ball Valve for Industrial Systems

Overview

The High-Pressure Stainless Steel 2-Piece Male Thread Ball Valve is a durable flow control solution designed for high-pressure threaded systems, offering reliable shutoff and long service life in industrial applications. Constructed from 304 or 316 stainless steel, this valve features male NPT threads (ANSI B1.20.1) and a full-bore design, combining ease of installation with robust performance under extreme conditions.

Features

High-Pressure Resistance:

Rated for 2,000 PSI (304 stainless steel) and 3,000 PSI (316 stainless steel) at 20°C, with a burst pressure of 4x working pressure for safety margins.

Solid stem and ball (one-piece construction) reduce failure points, suitable for pulsating flow in pump discharge lines and hydraulic systems.

Precision Threaded Connections:

Male NPT threads (tapered) provide self-tightening seals without additional gaskets, compatible with schedule 80 pipes and heavy-duty fittings.

Threads coated with anti-seize compound during assembly, reducing galling risks in high-torque installations (recommended torque: 60 N·m for 1" valves).

Enhanced Sealing Technology:

PTFE seat with backup ring prevents extrusion under high pressure, achieving zero leakage (bubble-tight) as tested per API 598.

Anti-static device (spring-loaded) ensures electrical continuity between ball and stem, essential for flammable gas applications to prevent sparking.

Operational Versatility:

Temperature range: -20°C to 180°C (PTFE seat); -40°C to 260°C (RPTFE seat), adaptable to cold storage and hot process lines.

Available in sizes 1/4" to 3" NPS, with optional lockable lever to prevent unauthorized operation in safety-critical systems.

Application

Perfect for high-pressure industrial and commercial use:

Hydraulic Systems: Control valves in heavy machinery, presses, and injection molding machines, ensuring reliable shutoff during pressure surges.

Compressed Air Lines: On/off control in factory pneumatic systems, with 304 stainless steel resisting moisture-induced corrosion in air compressors.

Petrochemical Plants: Sampling valves for volatile organic compounds (VOCs), with 316 stainless steel meeting OSHA standards for hazardous material handling.

Mining Equipment: Water and slurry lines in underground operations, withstanding abrasive particles and high cyclic pressures.

FAQ

Q: Can the valve be installed in a vertical pipeline?

A: Yes, but ensure the lever is accessible for operation; horizontal installation is recommended for optimal seat wear.

Q: What is the difference between 304 and 316 stainless steel versions?

A: 316 contains molybdenum for superior chloride resistance, making it suitable for seawater and chemical applications, while 304 is ideal for general use.

Q: How to dispose of old valves safely?

A: Recycle through certified metal recyclers; 304/316 stainless steel is 100% recyclable without loss of properties.

Q: Is a pressure relief valve required upstream?

A: Yes, in systems prone to pressure surges (e.g., pump startups) to protect the valve and pipeline from overpressure damage.
