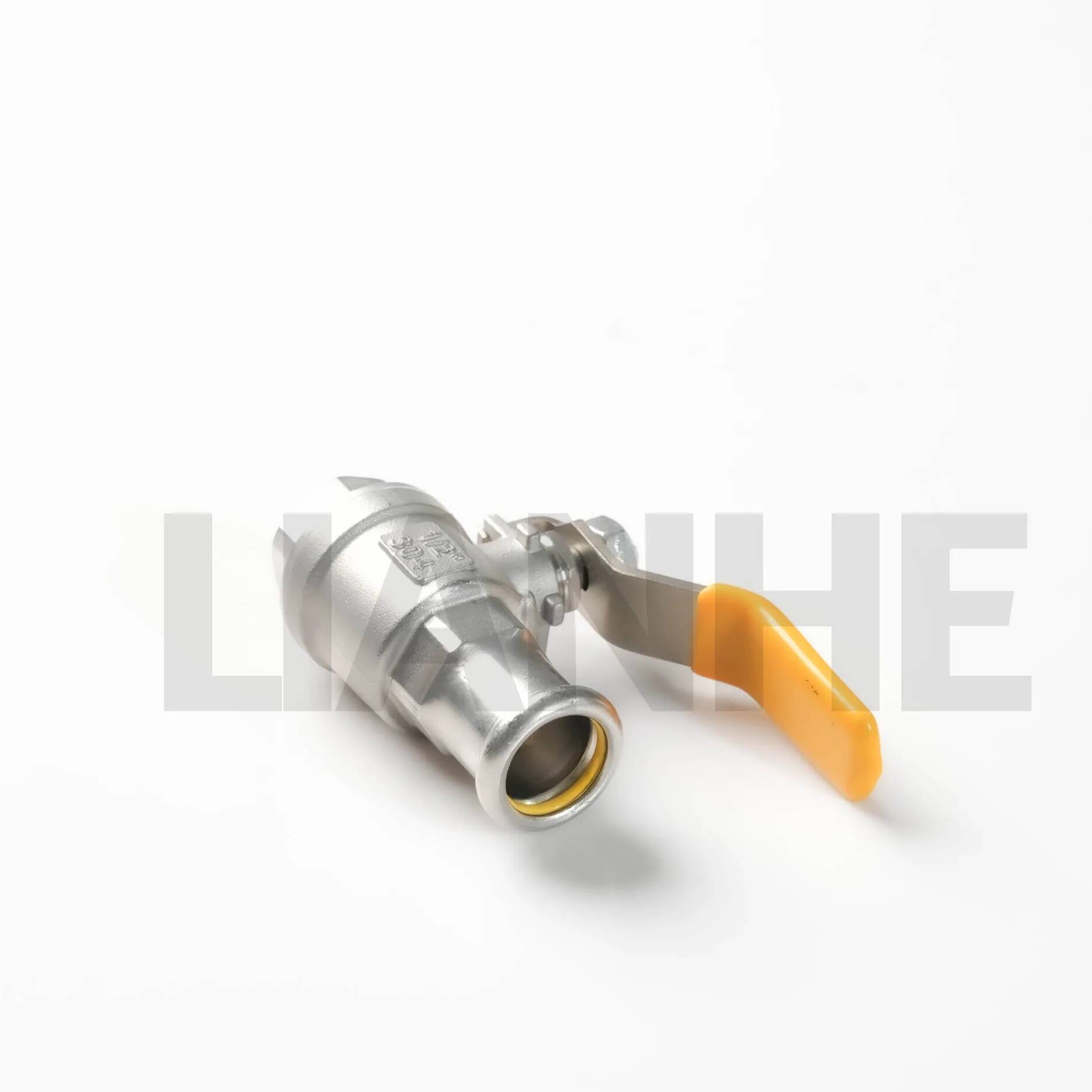

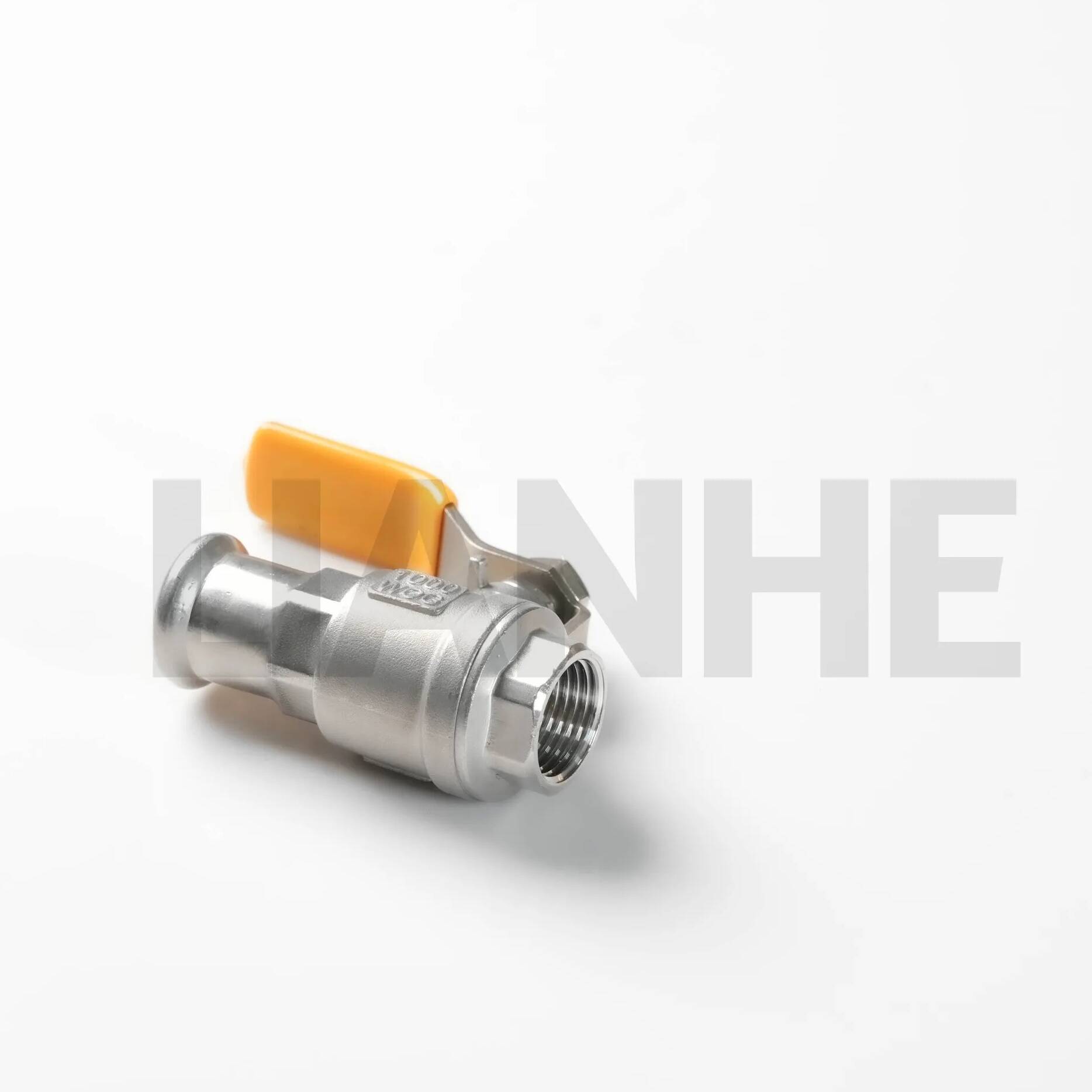

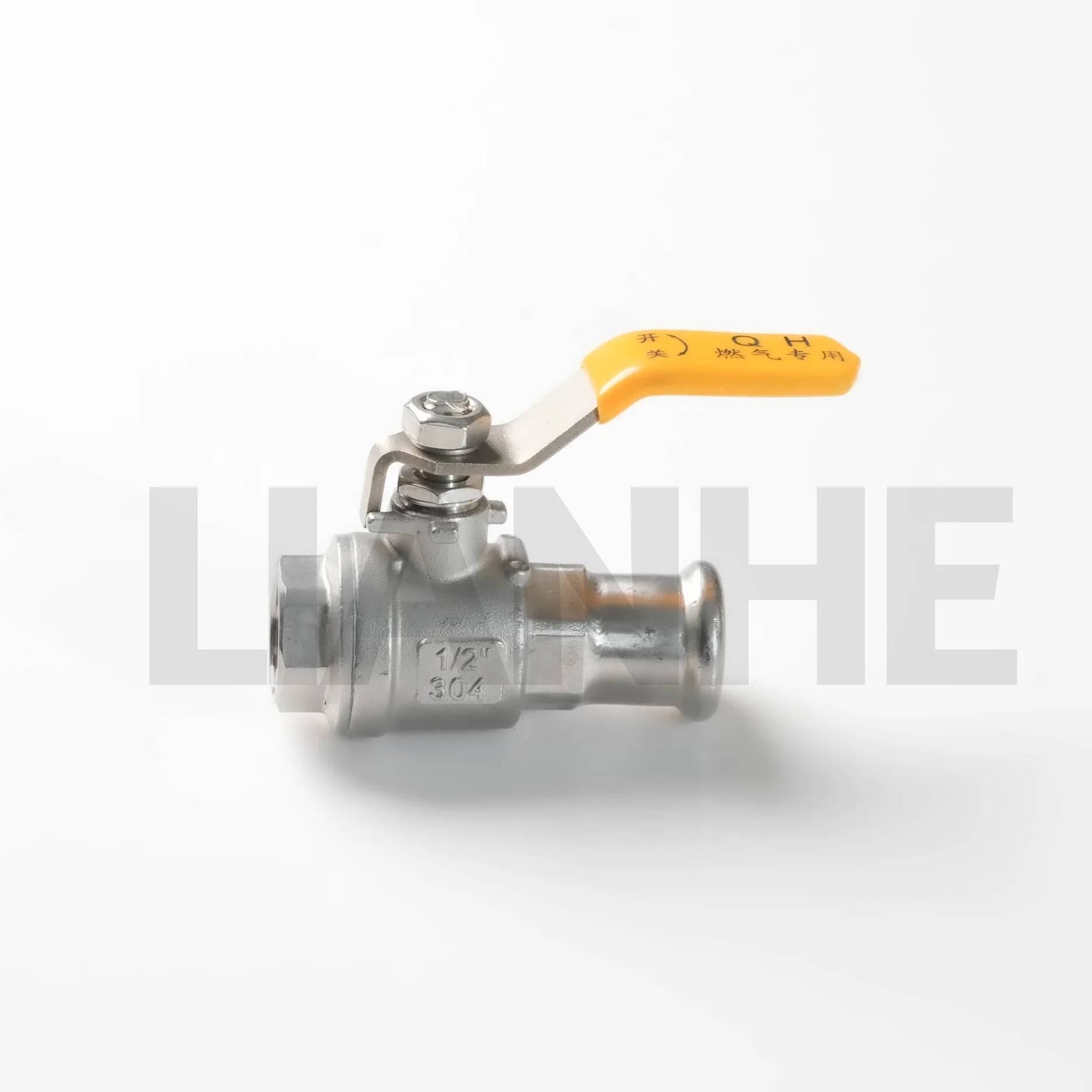

High-Reliability Stainless Steel D-Type Press Female Thread Ball Valve

Stainless Steel D-Type Press Female Thread Ball Valve provides quarter-turn on/off flow control where a press connection meets a female threaded connection. Confirm the press profile, thread form, size, material grade and actuator or handle arrangement against the mating components. Final specifications are subject to the approved drawing and quotation.


    Overview


    The High-Reliability Stainless Steel D-Type Press Female Thread Ball Valve is a durable flow control solution designed for press-fit and threaded piping systems, combining the speed of press connections with the versatility of female NPT threads. Constructed from 304 or 316 stainless steel, this valve features a press-fit female end and a threaded outlet, enabling fast installation in commercial and industrial environments.


    Features


    Dual Connection Technology:

    Press-fit female end (ISO 6122 compliant) for quick, tool-free connection to stainless steel or copper pipes (OD: 15mm-54mm), creating a permanent joint in 3 seconds.

    Female NPT thread (ANSI B1.20.1) on the opposite end for compatibility with threaded valves, gauges, or accessories, reducing the need for adapters.

    Robust Material Construction:

    304 stainless steel (general use) or 316 stainless steel (corrosive media), with a yield strength of 205 MPa and elongation ≥40% for impact resistance.

    PTFE seat provides bubble-tight shutoff (API 598) up to 16 bar (232 PSI), with a polished ball ensuring low operating torque (≤12 N·m for 2" valves).

    Installation Flexibility:

    Suitable for both new installations and retrofitting, with press-fit technology ideal for tight spaces where welding or threading is impractical.

    Temperature range: -20°C to 180°C (PTFE seat); -40°C to 260°C (RPTFE seat), adaptable to hot water, oil, and compressed air systems.

    Compliance & Certification:

    Meet EN 10226-1 and NSF/ANSI 61 standards, with material traceability reports available for potable water and industrial applications.


    Application


    Ideal for hybrid piping systems requiring mixed connections:

    Commercial Plumbing: Connecting press-fit stainless steel pipes to threaded water meters and control valves in high-rise buildings.

    Industrial Hydraulics: Linking press-fit tubing to threaded hydraulic pumps and cylinders in machinery, reducing downtime during equipment maintenance.

    Renovation Projects: Upgrading old threaded systems to modern press-fit pipes, especially in historic buildings with limited access for traditional installation methods.

    Laboratory Equipment: Connecting PEX tubing to threaded chemical injectors and filters in research facilities, with 316 stainless steel resisting mild chemical exposure.


    FAQ


    Q: What pipe materials are compatible with the press-fit end?

    A: Compatible with stainless steel (EN 10217-7), copper (EN 1057), and PEX (EN 12201) pipes with matching outside diameters.

    Q: Can the press-fit end be used with rigid plastic pipes?

    A: No, press-fit is designed for metal pipes; use a transition fitting for plastic pipes (e.g., PEX-to-thread adapter).

    Q: How to ensure a proper press connection with the female end?

    A: Use a hydraulic press tool with ISO 15874-6 compliant dies, checking for a uniform indentation on the press ring after installation.

    Q: Is the valve suitable for underground installations?

    A: Yes, but protect the threaded end with anti-corrosion tape and use a valve box for easy access in buried pipelines.


    Parameter Value
    Size Range 1/2" to 2" (DN15-DN50)
    End Connections BSPT, BSP, NPT, DIN259/2999, ISO 228-D Type Press GB/DIN/EN
    Maximum Pressure 1000 PSI (W.O.G)
    Material SS304, SS316, SS304L, SS316L
    Handle and Nut Material SS201, SS304, SS316 (optional)
    Temperature Range -60°F to 450°F
    Design Features Precision Cast, CNC Processing
    Testing 100% leakage test at 100 PSI
    Seal and Seat Material PTFE
    Operation Manual (Optional lock lever handle)
