Industrial-Grade 3-Piece Weld Ball Valve for High-Pressure Systems

Overview

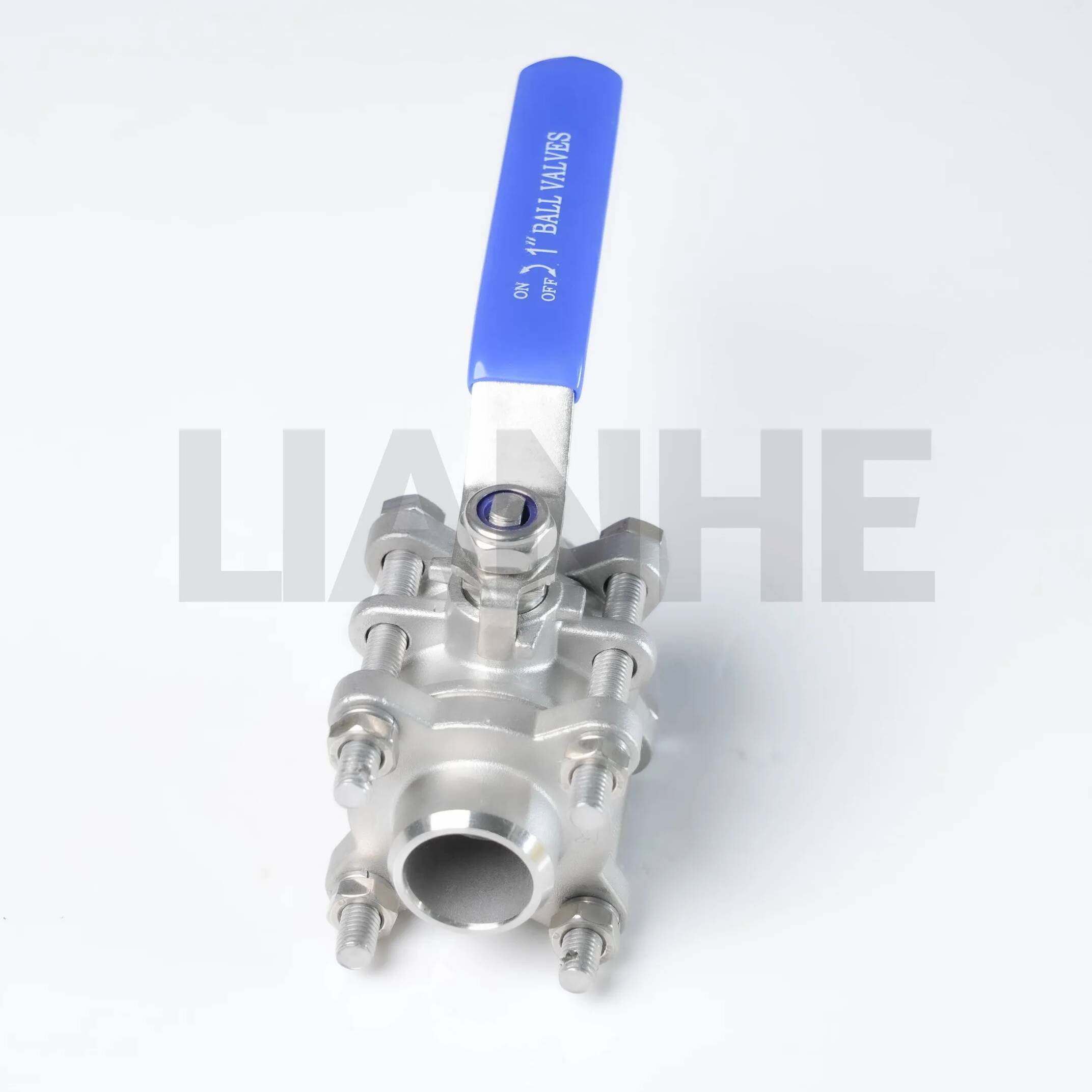

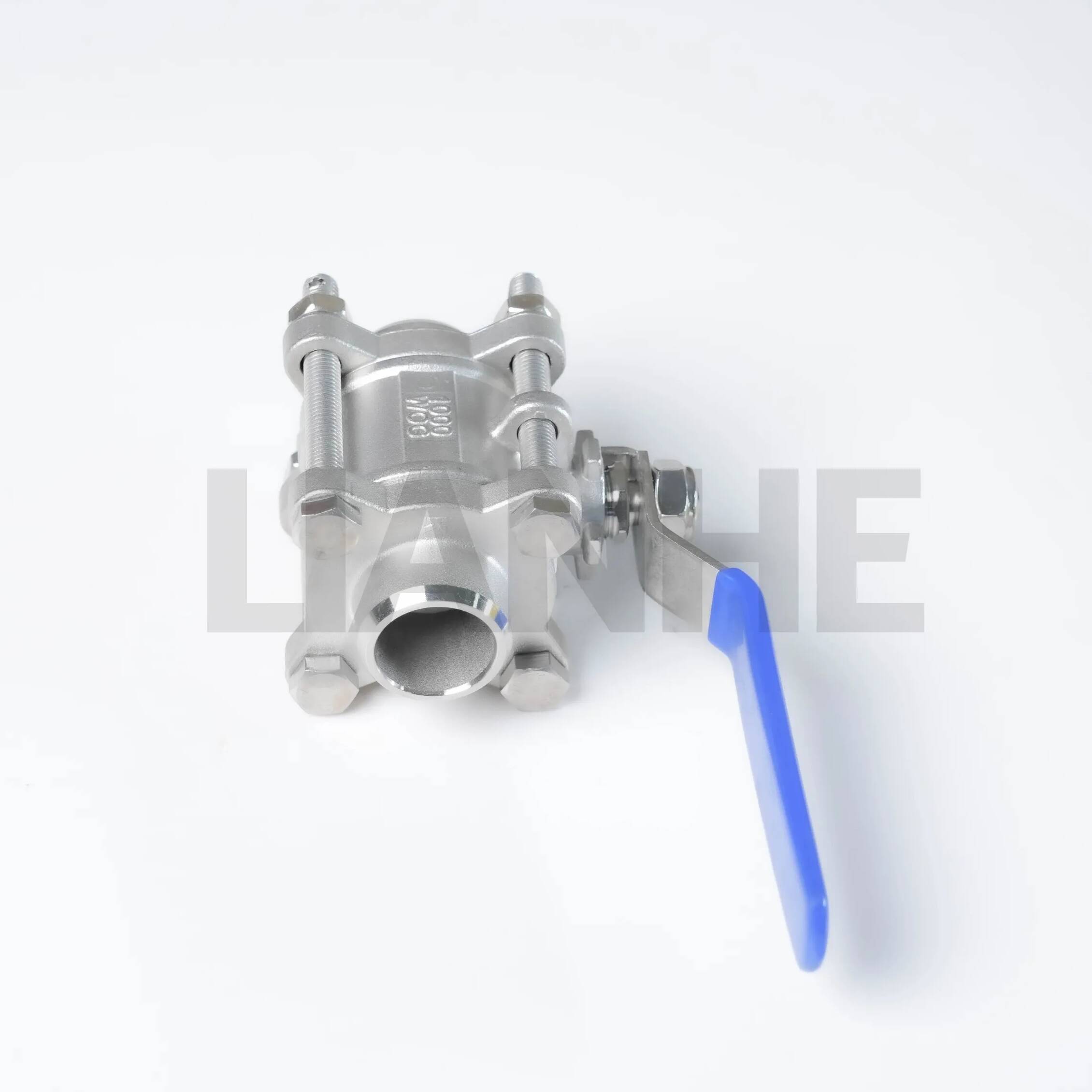

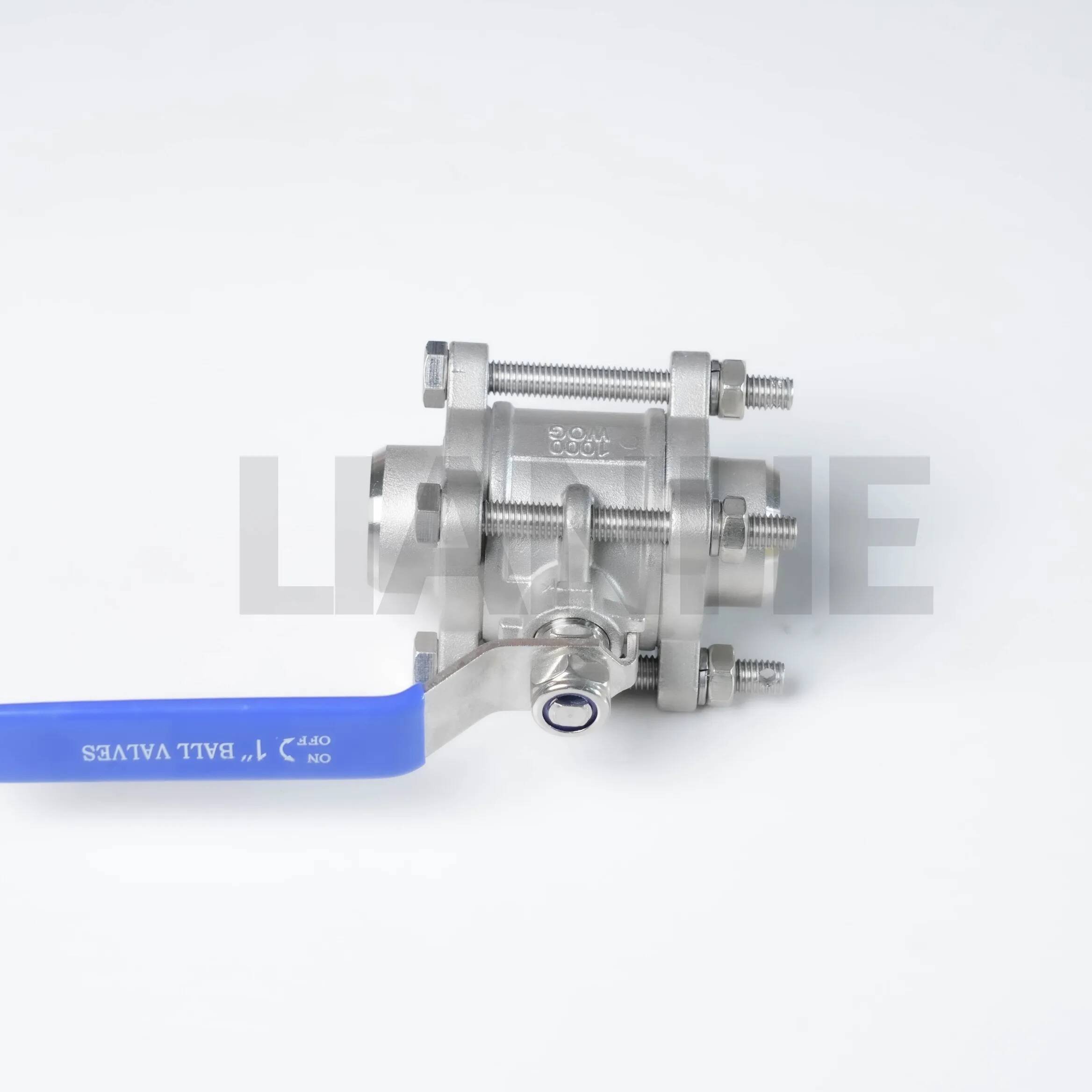

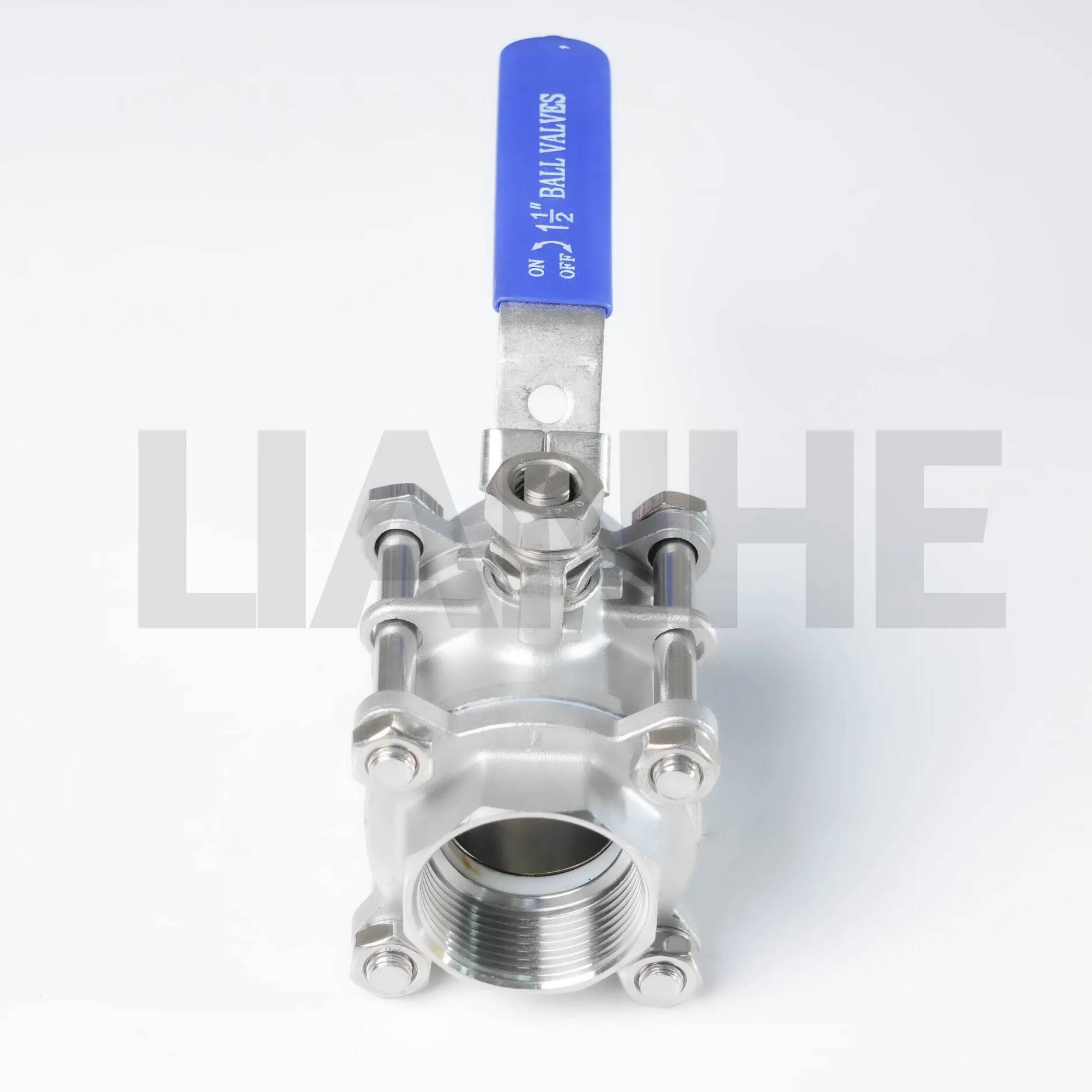

The Industrial-Grade 3-Piece Weld Ball Valve is a robust flow control solution designed for high-pressure, high-temperature industrial piping systems. Constructed from 304 or 316 stainless steel, this valve features a three-piece welded design with butt-weld ends (ANSI B16.25 compliant), ensuring leak-free performance and easy maintenance in harsh environments. The full-bore design minimizes pressure drop, while the precision-machined ball and seat provide bubble-tight shutoff, making it ideal for critical applications requiring reliability and durability.

Features

Heavy-Duty Construction:

Three-piece body with butt-weld ends (schedule 40/80) for secure pipeline integration, rated for working pressures up to 2,500 PSI (316 stainless steel) and temperatures from -46°C to 815°C (metal-to-metal seats).

ASTM A312 stainless steel body (304 for general use, 316 for corrosive media), with a minimum yield strength of 205 MPa and elongation ≥40% for impact resistance.

Optimal Flow Control:

Full-bore design (bore = pipe diameter) achieves Cv values 25% higher than reduced-bore valves, reducing turbulence and energy loss in high-flow systems.

PTFE, RPTFE, or metal-to-metal (stellite overlay) seats offer versatile sealing options, with bubble-tight shutoff certified to API 598 standards.

Maintenance Flexibility:

Split-body design allows easy replacement of internal components (ball, seat, stem) without disconnecting pipelines, reducing downtime by 60% during servicing.

Integral blowout-proof stem and anti-static spring (for gas applications) enhance safety and compliance with API 6D and ISO 14313.

Installation Compliance:

Butt-weld ends meet ANSI B16.25 and ASME B31.3 standards, suitable for GTAW (TIG) and GMAW (MIG) welding processes in critical pipelines.

Available in sizes 1/2" to 24" NPS, with custom configurations for special applications (e.g., cryogenic LNG lines).

Application

Ideal for industrial environments demanding precision flow control:

Oil & Gas Refineries: On/off control in crude oil pipelines, refinery process lines, and gas compression systems, compliant with NACE MR0175 for sour gas service.

Power Generation: High-pressure steam and feedwater lines in thermal and nuclear plants, with 316 stainless steel resisting chloride-induced corrosion in condenser circuits.

Chemical Processing: Handling aggressive media like sulfuric acid, sodium hydroxide, and solvents in reactors and distillation columns, meeting cGMP standards for cleanable surfaces.

Marine Engineering: Seawater cooling systems and offshore platform piping, with 316 stainless steel enduring saltwater exposure and high-vibration environments.

FAQ

Q: Can this valve be used for throttling applications?

A: No, ball valves are designed for on/off control. For throttling, consider a globe valve or control valve with appropriate trim.

Q: What is the recommended welding procedure for butt-weld ends?

A: Use GTAW (TIG) with 308L/316L filler wire, ensuring preheating (for thick walls) and post-weld heat treatment as per ASME BPVC Section IX.

Q: How often should the seat be inspected in abrasive media applications?

A: Monthly visual inspection via borescope; replace seats if signs of wear (e.g., scoring, erosion) are detected to maintain shutoff integrity.

Q: Are fire-safe designs available for flammable media?

A: Yes, optional fire-safe construction (API 607 compliant) with graphite packing and metal-to-metal seats for emergency shutdown systems in petrochemical plants.
