Pneumatic-Actuated 3-Piece Thread Ball Valve for Industrial Automation
  • Pneumatic-Actuated 3-Piece Thread Ball Valve for Industrial AutomationPneumatic-Actuated 3-Piece Thread Ball Valve for Industrial Automation
  • Pneumatic-Actuated 3-Piece Thread Ball Valve for Industrial AutomationPneumatic-Actuated 3-Piece Thread Ball Valve for Industrial Automation
  • Pneumatic-Actuated 3-Piece Thread Ball Valve for Industrial AutomationPneumatic-Actuated 3-Piece Thread Ball Valve for Industrial Automation

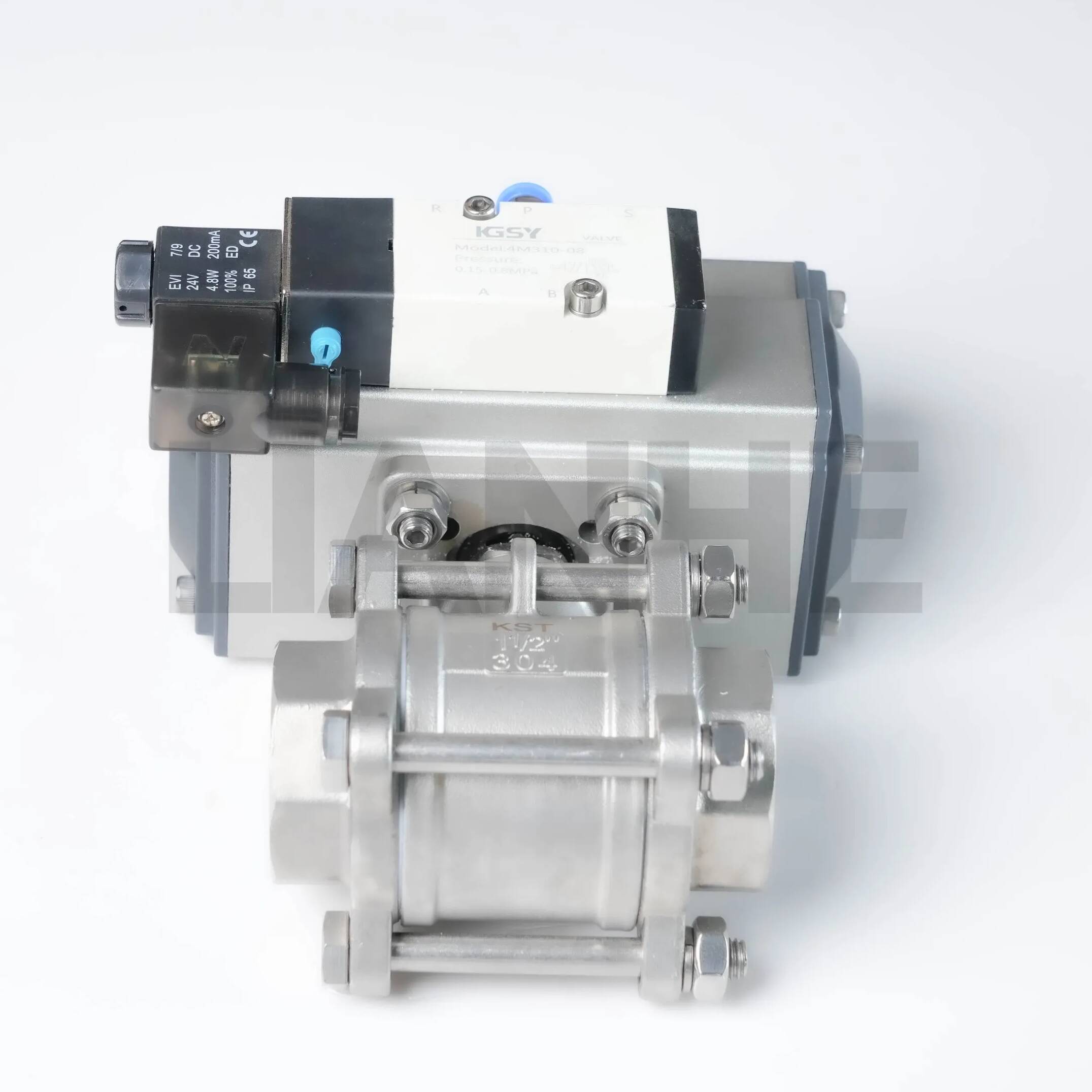

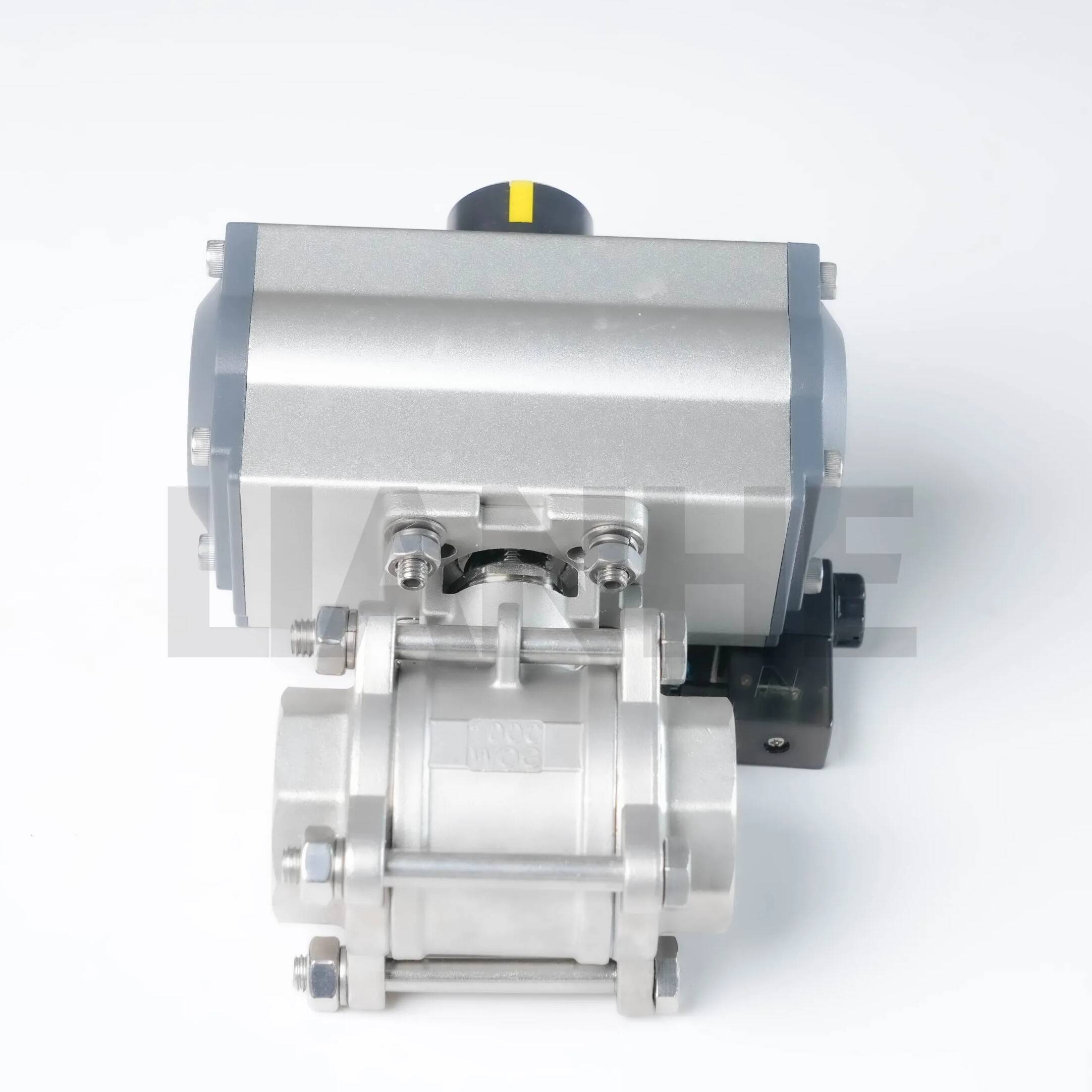

Pneumatic-Actuated 3-Piece Thread Ball Valve for Industrial Automation

Pneumatic-Actuated 3-Piece Thread Ball Valve is intended for quarter-turn on/off control in a compatible piping system. Confirm the actuator type and control requirements, thread form, valve size, material grade and pressure rating for the specified service. Final specifications are subject to the approved drawing and quotation.


    Overview


    The Pneumatic-Actuated 3-Piece Thread Ball Valve is a high-reliability flow control solution designed for fast, efficient operation in industrial automation systems. Constructed from 316 stainless steel, this valve features NPT threads (ANSI B1.20.1) and a pneumatic actuator, providing rapid 90° quarter-turn motion for on/off control in harsh, corrosive environments.


    Features


    Pneumatic Actuation Advantages:

    Double-acting or spring-return pneumatic actuator (5-8 bar air pressure), offering fail-safe operation (spring-return closes/opens on air loss) and cycle times ≤3 seconds for 2" valves.

    ISO 5211 mounting platform ensures compatibility with global actuator brands (e.g., Festo, SMC), with optional positioners for proportional flow control.

    Corrosion-Resistant Design:

    316 stainless steel body (ASTM A316) with 3.5% molybdenum content, resisting chloride pitting in marine and chemical environments, with a passivated surface extending service life by 30%.

    PTFE seat with anti-extrusion ring provides bubble-tight shutoff (API 598) in temperatures from -40°C to 260°C (RPTFE seat).

    Precision Threaded Connections:

    NPT male/female threads for secure pipe attachment, compatible with schedule 80 pipes and heavy-duty fittings, torque-rated to 80 N·m for 2" valves to withstand actuator forces.

    Reinforced body thickness at thread junctions (1.3x standard) prevents deformation under high-cycle pneumatic operation.

    Safety & Compliance:

    Anti-static device (spring-loaded) ensures electrical continuity for gas applications, reducing static discharge risks in flammable environments.

    Compliant with NACE MR0175 for sour gas service and ATEX/IECEx for use in explosive atmospheres (Zone 1/21), with optional flame arrestor kits.


    Application


    Ideal for high-speed, high-reliability industrial automation:

    Oil & Gas Upstream: Quick shutoff in wellhead control systems and chemical injection lines, with 316 stainless steel resisting H2S corrosion in sour gas fields.

    Food & Beverage: Hygienic flow control in pasteurization lines and CIP (Clean-in-Place) systems, meeting 3-A Sanitary Standards for direct food contact.

    Power Generation: Pneumatic control of steam traps and condensate lines in combined cycle plants, with fast actuation reducing pressure surges in turbine systems.

    Aerospace Ground Support: Fuel and hydraulic fluid control in aircraft maintenance facilities, with pneumatic operation ensuring fail-safe performance in high-altitude environments.


    FAQ


    Q: What air pressure is required for the actuator?

    A: Standard operation at 6 bar; minimum 5 bar, maximum 10 bar. Use a pressure regulator to maintain consistent performance.

    Q: Can the valve be used in vacuum systems?

    A: Yes, the PTFE seat provides reliable sealing down to 29" Hg vacuum, though metal-to-metal seats are recommended for extreme vacuum conditions.

    Q: How to prevent actuator corrosion in coastal environments?

    A: Choose an actuator with epoxy-painted aluminum body or stainless steel components, and install a coalescing air filter to remove moisture and salt particles.

    Q: What is the recommended air filter size for the actuator?

    A: Use a 5μm rated filter to protect the actuator from particulate contamination, ensuring smooth operation and extended service life.
