Stainless Steel 1pc Thread Ball Valve

Stainless Steel 1pc Thread Ball Valve
Function: Provides quarter-turn on/off flow control.
Connection: Threaded ends; confirm thread form and size.
Listed size range: 1/4"–4" (DN8–DN100); verify the selected configuration.
Pressure, temperature and material are subject to the approved drawing and quotation.

    Overview

    The Stainless Steel 1pc Thread Ball Valve is an accessory for pipelines. It closes tightly with only 90 degrees of rotation and a small turning torque. The inner cavity of the valve body can ensure the direct passage of the medium. Its valve body can be integral or combined. The Stainless Steel 1pc Thread Ball Valve can be used to control the flow of various types of fluids such as air, water, steam, various corrosive media, slurries, oils, liquid metals and radioactive media.


    The main feature of the Stainless Steel 1pc Thread Ball Valve is its inherent compactness and ease of operation and maintenance. Its sealing surface and spherical surface are often in a closed state, so it is not easily eroded by the medium and is easy to operate and maintain. In addition, the inner wall is polished smooth and has a low flow resistance, so there is no need to worry about it affecting the flow rate of the medium in the pipe.


    Specification

    Size: 1/4"to 4"(DN8-DN100)

    Max Pressure: 1000WOG

    End connection: Female Threaded,BS21(BSPT & BSP), ANSI B2.1(NPT), DIN259/2999,ISO 228

    Port: Full Bore & Reduced Bore

    Casting process: Investment Casting Body

    Processing technology: CNC lathe processing.

    Blow-out proof stem

    Operation: Manual(Lock Lever Handle Avaliable)

    Material: Valve Body-SS304(CF8,SUS304,1.4308),SS316(CF8M,SUS316,1.4408), SS304L,SS316L

    Handles and Nuts: SS201,SS304,SS316(According to customer needs)

    Brand: LIANHE;

    HS Code: 8481804090

    OEM & ODM both acceptable.

    Certificates: GB/T19001-2016 ISO9001:2015 、CE


    Test Certificates:

    EN 10204/3.1B-MTC

    Raw material inspection certificate.

    100% Radiography Test Report

    Hydraulic seal test report.

    Thread inspection report

    Third Party Inspection Report, etc


    QC:

    1. All raw materials will be inspected as soon as they arrive in our factory.

    2. All parts, logos and all details that will be checked during the production process.

    3. Check all packaging details during production.

    4. After completion, we check all production quality and packaging at the final inspection.

    5. Each process should be checked by relevant QC personnel.


    Shipping

    Payment Term: 30%TT Deposit + Delivery payment balance. ( Note: Specific can be discussed.) Support T/T, Western Union, Paypal Etc payment.

    Shipping Terms: EXW(WENZHOU), FOB(Ningbo, Shanghai Port),CFR,CIF,DDP,DDU. We support international express transportation by land, sea and air

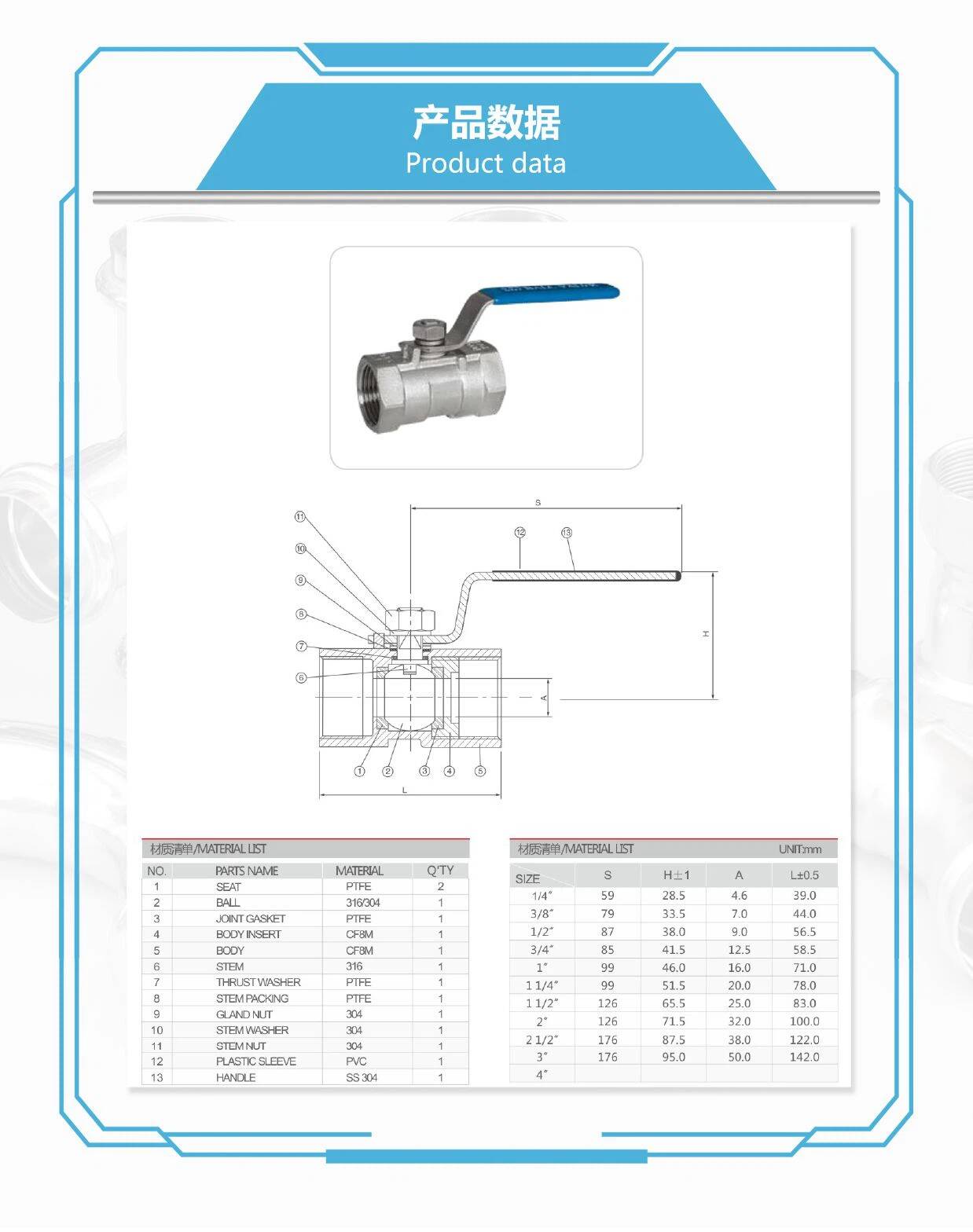

    2-01 Data Photo(001)


    FAQ:

    What are the production facilities?

    3 Automatic CNC Lathes, 25 CNC Lathes, 5 Tapping Machines, 1 Laser Cutting Machine, 3 Cutting Machine, 3 Polishing Machines, 1 Marking Machine. 1 Packaging Machine and other equipment.

    Is the sample available?

    Yes, we are providing free of samples are available for you to check the quality once confirmed after 1~2day.


    Our Service

    1. We are familiar with different markets and can meet special requirements.

    2. We are a real manufacturer, our own factory is located in Wenzhou, China

    3. We have a strong professional technical team to ensure that the best quality products are produced.

    4. Our special cost control system ensures to provide the most favorable price.

    5. We have rich experience in outdoor equipment.

    We are the factory, we can guarantee our price is first-hand, high quality and competitive price.

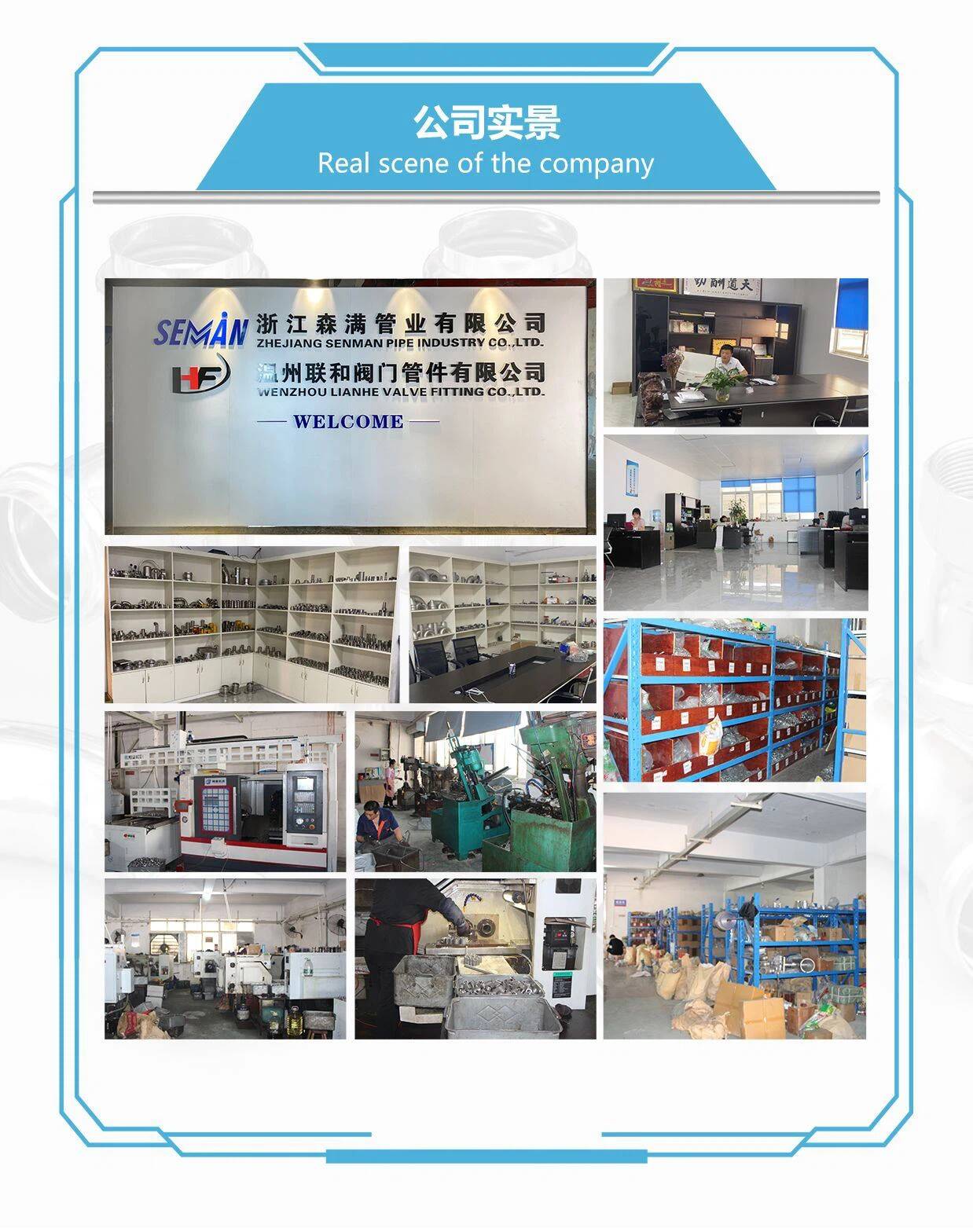

    COMPANY PHOTO(001)

    Certificate Photo(001)

    Thread Valve Fitting QC(001)

    1-01~21 2-01~10 THREAD FITTING VALVE PACKING PHOTO(001)

    Shipping Photo(001)
